Application gateway not added x-forwarded-proto request header

Will Ang 20

Application gateway front listener listen https, the backend is a container app, the backend setting listen http, when use custom domain of application gateway public ip to visit the container app web application encounter the following error, and the application trace shoulds x-forwarded-proto, x-forwarded-for, x-forwarded-host are all null,

jquery.min.js:2 Mixed Content: The page at 'https://simpleregimen.com/login.html?requestedUrl=http%3A%2F%2Fsimpleregimen.com%2Fem' was loaded over HTTPS, but requested an insecure XMLHttpRequest endpoint 'http://simpleregimen.com/em?_=1727336261383'. This request has been blocked; the content must be served over HTTPS."

3ccf2f8cb5e47f2ee5ee4c45f9e62afa

it seems Application gateway not worked as the document say

Application gateway inserts six additional headers to all requests before it forwards the requests to the backend. These headers are x-forwarded-for, x-forwarded-port, x-forwarded-proto, x-original-host, x-original-url, and x-appgw-trace-id. The format for x-forwarded-for header is a comma-separated list of IP:port. https://learn.microsoft.com/en-us/azure/application-gateway/how-application-gateway-works#modifications-to-the-request

I tried add rewrite set to the rule, but still not work, is this a bug in the application gateway or does it require additional configuration? Thanks!

Rohith Vinnakota 1,085 Reputation points Microsoft Vendor

2024-09-30T23:41:59.7833333+00:00

Hi Will Ang,

Welcome to the Microsoft Q&A Platform! Thank you for asking your question here.

This could be related to a site serving a mix of HTTPS and HTTP Content

Configure the end-to-end TLS encryption.

Alternatively, you can consider using Azure Front Door which provides the HTTPS capability.

If you have any further concerns, please do not hesitate to contact us.

We are pleased to help you.

If the information is helpful, please click on "Upvote" and "Accept Answer" so that it would be helpful to other community members.
Rohith Vinnakota 1,085 Reputation points Microsoft Vendor

2024-10-01T20:20:50.9066667+00:00

Hi Will Ang,

Greetings of the day!!

Just checking in to see if you had a chance to see my response to your question. Please tell us if it was helpful and feel free to reach out to us if you have any queries.

Thanks,

Rohith
Rohith Vinnakota 1,085 Reputation points Microsoft Vendor

2024-10-07T21:43:59.3+00:00

Hi Will Ang,

Greetings of the day!!

Just checking in to see if you had a chance to see my response to your question. Please tell us if it was helpful and feel free to reach out to us if you have any queries.

Thanks,

Rohith
Will Ang 20 Reputation points

2024-10-08T12:21:14.0166667+00:00
I apologize, I just returned from my vacation. Thank you for your reply. I understand that end-to-end TLS can solve the aforementioned problem, but I do not want to use HTTPS in the backend settings of the app gateway because the ingress of the backend container app is restricted within the virtual network. I believe TLS termination is more suitable. I have added a certificate to the listener in the application gateway as per the documentation, which should have activated TLS termination. Therefore, my question is why the app gateway has not added the x-forwarded-proto and other request headers as described in the documentation?

Here are the specific configuration details(sorry, there is no deployment at the moment, so I will describe the specific configuration in text):

Container app ingress limit to vnet allow insecure is true
session sticky is enabled
add a custom domain, let's call it test.com, without binding certificate

Application gateway backend pool use container app's fqdn, let's call it app.envbasedomain

Application gateway listener https

Application gateway backend setting http session sticky is enabled override host name with container app's custom domain
Rohith Vinnakota 1,085 Reputation points Microsoft Vendor

2024-10-09T00:59:58.9966667+00:00
Hi Will Ang,

Good day!

Sometimes, misconfigurations in the listener, backend pool, or HTTP settings can cause headers not to be added.

Ensure that your backend services are configured to accept and process these headers. Sometimes, the backend might strip out or ignore these headers if not configured correctly.

Thanks,

Rohith
Rohith Vinnakota 1,085 Reputation points Microsoft Vendor

2024-10-09T20:52:58.9366667+00:00

Hi Will Ang,

Greetings of the day!!

Just checking in to see if you had a chance to see my response to your question. Please tell us if it was helpful and feel free to reach out to us if you have any queries.

Thanks,

Rohith
Rohith Vinnakota 1,085 Reputation points Microsoft Vendor

2024-10-10T22:36:45.6933333+00:00

Hi Will Ang,

Greetings of the day!!

Just checking in to see if you had a chance to see my response to your question. Please tell us if it was helpful and feel free to reach out to us if you have any queries.

Thanks,

Rohith
Will Ang 20 Reputation points

2024-10-11T13:58:27.8566667+00:00

Hi, Rohith Vinnakota

Thank you very much for your reply!

I wrote a simple Spring Boot demo app, built it into a Docker image, and deployed it as a container app with an application gateway on Azure. According to the logs from the container app, headers like x-forwarded-proto are still null. I can't figure out where the configuration might be wrong. Below are the specific configuration screenshots. Could you help me determine where the configuration might be incorrect? I would be extremely grateful, as this issue is driving me crazy.

Container app ingress:

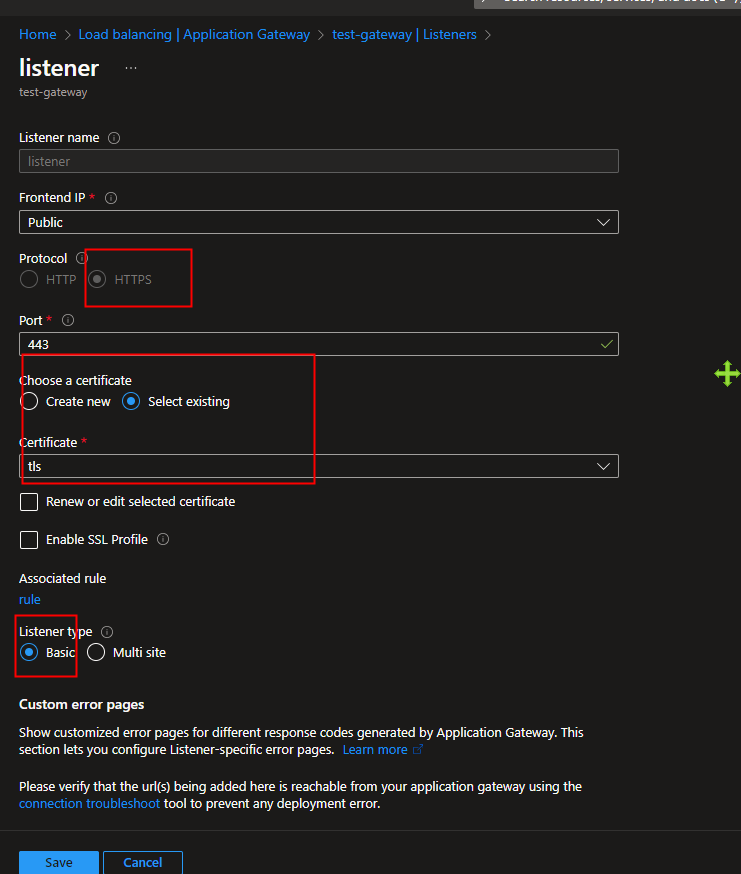

application gateway listener:

application gateway backend pool:

application gateway backend setting:

container app log when doing redirect:
Rohith Vinnakota 1,085 Reputation points Microsoft Vendor

2024-10-17T19:55:56.8+00:00

Hi Will Ang,

Sorry for delay.
Can you verify that the application gateway can reach the backend server (container apps)?

Thanks,

Rohith
Rohith Vinnakota 1,085 Reputation points Microsoft Vendor

2024-10-18T20:22:28.7266667+00:00

Hi Will Ang,

Good day!

Can you verify that the application gateway can reach the backend server (container apps)?

Thanks,

Rohith
Will Ang 20 Reputation points

2024-10-22T11:21:33.9566667+00:00

@Rohith Vinnakota

Hi, Rohith Vinnakota

Yes, application gateway can reach the backend server (container apps), and log have already printed in the container app when visit container app by application gateway public ip.
Rohith Vinnakota 1,085 Reputation points Microsoft Vendor

2024-10-23T22:27:08.3433333+00:00

Hi Will Ang,

Thank you for getting back

Make sure that the application gateway is configured to forward the like x-forwarded-proto header to the backend. You can do this by checking the HTTP settings of the application gateway and making sure that the "Pick host name from backend address" option is selected
Thanks,

I hope this helps.

Rohith
Rohith Vinnakota 1,085 Reputation points Microsoft Vendor

2024-10-24T18:57:04.1866667+00:00

Hi Will Ang,

Greetings of the day!!

Just checking in to see if you had a chance to see my response to your question. Please tell us if it was helpful and feel free to reach out to us if you have any queries.

Thanks,

Rohith
Rohith Vinnakota 1,085 Reputation points Microsoft Vendor

2024-10-25T20:25:04.42+00:00

Hi Will Ang,

Greetings of the day!!

Just checking in to see if you had a chance to see my response to your question. Please tell us if it was helpful and feel free to reach out to us if you have any queries.

Thanks,

Rohith
