How to Fix Synchronization issue from Appliance to Cache storage Account

iqbwl 25 Reputation points
2024-10-10T14:00:48.02+00:00

Hello,

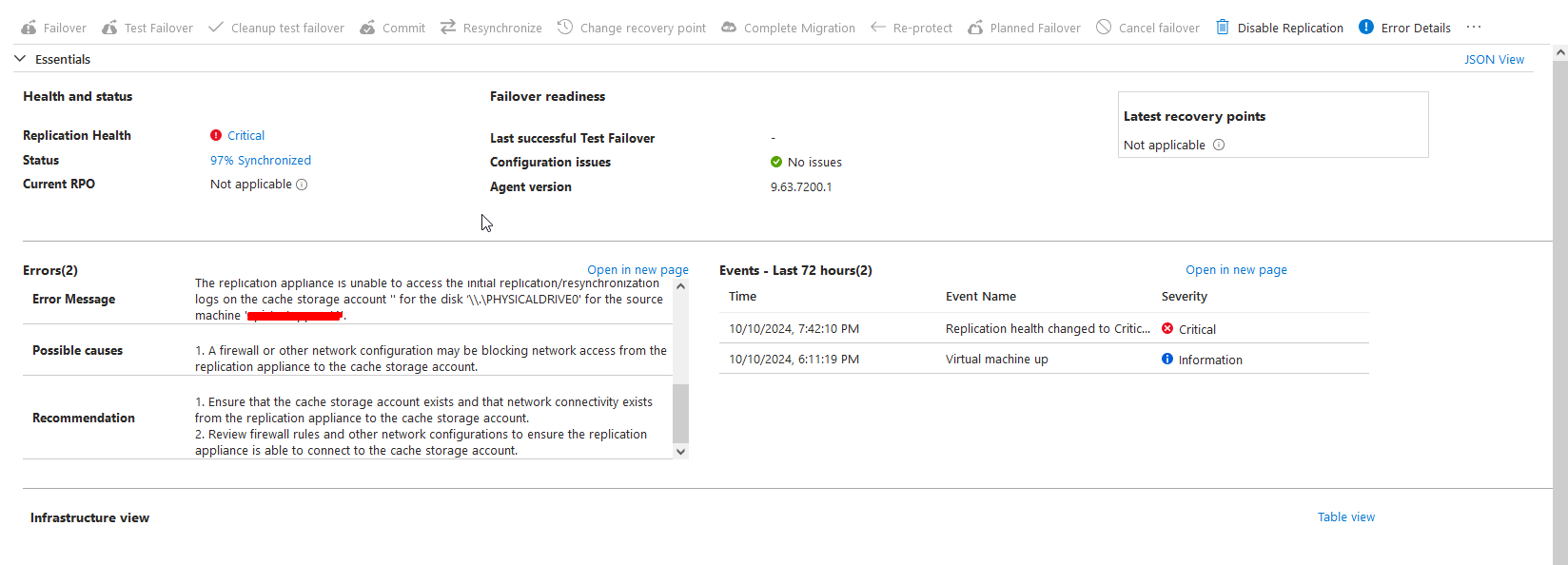

How do I fix the synchronization issues listed in the image below.

  • For the firewall, I have made sure there is no block, either appliance or cache storage account.

Screenshot_9Screenshot_8

Screenshot_10

This issue occurred after I initiated a VM failover from VMWare (host1) to Azure, then reprotected the VM to VMWare (host2) with VMWare (host1) turned off.

Thanks,

Azure Storage Accounts
Azure Storage Accounts
Globally unique resources that provide access to data management services and serve as the parent namespace for the services.
3,277 questions
{count} votes

Accepted answer
  1. Keshavulu Dasari 2,095 Reputation points Microsoft Vendor
    2024-10-10T20:03:25.6833333+00:00

    Hi iqbwl,
    Welcome to Microsoft Q&A Platform. Thank you for posting your query here!
    Ensure that the source VM (VMWare host2) can communicate with the Azure storage account. Check for any network issues that might be causing the disconnection.
    When you do your failover, the replicated data already exists in the secondary and this is what is converted to LRS. When you go to convert from LRS to GRS to go back the other way, the data needs to be re-replicated which can take some time and depends on a number of factors that are called out in the doc here: The time and cost of failing over.

    These factors include:

    • The number and size of the objects in the storage account. Replicating many small objects can take longer than replicating fewer and larger objects.
    • The available resources for background replication, such as CPU, memory, disk, and WAN capacity. Live traffic takes priority over geo replication.
    • The number of snapshots per blob, if applicable.
    • The data partitioning strategy, if your storage account contains tables. The replication process can't scale beyond the number of partition keys that you use.

    Unplanned failover replicates a true disaster simulation where the primary region would be impacted or potentially lost, as a result, the data is the primary region is deleted and the account becomes LRS (since the geo-paired region is "unavailable"). When you re-enable GRS/RA-GRS there is a full data copy being replicated back to the previous primary region (since it is now deleted).

    Planned failover would be a great option for you in the future if you have concerns with the timeline to re-enable GRS.

    Hope this information helps. Let me know in the comments if you have any questions.


    Please do not forget to "Accept the answer” and “up-vote” wherever the information provided helps you, this can be beneficial to other community members.
