Debugging in MFC code

Question

Debugging in MFC code

Flaviu_ 1,091

I have the following code:

CDBVariant var;
std::unique_ptr<CRecordset> recordset = ... initialized
recordset->GetFieldValue(i, var);

And I got an error:

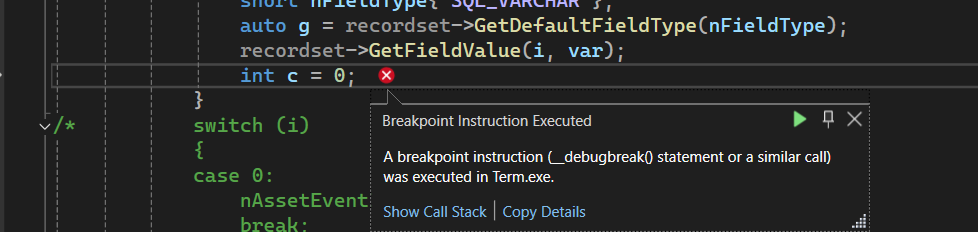

User's image

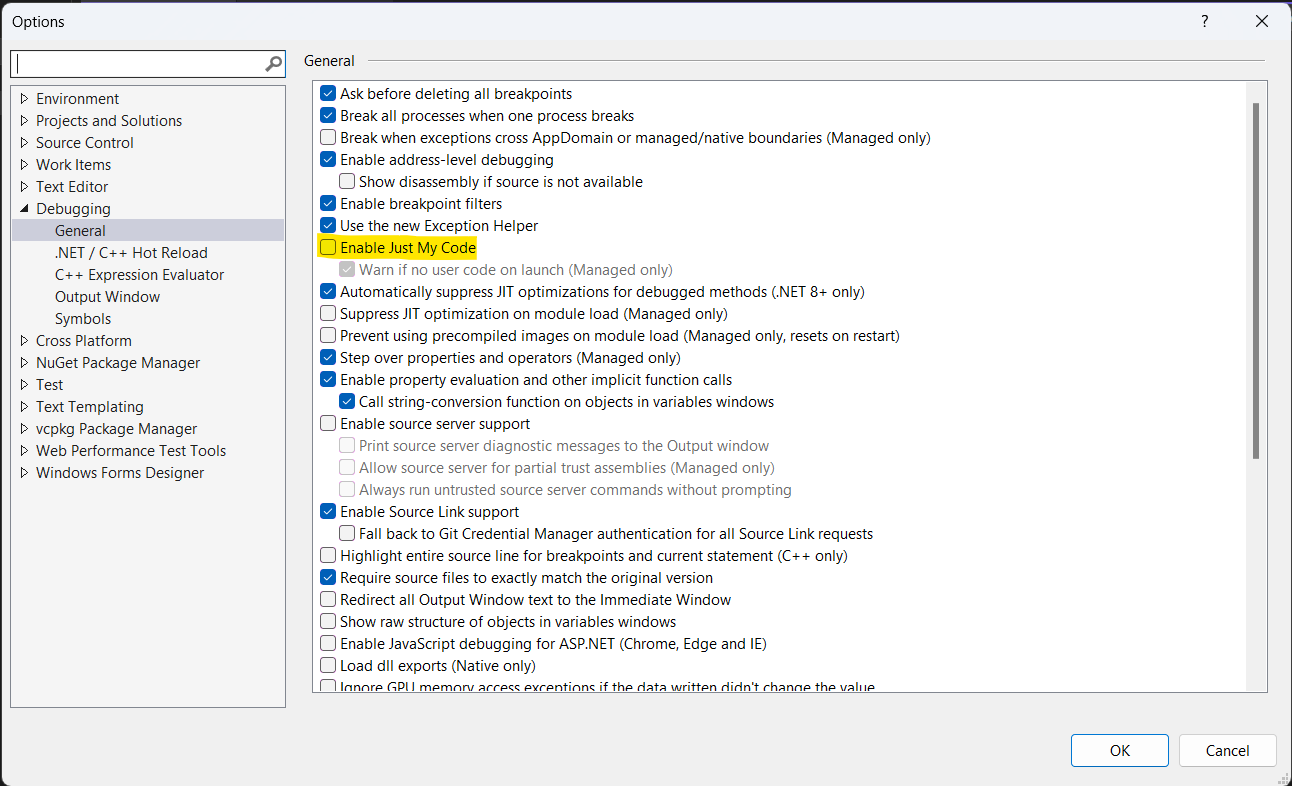

I want to explore what is happen in CRecordset::GetFieldValue method, using debugging step by step: F10. But I cannot reach MFC CRecordset::GetFieldValue code at all, with or without this option checked:

User's image

The question is: how can do the debugging inside MFC code? I am using VS2022 on a MFC MDI app.

RLWA32 51,456 Reputation points

2024-10-14T09:51:07.6233333+00:00

When the assertion error dialog appears what happens when you click "Retry"?

Flaviu_ 1,091

User's image

Program: C:\Windows\SYSTEM32\mfc140d.dll
File: D:\a\_work\1\s\src\vctools\VC7Libs\Ship\ATLMFC\Include\atlsimpstr.h
Line: 869
Expression: nLength <= GetData()->nAllocLength
For information on how your program can cause an assertion
failure, see the Visual C++ documentation on asserts.
(Press Retry to debug the application)
A breakpoint instruction (__debugbreak() statement or a similar call) was executed in MyApp.exe.

RLWA32 51,456 Reputation points

2024-10-14T14:13:03.8666667+00:00

Have you tried using the Call Stack to see where the problem originated?
Flaviu_ 1,091 Reputation points

2024-10-14T14:23:18.5+00:00

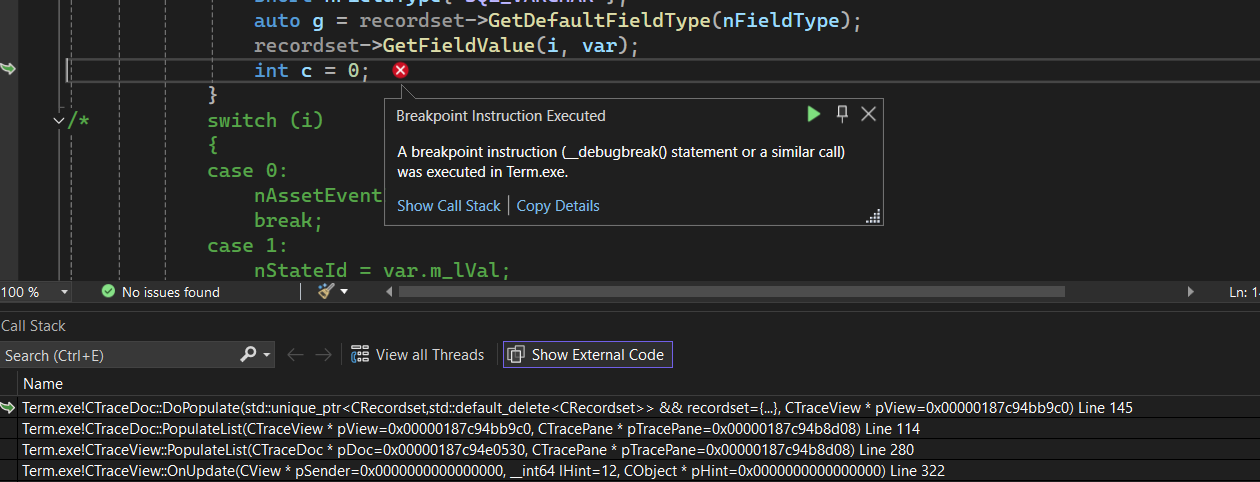

Of course:
RLWA32 51,456 Reputation points

2024-10-14T14:36:51.9033333+00:00

Well, did you configure symbol usage as I mentioned earlier?
Minxin Yu 13,506 Reputation points Microsoft External Staff

2024-10-15T02:40:44.5033333+00:00

Can you provide an example that reproduces the problem?
RLWA32 51,456 Reputation points

2024-10-21T06:33:50.4633333+00:00

@Flaviu_ Its been a while since we've heard from you. Anything new with this issue?
Flaviu_ 1,091 Reputation points

2024-10-21T14:56:29.25+00:00

So, the VS does not enter in MFC code, either if "Just Enable My Code" is unchecked or not. I suspect this is happen because I am working on a company laptop and I am not administrator?! I don't know for sure ...

For other issue, why I got that error at GetFieldValue method, is because the application does not select the database at the first connection, but this is follow to test though ...

Thnak you a lot!
RLWA32 51,456 Reputation points

2024-10-21T19:56:23.83+00:00

FYI, I have always been able to debug into MFC source code using symbol files when running without elevated administrator privileges.
Flaviu_ 1,091 Reputation points

2024-10-24T15:23:49.2233333+00:00

@RLWA32 Why VS 2022 still not going through VS code with or without Enable Just My code option, remain an enigma :D

And that piece of code, GetFieldValue, got that error because of ODBC driver (I connected on DB via OBDC), the ODBC driver doesn't support MultiByte Character Set, just UNICODE.

Answer accepted by question author

0 additional answers

Your answer

RLWA32 51,456 Reputation points

2024-10-14T09:51:07.6233333+00:00

When the assertion error dialog appears what happens when you click "Retry"?
Flaviu_ 1,091 Reputation points

2024-10-14T14:00:55.9066667+00:00

Program: C:\Windows\SYSTEM32\mfc140d.dll File: D:\a\_work\1\s\src\vctools\VC7Libs\Ship\ATLMFC\Include\atlsimpstr.h Line: 869 Expression: nLength <= GetData()->nAllocLength For information on how your program can cause an assertion failure, see the Visual C++ documentation on asserts. (Press Retry to debug the application) A breakpoint instruction (__debugbreak() statement or a similar call) was executed in MyApp.exe.
RLWA32 51,456 Reputation points

2024-10-14T14:13:03.8666667+00:00

Have you tried using the Call Stack to see where the problem originated?
Flaviu_ 1,091 Reputation points

2024-10-14T14:23:18.5+00:00

Of course:
RLWA32 51,456 Reputation points

2024-10-14T14:36:51.9033333+00:00

Well, did you configure symbol usage as I mentioned earlier?
Minxin Yu 13,506 Reputation points Microsoft External Staff

2024-10-15T02:40:44.5033333+00:00

Can you provide an example that reproduces the problem?
RLWA32 51,456 Reputation points

2024-10-21T06:33:50.4633333+00:00

@Flaviu_ Its been a while since we've heard from you. Anything new with this issue?
Flaviu_ 1,091 Reputation points

2024-10-21T14:56:29.25+00:00

So, the VS does not enter in MFC code, either if "Just Enable My Code" is unchecked or not. I suspect this is happen because I am working on a company laptop and I am not administrator?! I don't know for sure ...

For other issue, why I got that error at GetFieldValue method, is because the application does not select the database at the first connection, but this is follow to test though ...

Thnak you a lot!
RLWA32 51,456 Reputation points

2024-10-21T19:56:23.83+00:00

FYI, I have always been able to debug into MFC source code using symbol files when running without elevated administrator privileges.
Flaviu_ 1,091 Reputation points

2024-10-24T15:23:49.2233333+00:00

@RLWA32 Why VS 2022 still not going through VS code with or without Enable Just My code option, remain an enigma :D

And that piece of code, GetFieldValue, got that error because of ODBC driver (I connected on DB via OBDC), the ODBC driver doesn't support MultiByte Character Set, just UNICODE.

Answer 1

RLWA32 51,456

In my VS2022 I can step into MFC functions without a problem. I have set the VS2022 debugging options to use the Microsoft symbol server and load symbols for all modules.

RLWA32 51,456 Reputation points

2024-10-14T14:31:56.48+00:00

@Flaviu_ I reproduced the MFC assertion on my system -

Click "Retry" takes me into the VS2022 debugger -

Now look at the call stack -

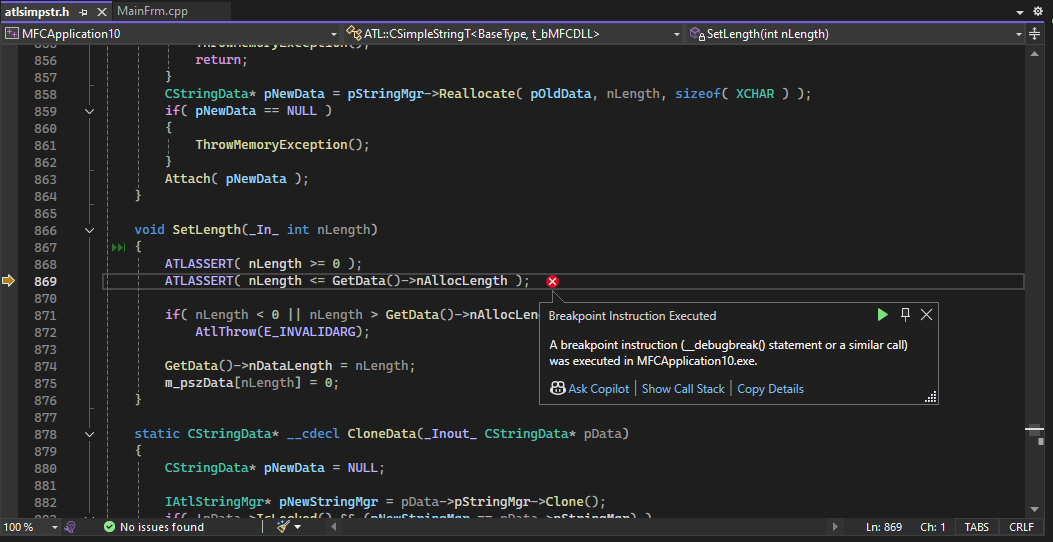

And here is the source of the problem -
