Azure VM Data disk

Shanmugam s 5 Reputation points
2024-10-22T17:07:29.8933333+00:00

Hi

One of my colleagues' team has a requirement as below.

Consider a scenario where they have many Lazure Linux VMs. One VM can have 'n' no.of data disks. They want to find how many GB/memory used and how many GB are remaining for that particular data disk in portal. In metrics they could see only average for all of the disks (not for a single disk).

Please suggest the possibilities. Thanks in advance.

Azure Virtual Machines
Azure Virtual Machines
An Azure service that is used to provision Windows and Linux virtual machines.
7,986 questions
{count} votes

1 answer

Sort by: Most helpful
  1. deherman-MSFT 37,416 Reputation points Microsoft Employee
    2024-10-22T18:47:29.5966667+00:00

    @Shanmugam s

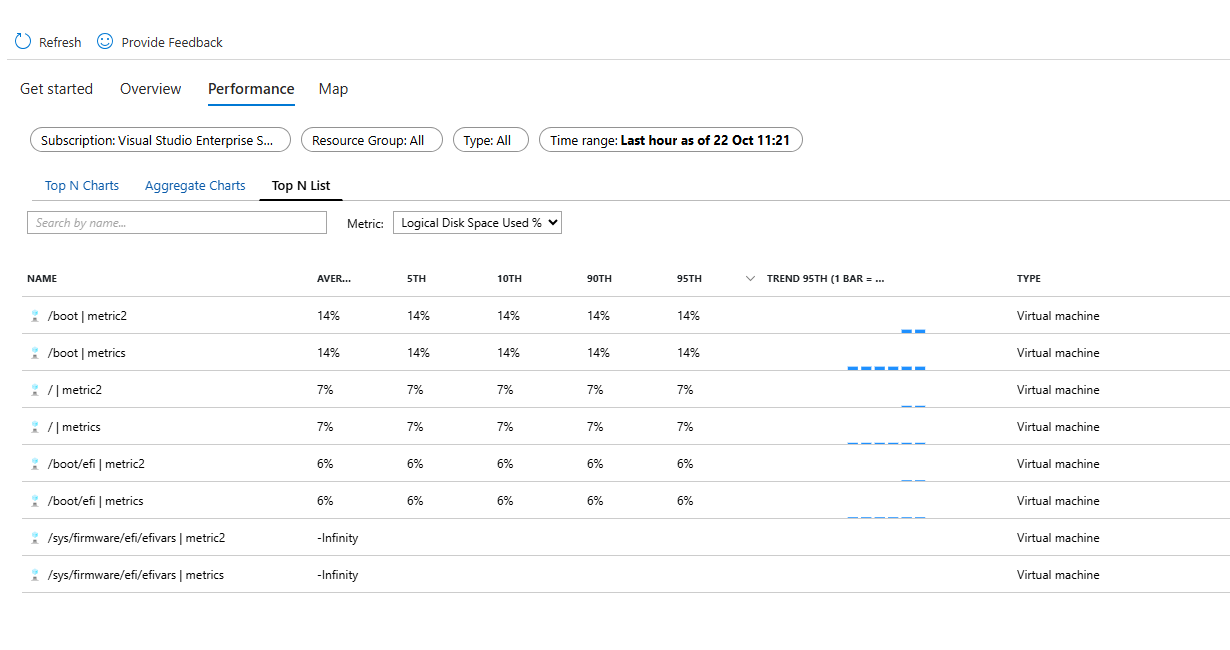

    If you have VM Insights enabled in Azure Monitor, you should have the necessary data collected to view the individual disks. Please note, in Linux these will be on a per partition basis. By default, you can already view the Logical Disk Space Used %. Navigate to VM under Insights in Monitor portal. Click Performance, Top N List, Select Logical Disk Space Used %.

    User's image

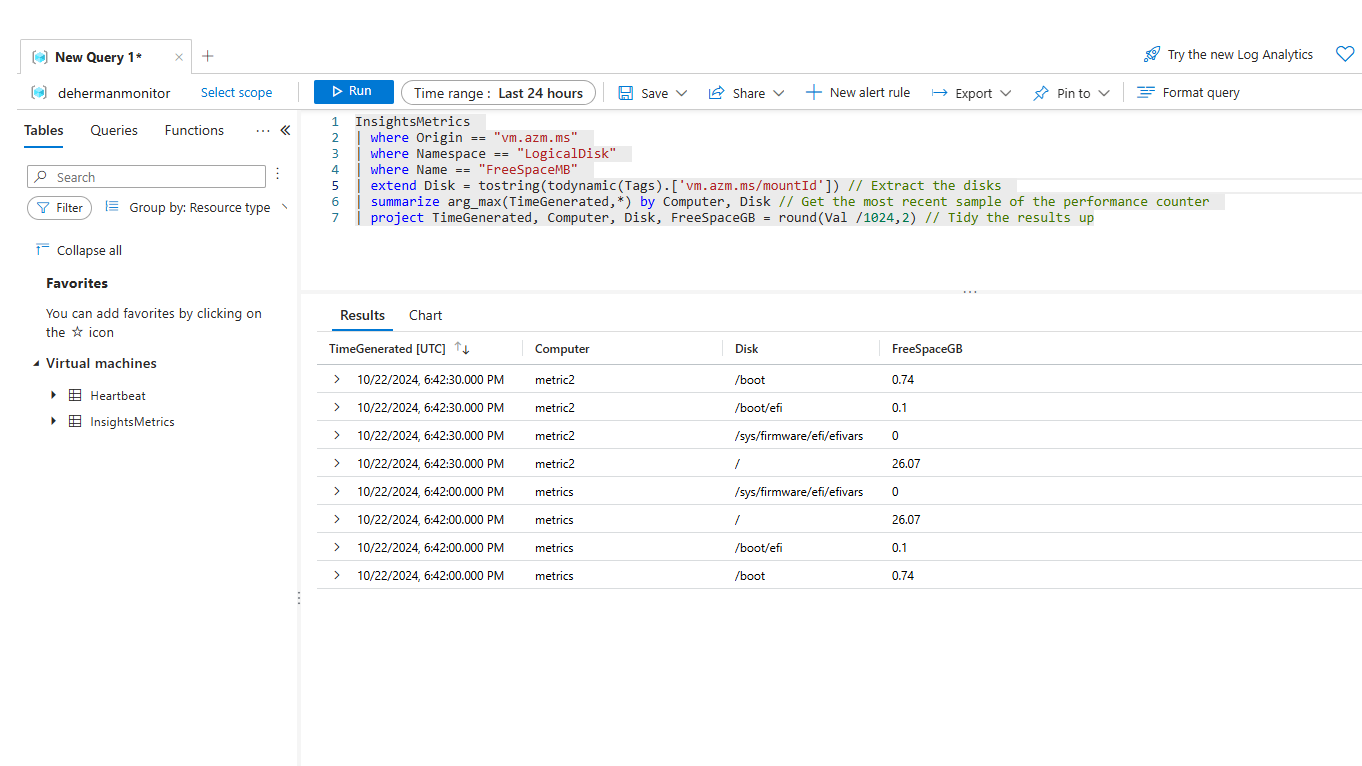

    If you wanted to get the actual amount of space left you can utilize the FreeSpaceMB metric in your Query and convert to GB.

    Example Query from previous post:

    InsightsMetrics
    | where Origin == "vm.azm.ms"
    | where Namespace == "LogicalDisk"
    | where Name == "FreeSpaceMB"
    | extend Disk = tostring(todynamic(Tags).['vm.azm.ms/mountId']) // Extract the disks
    | summarize arg_max(TimeGenerated,*) by Computer, Disk // Get the most recent sample of the performance counter
    | project TimeGenerated, Computer, Disk, FreeSpaceGB = round(Val /1024,2) // Tidy the results up


    User's image

    Hope this helps! Let me know if you still have questions or need further assistance.
