Teams toolkit deployment error

Antony Rex S 20

Hi all,

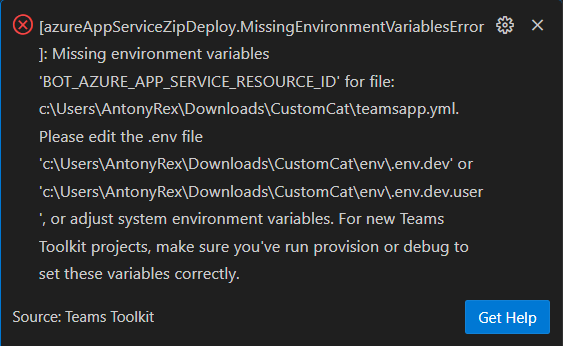

       I have created a new Chat bot in Azure open AI studio. Now I want to deploy it to on teams. By clicking Deploy button on vs code I receive some error 'Missing environment variables 'BOT_AZURE_APP_SERVICE_RESOURCE_ID'. Can anyone help me resolve the issue.I have attached the error message below.![vscode](/api/attachments/ed1bc385-85df-4a42-ab1e-04b863a3d82a?platform=QnA)

Accepted answer

1 additional answer

Your answer

Answer 1

Shree Hima Bindu Maganti 4,775 Microsoft External Staff Moderator

Hi @Antony Rex S ,

welcome to the Microsoft Q&A Platform!

The error message you're seeing indicates that the environment variable BOT_AZURE_APP_SERVICE_RESOURCE_ID is missing, which is required for deploying your Azure OpenAI chatbot to Microsoft Teams.
Check Environment Variables in the .env File:

Open your project folder and find the .env file.
Ensure the variable BOT_AZURE_APP_SERVICE_RESOURCE_ID is set correctly.
If missing, add it in the format:

BOT_AZURE_APP_SERVICE_RESOURCE_ID=<your-app-service-resource-id>

Retrieve App Service Resource ID:

Go to the Azure portal.
Navigate to App Services and select your chatbot service.
Copy the Resource ID from the Overview section and paste it into the .env file. Restart VS Code:
Close and reopen Visual Studio Code to ensure it picks up the updated environment variables.
Click the Deploy button to redeploy your app.
Check for Required Extensions:
Confirm that the Teams Toolkit and Bot Framework Extensions are installed in Visual Studio Code.
If the answer is helpful, please click "Accept Answer" and kindly upvote it.

Antony Rex S 20

Hi Shree Hima Bindu Maganti,

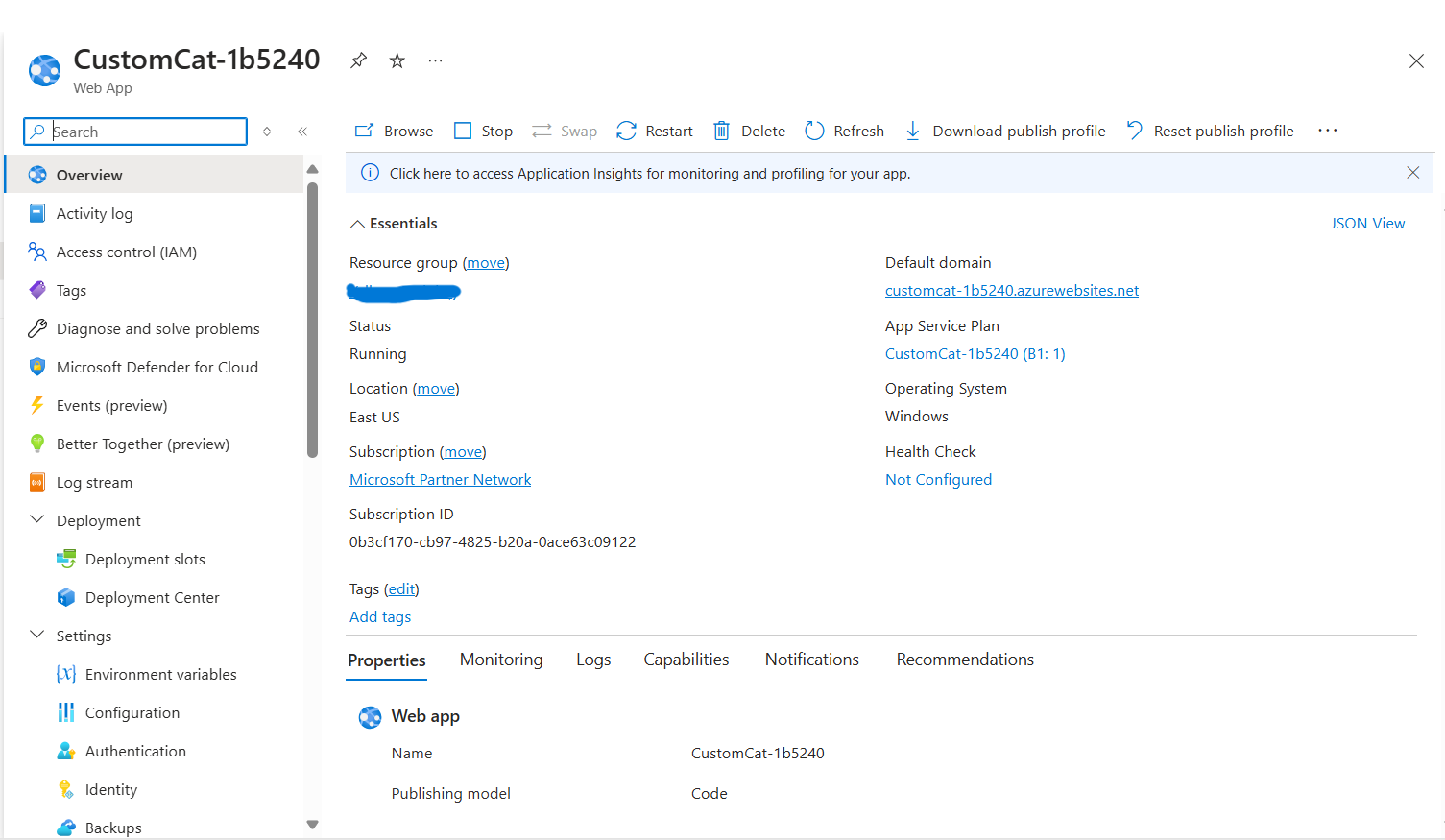

           Thank you for your response. As per your suggestion I need to take the resource ID from Azure App service. But I cannot able to see the resource field in tha overview tab.I have attched the snapshot below

Antony Rex S 20 Reputation points

2024-10-25T05:27:39.54+00:00
Shree Hima Bindu Maganti 4,775 Reputation points Microsoft External Staff Moderator

2024-10-25T07:42:11.4933333+00:00
Hi @Antony Rex S,
Thankyou for your response!
Once your App Service is created, you can find its Resource ID:

Navigate to Your App Service: In the Azure Portal, go to "App Services" and select the app you just created.

Access Properties: Click on the "Properties" tab in the left sidebar.

Locate Resource ID: In the Properties tab, you will see the "Resource ID" listed. It looks like this:
/subscriptions/{subscription-id}/resourceGroups/{resource-group-name}/providers/Microsoft.Web/sites/{app-service-name}
Shree Hima Bindu Maganti 4,775 Reputation points Microsoft External Staff Moderator

2024-10-28T01:10:39.8866667+00:00

Hi @Antony Rex S ,

Following up to see if you have chance to check my previous response and help us with requested information to check and assist you further on this.
Shree Hima Bindu Maganti 4,775 Reputation points Microsoft External Staff Moderator

2024-10-29T01:20:01.7133333+00:00

Hi @Antony Rex S ,

Following up to see if you have chance to check my previous response and help us with requested information to check and assist you further on this.
Antony Rex S 20 Reputation points

2024-10-29T05:31:11.4+00:00

Thank you Shree Hima Bindu Maganti. Now its working fine...!

Answer 2

Antony Rex S 20

vscode

This is the error message
