How to connect to Function App(Azure Functions) from Azure Synapse Studio

Question

I want to connect my function app through Synapse studio but cannot seem to figure out the configurations. Here is my function.json and function definition along with Synapse configurations. My synapse pipeline basically takes the output of the web activity and passes it to the Azure Function. Please help!

function.json

{
  "scriptFile": "function_app.py",
  "entryPoint": "function_name",
  "bindings": [
    {
      "authLevel": "function",
      "type": "httpTrigger",
      "direction": "in",
      "name": "req",
      "methods": [
        "post"
      ]
    },
    {
      "type": "http",
      "direction": "out",
      "name": "$return"
    }
  ]
}

function definition (function_app.py)

app = func.FunctionApp(http_auth_level=func.AuthLevel.FUNCTION)

@app.route(route="artifact_http_trigger")
def function_name(req: func.HttpRequest) -> func.HttpResponse:

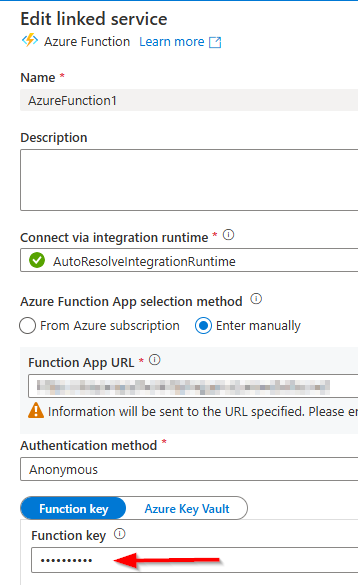

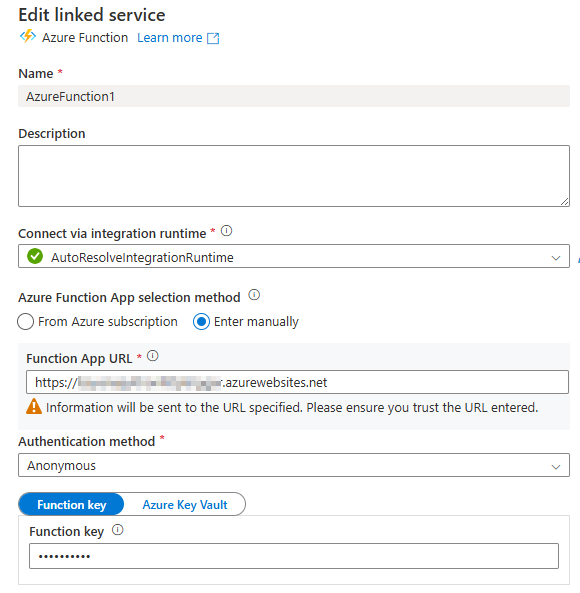

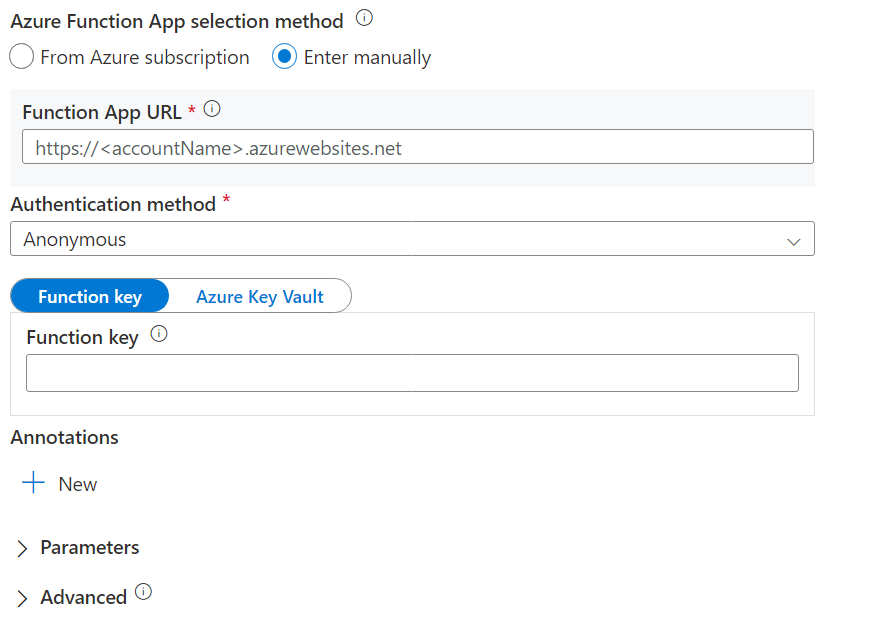

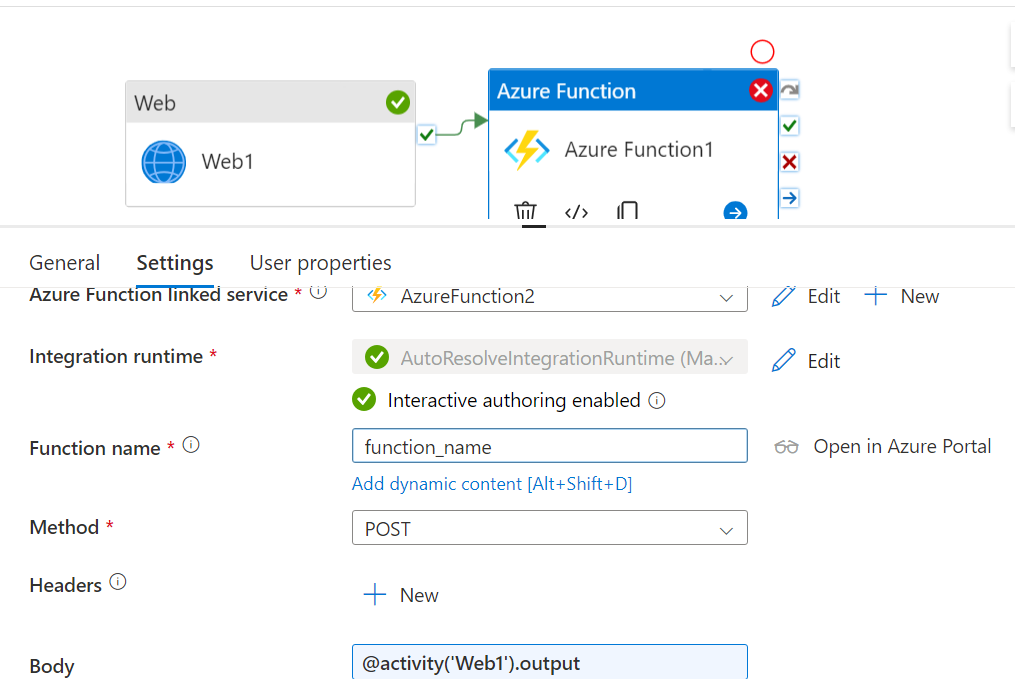

Synapse Studio configurations:

Answer 1

Hi @Mitashi Malkani Greetings! Welcome to Microsoft Q&A forum. Thank you for posting this question here.

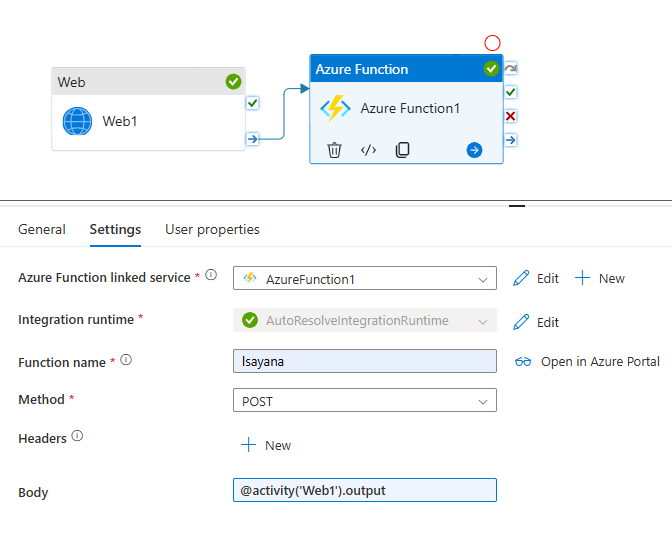

The bindings from the web activity to the Azure function is accurate. You should take a look into the data type of the Web activity and how it is being handled in the Azure function. Here is a sample scenario I have tried out where my web activity returns a JSON object, and I pass the same to the Azure function where I access it.

I passed the above JSON web activity output and tied to my Azure function just the way you did and could access it from my Function App using the following code sample

import azure.functions as func
import logging
import json

app = func.FunctionApp(http_auth_level=func.AuthLevel.FUNCTION)

@app.route(route="lsayana")
def lsayana(req: func.HttpRequest) -> func.HttpResponse:
    logging.info('Python HTTP trigger function processed a request.')
    name = req.params.get('name')
    req_body = req.get_json()
    if not name:
        try:
            return func.HttpResponse(json.dumps(req_body),mimetype="application/json",status_code=200)
        except ValueError:
            pass
        else:
            name = req_body.get('name')

    if name:
        return func.HttpResponse(f"Hello, {name}. This HTTP triggered function executed successfully.")
    else:
        return func.HttpResponse(f"This HTTP triggered function executed successfully. Pass a name in the query string or in the request body for a personalized respon

Here I am just sending the request body out through the response.

If your web activity returns a data in a format other than JSON you need to handle it accordingly. Please take a look into your Azure function app invocation logs to get some additional information on why the Function App is failing.

---
