How to create Native Prometheus Alert on Managed AKS/Prometheus

Question

Hey folks, I have Managed Grafana and Prometheus on AKS. Native Opensource Prometheus has been in use for few years, hence has many custom (application/service) related alerting and recording rule setup.



Is there anyway in Azure, where we can deploy these prometheus alert rules without using azure prometheus terraform/bicep logic.



Goal is each app/service team manages their own set of alerts which are deployed as part of their app deployment with other K8s Manifest such as hpa, deployment, keda scaleset, configmap, and such.



This is an important requirement for us since migrating this to tf/bicep will add significant operation overhead.

I already have helm templates for Prometheus alerts, but not sure how to get them applied/deployment to managed AKS/Prometheus.

Answer 1

Hi KaushikKumar Patel,

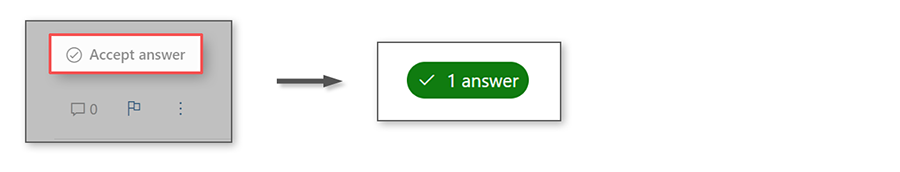

We understand your point, and you have found an alternative solution to this query. We will repost your solution in the answer section, as the original poster cannot accept their own answer. This way, you can accept it as the answer. An accepted answer will help other community members navigate to the appropriate solutions

Issue: I have Managed Grafana and Prometheus on AKS. Native Opensource Prometheus has been in use for few years, hence has many custom (application/service) related alerting and recording rule setup. Is there anyway in Azure, where we can deploy these prometheus alert rules without using azure prometheus terraform/bicep logic.

Goal is each app/service team manages their own set of alerts which are deployed as part of their app deployment with other K8s Manifest such as hpa, deployment, keda scaleset, configmap, and such.

 This is an important requirement for us since migrating this to tf/bicep will add significant operation overhead. I already have helm templates for Prometheus alerts, but not sure how to get them applied/deployment to managed AKS/Prometheus.

Solution:
Decided to use: https://github.com/Azure/prometheus-collector/tree/main/tools/az-prom-rules-converter

And, we will also leverage az cli tool which creates rule via supply yaml file.

DockerfileCopy

az alerts-management prometheus-rule-group create --name
                                                  --resource-group
                                                  --rules
                                                  --scopes
                                                  [--cluster-name]
                                                  [--description]
                                                  [--enabled {0, 1, f,

Azure Managed Prometheus Rule Group Argument Details

--rules [Required] : List<Object> Defines the rules in the Prometheus rule group. See https://github.com/Azure/azure-cli/tree/dev/doc/shorthand_syntax.md for more about shorthand syntax.

Azure List Element Properties

• expression [Required] (string) The PromQL expression to evaluate. Evaluated periodically as given by 'interval', and the result recorded as a new set of time series with the metric name as given by 'record'.
• actions (list of map) Actions that are performed when the alert rule becomes active, and when an alert condition is resolved.
• alert (string) Alert rule name.
• annotations (object) The annotations clause specifies a set of informational labels that can be used to store longer additional information such as alert descriptions or runbook links. Only valid for alerts. The annotation values can be templated.
• enabled (bool) Enable/disable rule. Allowed values: 0, 1, f, false, n, no, t, true, y,yes.
• for (string) The amount of time alert must be active before firing.
• labels (object) Labels to add or overwrite before storing the result.
• record (string) Recorded metrics name.
• resolve-configuration (map) Defines the configuration for resolving fired alerts.
• autoResolved (bool) the flag that indicates whether or not to auto resolve a fired alert.
  • timeToResolve (string) the duration a rule must evaluate as healthy before the fired alert is automatically resolved represented in ISO 8601 duration format. Should be between 1 and 15 minutes
  • severity (int) The severity of the alerts fired by the rule. Must be between 0 (critical), 1 (error), 2 (warning), 3 (info) and 4 (verbose).

Native Prometheus Rule Group vs Azure Managed Prometheus Rule Group Comparison

Here's a table comparing native Prometheus recording and alert rules with Azure Managed Prometheus rule groups:

Expand table

Rule Group SpecificationNative Prometheus Rule GroupAzure Managed Prometheus Rule Groupalert (optional)Name of the alertAlert rule name (optional)alert (optional)Name of the alertAlert rule name (optional)alert (optional)Name of the alertAlert rule name (optional)expr (required)PromQL expression to trigger alertPromQL expression (required)for (required)How long expression true before firingTime alert must be active before firingkeep_firing_forDuration alert remains active after triggeringNot directly supportedlabelsKey-value pairs added as labelsLabels to add or overwrite (object)annotationsDescriptive information about the alertAnnotations for additional informationrecord (optional)Recorded metrics nameRecorded metrics name (not allowed if alert spec is used)actions (optional)N/AActions performed on alert state changesenabled (optional)N/AEnable/disable ruleresolve-configurationN/AConfiguration for resolving alertsautoResolvedN/AFlag for auto-resolving alertstimeToResolveN/ADuration for auto-resolve (ISO 8601)severityN/AThe severity of the alerts fired by the rule. Must be between 0 and 4Prometheus Rule to Azure Prometheus Rule Group Converter

A tool to convert Prometheus rules YAML file files to Azure Prometheus rule groups ARM template

Create prometheus rule group using Azure CLI with rule group file

PowerShellCopy

az alerts

Create prometheus rule group using Azure CLI with rule details in cli

JSONCopy

az alerts-management prometheus-rule-group create -n TestPrometheusRuleGroup -g TestResourceGroup \
  -l westus --enabled

Native Prometheus Rule Group Spec

Reference

• Official Prometheus Alert Rule Guide
  • Official Prometheus Recording Rule Guide

        - [Prometheus JSON Specification](https://json.schemastore.org/prometheus.rules.json%22https://json.schemastore.org/prometheus.rules.json%22)


    Rule Group Specification

        - **alert** The name of the alert.



    • expr The PromQL expression that triggers the alert.
      • for How long the expression must be true before the alert fires.
        • keep_firing_for The duration for which the alert should continue to be active after it was initially triggered, even if the expression becomes false.
          • labels Key-value pairs that are added to the alert as labels.
            • annotations Descriptive information about the alert.

• Troubleshoot Guide for Azure Monitor Metrics (Managed Prometheus)
• Troubleshoot collection of Prometheus metrics in Azure Monitor

Customize Azure Managed Prometheus

• Minimal ingestion profile for Prometheus metrics in Azure Monitor
• Create and validate custom configuration file for Prometheus metrics in Azure Monitor
• Customize collection using CRDs (Service and Pod Monitors)
• Integrate KEDA with your Azure Kubernetes Service cluster az alerts-management prometheus-rule-group create --nameDockerfileCopy

                                                        --resource-group
                                                    --rules
                                                    --scopes
                                                    [--cluster-name]
                                                    [--description]
                                                    [--enabled {0, 1, f,


  Azure Managed Prometheus Rule Group Argument Details --rules [Required] : List<Object> Defines the rules in the Prometheus rule group. See https://github.com/Azure/azure-cli/tree/dev/doc/shorthand_syntax.md for more about shorthand syntax. Azure List Element Properties
  • expression [Required] (string) The PromQL expression to evaluate. Evaluated periodically as given by 'interval', and the result recorded as a new set of time series with the metric name as given by 'record'.
  • actions (list of map) Actions that are performed when the alert rule becomes active, and when an alert condition is resolved.
  • alert (string) Alert rule name.
  • annotations (object) The annotations clause specifies a set of informational labels that can be used to store longer additional information such as alert descriptions or runbook links. Only valid for alerts. The annotation values can be templated.
  • enabled (bool) Enable/disable rule. Allowed values: 0, 1, f, false, n, no, t, true, y,yes.
  • for (string) The amount of time alert must be active before firing.
  • labels (object) Labels to add or overwrite before storing the result.
  • record (string) Recorded metrics name.
  • resolve-configuration (map) Defines the configuration for resolving fired alerts. Only relevant for alerts.
    • autoResolved (bool) the flag that indicates whether or not to auto resolve a fired alert.
    • timeToResolve (string) the duration a rule must evaluate as healthy before the fired alert is automatically resolved represented in ISO 8601 duration format. Should be between 1 and 15 minutes
  • severity (int) The severity of the alerts fired by the rule. Must be between 0 (critical), 1 (error), 2 (warning), 3 (info) and 4 (verbose).
  Native Prometheus Rule Group vs Azure Managed Prometheus Rule Group Comparison Here's a table comparing native Prometheus recording and alert rules with Azure Managed Prometheus rule groups:Expand table

Rule Group SpecificationNative Prometheus Rule GroupAzure Managed Prometheus Rule Groupalert (optional)Name of the alertAlert rule name (optional)alert (optional)Name of the alertAlert rule name (optional)expr (required)PromQL expression to trigger alertPromQL expression (required)for (required)How long expression true before firingTime alert must be active before firingkeep_firing_forDuration alert remains active after triggeringNot directly supportedlabelsKey-value pairs added as labelsLabels to add or overwrite (object)annotationsDescriptive information about the alertAnnotations for additional informationrecord (optional)Recorded metrics nameRecorded metrics name (not allowed if alert spec is used)actions (optional)N/AActions performed on alert state changesenabled (optional)N/AEnable/disable ruleresolve-configurationN/AConfiguration for resolving alertsautoResolvedN/AFlag for auto-resolving alertstimeToResolveN/ADuration for auto-resolve (ISO 8601)severityN/AThe severity of the alerts fired by the rule. Must be between 0 and 4Prometheus Rule to Azure Prometheus Rule Group Converter A tool to convert Prometheus rules YAML file files to Azure Prometheus rule groups ARM template Create prometheus rule group using Azure CLI with rule group file

    az alerts

Create prometheus rule group using Azure CLI with rule details in cliJSONCopy

  az alerts-management prometheus-rule-group create -n TestPrometheusRuleGroup -g TestResourceGroup \ -l westus --enabled

Answer 2

Hi KaushikKumar Patel,
Thanks for patience while we are reviewing your thread

Based on your query what I understand do you want to deploy the existing custom rules in AKS without terraform and biceps if that is the case could you please try below things and let us know

1.Create a ConfigMap for Prometheus Rules:

Store your custom Prometheus rules in a ConfigMap. This ConfigMap will be mounted into the Prometheus container.

ConfigMap (prometheus-rules-configmap.yaml):

yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: prometheus-rules
  namespace: monitoring
data:
  prometheus.rules: |
    groups:
    - name: custom_rules
      rules:
      - alert: HighMemoryUsage
        expr: node_memory_Active_bytes / node_memory_MemTotal_bytes * 100 > 80
        for: 5m
        labels:
          severity: critical
        annotations:
          summary: "High Memory usage detected"
          description: "Memory usage is above 80% for more than 5 minutes."

2. Modify Prometheus Deployment to Mount ConfigMap:

Update your Prometheus deployment to mount the ConfigMap containing the custom rules.

Prometheus Deployment (prometheus-deployment.yaml):

yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: prometheus
  namespace: monitoring
spec:
  replicas: 1
  selector:
    matchLabels:
      app: prometheus
  template:
    metadata:
      labels:
        app: prometheus
    spec:
      containers:
      - name: prometheus
        image: prom/prometheus
        args:
        - "--config.file=/etc/prometheus/prometheus.yml"
        - "--web.enable-lifecycle"
        volumeMounts:
        - name: prometheus-config
          mountPath: /etc/prometheus
        - name: prometheus-rules
          mountPath: /etc/prometheus/rules
      volumes:
      - name: prometheus-config
        configMap:
          name: prometheus-config
      - name: prometheus-rules
        configMap:
          name: prometheus-rules
          items:
          - key: prometheus.rules
            path: prometheus.rules.yml


Use kubectl apply to deploy the ConfigMap and update the Prometheus deployment in your AKS cluster.

Please let us know if you face any difficulties we will help as you needed and do you have any other question, please tag me in comment
