Chart control. Custom Labels (1) I need to add a Custom Label that I can place at a given position on or near each series. (2) I need to add a Custom label (or Legend) that I can place at a given position on the chart or Chart Area. Desired: (1) The example below shown as Goal XX (2) The Legend or Label on the right that shows: Red < 50%, Yellow < 75%, Green 100%, Blue > 100%

Hi @ Alvord, Timothy , Welcome to Microsoft Q&A, You can easily add a legend to your chart. But you need to customize the text you need. You need to write a function for the text you need to appear, and then assign it. // Add a new legend Legend customLegend = new Legend("CustomLegend"); chart1.Legends.Add(customLegend); // Create a custom legend item LegendItem legendItem = new LegendItem(); legendItem.Name = "CustomLabel"; legendItem.Color = Color.Red; // Set the color legendItem.BorderColor = Color.Black; legendItem.BorderWidth = 1; legendItem.MarkerStyle = MarkerStyle.Circle; legendItem.MarkerSize = 10; legendItem.MarkerColor = Color.Red; legendItem.Cells.Add(LegendCellType.Text, "xxxx", ContentAlignment.MiddleLeft); // Add the legend item to the legend customLegend.CustomItems.Add(legendItem); Best Regards, Jiale If the answer is the right solution, please click " Accept Answer " and kindly upvote it. If you have extra questions about this answer, please click " Comment ". Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.

Chart control. I need to add a Custom Label that I can place at a given position on or near each series.

Accepted answer

Jiale Xue - MSFT 47,501 Reputation points Microsoft Vendor

2024-11-15T03:02:17.8466667+00:00
Hi @Alvord, Timothy, Welcome to Microsoft Q&A,

You can easily add a legend to your chart. But you need to customize the text you need. You need to write a function for the text you need to appear, and then assign it.

// Add a new legend Legend customLegend = new Legend("CustomLegend"); chart1.Legends.Add(customLegend); // Create a custom legend item LegendItem legendItem = new LegendItem(); legendItem.Name = "CustomLabel"; legendItem.Color = Color.Red; // Set the color legendItem.BorderColor = Color.Black; legendItem.BorderWidth = 1; legendItem.MarkerStyle = MarkerStyle.Circle; legendItem.MarkerSize = 10; legendItem.MarkerColor = Color.Red; legendItem.Cells.Add(LegendCellType.Text, "xxxx", ContentAlignment.MiddleLeft); // Add the legend item to the legend customLegend.CustomItems.Add(legendItem);

Best Regards,

Jiale

If the answer is the right solution, please click "Accept Answer" and kindly upvote it. If you have extra questions about this answer, please click "Comment".

Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.
Please sign in to rate this answer.
Alvord, Timothy 276 Reputation points

2024-11-15T16:27:53.22+00:00

Jiale,

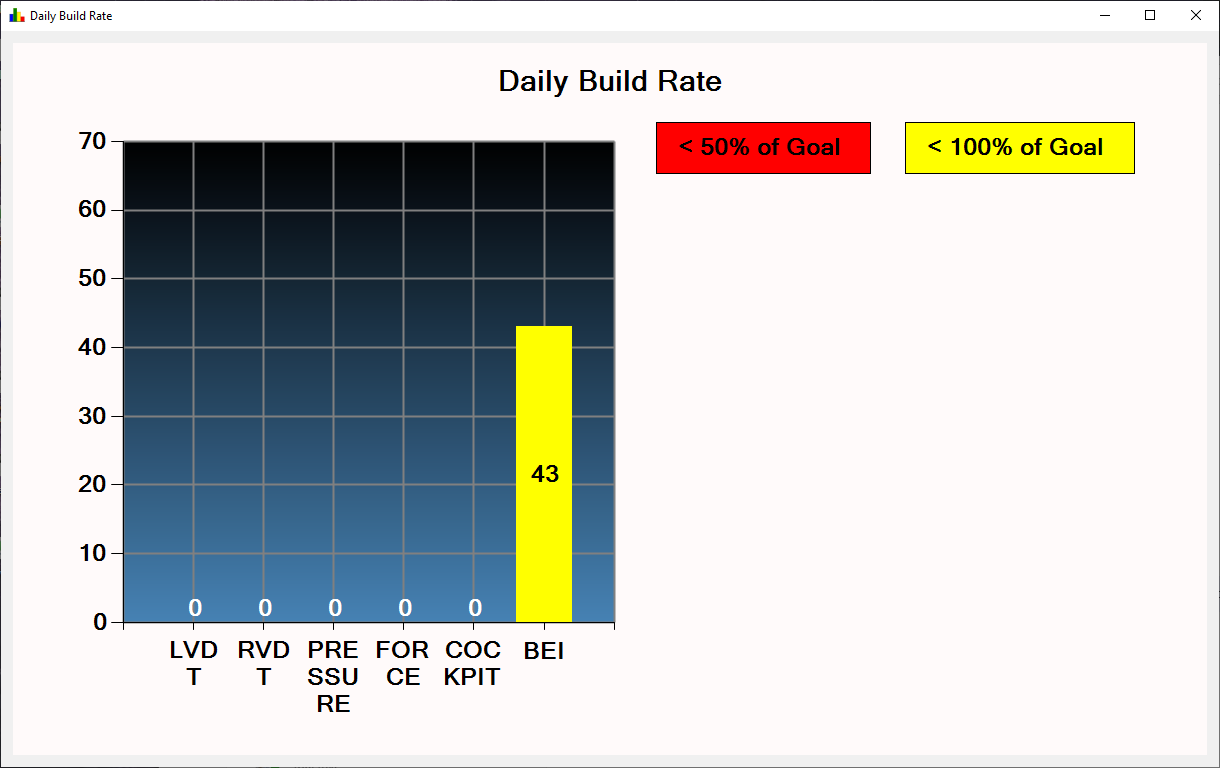

That kind of worked for the Legend. Although when I try and add each color, the new custom legend gets added to the left and not below the previous Legend.

`Legend customLegend = new Legend("CustomLegend");`

customLegend.BackColor = Color.Yellow;

customLegend.BorderColor = Color.Black;

customLegend.Font = new Font("Microsoft Sans Serif", 18, FontStyle.Bold);

chartDailyBuildRateDisplay.Legends.Add(customLegend);

// Create a custom legend item

LegendItem legendItem = new LegendItem();

// Add the legend item to the legend

customLegend.CustomItems.Add(legendItem);

Legend customLegend2 = new Legend("CustomLegend2");

customLegend2.BackColor = Color.Red;

customLegend2.BorderColor = Color.Black;

customLegend2.Font = new Font("Microsoft Sans Serif", 18, FontStyle.Bold);

chartDailyBuildRateDisplay.Legends.Add(customLegend2);

// Create a custom legend item

LegendItem legendItem2 = new LegendItem();

legendItem2.Cells.Add(LegendCellType.Text, "< 50% of Goal", ContentAlignment.MiddleLeft);

// Add the legend item to the legend

customLegend2.CustomItems.Add(legendItem2);

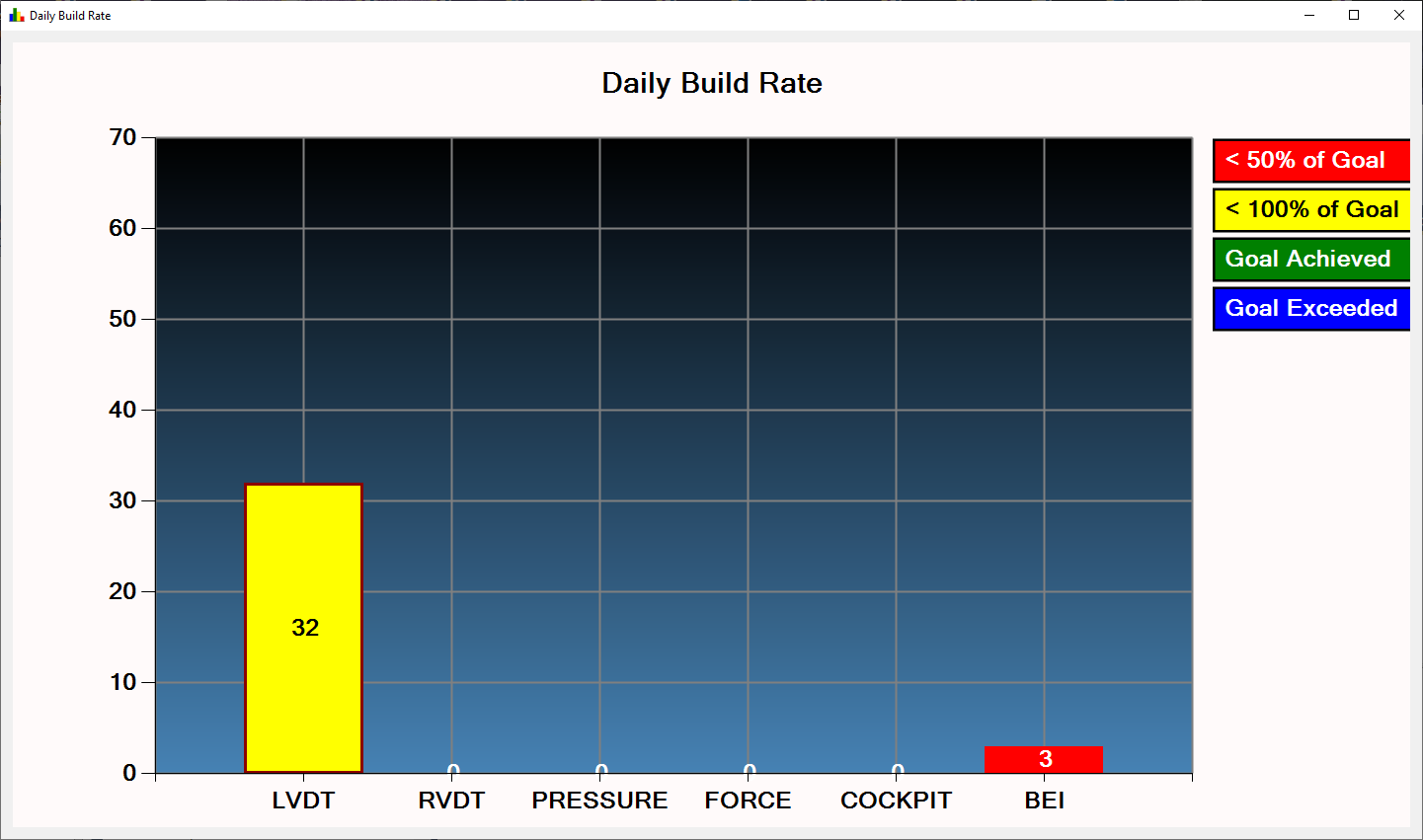

Trying to get:

Jiale Xue - MSFT 47,501 Reputation points Microsoft Vendor

2024-11-18T04:52:20.0766667+00:00

You can use this method to paint.

chart1.ChartAreas[0].Position = new ElementPosition(5, 5, 70, 90); // Reduce the width to reserve space on the right // Subscribe to PostPaint event chart1.PostPaint += Chart1_PostPaint; private void Chart1_PostPaint(object sender, ChartPaintEventArgs e) { if (e.ChartElement is ChartArea chartArea) { var g = e.ChartGraphics.Graphics; // Get the absolute rectangle of the chart area RectangleF chartRect = e.ChartGraphics.GetAbsoluteRectangle(chartArea.Position.ToRectangleF()); // Define label content and color var labels = new List<(string Text, Color Color)> { (" 1", Color.Red), (" 2", Color.Green), (" 3", Color.Blue), }; // Draw labels and place them on the right side of the chart using (Font font = new Font("Arial", 12, FontStyle.Bold)) { float startX = chartRect.Right + 10; // Offset 10 pixels to the right of the chart float startY = chartRect.Top; // Start from the top of the chart foreach (var label in labels) { using (Brush brush = new SolidBrush(label.Color)) { // Draw labels g.DrawString(label.Text, font, brush, startX, startY); startY += 20; // Offset each label 20 pixels down } } } } }

Alvord, Timothy 276 Reputation points

2024-11-18T22:44:33.2233333+00:00

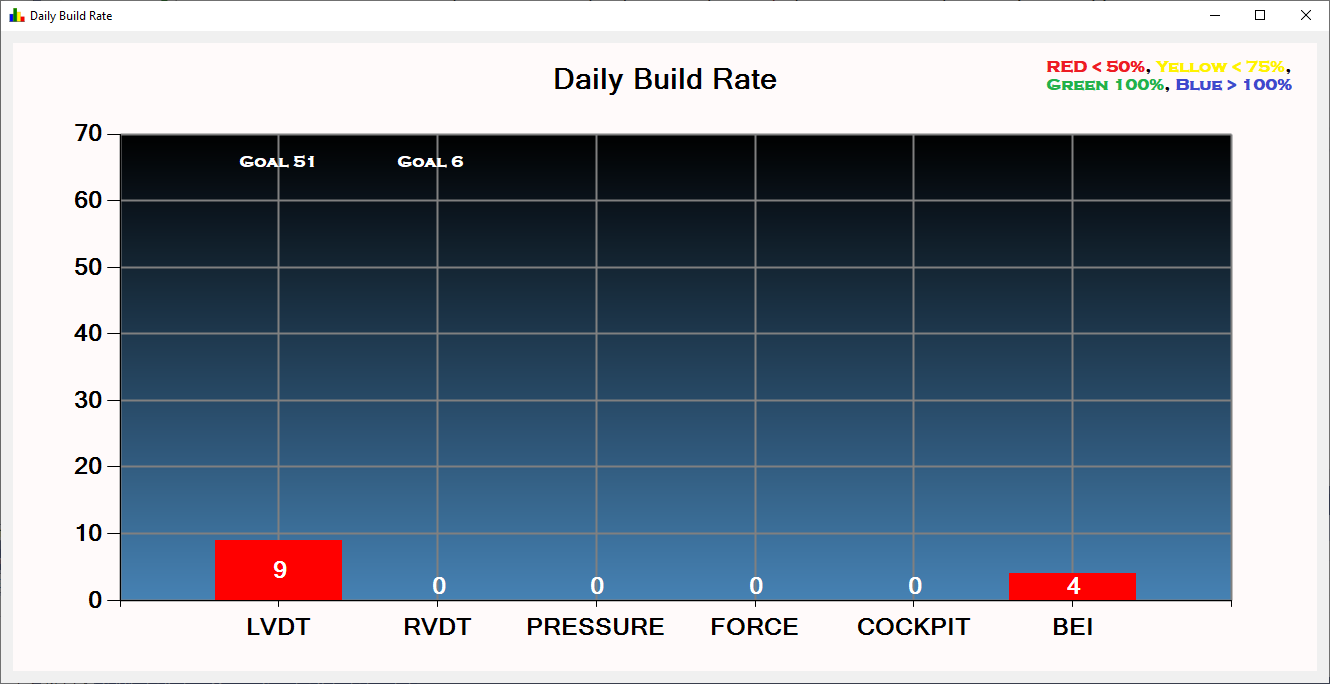

That's a better solution for me as you can see above.

(2) I need to add a Custom label (or Legend) that I can place at a given position on the chart or Chart Area.

Now I just need to find the Label position of each series and I could do the same thing to label the goal for each series.

I assume that I can use that for the other requirement I listed, if there is some way to know the XY position of each Series' Label...

Alvord, Timothy 276 Reputation points

2024-11-18T22:47:20.6333333+00:00

That worked better for me as you can see.

Now I just need to find the Label position of each series and I could do the same thing to label the goal for each series.

Jiale Xue - MSFT 47,501 Reputation points Microsoft Vendor

2024-11-19T02:04:32.3433333+00:00

If the answer is the right solution, please click "Accept Answer" and kindly upvote it. If you have extra questions about this answer, please click "Comment".
