Bootstrap Issues Blazor.

Kalyan A 325 Reputation points
2024-11-20T07:45:32.85+00:00

I have two issues with this code

a)The placeholders in the textboxes are not being displayed.

b)A distortion appears in Samsung Galaxy (Android) but not on Windows, I included Bootstrap but still it doesn't work. Here is the reference from Index.html

<script src="js/bootstrap.bundle.min.js"></script>

@inject NavigationManager Navigation
@page "/ExtPar"
<head>

    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">

    <link href="css/bootstrap.min.css" rel="stylesheet">
    <style>
        body {
            display: flex;
            justify-content: center;
            align-items: center;
            height: 100vh;
            margin: 0;
            background-color: #f0f0f0;
        }
        .parallelogram-container {
            position: relative;
            width: 300px;
            height: 200px;
            background: lightblue;
            transform: skew(-20deg); /* Creating the parallelogram shape */
            margin: 50px;
        }
        /* Green line parallel to one red border */
        .red-line {
            position: absolute;
            width: 360px; /* Same width as the parallelogram side */
            height: 2px;
            background-color: red;
            top: 0px; /* Positioned on the top red border */
            left: 40px; /* Same horizontal position as the left red border */
        }
        .textbox {
            position: absolute;
            width: 80px;
            height: 30px;
            padding: 5px;
            border: 1px solid #000;
            box-sizing: border-box;
        }
        .textboxo {
            position: absolute;
            width: 120px;
            height: 30px;
        }
        .textbox1 {
            top: 10px;
            left: 10px;
        }
        .textbox2 {
            top: 10px;
            right: 10px;
        }
        .textbox3 {
            bottom: 10px;
            left: 10px;
        }
        .textbox4 {
            bottom: 10px;
            right: 10px;
        }
        .textbox5 {
            top: 10px;
            right: -90px;
        }
    </style>
</head>
<body>

    <div class="parallelogram-container">
        <div class="red-line"></div>
        <input type="text" class="textbox textbox1" placeholder="Interior 1" disabled=@isdisabled @bind="@num1">
        <input type="text" class="textbox textbox2" placeholder="Interior 2" disabled=true @bind="@num2">
        <input type="text" class="textbox textbox3" placeholder="Interior 3" disabled=true @bind="@num3">
        <input type="text" class="textbox textbox4" placeholder="Interior 4" disabled=true @bind="@num4">
        <input type="text" class="textbox textbox5" placeholder="Exterior 5" disabled=true @bind="@num5">
    </div>
    <br />
    <span>Parallelogram </span>
    <br />
    <div>
        <button @onclick="Submit">Submit</button>
    </div>
    <br />
    <div>
        <button @onclick="Clear">Clear</button>
    </div>
    <br />
    <p style="color: red;">
        @errmsg
    </p>
</body>

<br />
<br />
<br>
@code {
    private int num1; private int num2; private int num3; private int num4; private int num5; private bool isdisabled = false; private int errcount = 0; private string errmsg;
    private void Submit()
    {
        errcount=0; errmsg = "";
        if ((num1 > 0)  )
        { isdisabled = true; }
        if ((num1 <= 0)  )
        { errmsg = "Enter positive numbers "; errcount++; }
        if ((num1 > 179) )
        { errmsg = "Enter angle less than 179 "; errcount++; }

        if (errcount == 0)
        {
            num5 =  num1;
            num2 = 180 - num5;
            num3 = num2;
            num4 = num1;
        }
        else
        { isdisabled = false; }
    }
    void Clear()
    { num1 = 0; num2 = 0; num3 = 0; num4 = 0; num5 = 0; isdisabled = false; errcount = 0; errmsg = ""; }
}
Blazor
Blazor
A free and open-source web framework that enables developers to create web apps using C# and HTML being developed by Microsoft.
1,617 questions
.NET MAUI
.NET MAUI
A Microsoft open-source framework for building native device applications spanning mobile, tablet, and desktop.
3,710 questions
0 comments No comments
{count} votes

Accepted answer
  1. Jalpa Panchal-MSFT 705 Reputation points Microsoft Vendor
    2024-11-20T12:49:57.7533333+00:00

    Hi @Kalyan A ,

    In your code you have set the @bind directive, which is bound to the int num1, num2 etc. and because of that 0 is being displayed. So, to make the placeholder visible change the datatype from int to string.

    You could try this code:

    Parallelogram.razor:

    @page "/parallelogram"
    @inject NavigationManager Navigation
    <div class="parallelogram-page">
        <div class="parallelogram-wrapper">
            <div class="parallelogram-container">
                <div class="red-line"></div>
                <input type="text" class="textbox textbox1" placeholder="Interior 1" @bind="@num1">
                <input type="text" class="textbox textbox2" placeholder="Interior 2" @bind="@num2">
                <input type="text" class="textbox textbox3" placeholder="Interior 3" @bind="@num3">
                <input type="text" class="textbox textbox4" placeholder="Interior 4" @bind="@num4">
                <input type="text" class="textbox textbox5" placeholder="Exterior 5" @bind="@num5">
            </div>
            <div class="btn-container">
                <button class="btn btn-primary" @onclick="Submit">Submit</button>
                <button class="btn btn-secondary" @onclick="Clear">Clear</button>
            </div>
            <p style="color: red;">@errorMessage</p>
        </div>
    </div>
    <style>
        .parallelogram-page {
            width: 100%;
            height: 100%;
        }
        .parallelogram-wrapper {
            display: flex;
            flex-direction: column;
            justify-content: center;
            align-items: center;
            width: 100%;
            height: 100vh;
        }
        .parallelogram-container {
            position: relative;
            width: 300px;
            height: 200px;
            background: lightblue;
            transform: skew(-20deg);
            overflow: hidden;
            box-shadow: 0 4px 6px rgba(0, 0, 0, 0.1);
        }
        .red-line {
            position: absolute;
            width: 360px;
            height: 3px;
            background-color: red;
            top: 0;
            left: 40px;
        }
        input::placeholder {
            color: brown; /* Placeholder text color */
            font-style: italic; /* Optional styling */
            opacity: 1; /* Ensure full visibility */
        }
        .textbox {
            position: absolute;
            width: 80px;
            height: 30px;
            padding: 5px;
            border: 1px solid #000;
            box-sizing: border-box;
            text-align: center;
            background-color: #fff;
            font-size: 0.9rem;
        }
        .textbox1 {
            top: 10px;
            left: 10px;
        }
        .textbox2 {
            top: 10px;
            right: 10px;
        }
        .textbox3 {
            bottom: 10px;
            left: 10px;
        }
        .textbox4 {
            bottom: 10px;
            right: 10px;
        }
        .textbox5 {
            position: absolute;
            top: 50%; /* Adjusted to center vertically */
            right: 10px; /* Adjusted to ensure visibility */
            transform: translateY(-50%); /* Center alignment */
        }
        .btn-container {
            margin-top: 20px;
        }
        button {
            margin: 5px;
            padding: 10px 15px;
            font-size: 1rem;
            cursor: pointer;
        }
    </style>
    @code {
        private string? num1;
        private string? num2;
        private string? num3;
        private string? num4;
        private string? num5;
        private bool isDisabled = false;
        private string errorMessage;
        private void Submit()
        {
            errorMessage = string.Empty;
            // Validation: Check if the values are valid integers and within the correct range
            if (!int.TryParse(num1, out var num1Value) || num1Value <= 0 || num1Value >= 179)
            {
                errorMessage = "Enter a valid number between 1 and 178 for Interior 1.";
                return;
            }
            isDisabled = true;
            // Assign calculated values
            num5 = num1Value.ToString();
            num2 = (180 - num1Value).ToString();
            num3 = num2;
            num4 = num1Value.ToString();
        }
        private void Clear()
        {
            num1 = num2 = num3 = num4 = num5 = null;
            isDisabled = false;
            errorMessage = string.Empty;
        }
    }


    index.html:

    <!DOCTYPE html>
    <html>
    <head>
        <meta charset="utf-8" />
        <meta name="viewport" content="width=device-width, initial-scale=1, maximum-scale=1, user-scalable=no" />
        <title>Parallelogram Calculator</title>
        <link href="https://cdn.jsdelivr.net/npm/bootstrap@5.3.0-alpha3/dist/css/bootstrap.min.css" rel="stylesheet">
        <script src="https://cdn.jsdelivr.net/npm/bootstrap@5.3.0-alpha3/dist/js/bootstrap.bundle.min.js"></script>
    </head>
    <body>
        <div id="app">Loading...</div>
    </body>
    </html>

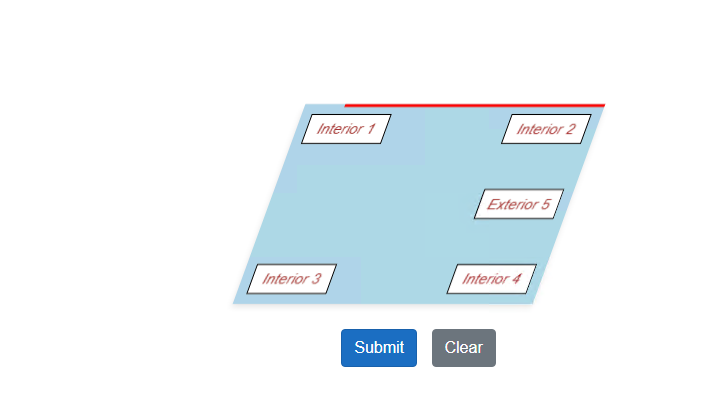

    User's image

    Best Regards,

    Jalpa


    If the answer is the right solution, please click "Accept Answer" and kindly upvote it. If you have extra questions about this answer, please click "Comment".
