Difference between ipsubnet

Question

Difference between ipsubnet

Sergi Díaz Ruiz 245

Good morning,

Can someone explain me the difference between these subnets IP?

User's image

I understand... If we have any configuration inside... The first one is like a /24?

And the other one is /25

Is this correct?

1 answer

Your answer

Answer 1

AllenLiu-MSFT 49,436 Microsoft External Staff

Hi, @Sergi Díaz Ruiz

Thank you for posting in Microsoft Q&A forum.

Not necessarily, Configuration Manager automatically calculates the Subnet ID with the Network (default gateway) and Subnet mask values you provided. So two different subnets may have the same Subnet ID. That's why it's not recommended to use IP subnet to create a boundary.

You may check Jason's blog for more details:

https://home.memftw.com/ip-subnet-boundaries-are-evil/

https://home.memftw.com/ip-subnet-boundaries-still-evil/

If the answer is the right solution, please click "Accept Answer" and kindly upvote it. If you have extra questions about this answer, please click "Add comment".

Sergi Díaz Ruiz 245 Reputation points

2024-12-12T06:41:48.3633333+00:00

Hi AllenLiu,

automatically calculates the Subnet ID with the Network (default gateway) and Subnet mask values you provided.

We have not configured..... This is what I want understand..:

This is what we have configured in ALL subnets....

What is the mean?

TIA!
AllenLiu-MSFT 49,436 Reputation points Microsoft External Staff

2024-12-12T07:12:17.6166667+00:00

Hi, @Sergi Díaz Ruiz

If your network environment is very simple, then yes, the first one is like /24 and the other one is /25.

But like I mentioned, different Subnet Mask may calculates to the same Subnet ID. If you read the articles, you will know what I mean and why it's not recommended to use IP subnet to create a boundary.
Sergi Díaz Ruiz 245 Reputation points

2024-12-13T11:44:48.0133333+00:00

I read the articles before open this thread...

But I have this question... Because I don't create the boundaries....

Then... If someone created it... looking the screenshot ... If they specify the subnet mask, then we should see inside the boundary configuration, right?

Then... We have all boundaries empty like this screenshot...

TIA!
AllenLiu-MSFT 49,436 Reputation points Microsoft External Staff

2024-12-16T07:38:58.2366667+00:00

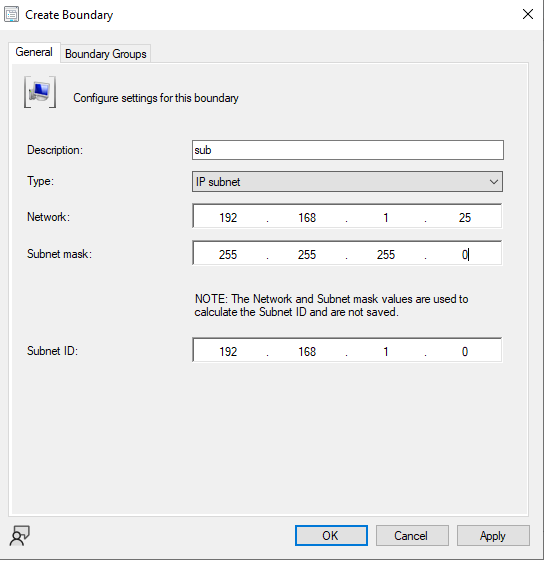

I did a quick test to create a subnet boundary, I create it with typing the Network and Subnet mask, it calculates the Subnet ID automatically, click OK to save it.

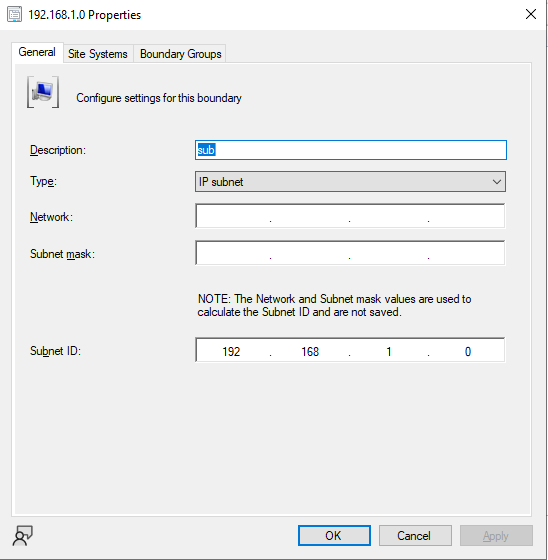

Then I open it, the Network and Subnet mask becomes empty too.
