(Xamarin) We want to make a .so and dylib framework

Tao, Scott-BT 1 Reputation point
2020-12-31T01:33:04.69+00:00

We have a .net project (Xamarin) and want to export to a library like .so and dylib, and use it on native iOS and Android application, how to make it?

Developer technologies | .NET | Xamarin
0 comments No comments
{count} votes

1 answer

Sort by: Most helpful
  1. JessieZhang-MSFT 7,716 Reputation points Microsoft External Staff
    2020-12-31T08:54:52.52+00:00

    Hello,

    Welcome to our Microsoft Q&A platform!

    If you are using Visual Studio, and you are porting to xamarin some JNI-Java code that was already working on Android, follow this Steps:

    1.Place your .so files under a lib folder on your Xamarin project, example:

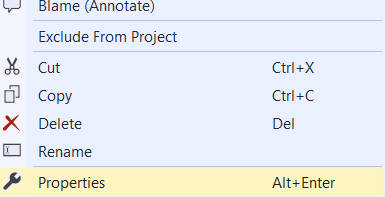

    2.Make sure that your .so files are set the Build Action to Android Native Library

    3.In C#-Xamarin you can load your libraries in the following way

    try
    {
        JavaSystem.LoadLibrary("SDL2");
        JavaSystem.LoadLibrary("glib-2.0");
        JavaSystem.LoadLibrary("gthread-2.0");
        JavaSystem.LoadLibrary("fluidsynth");
        JavaSystem.LoadLibrary("sdl_mixer");
        JavaSystem.LoadLibrary("initmixer");
    }
    catch (UnsatisfiedLinkError e)
    {
        return e.Message;
    }


    4.the native methods in C# must be declarated in the following way:

    [DllImport("initmixer", EntryPoint = "Java_sf2Tools_FluidsynthJNI_loadSong")]
    public static extern int loadSong(IntPtr env, IntPtr thiz, IntPtr songPath, int miliseconds);
    [DllImport("initmixer", EntryPoint = "Java_sf2Tools_FluidsynthJNI_isPlaying")]
    public static extern int isPlaying();
    [DllImport("initmixer", EntryPoint = "Java_sf2Tools_FluidsynthJNI_pauseAudio")]
    public static extern void pauseAudio();
    [DllImport("initmixer", EntryPoint = "Java_sf2Tools_FluidsynthJNI_resumeAudio")]
    public static extern void resumeAudio();
    [DllImport("initmixer", EntryPoint = "Java_sf2Tools_FluidsynthJNI_stopAudio")]
    public static extern void stopAudio();
    [DllImport("initmixer", EntryPoint = "Java_sf2Tools_FluidsynthJNI_setSoundfonts")]
    public static extern void setSoundfonts(IntPtr env, IntPtr thiz, IntPtr js);


    On the "EntryPoint" field you have to put the name of the function exactly as they was in your C/C++ code normally Java_your_package_name_YourClassName_YourMethodName.

    For example here is my original C++ code:

    void Java_sf2Tools_FluidsynthJNI_setSoundfonts(JNIEnv * env, jobject this, jstring js)
    {
        //Some code
    }
    void Java_sf2Tools_FluidsynthJNI_pauseAudio(JNIEnv * env, jobject this)
    {
        //Some code
    }
    void Java_sf2Tools_FluidsynthJNI_resumeAudio(JNIEnv * env, jobject this)
    {
        //Some code
    }
    int Java_sf2Tools_FluidsynthJNI_isPlaying(JNIEnv * env, jobject this)
    {
        //Some code
    }
    void Java_sf2Tools_FluidsynthJNI_stopAudio(JNIEnv * env, jobject this)
    {
        //Some code
    }

    int Java_sf2Tools_FluidsynthJNI_loadSong(JNIEnv * env, jobject this, jstring songPath)
    {
        //Some code
    }


    Or maybe check the warnings that usually gives Android Studio to know the full name of your native functions:


    C/C++

    void Java_sf2Tools_FluidsynthJNI_setSoundfonts(JNIEnv * env, jobject this, jstring js)


    C# Xamarin

    fluidsynth.setSoundfonts(JNIEnv.Handle, System.IntPtr.Zero, new Java.Lang.String(getCFGPathFiltered()).Handle);


    Refer : https://stackoverflow.com/questions/47433520/load-so-file-in-xamarin-android

    And there is similar thead about this, you can check here: https://stackoverflow.com/questions/15896650/xamarin-use-ndk-built-so/15902529#15902529

    For dylib , you can check document: https://learn.microsoft.com/en-us/xamarin/ios/platform/native-interop

    Best Regards,

    Jessie Zhang


    If the response is helpful, please click "Accept Answer" and upvote it.

    Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.
