Connect azure VM via RDP receives 0x4

Action mask 1 Reputation point
2021-01-05T02:03:33.66+00:00

I using the RDP app 9WZDNCRFJ3PS to connect to the VM that just created but received 0x4 error, I tried to run azure troubleshooting but can't detect any issue.


Azure Virtual Machines
Azure Virtual Machines
An Azure service that is used to provision Windows and Linux virtual machines.
9,033 questions
0 comments No comments
{count} votes

4 answers

Sort by: Most helpful
  1. Anonymous
    2021-01-05T06:41:59.963+00:00

    Hello @Action mask

    1.Any error messages when you create the VM ? Get deployment operations and error message

    2.Review the status of the VM through activity log. View activity logs to monitor actions on resources

    3.What if you download RDF File, can you connect in this way?

    4.Sometimes restart the VM can help resolve the problem.

    5.Make sure that the account you're using to connect with has Remote Desktop sign-in rights. As a workaround, use a domain or local administrator account to connect over Remote Desktop. To add the desired account to the Remote Desktop users local group, use the Microsoft Management Console snap-in (System Tools > Local Users and Groups > Groups > Remote Desktop Users).

    Please first go through general troubleshooting steps: Troubleshoot Remote Desktop connections to an Azure virtual machine


    If the Answer is helpful, please click "Accept Answer" and upvote it.
    Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.

    Best Regards
    Karlie

    0 comments No comments

  2. Sumarigo-MSFT 47,471 Reputation points Microsoft Employee Moderator
    2021-01-05T07:04:45.46+00:00

    @Action mask Are you able to RDP the VM through Azure Portal (serial console)?

    Another reason could be due to permissions on the subscription/Resource Group/Certificate issue. Please verify permissions on subscription/Resource Group. Are you able access other VMs?

    Please check the Activity Log for more information about the VM.

    • Restart the VM,
    • Try to reset the Password (Select Reset configuration only and update it_
    • Check port 3389 enabled

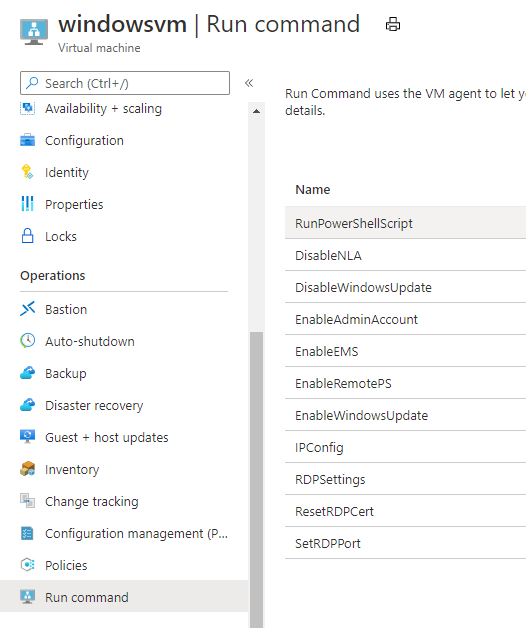

    • Click on ‘RDPSettings’ and then click on Run and please wait for some time until the output comes on the right side of your monitor screen. Accordingly, repeat the same steps separately for ‘ResetRDPCert’ as well as ‘SetRDPPort’.
    • Try disabling OS firewall and check for the status


    For the RDP issue, you can check if the public IP and RDP port are open on the VM. Please use this link to check if the Public IP and Port are active.

    Troubleshoot Remote Desktop connections to an Azure virtual machine

    Azure Serial Console for Windows: https://learn.microsoft.com/en-us/azure/virtual-machines/troubleshooting/serial-console-windows

    Virtual Machine Serial Console access: https://azure.microsoft.com/en-us/blog/virtual-machine-serial-console-access/

    Hope this helps!

    Kindly let us know if the above helps or you need further assistance on this issue.

    ------------------------------------------------------------------------------------------------------------------------------------

    Please don’t forget to "Accept the answer” and “up-vote” wherever the information provided helps you, this can be beneficial to other community members.


  3. Eugene Qilo 21 Reputation points
    2021-11-29T15:01:49.803+00:00

    I faced the same error and the following fixed the issue for me.

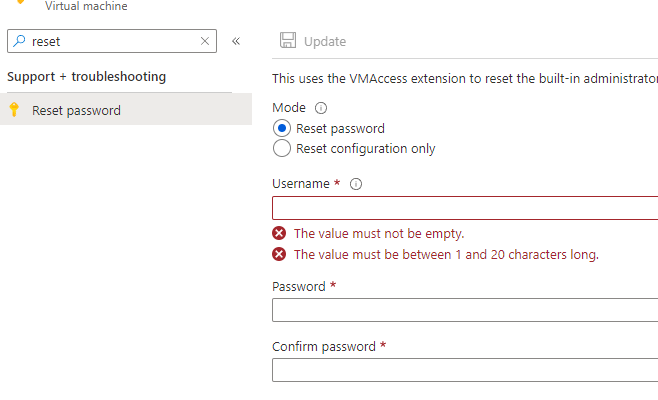

    1) Reset the VM password.

    2) Now try to RDP, make sure to check "Always ask for credentials"

    3) Enter the new credentials and login

    0 comments No comments

  4. omaswi 1 Reputation point
    2021-12-08T17:00:32.153+00:00

    Try using a different remote Desktop App

    0 comments No comments
