RDCMan Full-Screen Mode Not Functioning Properly When Maximized

Anonymous
2024-12-26T09:35:14+00:00

Hi everyone,

I'm encountering an issue with Remote Desktop Connection Manager (RDCMan). When the RDCMan window is maximized, full-screen mode doesn’t work as expected. It leaves a reserved space at the bottom for the taskbar, preventing the remote desktop session from occupying the full screen.

Interestingly, when the RDCMan window is in minimized mode, the full-screen mode works properly, and the remote desktop session fills the entire screen as intended.

Is there any way to make full-screen mode work correctly even when the RDCMan window is maximized? Are there any settings, tweaks, or fixes to avoid this issue?

Thanks in advance for your suggestions!

***moved from Windows / Windows 10 / Settings***

Windows for business | Windows Client for IT Pros | User experience | Remote desktop services and terminal services

Locked Question. This question was migrated from the Microsoft Support Community. You can vote on whether it's helpful, but you can't add comments or replies or follow the question. To protect privacy, user profiles for migrated questions are anonymized.

0 comments

3 answers

Sort by: Most helpful
Most helpful Newest Oldest
  1. Anonymous
    2024-12-30T02:19:54+00:00

    Hello,

    Could you provide a screenshot of the reserved space?

    Additionally, could you share your display settings and Remote Desktop settings under Properties? This information will help me check if I can replicate the situation.

    Thank you,

    Karlie Weng

    0 comments
  2. Anonymous
    2024-12-30T11:35:22+00:00

    Hi,

    Thank you for the reply.

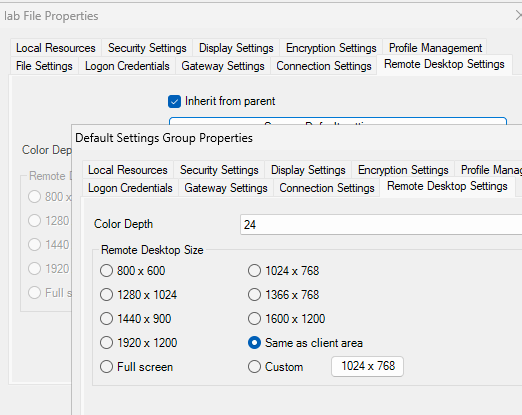

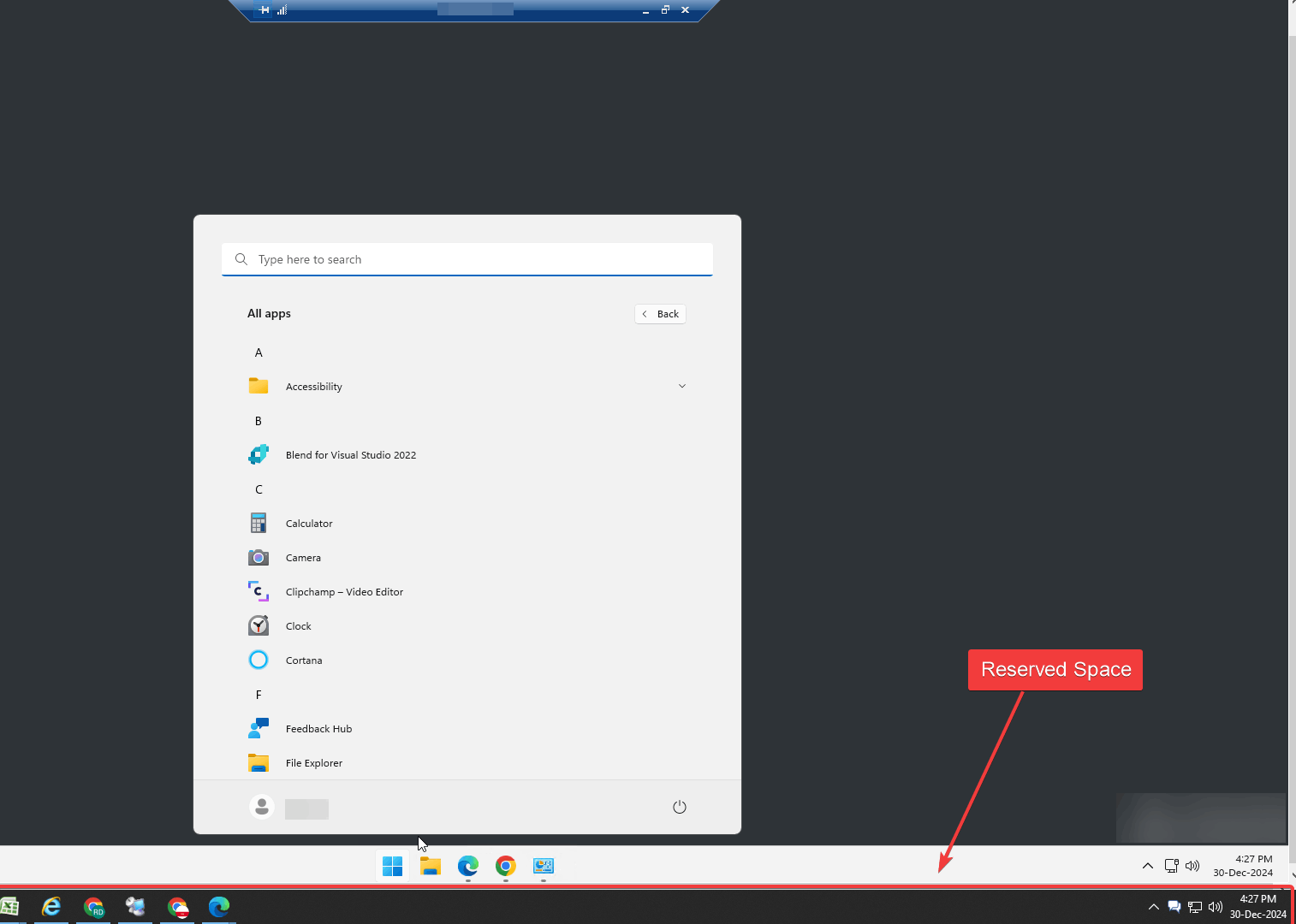

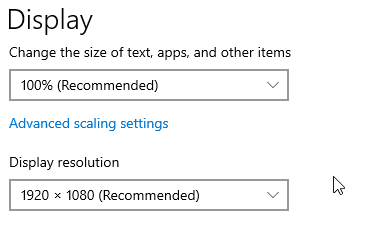

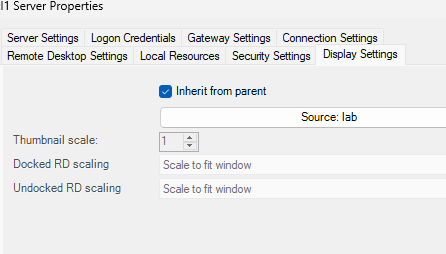

    The screenshot of the reserved space, display settings and Remote Desktop settings under properties is attached below,

    ![](https://filestore.community.support.microsoft.com/api/images/ca29bbe5-c5ab-4484-b629-39d38e1dbd88?upload=true&fud_access=hC1SxZhn7m%2FZQJkOIiOVstu10yTQgXS4A%2FDBzZTg8nbaCgIogkrcDydMeI5Y4za2dOqDdWtsG2JNS3E35V60i9TiGHR7STMpJHheeXuDvO8nwjUlqCBHhJ0NDvuYN7OSt4ycYGy2NU%2FrIXsebu%2B9S6QMI1IvXSiwtjatDKvZYpf8D73zOapQNj0ENhKtnKDdLIshOXYXvm6F5AS8GnGHcVoPHPuDKL4xDJC6FqOsjB9t3xM3ScVCdrBZeF2DJ0ij%2FamuWn1LrF2W%2FvhJjadGQTMnXI%2FEIkpIbtlrjw%2Bi6sh5lFcevh2Dwow4pd3kFP3AAGS6hzTmJ8U%2BWMK5q6vvbWvhswnQwBVTpZfvdcuhyC5t1Lmf%2Bo5Y0oKPFK4W4BfygKMO40FwpQbn4rmfFAwdYdTgrXm1Ht938GNYseFbsxE%3D)![](https://filestore.community.support.microsoft.com/api/images/9b137535-4be1-414e-8c65-34f00fac196e?upload=true&fud_access=hC1SxZhn7m%2FZQJkOIiOVstu10yTQgXS4A%2FDBzZTg8nbaCgIogkrcDydMeI5Y4za2dOqDdWtsG2JNS3E35V60i9TiGHR7STMpJHheeXuDvO8nwjUlqCBHhJ0NDvuYN7OSt4ycYGy2NU%2FrIXsebu%2B9S6QMI1IvXSiwtjatDKvZYpf8D73zOapQNj0ENhKtnKDdLIshOXYXvm6F5AS8GnGHcVoPHPuDKL4xDJC6FqOsjB%2FlDAfSQ1ZSV876NCzDvmlkkFiM99IWyBpnxpZJhO9Ms6Md0Vi0YhC1kva0Jyr%2B%2BxM3zpp3yrGKjkJPMRdrD9Qw%2Bl3UYVgMpBOA%2BdACaFhHau3ejHG0aZ0onZeQj2gR59BEUU8nqSe7z9qP15%2FHs8Lae20RLaUJlVwhQRRsi%2B%2FqEU%2BlHJWHA1mZByS0oDi9maA%3D)

    0 comments
  3. Anonymous
    2025-01-03T03:14:40+00:00

    Hello,

    I performed the following workarounds, and the result is now full screen. However, I'm not certain which one was effective:

    1.Right click the server connection > Properties>Display settings

    2.Make sure RDCM window is NOT maximized. It can be any size window you want, just not maximized.

    Right click your server and select "Full Screen"

    Your RDC should now be taking up the entire screen.

    Alternatively, right click the server in the tree then undock it. Once it’s undocked, go full screen. You’ll need to use the CTRL+ALT+Break to get out of fullscreen.

    0 comments
