Bitlock recover key not working system crashing Stop code:-DPC WATCHDOG VIOLATION

Question

Bitlocker recovery key not working on my dell Laptop. I am key in the 48 digit number and pressing enter button but still not unlocking getting crash wdt violation and I got the key from Microsoft account. Tried to startup repair didn’t work, reset didn’t work and I tried command prompt to get extract data didn’t work I tried all sort of things from Microsoft no success. Try to call Microsoft not passing automated voice service. Can you please help me in this regard

* Changed to a question

***moved form Windows / Windows 10 / Security and privacy***

Answer 1

Hello  Harikiran Moka，

Thank you for posting in Microsoft Community forum.

The STOP code "DPC_WATCHDOG_VIOLATION" typically indicates that the DPC (Deferred Procedure Call) Watchdog detects that a system bug checked, possibly due to software or hardware issues. Here are some steps you might consider to address these problems:

1. Verify Bitlocker Recovery Key

• Double-check the Bitlocker recovery key you have. Ensure you are entering the correct key. Sometimes it might be a typo, or you could be using a different key if you have multiple devices.

2. Boot into Safe Mode

• Try to boot into Safe Mode. This might help to bypass the crash you are experiencing.
  1. Restart your computer.
  2. As it restarts, press and hold the Shift key and select the Restart option.
  3. Go to Troubleshoot > Advanced options > Startup Settings > Restart.
  4. When your computer restarts, select option 4 or press F4 to start in Safe Mode.

3. Use a Different USB Port or Recovery Environment

• If you are using a USB recovery drive, ensure it is correctly connected. Try different USB ports.
• If available, use another computer to create a Windows 10 installation media on a USB flash drive. Boot from this USB to access the recovery environment.

4. Update BIOS and Drivers

• Sometimes, updating your BIOS and system drivers can resolve the DPC watchdog violation.
  1. Visit the Dell support website.
  2. Enter your Dell laptop model or Service Tag.
  3. Download and install the latest BIOS and driver updates.
  4. Note: Be cautious while updating BIOS, and follow instructions on the Dell website.

5. Disable Secure Boot Temporarily

• Access your BIOS settings, and temporarily disable Secure Boot. After fixing your issue, you might re-enable it.
  1. Restart your computer and press F2 or Del to enter BIOS (this key may vary).
  2. Locate the Secure Boot option and disable it.

6. Run CHKDSK and SFC

• Sometimes, file system errors cause these problems. Running CHKDSK and System File Checker might help.
  1. Access Command Prompt from the Advanced Boot Options (you might have to use Windows installation media to access this option).
  2. Run the following commands:


          chkdsk C: /f /r /x

          sfc /scannow



7. Connect with Dell Support

• If the above steps do not resolve the issue, consider contacting Dell support for further assistance.
  1. Visit the Dell Support website.
  2. Provide your Service Tag or Express Service Code.
  3. Contact support via chat or call to explain your issue.

I hope the information above is helpful.

If you have any question or concern, please feel free to let us know.

Best Regards,

Haijian Shan

Answer 2

The STOP code "DPC_WATCHDOG_VIOLATION" typically indicates that the DPC (Deferred Procedure Call) Watchdog detects that a system bug checked, possibly due to software or hardware issues. Here are some steps you might consider to address these problems:

1. Verify Bitlocker Recovery Key

• Double-check the Bitlocker recovery key you have. Ensure you are entering the correct key. Sometimes it might be a typo, or you could be using a different key if you have multiple devices.

Tried my self and my family didn't work

2. Boot into Safe Mode

• Try to boot into Safe Mode. This might help to bypass the crash you are experiencing.

1. Restart your computer.
2. As it restarts, press and hold the Shift key and select the Restart option.
3. Go to Troubleshoot > Advanced options > Startup Settings > Restart.
4. When your computer restarts, select option 4 or press F4 to start in Safe Mode.

Tried but asking the BitLocker key after going into safe mode, after entering the BitLocker key system screen turned black

3. Use a Different USB Port or Recovery Environment

• If you are using a USB recovery drive, ensure it is correctly connected. Try different USB ports.
• If available, use another computer to create a Windows 10 installation media on a USB flash drive. Boot from this USB to access the recovery environment.

Didn't try or didn't get it, please explain more or give a link which explains the process.

4. Update BIOS and Drivers

• Sometimes, updating your BIOS and system drivers can resolve the DPC watchdog violation.

1. Visit the Dell support website.
2. Enter your Dell laptop model or Service Tag.
3. Download and install the latest BIOS and driver updates.
4. Note: Be cautious while updating BIOS, and follow instructions on the Dell website.

Tried my self didn't work

5. Disable Secure Boot Temporarily

• Access your BIOS settings, and temporarily disable Secure Boot. After fixing your issue, you might re-enable it.

1. Restart your computer and press F2 or Del to enter BIOS (this key may vary).
2. Locate the Secure Boot option and disable it.

Tried my self didn't work

6. Run CHKDSK and SFC

• Sometimes, file system errors cause these problems. Running CHKDSK and System File Checker might help.

1. Access Command Prompt from the Advanced Boot Options (you might have to use Windows installation media to access this option).
2. Run the following commands:

chkdsk C: /f /r /x

sfc /scannow

``**`**

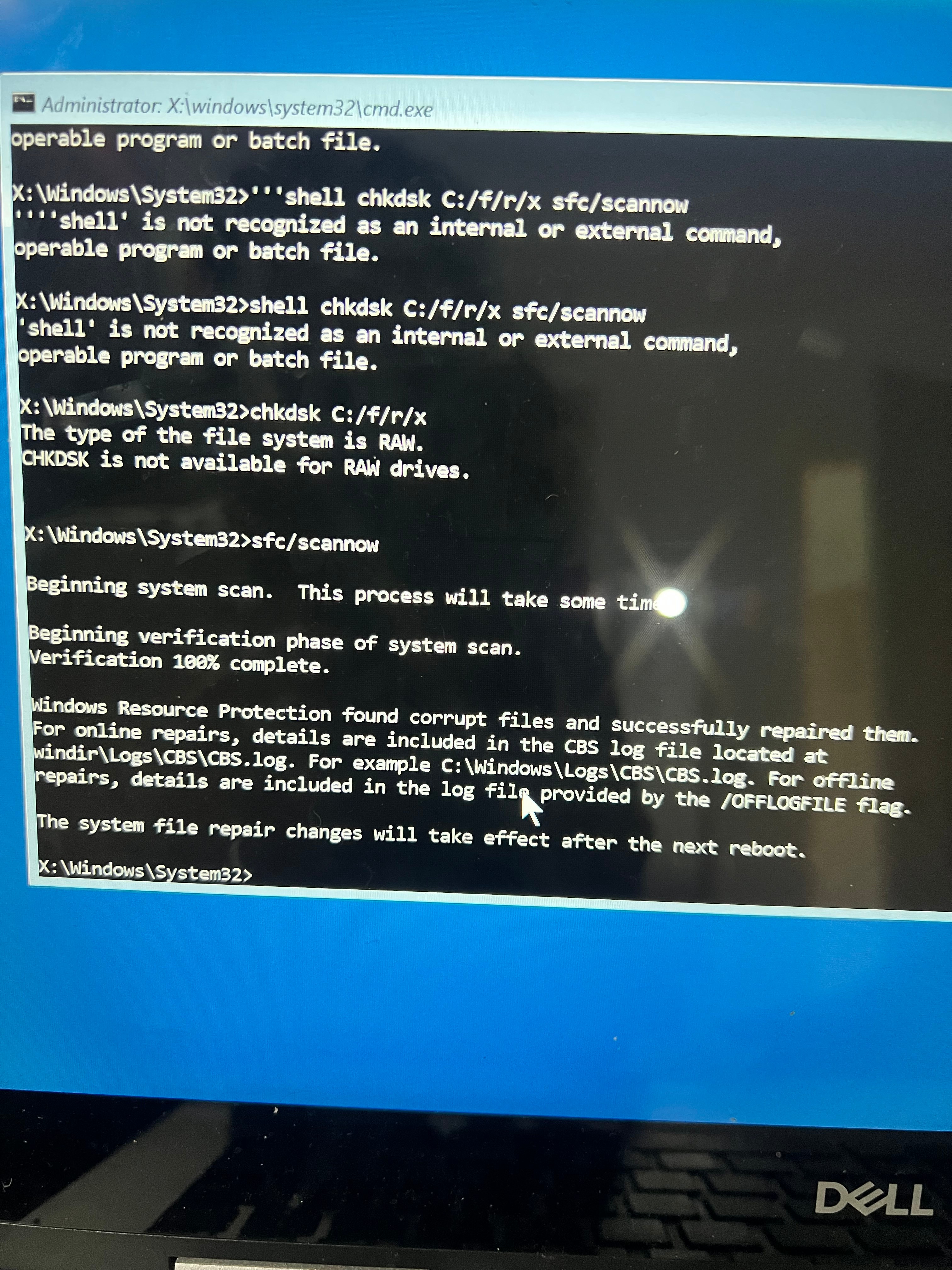

**chkdsk C: /f /r /x  getting following message**

**"The type of file system is RAW"**

**" chkdsk is not available ffor RAW drives"**

sfc /scannow

please see the picture

7. Connect with Dell Support

- If the above steps do not resolve the issue, consider contacting Dell support for further assistance.

1. Visit the Dell Support website.

2. Provide your Service Tag or Express Service Code.

3. Contact support via chat or call to explain your issue

Call them told to go to local data recovery and get your data restored before reinstalling Windows

Answer 3

pleas e look at the below image

Answer 4

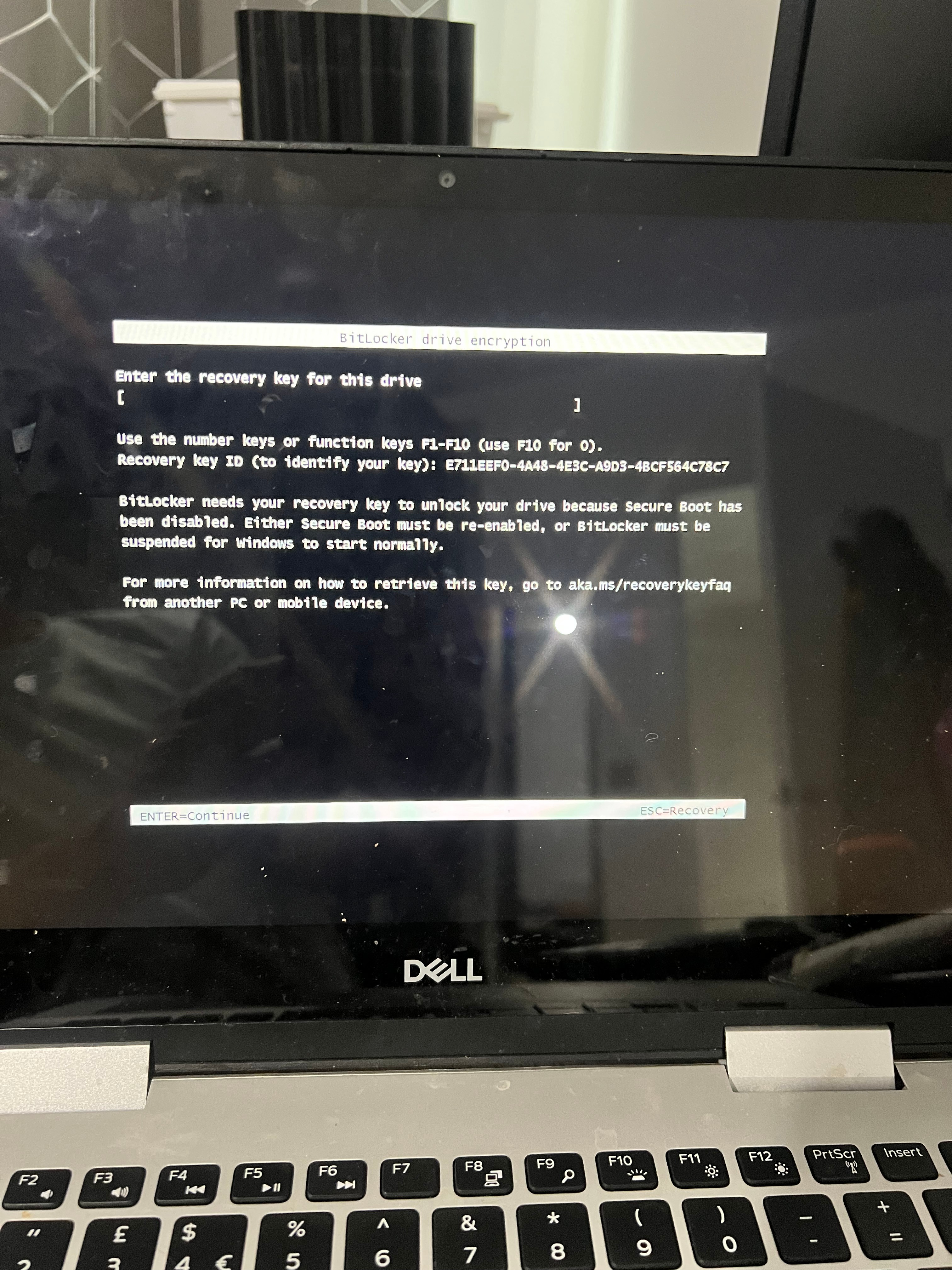

All the options which you suggested take back to me to the Bitlocker drive recovery key screen and after entering Bitlocker key may be tried 100 times the screen gets black and the system turns off itself like below picture in Boot mode .

Answer 5

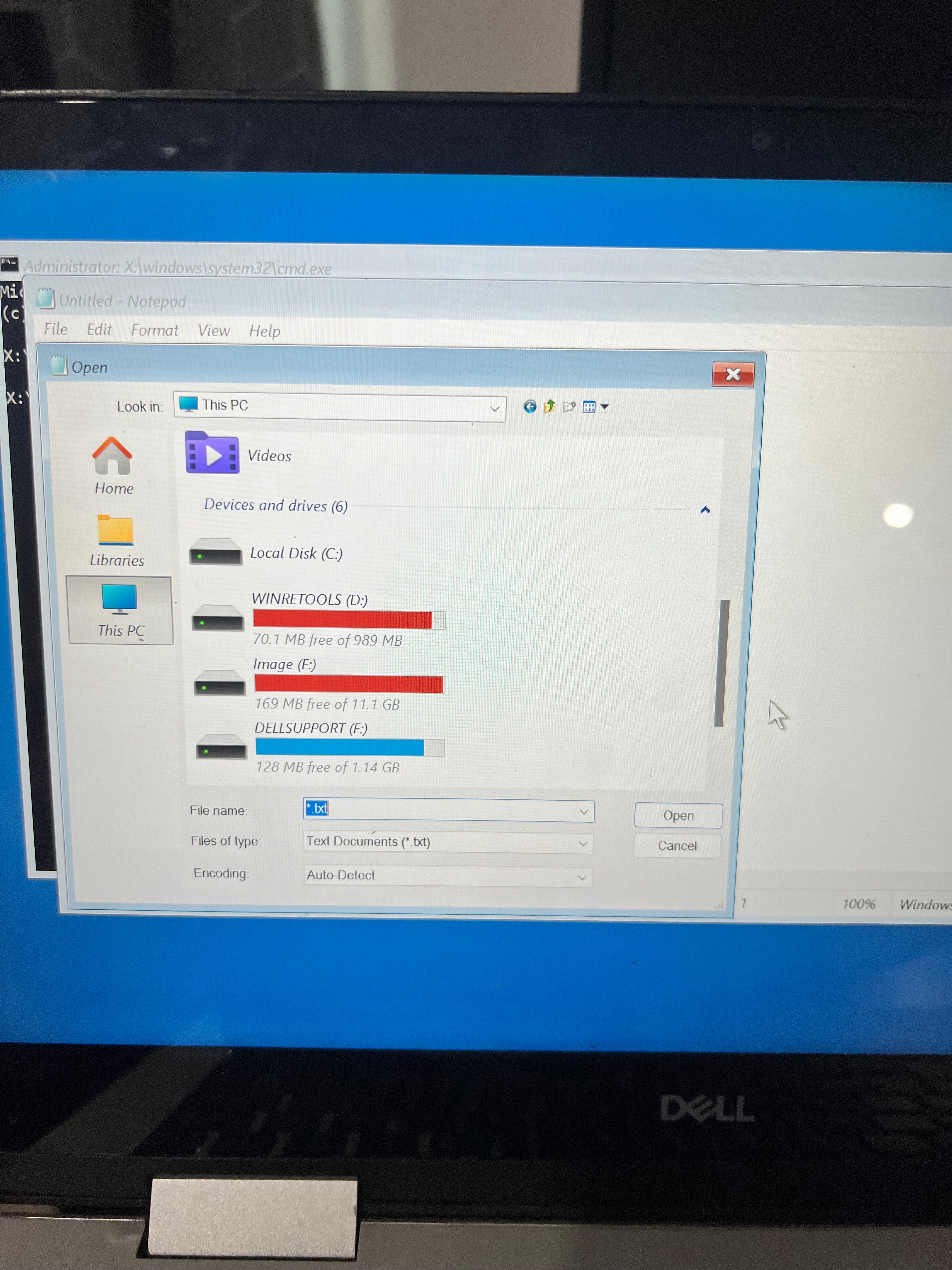

I typed the notepad command in the command prompt to copy data into an external hardive which is detected by Windows. But no access to C: drive it is locked...
