I want to use windows server 2022 RADIUS (NPS) with WPA3 security. I am using it with WPA2/EAP and RADIUS ACL, without any trouble

Question

HI MS Team , I am not able to use NPS with WPA3 security and authentication from active directory user credentials.

It works with WPA2/EAP but not with WPA3.Access points used are WiFi6 .

I am using called station ID matching and MS PEAP

Kindly let me know about correct configuration for WPA3

Please note that, it works with WPA2/EAP and RADIUS ACL, but does not work with WPA3

Answer 1

Hello,

Here are the steps to configure NPS with WPA3 security:

1. Ensure that your access points support WPA3.
2. Install the latest security patches on your Windows Server 2022.
3. Open the NPS console and create a new network policy.
4. In the "Conditions" tab, select "Windows Groups" and add the Active Directory group that contains the users who will be allowed to connect to the network.
5. In the "Constraints" tab, select "Authentication Methods" and add "Microsoft: Protected EAP (PEAP)".
6. In the "EAP Types" section, select "Microsoft: Secured password (EAP-MSCHAP v2)".
7. In the "Constraints" tab, select "Encryption" and choose "WPA3 - Enterprise".
8. Save the network policy and test the connection.

Regards,

Zunhui

Answer 2

Dear Zunhui

Thanks for the response;

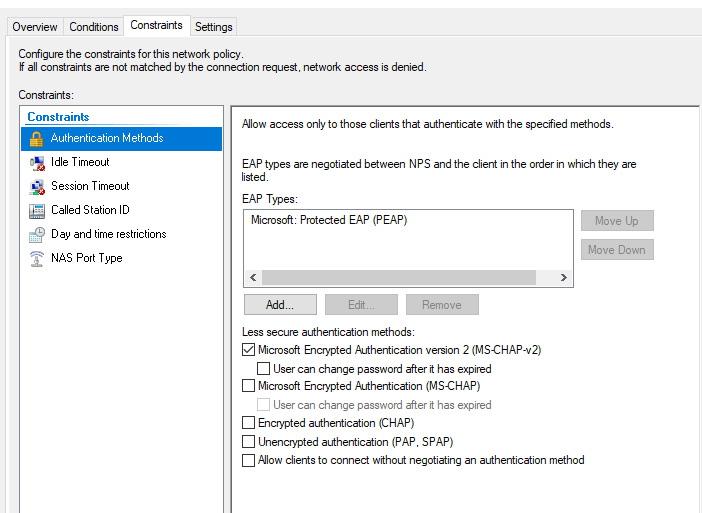

Regarding point no 7, I am not seeing any option tochoose encryption under constraint tab, pls find here the screenshot

Answer 3

Same is done but now working. Error coming The client could not be authenticated  because the Extensible Authentication Protocol (EAP) Type cannot be processed by the server.

Answer 4

Missing parts for Step 7 as well.
