RDP display problems

Anonymous
2024-12-09T18:52:58+00:00

Hello to the whole community.

After updating to Win11 24H2 I have problems with viewing Remote Desktops (see attached screenshot), which does not happen with the Win11 23H2 version. Anyone know how to solve it?

Best Regards

Giovanni![](https://filestore.community.support.microsoft.com/api/images/dd9c5a60-f79c-450a-9ee6-d37613a31b2a?upload=true&fud_access=hC1SxZhn7m%2FZQJkOIiOVstu10yTQgXS4A%2FDBzZTg8nbaCgIogkrcDydMeI5Y4za2dOqDdWtsG2JNS3E35V60i9TiGHR7STMpJHheeXuDvO8nwjUlqCBHhJ0NDvuYN7OS0TXLoO6uhKWW%2BuJhHk7OTjmRcXuszCffbGYejV8jIGbArGcKFfKIBR7z6rj2MIUS6X0R%2FYT9n3l7BTbBOI6KqbhBJYGG9wfmTgP2LUAEQgflKh%2BYv9KtKKEvl2HrvHxxoYPHvr1RDd99iCLLyLKf8DCVJd%2B9ax5d7NGl26UjDNSKRwqn42NzMyYKkyZq%2BYHg5vwX4o%2BQ7VD4fFz%2FogbGf2PXzbYg0HuHKz7AAdFY4jHil83zRzBLZMTyR7rqO%2FsniziyU6zD6q8jiqImyDbIxsMe2r6Pr78ZlTTsrotlx2g%3D)

Windows for business Windows Client for IT Pros User experience Remote desktop clients

Locked Question. This question was migrated from the Microsoft Support Community. You can vote on whether it's helpful, but you can't add comments or replies or follow the question. To protect privacy, user profiles for migrated questions are anonymized.

0 comments

24 answers

Sort by: Most helpful
Most helpful Newest Oldest
  1. Anonymous
    2025-02-27T10:34:43+00:00

    I think KB5050577 and KB5052093 fixed the problem for me.

    Thanks!

    1 person found this answer helpful.
    0 comments
  2. Anonymous
    2024-12-10T02:44:34+00:00

    Hello,

    Here are two potential solutions you might consider:

    1. Replace the mstsc.exe and mstscax.dll files located in C:\Windows\System32 with versions from the 23H2 update.

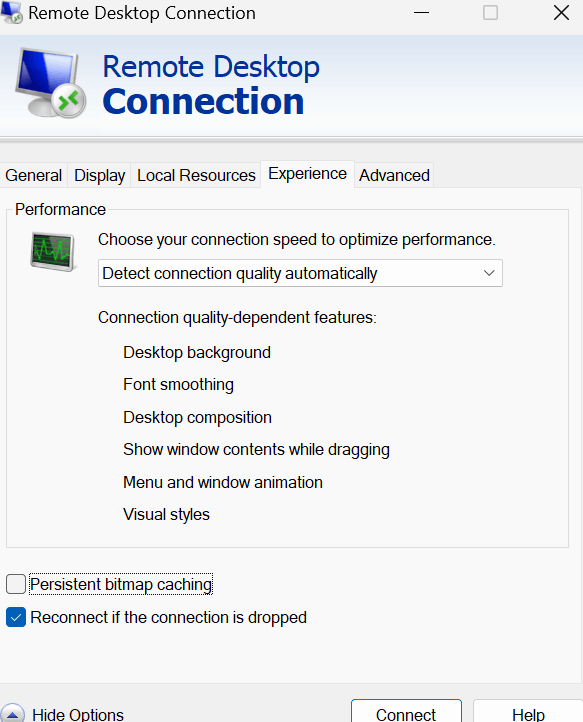

    2. Under the "Experience" tab, uncheck the option for persistent bitmap caching.

    I hope this information helps.

    Best regards,

    Karlie Weng

    1 person found this answer helpful.
    0 comments
  3. Deleted

    This answer has been deleted due to a violation of our Code of Conduct. The answer was manually reported or identified through automated detection before action was taken. Please refer to our Code of Conduct for more information.

    Comments have been turned off. Learn more

  4. Anonymous
    2024-12-10T08:52:56+00:00

    Hi
I tried to disable the flag you suggested but I get no improvements.

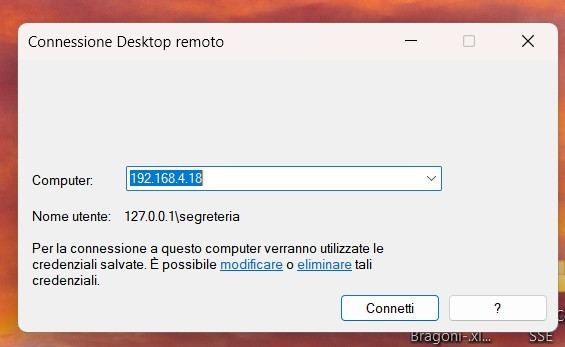

If I use the previous version that is in windows.old I don't have the management bar and
I'm missing the options, I'm attaching the screen shot.
Thanks for the support

Giovanni
    0 comments
  5. Anonymous
    2024-12-12T23:24:13+00:00

    I was having the same problem with the distorted display when using the built-in RDP tool AND a third-party app (that uses the underlying MS RDP files) after upgrading to 24H2. Putting back the old files from 23H2 resolved the issue in my third-party app (RemoteDesktopManager by Devolutions) and while the built-in RDP client also started working, there were some toolbar issues as described above.

    Hopefully this can be fixed!

    0 comments
