windows phone live tile replica don't work

Question

Hello, I am a big fan of Microsoft live tiles (Windows phone days)

So I made my own

XML Copy

 <StackLayout Padding="0">
       <control:LiveTileControl
           Title="My live tile"
           LiveTileBackgroundColor="Green"
           TitleColor="White"
           TitleFontAtributes="Bold"
           TitleFontSize="14"
           TitlePosition="LowerLeft"
           RefreshRate="5"
           IconSource="{Static font:FluentUI.people_12_regular}"
           TransparencyPercentage="30" />
   </StackLayout>

C#

TypeScript Copy

using Microsoft.Maui.Controls.Shapes;

namespace LiveTileControl.Controls;
public partial class LiveTileControl : ContentView {
    #region Bindiable Properties

    public static readonly BindableProperty TransparencyPercentageProperty = BindableProperty.Create(
        nameof(TransparencyPercentage),
        typeof(double),
        typeof(LiveTileControl),
        100.0,
        propertyChanged: OnTransparencyPercentageChanged);

    public static readonly BindableProperty LiveTileBackGroundProperty = BindableProperty.Create(
       nameof(LiveTileBackgroundColor),
       typeof(Color),
       typeof(LiveTileControl),
       Colors.Transparent);

    public static readonly BindableProperty IconSourceProperty = BindableProperty.Create(
        nameof(IconSource),
        typeof(string),
        typeof(LiveTileControl));

    public static readonly BindableProperty RefreshRateProperty = BindableProperty.Create(
        nameof(RefreshRate),
        typeof(int),
        typeof(LiveTileControl),
        30); // 30 seconds;

    public static readonly BindableProperty TitleProperty = BindableProperty.Create(
        nameof(Title),
        typeof(string),
        typeof(LiveTileControl));

    public static readonly BindableProperty TitleFontFamilyProperty = BindableProperty.Create(
        nameof(TitleFontFamily),
        typeof(string),
        typeof(LiveTileControl),
        "Default");

    public static readonly BindableProperty TitlePositionProperty = BindableProperty.Create(
        nameof(TitlePosition),
        typeof(TitlePositionEnum),
        typeof(LiveTileControl),
        TitlePositionEnum.LowerLeft);

    public static readonly BindableProperty TitleColorProperty = BindableProperty.Create(
        nameof(TitleColor),
        typeof(Color),
        typeof(LiveTileControl),
        Colors.Black);

    public static readonly BindableProperty TitleFontSizeProperty = BindableProperty.Create(
        nameof(TitleFontSize),
        typeof(int),
        typeof(LiveTileControl));

    public static readonly BindableProperty TitleFontAtributesProperty = BindableProperty.Create(
        nameof(TitleFontAtributes),
        typeof(FontAttributes),
        typeof(LiveTileControl));


    public TitlePositionEnum TitlePosition {
        get => (TitlePositionEnum)GetValue(TitlePositionProperty);
        set => SetValue(TitlePositionProperty, value);
    }

    private static void OnTransparencyPercentageChanged(BindableObject bindable, object oldValue, object newValue) {
        if(bindable is LiveTileControl control && newValue is double transparency) {

            control.UpdateBackgroundTransparency(transparency);
        }
    }

    private void UpdateBackgroundTransparency(double transparency) {
        // Convert the transparency percentage (0-100) to a float value (0.0-1.0)
        float alpha = (float)Math.Clamp(transparency / 100.0, 0.0, 1.0);

        var baseColor = BackgroundColor != null ? BackgroundColor : Colors.Transparent;

        // Update the BackgroundColorWithTransparency property with the new alpha value
        LiveTileBackgroundColor = baseColor.WithAlpha(alpha);
    }

    public double TransparencyPercentage {
        get => (double)GetValue(TransparencyPercentageProperty);
        set => SetValue(TransparencyPercentageProperty, value);
    }

    public Color LiveTileBackgroundColor {
        get => (Color)GetValue(LiveTileBackGroundProperty);
        set => SetValue(LiveTileBackGroundProperty, value);
    }

    public string IconSource {
        get => (string)GetValue(IconSourceProperty);
        set => SetValue(IconSourceProperty, value);
    }

    public int RefreshRate {
        get => (int)GetValue(RefreshRateProperty);
        set => SetValue(RefreshRateProperty, value);
    }

    public string Title {
        get => (string)GetValue(TitleProperty);
        set => SetValue(TitleProperty, value);
    }

    public string TitleFontFamily {
        get => (string)GetValue(TitleFontFamilyProperty);
        set => SetValue(TitleFontFamilyProperty, value);
    }

    public Color TitleColor {
        get => (Color)GetValue(TitleColorProperty);
        set => SetValue(TitleColorProperty, value);
    }

    public int TitleFontSize {
        get => (int)GetValue(TitleFontSizeProperty);
        set => SetValue(TitleFontSizeProperty, value);
    }

    public FontAttributes TitleFontAtributes {
        get => (FontAttributes)GetValue(TitleFontAtributesProperty);
        set => SetValue(TitleFontAtributesProperty, value);
    }

    #endregion

    #region This enum will be use for the position o the title

    public enum TitlePositionEnum {

        UpperLeft,
        UpperRight,
        LowerLeft,
        LowerRight,
        Center
    }

    #endregion


    private View CreateIcon() {
        return new Image {
            Source = IconSource,
            WidthRequest = 48,
            HeightRequest = 48,
            HorizontalOptions = LayoutOptions.Center,
            VerticalOptions = LayoutOptions.Center
        };
    }

    private View CreateText() {

        var label = new Label {

            Text = Title,
            TextColor = TitleColor,
            FontFamily = TitleFontFamily,
            FontSize = TitleFontSize,
            FontAttributes = TitleFontAtributes
        };

        UpdateTextAlligment(label);

        return label;
    }

    private void UpdateTextAlligment(Label label) {

        switch(TitlePosition) {
            case TitlePositionEnum.UpperLeft:
                label.HorizontalOptions = LayoutOptions.Start;
                label.VerticalOptions = LayoutOptions.Start;
                break;
            case TitlePositionEnum.UpperRight:
                label.HorizontalOptions = LayoutOptions.End;
                label.VerticalOptions = LayoutOptions.Start;
                break;
            case TitlePositionEnum.LowerLeft:
                label.HorizontalOptions = LayoutOptions.Start;
                label.VerticalOptions = LayoutOptions.End;
                break;
            case TitlePositionEnum.LowerRight:
                label.HorizontalOptions = LayoutOptions.End;
                label.VerticalOptions = LayoutOptions.End;
                break;
            case TitlePositionEnum.Center:
                label.HorizontalOptions = LayoutOptions.Center;
                label.VerticalOptions = LayoutOptions.Center;
                break;
            default:
                label.HorizontalOptions = LayoutOptions.Center;
                label.VerticalOptions = LayoutOptions.Center;
                break;
        }
    }

    public async Task UpdateAnimation() {
        await this.ScaleTo(1.1, 150, Easing.CubicOut);
        await this.FadeTo(0.5, 150, Easing.CubicIn);
        await this.ScaleTo(1, 150, Easing.CubicOut);
        await this.FadeTo(1, 150, Easing.CubicIn);
    }

    public async void StartAutoRefresh() {
        // Use PeriodicTimer for periodic updates
        var timer = new PeriodicTimer(TimeSpan.FromSeconds(RefreshRate));

        // Loop to handle the timer ticks
        while(await timer.WaitForNextTickAsync()) {
            await Dispatcher.DispatchAsync(async () => {
                await UpdateAnimation(); // Trigger the animation

                // Fetch new data and update the UI
                string newData = await FetchData();
                UpdateContent(newData);
            });
        }
    }

    private async Task<string> FetchData() {
        try {
            using var httpClient = new HttpClient();
            var response = await httpClient.GetStringAsync("https://jsonplaceholder.typicode.com/posts/1");

            // Extract a portion of the response, e.g., the "title" field (you can use JSON parsing libraries like Newtonsoft.Json or System.Text.Json)
            return "Sample Data Fetched!"; // Replace this with parsed data

        } catch(Exception ex) {
            Console.WriteLine($"Error fetching data: {ex.Message}");
            return "Error Fetching Data";
        }
    }

    private void UpdateContent(string newData) {
        if(Content is Border border && border.Content is Grid grid) {
            foreach(var child in grid.Children) {
                if(child is Label label) {
                    label.Text = newData; // Update the text with the fetched data
                }
            }
        }
    }

    public LiveTileControl() {
        var grid = new Grid {
            HorizontalOptions = LayoutOptions.Fill,
            VerticalOptions = LayoutOptions.Fill
        };

        // Add the icon and title to the grid
        grid.Children.Add(CreateIcon());
        grid.Children.Add(CreateText());

        // Wrap the grid in a border for transparency and rounded corners
        var border = new Border {
            StrokeShape = new RoundRectangle {
                CornerRadius = new CornerRadius(10)
            },
            BackgroundColor = LiveTileBackgroundColor,
            Content = grid
        };

        // Set the border as the content of the LiveTileControl
        Content = border;
    }
}

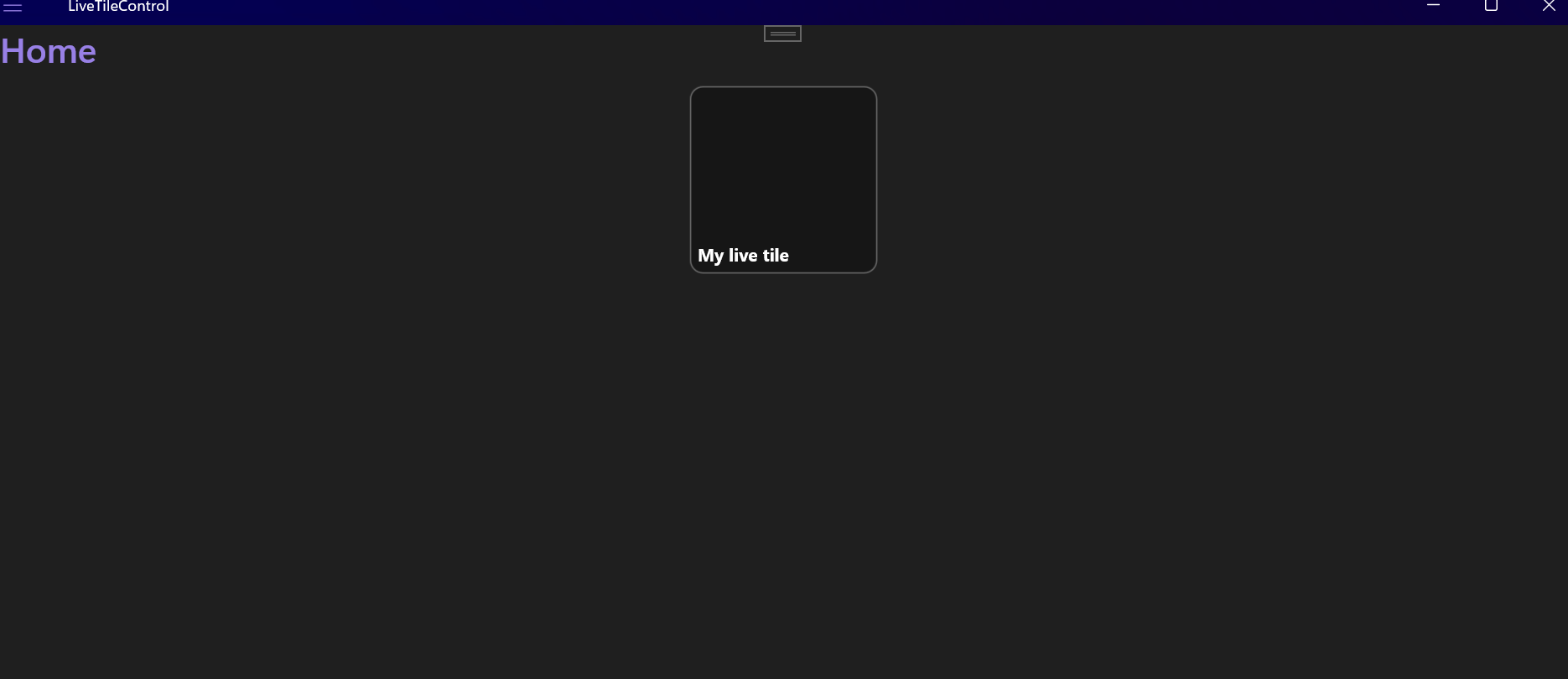

Is still don't work as expended

is supposed to be green, with 30% transparency, animate, show the icon, print into console evetime the data is updated

also, I included the icon of fluentUI that Microsoft included in .Net (Microsoft Created the class but did not include the font itself,

and I modify the main

YAML Copy

  fonts.AddFont("FluentSystemIcons-Regular.ttf", "FluentUI");

Answer 1

Hello,

This is because in ContentView, when you assign a value to a property in the constructor, such as the Title property, the property value is null. That's why you can't see anything in the Border after running.

You can assign values ​​to properties in the following ways.

C# Copy

protected override void OnHandlerChanged()
{
    base.OnHandlerChanged();
    var grid = new Grid
    {
        HorizontalOptions = LayoutOptions.Fill,
        VerticalOptions = LayoutOptions.Fill
    };

    // Add the icon and title to the grid
    grid.Children.Add(CreateIcon());
    grid.Children.Add(CreateText());

    // Wrap the grid in a border for transparency and rounded corners
    var border = new Border
    {
        StrokeShape = new RoundRectangle
        {
            CornerRadius = new CornerRadius(10)
        },
        BackgroundColor = LiveTileBackgroundColor,
        Content = grid
    };

    // Set the border as the content of the LiveTileControl
    Content = border;
}

Best Regards,

Alec Liu.

---
