Demote a DC followed by promote. Kerberos PRE-AUTH, mandating RC4-HMAC

Question

Hi

I am working with Windows 2019 Server and observing a weird behavior.

My server was promoted as a DC. Then for testing reasons, I had to demote it and then re-promote it.

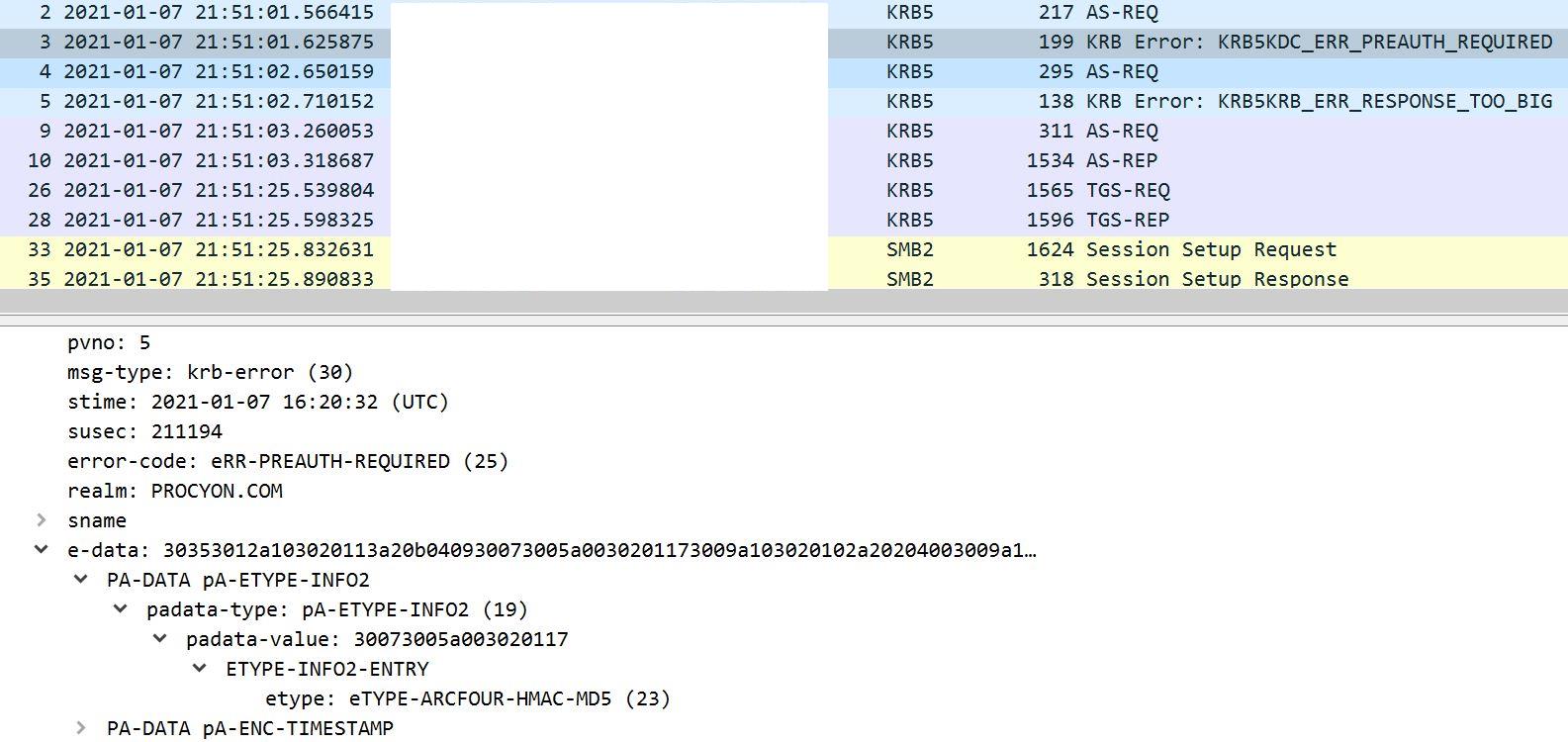

What I now observe is that the encryption types sent by AD for the KRB PRE-AUTH step specify only 1 enctype - RC4-HMAC

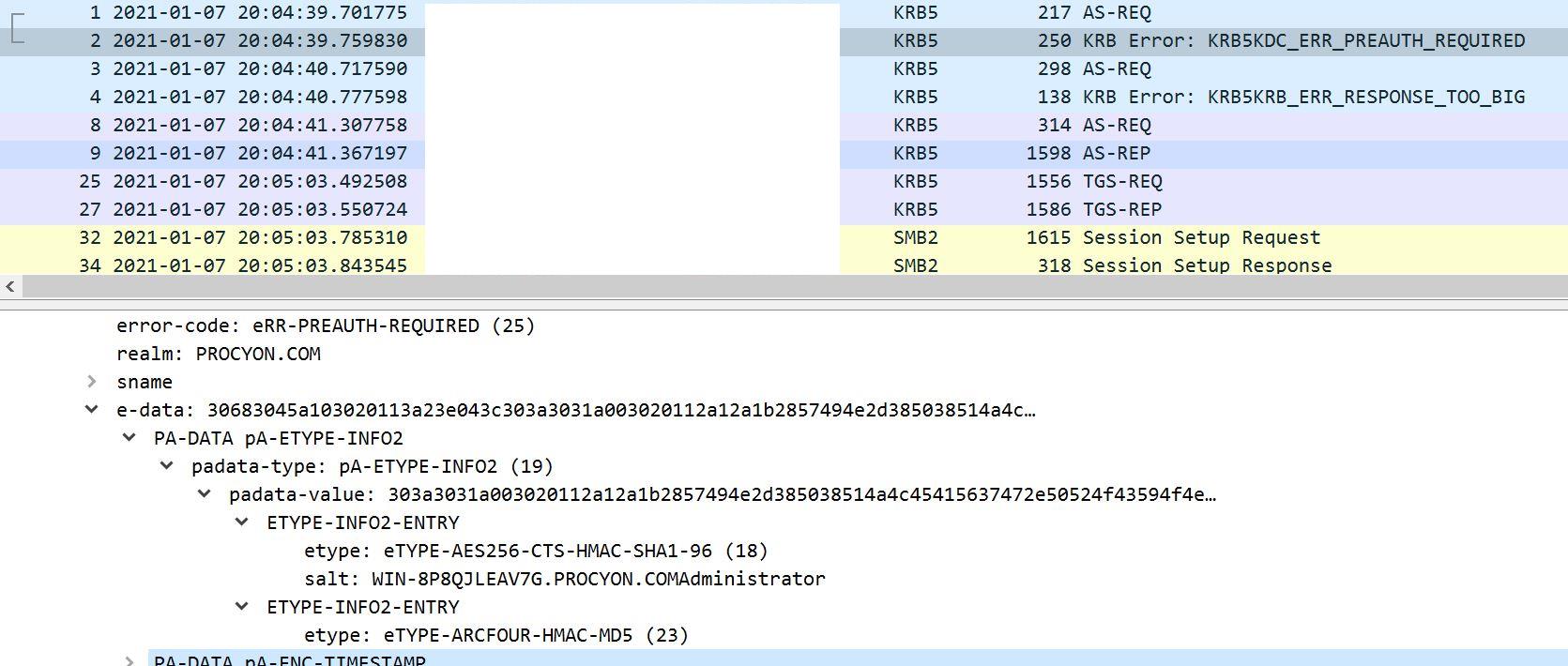

While it was supporting both AES and RC4 just before demotion, for the same user

I thought maybe I did something wrong. So fired up another DC, ran the same scenario and verified that it's the same behavior. I ran this scenario now on 3 different DCs, yup I had that much free time ;)

For a newly created user, however, both the enctypes are being supported for pre-auth step:

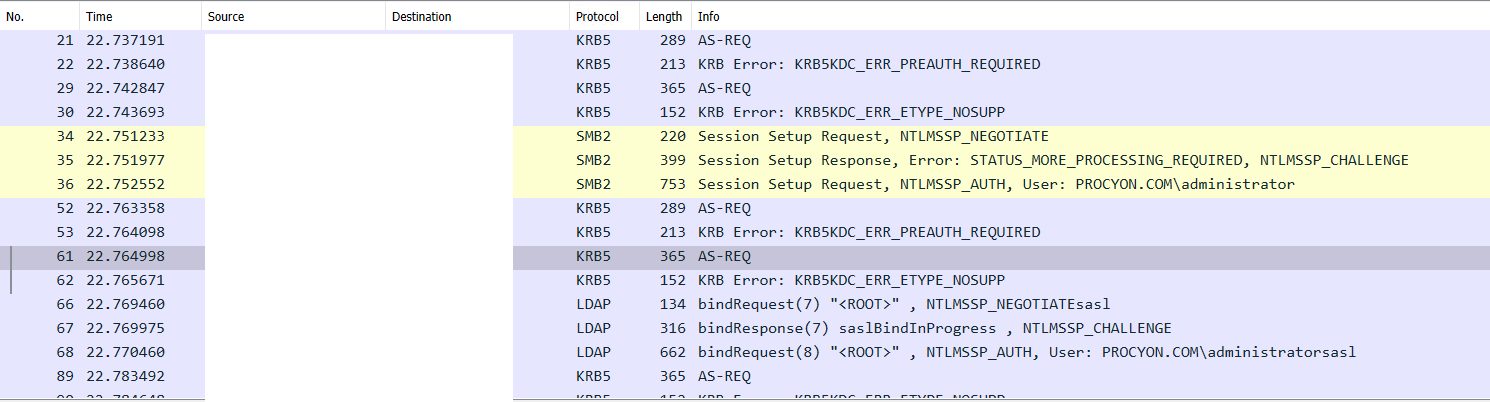

Things become more interesting if I now try to disable RC4 on the AD server. Since the pre-auth still mandates RC4 for the old user, it fails in the very next step with unsupported enctype error.
Like this. Client replies in RC4 enctype

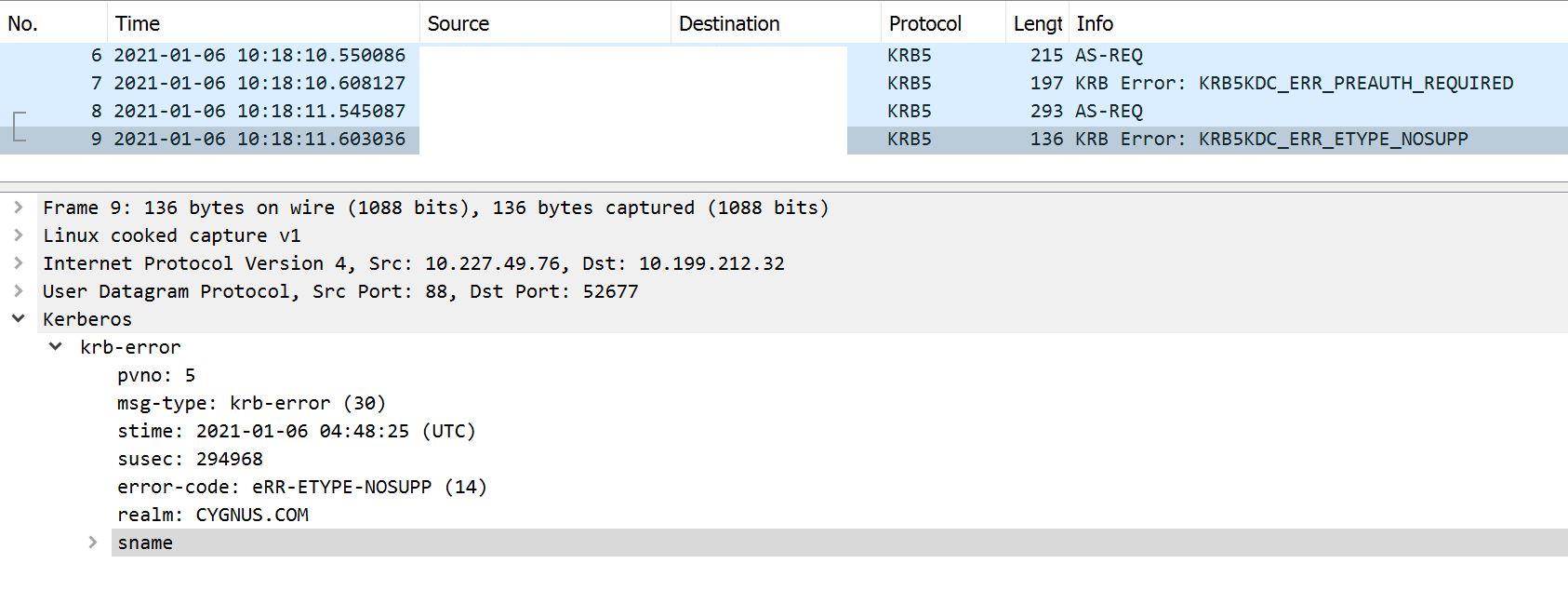

But server says not supported :). Dude !! You asked for RC4 a couple of frames ago

Answer 1

Thanks Daisy for testing this.

The last screenshot concurs with the issue I am observing.

The RC4 only PRE-AUTH is for the 'Administrator' user, which happens only after demote-promote.
The earlier two screenshots have both RC4 and AES for the 'Administrator' user

The AES/RC4 which follows that is for the Windows machine account.

I would call this a bug. Because once RC4 only is mandated for 'Administrator' pre-auth, if we disable RC4 on the DC(after demote/promote), the KRBTGT acquire step for 'Administrator' fails with 'ETYPE_NOSUPP' and instead it has to switch to NTLM

What if there is a kerberos only client ? KDC is not supporting RC4 but still mandating 'RC4' for 'Administrator' PRE-AUTH step

Note: One thing I noticed is after demote/promote, if we reset the password for 'Administrator' it again starts RC4 and AES for pre-auth

Answer 2

Hello @Varun Mittal ,

Thank you for posting here.

Based on the description "While it was supporting both AES and RC4 just before demotion, for the same user", I understand the DC before demotion supports AES and RC4.

And the new created user all the new promoted DCs supports AES and RC4.

Based on the description "What I now observe is that the encryption types sent by AD for the KRB PRE-AUTH step specify only 1 enctype - RC4-HMAC", do you mean the re-promoted DC only supported RC4?

Here we can see encryption types configuration as below:

Attribute
msDS-SupportedEncryptionTypes
UserAccountControl

Group Policy
Network Security: Configure Encryption types allowed for Kerberos

Registry
SupportedEncryptionTypes
DefaultEncryptionType
KdcUseRequestedEtypesForTickets

Here is the Etype of authenticator in pre-authentication below.

If registry setting DefaultEncryptionType is set to a non-zero value
Client will use this value as the Etype in pre-authentication
Else
If Etype related Group Policy is set
Client will pick the strongest Etype in the supported list set in GP
Else
If client is running on machine before Windows 7/Windows 2008
Its supported encryption list includes RC4 and DES
Else
Its supported encryption list includes AES, RC4 and DES

We can check the following registry values on this DC and user's domain PC:
SupportedEncryptionTypes (corresponding to GPO setting Network Security: Configure Encryption types allowed for Kerberos)
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Lsa\Kerberos\Parameters\SupportedEncryptionTypes

KdcUseRequestedEtypesForTickets
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Kdc\KdcUseRequestedEtypesForTickets (DWORD)
If the value of this key is non-zero, the server will try and use the highest encryption level supported by the client PC.

DefaultEncryptionType
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Lsa\Kerberos\Parameters\DefaultEncryptionType
Entry: DefaultEncryptionType
Type: REG_DWORD
This value indicates the default encryption type for pre-authentication. Default value is RC4 is 23 (decimal) or 0x17 (hexadecimal)
When you want to use AES, set the value to the following:
aes256-cts-hmac-sha1-96: 18 or 0x12
aes128-cts-hmac-sha1-96: 17 or 0x11

Tips:

If you can not find SupportedEncryptionTypes or DefaultEncryptionType under
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Lsa\Kerberos\Parameters\SupportedEncryptionTypes
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Lsa\Kerberos\Parameters\DefaultEncryptionType

You can find SupportedEncryptionTypes or DefaultEncryptionType under
HKLM\Software\Microsoft\Windows\CurrentVersion\Policies\System\Kerberos\Parameters\SupportedEncryptionTypes
HKLM\Software\Microsoft\Windows\CurrentVersion\Policies\System\Kerberos\Parameters\DefaultEncryptionType

Hope information above is helpful. If anything is unclear, please feel free to let us know.

References
Kerberos protocol registry entries and KDC configuration keys in Windows
https://learn.microsoft.com/en-us/troubleshoot/windows-server/windows-security/kerberos-protocol-registry-kdc-configuration-keys

Decrypting the Selection of Supported Kerberos Encryption Types
https://techcommunity.microsoft.com/t5/core-infrastructure-and-security/decrypting-the-selection-of-supported-kerberos-encryption-types/ba-p/1628797

Use the UserAccountControl flags to manipulate user account properties
https://learn.microsoft.com/en-us/troubleshoot/windows-server/identity/useraccountcontrol-manipulate-account-properties

Best Regards,
Daisy Zhou

Answer 3

Hi,

By default , RC4 still enabled for kerberos encrytion on new operating system.

Before disable this encryption type , you have to check if all kerberos clients in your environment can support AES 256.

To disable RC4, you have two methods you can use the attribute of the computer account msDS-SupportedEncryptionTypes or use a GPO settings to specify the lis of supported kerberos encryption type.

You can read this article to get more details about how you can disbale RC4 : windows-configurations-for-kerberos-supported-encryption-type

----------

Please don't forget to mark the helpful reply as answer

Answer 4

Hello @Varun Mittal ,

Thank you for your update.

I did a test in my lab yesterday.

Here is AD domain environment.

Domain name: a.com
Two Windows server 2019 DCs (Primary DC---PDC and backup DC---BDC).
PDC:2019standard 192.168.3.50
BDC:AdditionalDC 192.168.3.57

Test one

1. On BDC, I disabled KDC.
2. On PDC, open network monitor (right click network monotor and run as Administrator), start capture.
3. On BDC, run command: ipconfig /flushdns to clean DNS cache, and nbtstat -RR to clean NETBIOS cache.  Run klist purge command.
4. Logon the BDC using domain Administrator.
5. On PDC, stop cauture.
   Time stamp: 2020/1/13 14.13PM

Test two
Demote BDC as member server in the domain.
And logon this member server using domain Administrator and capture the netmon as above.
Time stamp: 2020/1/13 15.12PM

Test three
Repromote the member server (BDC server) as DC again.
And logon new BDC server using domain Administrator and capture the netmon as above.
Time stamp: 2020/1/13 16.18PM

In the three netmon, I find the same result as below.

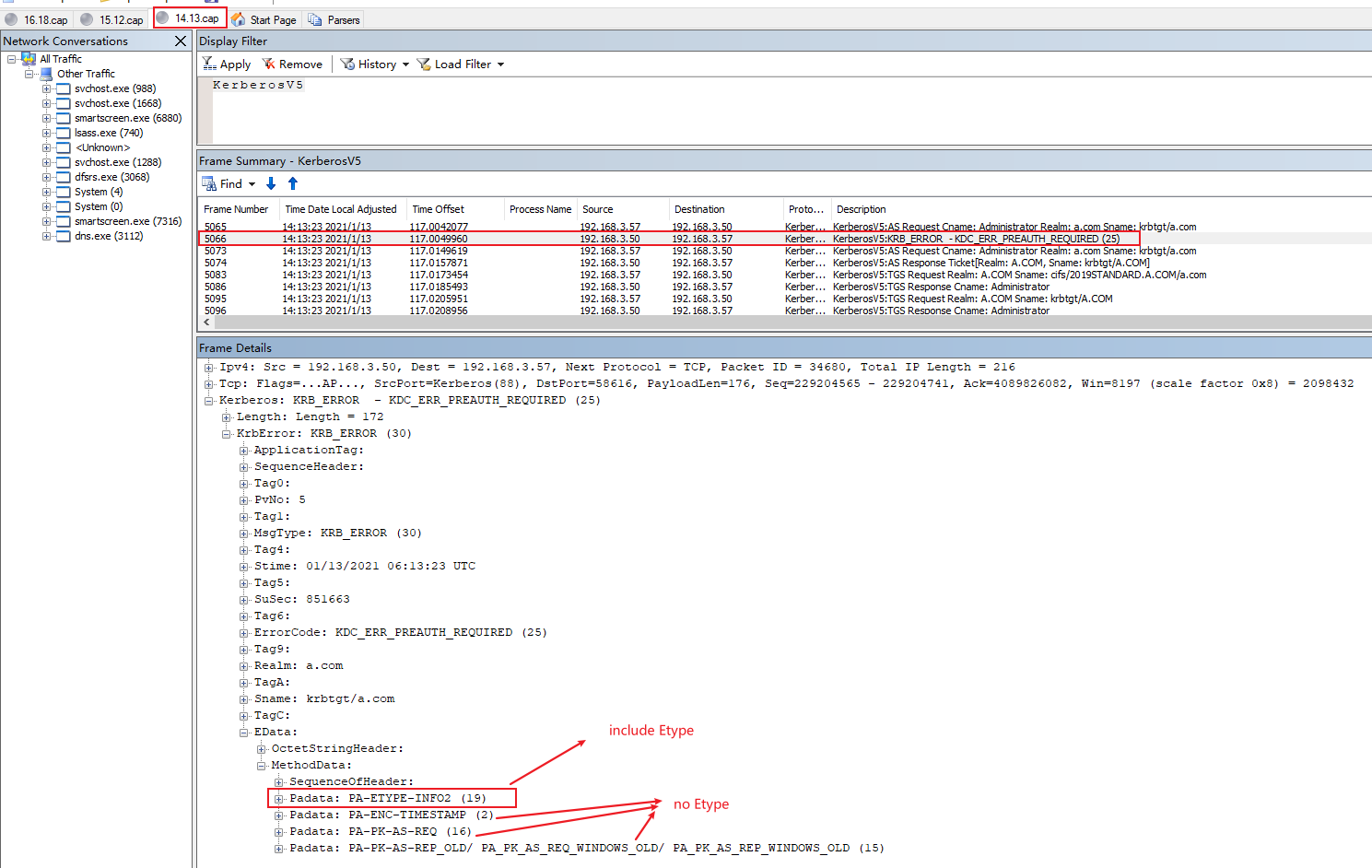

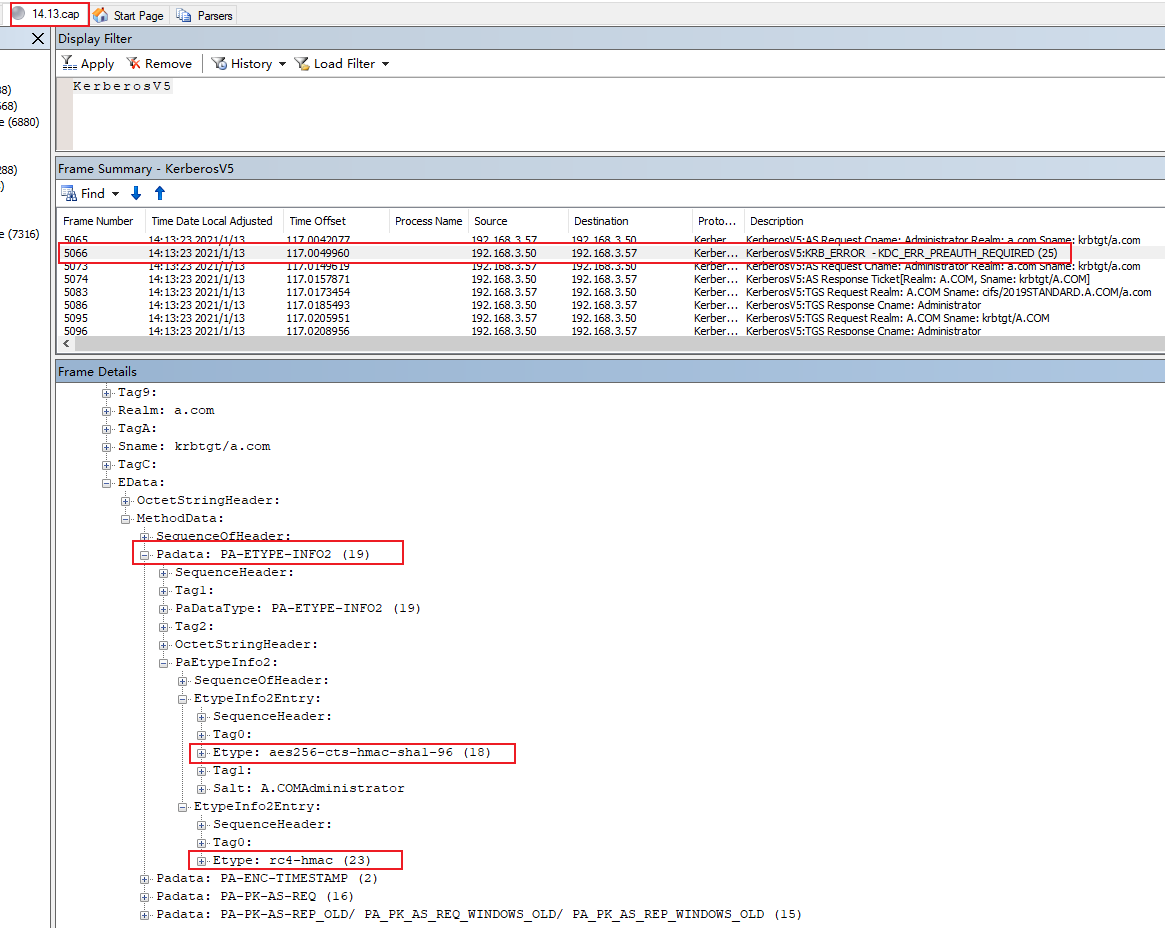

Test one result:

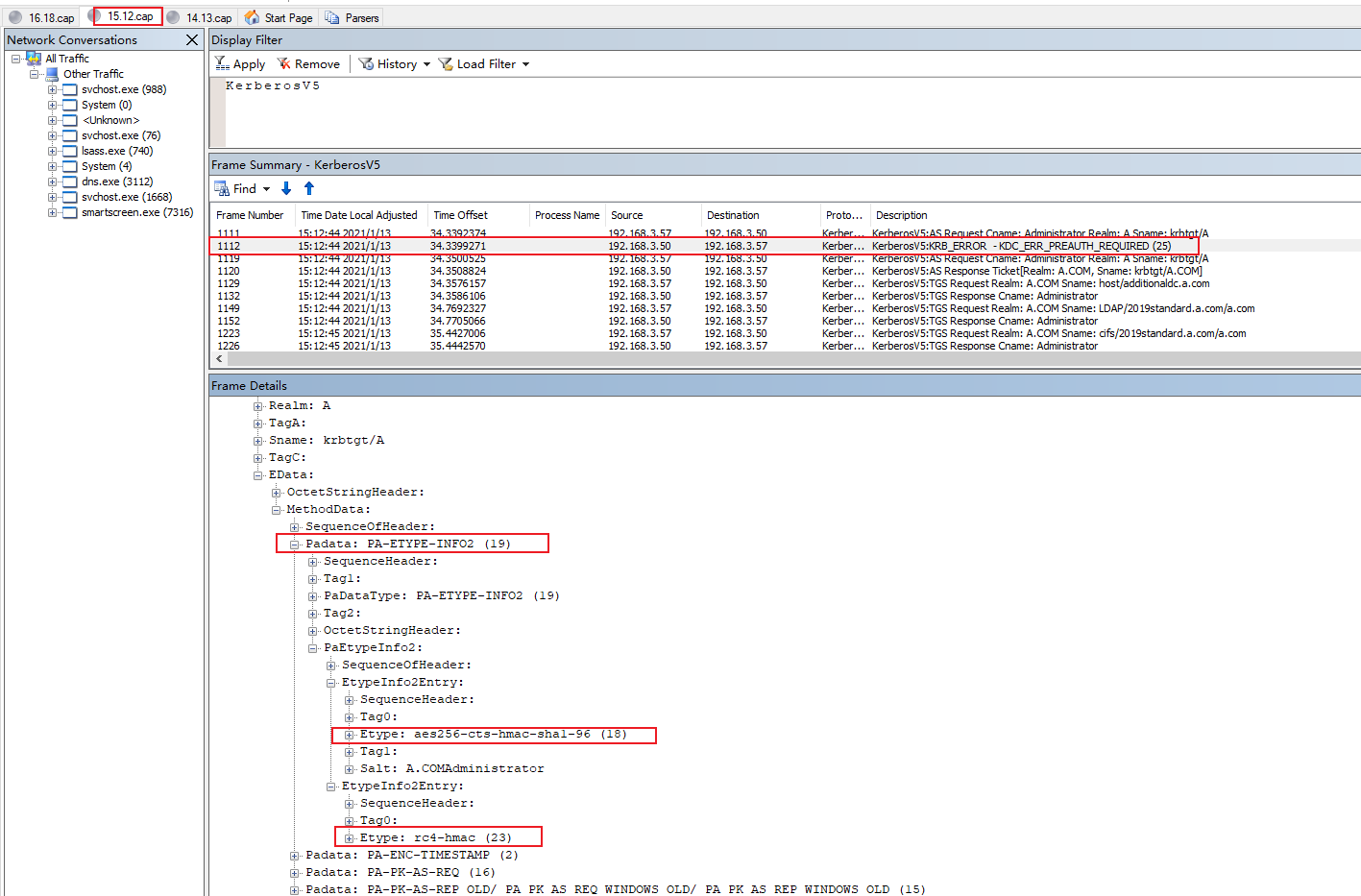

Test two result:

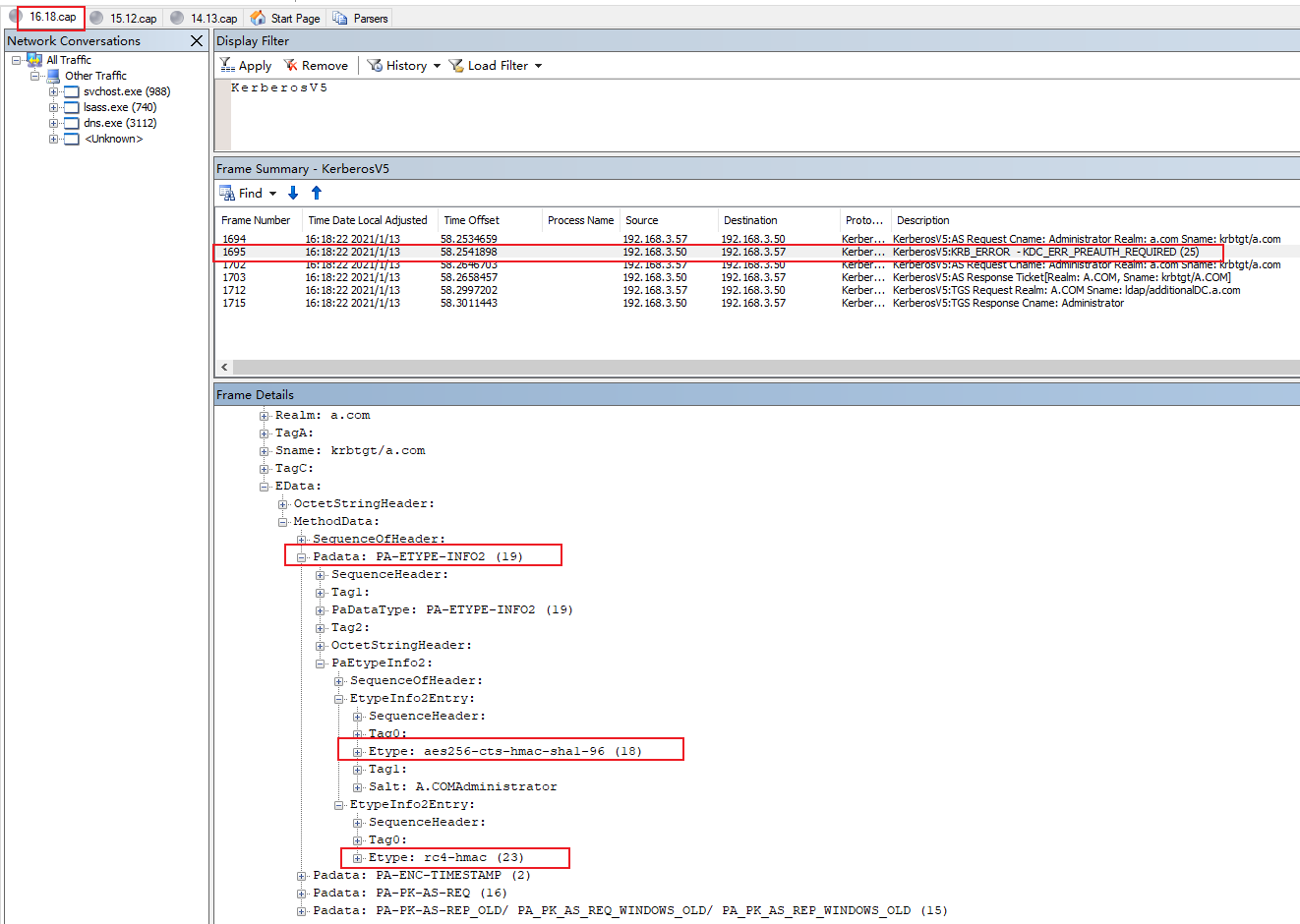

Test three result:

You can set up a test lab if possible, and check the result to see if the result is the same as you mentioned in the post.

Best Regards,
Daisy Zhou

Answer 5

Hello @Varun Mittal ,

I have done the test.

Step 1
I deploy a domain with a 2019 DC and a Windows server 2016.

Join this 2016 server to the domain.

Capture the netmon when I join the 2016 server to domain on both DC and client.

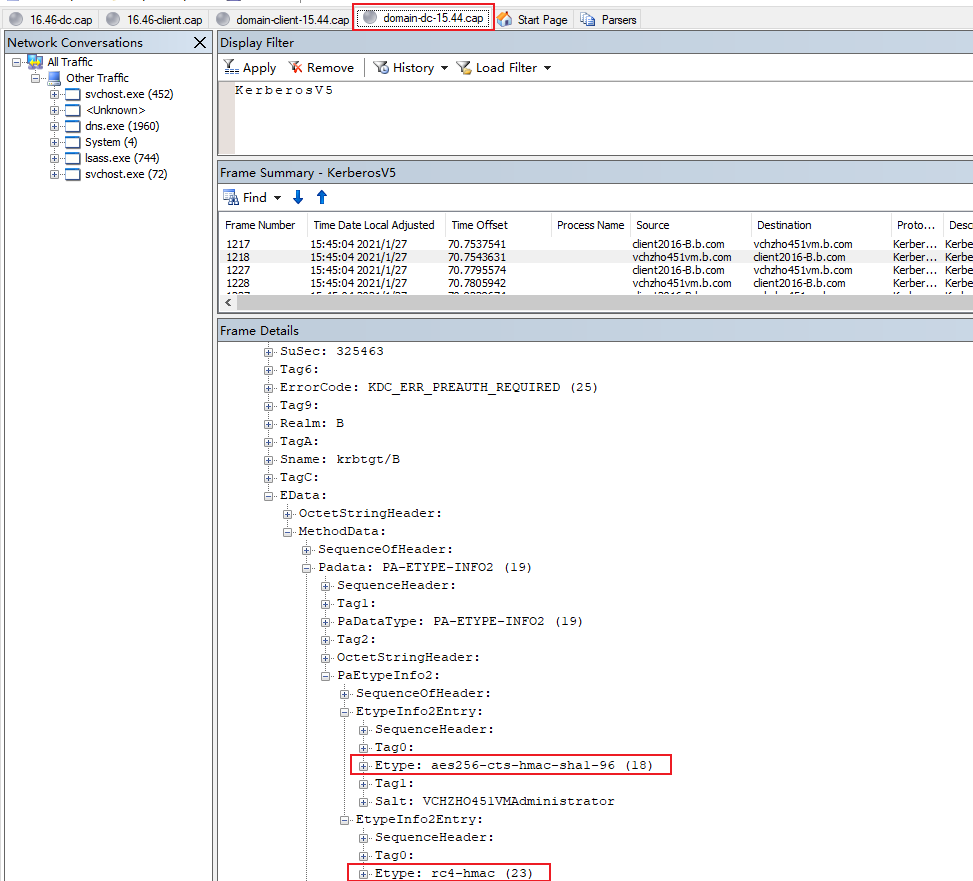

Here is the netmon on DC

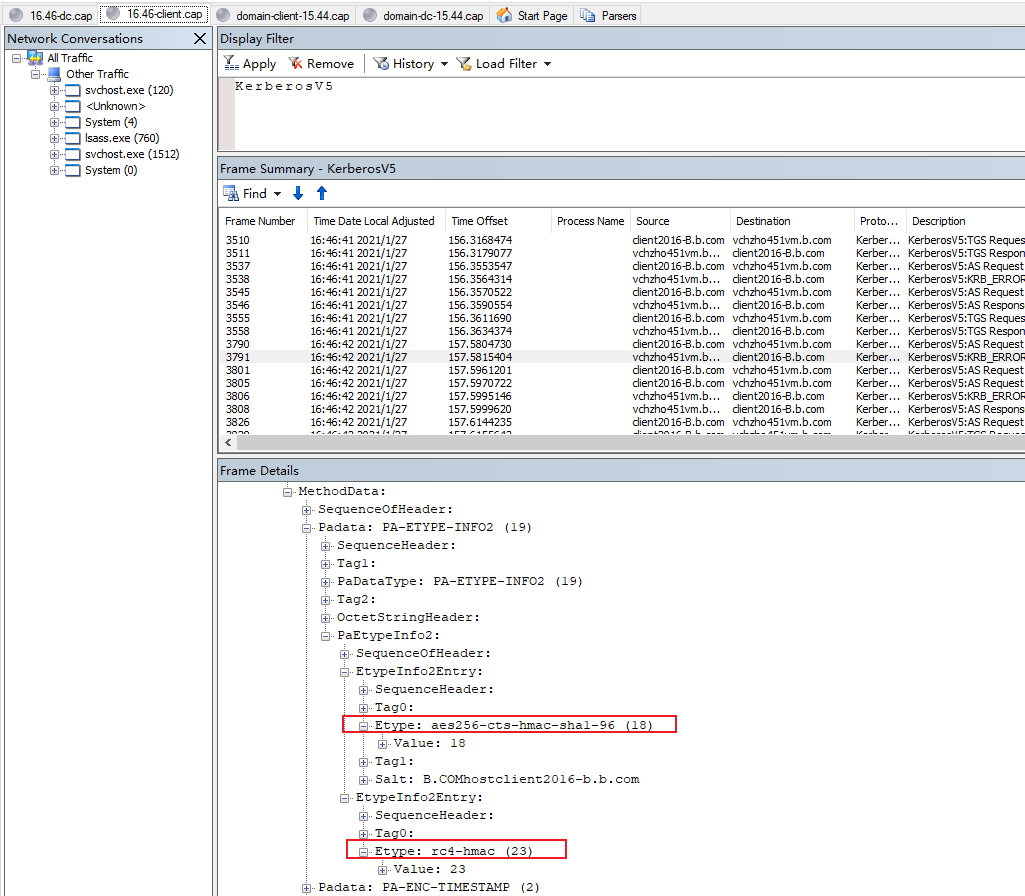

Here is the netmon on client.

Step 2
Demote the DC.

Remove the server from domain.

Step 3
Re-promote the DC.

Re-join the client.

Capture the netmon when I join the 2016 server to domain on both DC and client.

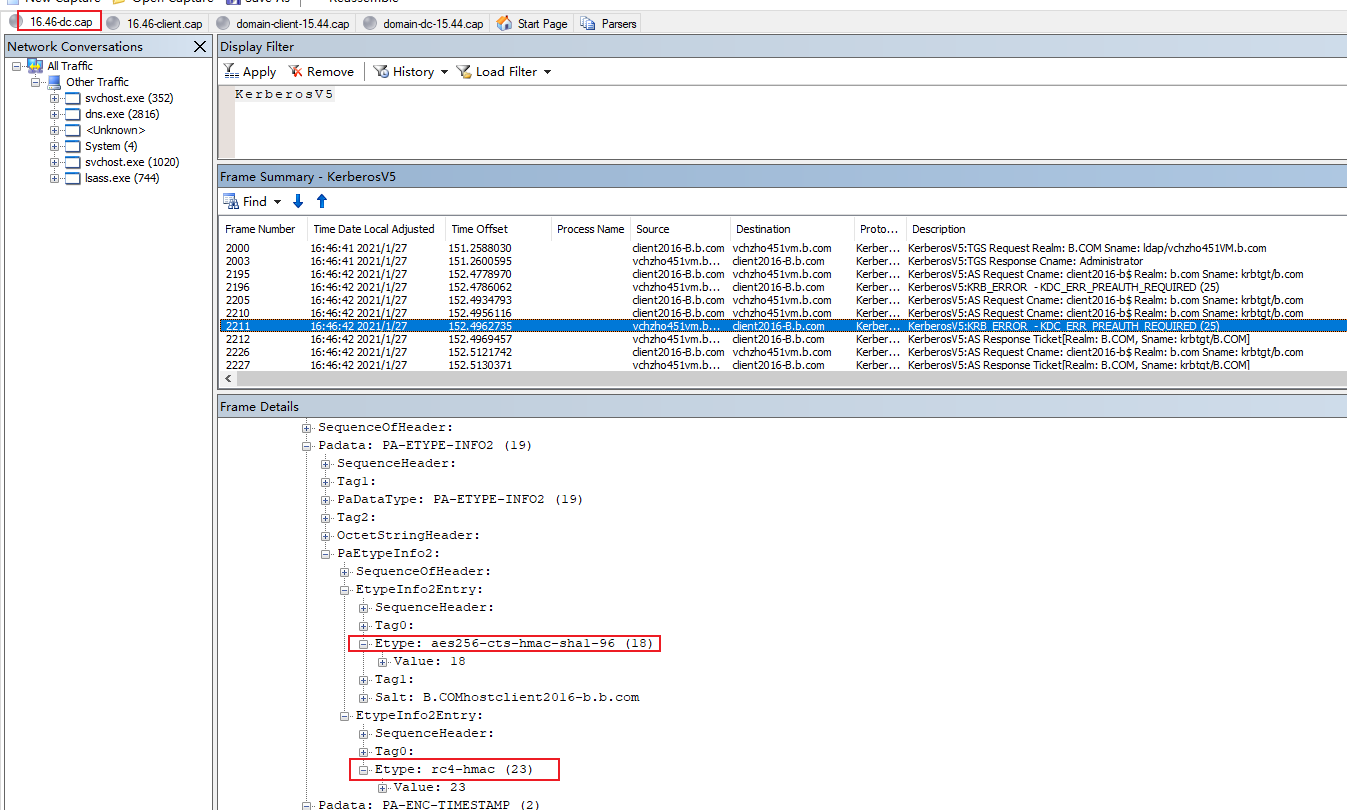

Here is the netmon on DC

Here is the netmon on client.

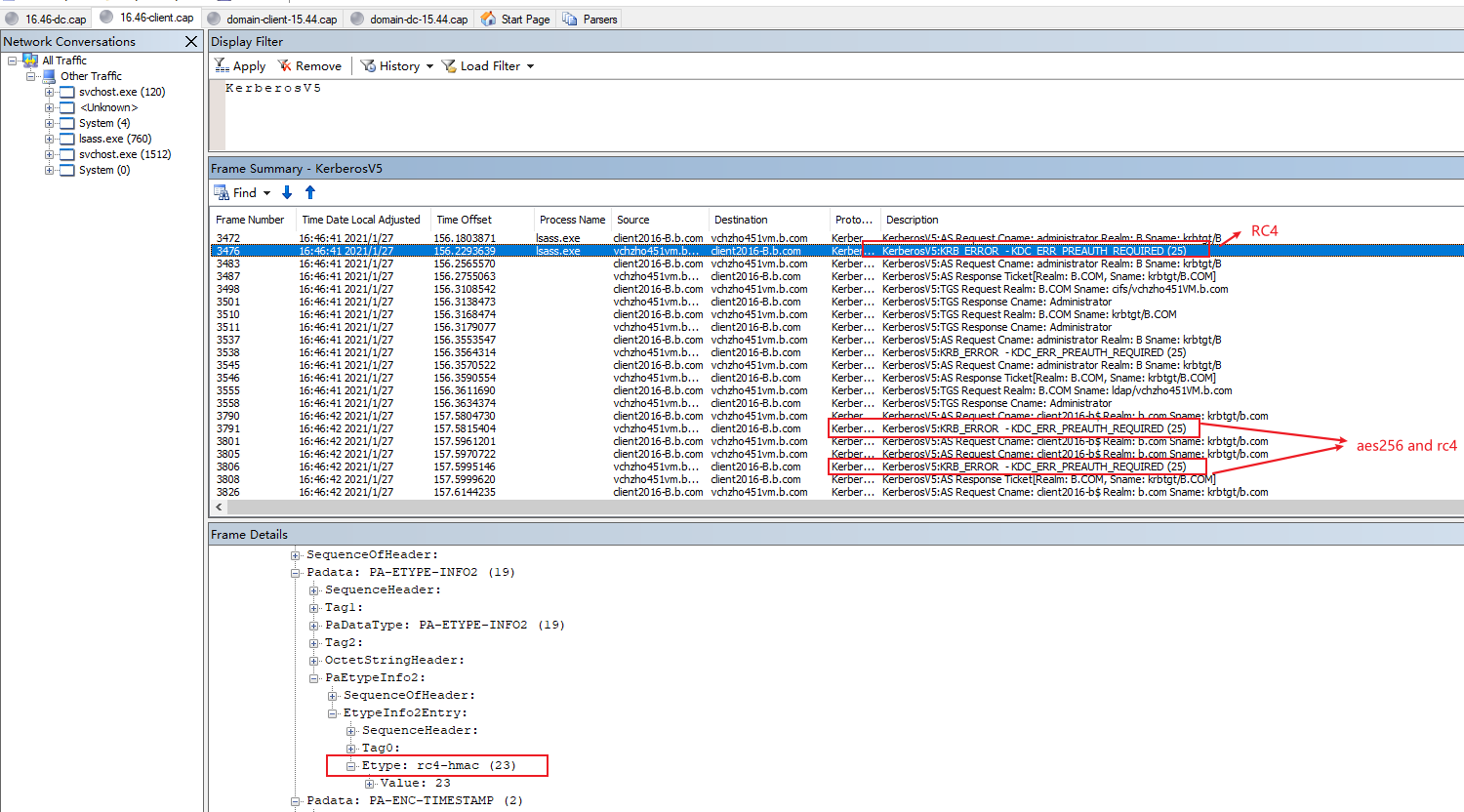

I can also see via one pre-auth as below.

Note: I kept the same password for the administrator user on DC and client, 'Password123!', after promote/demote. Did not change the password at all

Hope the information above is helpful.

Best Regards,
Daisy Zhou
