Data Truncation Issue When Using COPY INTO in Databricks for Binary Column

Question

Issue:

When loading a long string value containing trailing null bytes (e.g., \x12\x34\x56\x00\x00\x00...) into a binary column using the COPY INTO statement, the data gets truncated, storing only the first few characters (\x12\x34\x56 → EjRW in Base64).

Steps to Reproduce:

Table Creation:

CREATE TABLE default.sample (_c0 binary, _c1 binary, _c2 binary, _c3 int, _c4 boolean) USING DELTA;

Copy Into Statement:

COPY INTO default.sample
FROM (SELECT
        CAST(_c0 AS BINARY) AS _c0,
        CAST(_c1 AS BINARY) AS _c1,
        CAST(_c2 AS BINARY) AS _c2,
        CAST(_c3 AS INT) AS _c3,
        CAST(_c4 AS BOOLEAN) AS _c4
      FROM 'dbfs:/FileStore/tables/test.csv')
FILEFORMAT = CSV
FORMAT_OPTIONS ('multiLine'='true', 'escape'='"')
COPY_OPTIONS ('force' = 'true');

CSV FILE

test.txt (Attaching in txt format since csv is not allowed)

Observed Behaviour:

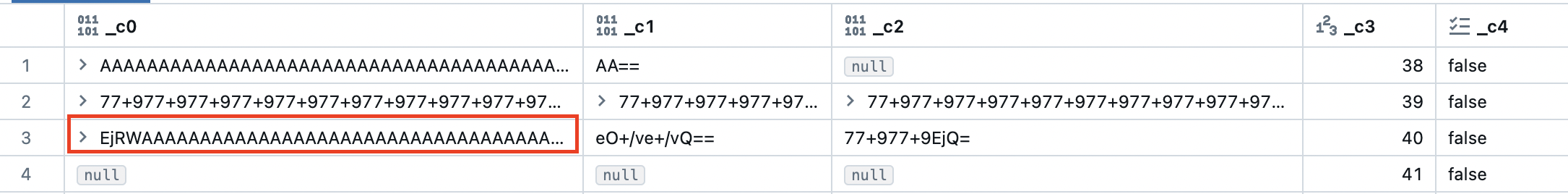

Expected Data

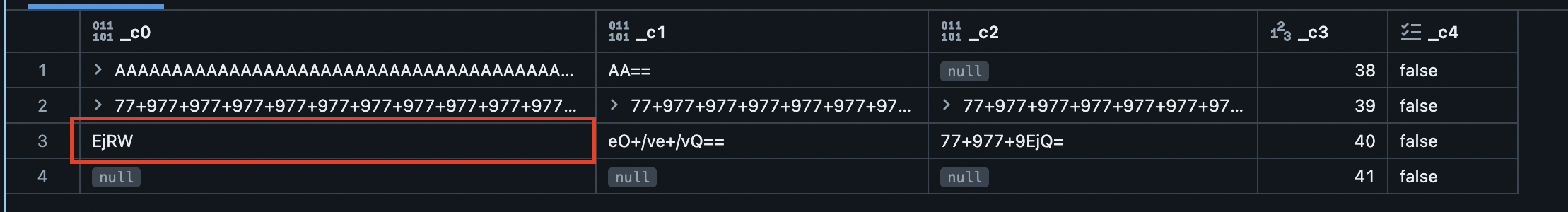

Actual Data:

Environment Details:

Tested the scenario is multiple runtime versions and the behaviour is as follows:

Databricks Runtime version	Status
10.4 LTS	Not Working
11.3 LTS	Not Working
12,2 LTS	Not Working
13.3 LTS	Working
14.4 LTS	Working
15.3 LTS	Not Working
16.2	Not Working

Answer 1

Hello Suwetha !

Thank you for posting your issue.

I think your issue is related to how different versions of Databricks Runtime handle binary data, especially when it contains trailing null bytes (\x00).

Since the issue is inconsistent across different Databricks Runtime versions, you need to use a version where this functionality is known to work (in your case 13.3 LTS or 14.4 LTS).

If you are familiar to Spark, try to use spark.read.csv followed by write.saveAsTable.

from pyspark.sql import SparkSession

from pyspark.sql.functions import col

# Initialize Spark session

spark = SparkSession.builder.appName("LoadBinaryData").getOrCreate()

# Read the CSV file

df = spark.read.csv("dbfs:/FileStore/tables/test.csv", header=True, multiLine=True, escape='"')

# Cast columns to appropriate types

df = df.withColumn("_c0", col("_c0").cast("binary")) \

       .withColumn("_c1", col("_c1").cast("binary")) \

       .withColumn("_c2", col("_c2").cast("binary")) \

       .withColumn("_c3", col("_c3").cast("int")) \

       .withColumn("_c4", col("_c4").cast("boolean"))

# Write the DataFrame to a Delta table

df.write.format("delta").saveAsTable("default.sample")

Or you can simply preprocess the CSV file :

import csv

input_file = "dbfs:/FileStore/tables/test.csv"

output_file = "dbfs:/FileStore/tables/test_processed.csv"

with open(input_file, 'r') as infile, open(output_file, 'w', newline='') as outfile:

    reader = csv.reader(infile)

    writer = csv.writer(outfile)

    for row in reader:

        # Process binary data (e.g., remove trailing null bytes)

        processed_row = [cell.rstrip('\x00') if cell else cell for cell in row]

        writer.writerow(processed_row)

Answer 2

@Suwetha Sivakumar

Please check the below steps

Enable detailed logging when running the COPY INTO statement to capture any anomalies or patterns that occur during the data load process.

• Monitor the logs for any errors or warnings that might indicate why the truncation happens only with certain records.
• Create a minimal reproducible example that consistently triggers the issue. This can help the Databricks support team or engineering team to understand and address the problem.
• Test with different sizes and types of binary data to identify any specific conditions that lead to truncation.
• Provide detailed information about the issue, including the runtime versions affected, the specific scenarios where the issue occurs, and any logs or error messages.

Request that this issue be prioritized for a fix in upcoming runtime versions.

Since you prefer using the COPY INTO statement, here are a few additional suggestions:

Data Preprocessing:

• Preprocess the CSV file to ensure that trailing null bytes are handled correctly before using the COPY INTO statement. This can help mitigate the issue until a fix is available.

Batch Processing:

• If the issue occurs with larger batches of records, try splitting the data into smaller batches and loading them incrementally. This might help identify if there's a specific threshold causing the problem.

Custom Scripts:

• Consider writing a custom script to preprocess and load the data using the COPY INTO statement. This script can handle any specific edge cases or anomalies in the data.

Hope this helps. Do let us know if you any further queries.
