Unable to get Claims like Phone Number, City , etc. in Access Token or ID Token

Question

Unable to get Claims like Phone Number, City , etc. in Access Token or ID Token

Shrikant Bhagwat 61

Decode of Access Token

{

"typ": "JWT",

"nonce": "kmsSwnrdRoACjaAaz3afapGU34_HGkqtUjlOZel2nIQ",

"alg": "RS256",

"x5t": "JDNa_4i4r7FgigL3sHIlI3xV-IU",

"kid": "JDNa_4i4r7FgigL3sHIlI3xV-IU"

}.{

"aud": "00000003-0000-0000-c000-000000000000",

"iss": "https://sts.windows.net/c4d58d8c-5770-4d99-a00d-b40b732b1e41/",

"iat": 1742048172,

"nbf": 1742048172,

"exp": 1742053655,

"acct": 0,

"acr": "1",

"aio": "AWQAm/8ZAAAAigvZ+PGoteMSfplEKgsBNBWCtfk0c6V+087QRLjB8FVnoL+sdE76HVxvLWrGQYH/jRhq4BKY0cPGuGOhHxlNiJQBfdl6kDoEeylJnQFEiYjUMA6C3NKptXaYaQvpBoDY",

"amr": [

"pwd"

],

"app_displayname": "Apache OAuth-OIDC App",

"appid": "fb74eebd-2ec6-47aa-8387-57c8c39254db",

"appidacr": "1",

"family_name": "Bhagwat1",

"given_name": "Shrikant1",

"idtyp": "user",

"ipaddr": "141.214.17.252",

"name": "Shrikant1 Bhagwat1",

"oid": "5ce5ffdc-bb17-4bd4-a0d6-b85991873fed",

"platf": "3",

"puid": "100320044D66E733",

"rh": "1.AVAAjI3VxHBXmU2gDbQLcyseQQMAAAAAAAAAwAAAAAAAAABQABRQAA.",

"scp": "email openid profile",

"sid": "00301899-0306-6a12-cdac-6bedc345593d",

"sub": "S_2mAURgePvmoj-sdgvTb_MWUBbdwIxWuuR65Oclb2o",

"tenant_region_scope": "NA",

"tid": "c4d58d8c-5770-4d99-a00d-b40b732b1e41",

"unique_name": "******@bhagwatsaz.net",

"upn": "******@bhagwatsaz.net",

"uti": "HJ8OxyrtT0u5G_WxljR0AA",

"ver": "1.0",

"wids": [

"b79fbf4d-3ef9-4689-8143-76b194e85509"

],

"xms_ftd": "w1LPc-9qQQ4AyJZy9JLtU_oNAd1DJKgGWmxu5wiihx4",

"xms_idrel": "1 12",

"xms_st": {

"sub": "IiBvpyvj0nI1_QLn3DGE8wT8Yv7f3ICN1zRqXaOv8WA"

},

"xms_tcdt": 1625580930

}.[Signature]

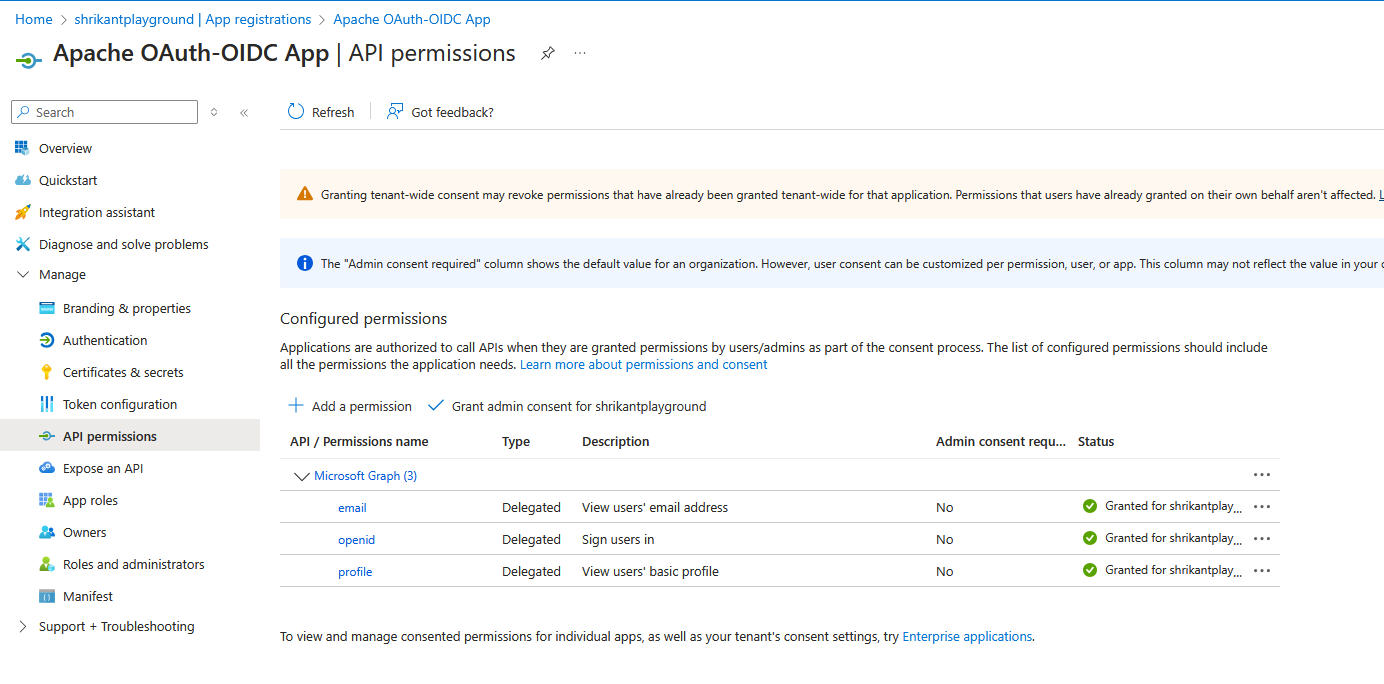

Screen1

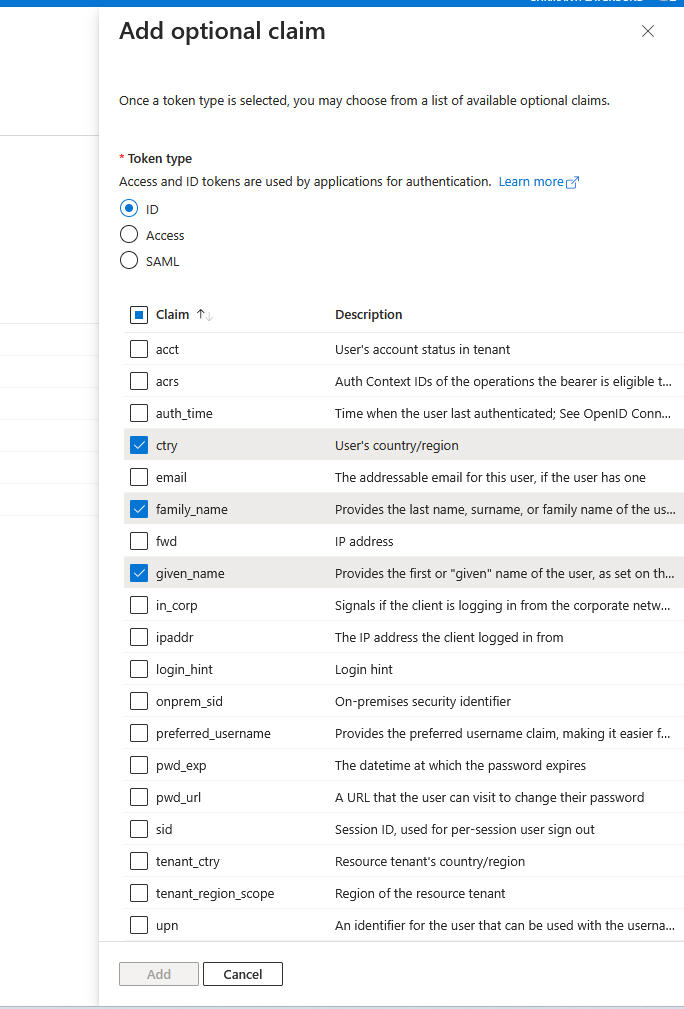

Screen3

How do we add new Claim like Phone Number, City in this table.

Navya 20,575 Reputation points Microsoft External Staff Moderator

2025-03-18T06:37:41.5933333+00:00

Hi @Shrikant Bhagwat

Following up to see if the below answer was helpful. If this answers your query, do click Accept Answer and Yes for was this answer helpful. And, if you have any further query do let us know.
Navya 20,575 Reputation points Microsoft External Staff Moderator

2025-03-19T06:22:43.97+00:00

Hi @Shrikant Bhagwat

Just checking in to see if the below answer helped. If this answers your query, please don’t forget to click "Accept the answer" and "Up-Vote" for the same, which might be beneficial to other community members reading this thread. if you have any further query do let us know.

Accepted answer

0 additional answers

Your answer

Navya 20,575 Reputation points Microsoft External Staff Moderator

2025-03-18T06:37:41.5933333+00:00

Hi @Shrikant Bhagwat

Following up to see if the below answer was helpful. If this answers your query, do click Accept Answer and Yes for was this answer helpful. And, if you have any further query do let us know.
Navya 20,575 Reputation points Microsoft External Staff Moderator

2025-03-19T06:22:43.97+00:00

Hi @Shrikant Bhagwat

Just checking in to see if the below answer helped. If this answers your query, please don’t forget to click "Accept the answer" and "Up-Vote" for the same, which might be beneficial to other community members reading this thread. if you have any further query do let us know.

Answer 1

Hi @Shrikant Bhagwat

I understand you are trying to get new Claim like Phone Number, City in access token and id_token

Steps to Create and Assign a Claims Mapping Policy:

1.Import the Microsoft Graph Identity Sign-Ins Module and Connect:

Install-Module Microsoft.Graph.Identity.SignIns
Import-Module Microsoft.Graph.Identity.SignIns
Connect-MgGraph -Scopes "Policy.ReadWrite.ApplicationConfiguration", "Policy.Read.All"

2.Create a Claims Mapping Policy Including Phone Number and City:

$policyDefinition = @('{"ClaimsMappingPolicy":{"Version":1,"IncludeBasicClaimSet":"true", "ClaimsSchema": [{"Source":"user","ID":"telephoneNumber","JwtClaimType":"phone_number"}, {"Source":"user","ID":"city","JwtClaimType":"city"}]}}')

New-MgPolicyClaimMappingPolicy -Definition $policyDefinition -DisplayName "IncludePhoneNumberAndCity"

3.Retrieve the Policy ID:

$policy = Get-MgPolicyClaimMappingPolicy -Filter "DisplayName eq 'IncludePhoneNumberAndCity'"
$policyId = $policy.Id
$policyId

4.Assign the Policy to a Service Principal:


New-MgServicePrincipalClaimMappingPolicyByRef -ServicePrincipalId <servicePrincipalId> -BodyParameter @{"@odata.id" = "https://graph.microsoft.com/v1.0/policies/claimsMappingPolicies/<claimsMappingPolicyId>"}

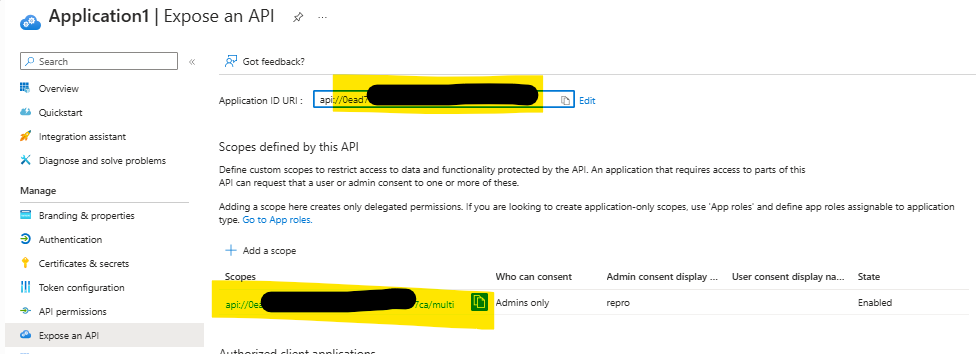

Expose an API and add scope like below:

User's image

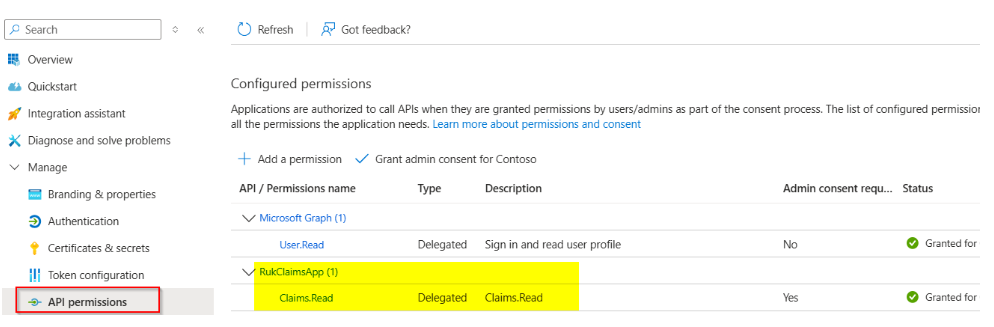

Grant API permissions

User's image

"In the manifest, update the following:

acceptMappedClaims: true
requestedAccessTokenVersion: 2

Make sure to pass the scope as api://ClientID/.default to generate the access token.

Then, try requesting both an access token and an ID token, ensuring that the signed-in user has provided values for those properties; otherwise, they will appear as blank."
