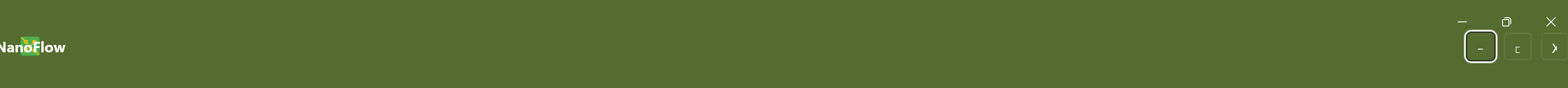

Overlapping title bars

Question

Thanks to @Junjie Zhu - MSFT

I was able to attach the title bar, becouse I want all my window to have the same

I created a class

 public static void ConfigureCustomTitleBar(
     Window window,
     string iconPath,
     string title) {

     Debug.WriteLine("ConfigureCustomTitleBar is called!");

     if(window is not null) {

         var titleBarViewModel = new CustomTitleBarViewModel(window);
         var customTitleBar = new CustomTitleBar(window) // Pass the window
         {
             DataContext = titleBarViewModel
         };

         titleBarViewModel.AppTitle = title;
         window.ExtendsContentIntoTitleBar = true;
         window.Title = title;

         var windowHandle = WindowNative.GetWindowHandle(window);
         var windowId = Win32Interop.GetWindowIdFromWindow(windowHandle);
         var appWindow = AppWindow.GetFromWindowId(windowId);
         appWindow.SetIcon(iconPath);
         appWindow.TitleBar.PreferredHeightOption = TitleBarHeightOption.Tall;

         // Attach title bar dynamically
         var rootGrid = (Grid)window.Content;

         if(rootGrid is not null) {

             window.ExtendsContentIntoTitleBar = true;

             rootGrid.Children.Insert(0, customTitleBar); // Add title bar at the top

             window.SetTitleBar(customTitleBar.FindName("AppTitleBar") as FrameworkElement);
         }

and my user control

    <Grid
        x:Name="AppTitleBar"
        Height="100"
        Background="{StaticResource AccentAcrylicBackgroundFillColorBaseBrush}">
        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="Auto" />
            <!--  App Icon  -->
            <ColumnDefinition Width="*" />
            <!--  Title  -->
            <ColumnDefinition Width="Auto" />
            <!--  Minimize  -->
            <ColumnDefinition Width="Auto" />
            <!--  Maximize  -->
            <ColumnDefinition Width="Auto" />
            <!--  Close  -->
        </Grid.ColumnDefinitions>

        <!--  App Icon  -->
        <Image
            Width="24"
            Height="24"
            Margin="10,0"
            HorizontalAlignment="Center"
            VerticalAlignment="Center"
            Source="/Assets/AppIcon.ico" />

        <!--  App Title  -->

        <TextBlock
            HorizontalAlignment="Center"
            VerticalAlignment="Center"
            FontSize="16"
            FontWeight="Bold"
            Foreground="White"
            Text="{x:Bind ViewModel.AppTitle, Mode=TwoWay}" />

        <!--  Minimize Button  -->
        <Button
            Grid.Column="2"
            Width="30"
            Height="30"
            Margin="5"
            HorizontalAlignment="Center"
            VerticalAlignment="Center"
            Command="{x:Bind ViewModel.TitleBarActionsCommand}"
            CommandParameter="Minimize"
            Content="―">
            <Interactivity:Interaction.Behaviors>
                <beavior:HoverBehavior
                    HoverColor="{StaticResource TitleBarCaptionButtonHoverForegroundColor}"
                    NormalColor="Transparent" />
            </Interactivity:Interaction.Behaviors>
        </Button>

        <!--  Maximize Button  -->
        <Button
            Grid.Column="3"
            Width="30"
            Height="30"
            Margin="5"
            HorizontalAlignment="Center"
            VerticalAlignment="Center"
            Command="{x:Bind ViewModel.TitleBarActionsCommand}"
            CommandParameter="Maximize"
            Content="□">
            <Interactivity:Interaction.Behaviors>
                <beavior:HoverBehavior
                    HoverColor="{StaticResource TitleBarCaptionButtonForegroundColor}"
                    NormalColor="Transparent" />
            </Interactivity:Interaction.Behaviors>
        </Button>

        <!--  Close Button  -->
        <Button
            Grid.Column="4"
            Width="30"
            Height="30"
            Margin="5"
            HorizontalAlignment="Center"
            VerticalAlignment="Center"
            Command="{x:Bind ViewModel.TitleBarActionsCommand}"
            CommandParameter="Close"
            Content="X">
            <Interactivity:Interaction.Behaviors>
                <Interactions:EventTriggerBehavior EventName="Click" />
                <beavior:HoverBehavior
                    HoverColor="{StaticResource CloseButtonBackgroundPointerOver}"
                    NormalColor="Transparent" />
            </Interactivity:Interaction.Behaviors>
        </Button>
    </Grid>

I just putt 100 for debugging purposes

Answer 1

Hello @Eduardo Gomez ,

The essence of a custom title bar is to cover the top bar of the window client area to the original non-client area (title bar, menu bar, or window frame), so if your new window wants to use a custom title bar, you must have multiple rows of grids, which means that each new window must use Grid.RowDefinitions.

<Window
    x:Class="App1.MainWindow"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:local="using:App1"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    mc:Ignorable="d"
    Title="App1">
    <Grid>
        <Grid.RowDefinitions>
                <RowDefinition Height="Auto"/>
                <RowDefinition/>
            </Grid.RowDefinitions>
     </Grid>
</Window>

Another point is that you don't need to be responsible for the maximize and minimize buttons. The following is my test code, I hope it will be helpful to you.

UserControl

<?xml version="1.0" encoding="utf-8"?>
<UserControl
    x:Class="App1.CustomTitleBar"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:local="using:App1"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    xmlns:Interactivity="using:Microsoft.VisualBasic"
    mc:Ignorable="d">
    <Grid x:Name="AppTitleBar"
                    Height="48">
        <Grid.ColumnDefinitions>
            <ColumnDefinition x:Name="LeftPaddingColumn" Width="0"/>
            <ColumnDefinition x:Name="IconColumn" Width="Auto"/>
            <ColumnDefinition x:Name="TitleColumn" Width="Auto"/>
        </Grid.ColumnDefinitions>
        <Image x:Name="TitleBarIcon"
    Source="ms-appx:///Assets/AppIcon.ico"
    Grid.Column="1"
    Width="16" Height="16"
    Margin="8,0,4,0"/>
        <TextBlock x:Name="TitleBarTextBlock"
                Text="App title"
                Style="{StaticResource CaptionTextBlockStyle}"
                Grid.Column="2"
                VerticalAlignment="Center">
        </TextBlock>
    </Grid>

</UserControl>

public sealed partial class CustomTitleBar : UserControl
{
    public CustomTitleBar()
    {
        this.InitializeComponent();
    }
}

App.xaml.cs

 public partial class App : Application
 {
     /// <summary>
     /// Initializes the singleton application object.  This is the first line of authored code
     /// executed, and as such is the logical equivalent of main() or WinMain().
     /// </summary>
     public App()
     {
         this.InitializeComponent();
     }
     /// <summary>
     /// Invoked when the application is launched.
     /// </summary>
     /// <param name="args">Details about the launch request and process.</param>
     protected override void OnLaunched(Microsoft.UI.Xaml.LaunchActivatedEventArgs args)
     {
         m_window = new MainWindow();
         m_window.Activate();
         ConfigureCustomTitleBar(m_window,"Test");
     }
     private Window? m_window;
     public static void ConfigureCustomTitleBar(
                         Window window,
                         string title)
     {
         Debug.WriteLine("ConfigureCustomTitleBar is called!");
         if (window is not null)
         {

             var customTitleBar = new CustomTitleBar();

             window.ExtendsContentIntoTitleBar = true;
             window.Title = title;
             var windowHandle = WindowNative.GetWindowHandle(window);
             var windowId = Win32Interop.GetWindowIdFromWindow(windowHandle);
             var appWindow = AppWindow.GetFromWindowId(windowId);
             appWindow.TitleBar.PreferredHeightOption = TitleBarHeightOption.Tall;
             // Attach title bar dynamically
             var rootGrid = (Grid)window.Content;
             if (rootGrid is not null)
             {
                 rootGrid.Children.Insert(0, customTitleBar); // Add title bar at the top
             }
         }
     }
 }

Thank you.
