Azure OpenAI service doesn't show up for Azure AI Search import and vectorize data wizard

Question

Hi,

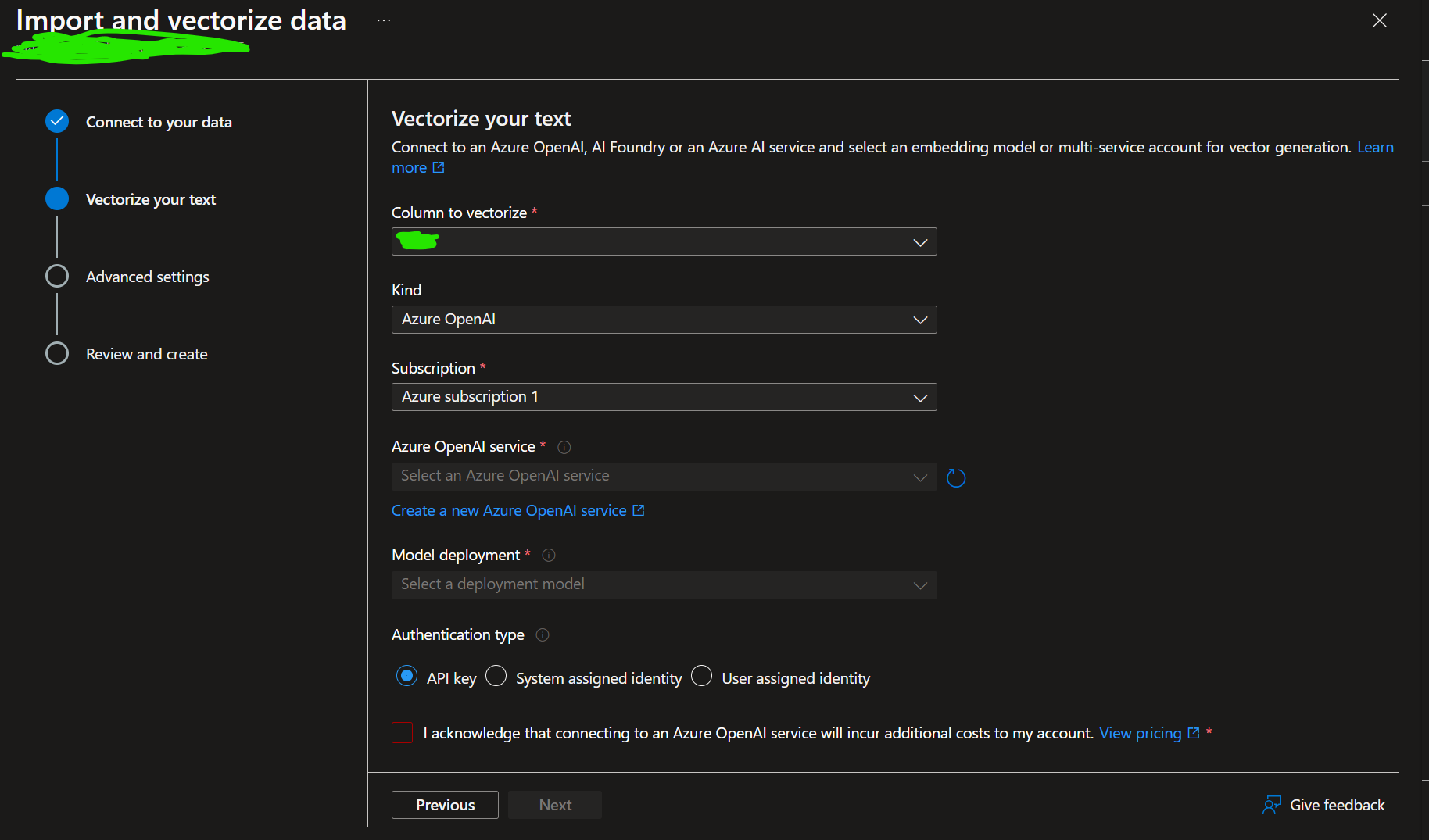

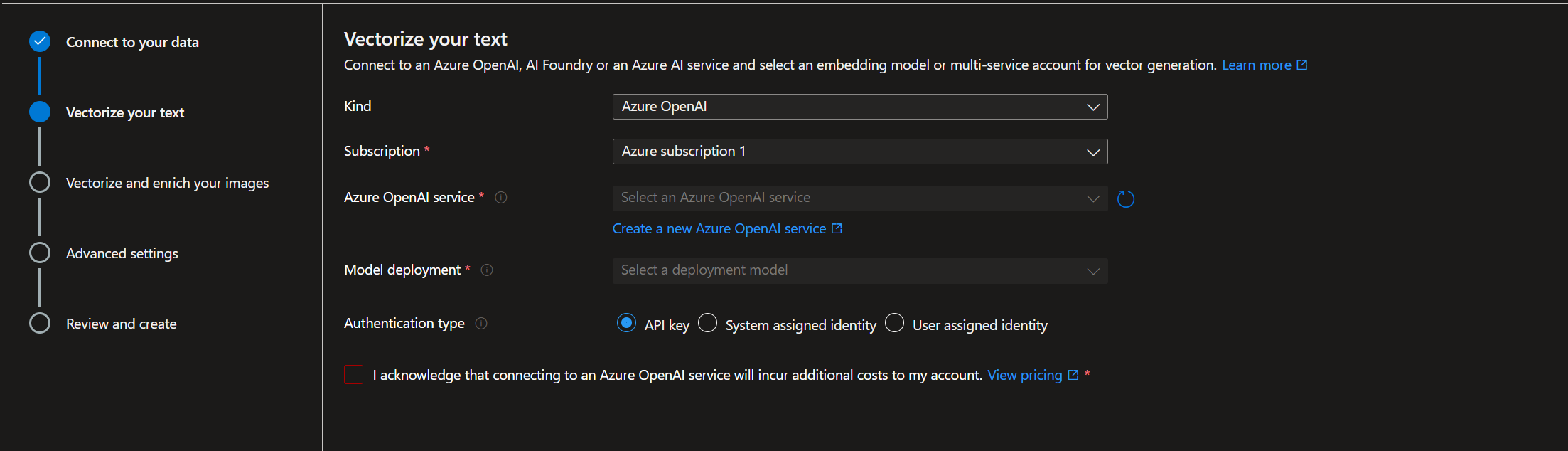

I am trying to use the Import and Vectorize Data Wizard for AI Search Service and I cannot select my OpenAI service that contains the model text-embedding-ada-002 for embedding. The data I have is a CSV in Blob Storage. I have ensured the Search Service has Cognitive Services OpenAI User access yet it still doesn't show up. You can see the issue here:

How can I resolve this?

Thanks

Answer 1

Hello @Nihit Mody ,

We need to have the OpenAI resources and supported models.

Check the supported provider and models here.

Since you already having the models and embedding endpoints with in ai services you can use either sdk or rest api,

below is the sample to create indexer on json array data via python sdk

from azure.core.credentials import AzureKeyCredential
from azure.search.documents.indexes import SearchIndexClient, SearchIndexerClient
from azure.search.documents.indexes.models import (
SearchIndexer,
IndexingParameters,
IndexingParametersConfiguration,
SearchIndexerDataSourceConnection,
SearchIndexerDataContainer,
SearchIndexerSkillset,
FieldMapping,
InputFieldMappingEntry,
OutputFieldMappingEntry,
AzureOpenAIEmbeddingSkill,
)

# Azure Search Service Configuration
service_name = "ai_search_name"
index_name = "index_name"
api_key = "your-azure-search-api-key"
endpoint = f"https://{service_name}.search.windows.net/"

# Azure Blob Storage Configuration
blob_connection_string = "your-blob-connection-string"
container_name = "aicsvdata"

# Azure OpenAI Configuration
azure_openai_service = "your-openai-service-name"
azure_openai_api_key = "your-openai-api-key"
azure_openai_embedding_deployment = "text-embedding-ada-002"

def create_indexer_with_skillset(index_client, indexer_client):
    """Creates an indexer with a skillset to vectorize the 'plot' field."""
    data_source_name = "blob-datasource"
    indexer_name = "blob-indexer-with-vector"
    skillset_name = "plot-vectorization-skillset"

    # 1. Data Source
    container = SearchIndexerDataContainer(name=container_name)
    data_source = SearchIndexerDataSourceConnection(
        name=data_source_name,
        connection_string=blob_connection_string,
        container=container,
        type="azureblob",
    )

    # 2. Skillset - Embedding Generation
    embedding_skill = AzureOpenAIEmbeddingSkill(
        name="plot-embedding",
        description="Generates vector embeddings for plot field",
        context="/document",
        resource_url=f"https://{azure_openai_service}.openai.azure.com/",
        api_key=azure_openai_api_key,
        deployment_name=azure_openai_embedding_deployment,
        model_name="text-embedding-ada-002",
        inputs=[InputFieldMappingEntry(name="text", source="/document/plot")],
        outputs=[OutputFieldMappingEntry(name="embedding", target_name="PlotVector")],
    )

    skillset = SearchIndexerSkillset(
        name=skillset_name,
        description="Skillset to vectorize plot",
        skills=[embedding_skill],
    )

    # 3. Field Mappings
    field_mappings = [
        FieldMapping(source_field_name="/document/PlotVector", target_field_name="PlotVector"),
    ]

	indexing_parameters = IndexingParameters(
        query_timeout=None,
        configuration=IndexingParametersConfiguration(
            parsing_mode="jsonArray",  # Options: 'default', 'delimitedText', 'json', 'jsonArray', 'jsonLines', 'text', 'markdown'
            data_to_extract="contentAndMetadata"  # Options: 'allMetadata', 'contentAndMetadata', 'storageMetadata'
        )
    )

    # 4. Indexer
    indexer = SearchIndexer(
        name=indexer_name,
        data_source_name=data_source_name,
        target_index_name=index_name,
        skillset_name=skillset_name,
        parameters = indexing_parameters,
        output_field_mappings = field_mappings
    )

    # Create skillset and data source
    indexer_client.create_or_update_skillset(skillset)
    indexer_client.create_or_update_data_source_connection(data_source)

    # Create and run the indexer
    result = indexer_client.create_or_update_indexer(indexer)
    print(f"Indexer '{result.name}' created.")
    indexer_client.run_indexer(indexer_name)

def main():
    try:
        credential = AzureKeyCredential(api_key)
        index_client = SearchIndexClient(endpoint, credential)
        indexer_client = SearchIndexerClient(endpoint, credential)

        create_indexer_with_skillset(index_client, indexer_client)

    except Exception as ex:
        print(f"An error occurred: {ex}")

if __name__ == "__main__":
    main()

Please do accept the solution and give feedback by clicking on yes.

Thank you
