WPF RadioButton Binding Issue with Dictionary in MVVM

Question

Hello,

In my WPF project, I'm trying to filter data by binding the IsChecked states of RadioButton controls to a Dictionary<string, object> property named Filters in my ViewModel. However, when users change the IsChecked state, the setter of Filters doesn't trigger, preventing updates from occurring.

To solve this, I created a custom ObservableDictionary class, but I'm encountering errors on the OnPropertyChanged lines. How can I fix this issue? Alternatively, is there a better approach you would recommend instead of using this method?

Thanks!

Error: Exited with code -2146232797 from "csc.exe".

using CommunityToolkit.Mvvm.ComponentModel;
using System;
using System.Collections;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
namespace Kütüphane_Otomasyonu.PresentationLayer.Views.Helpers
{
    public class ObservableDictionary<TKey, TValue> : ObservableObject, IEnumerable<KeyValuePair<TKey, TValue>> where TKey : notnull
    {
        private readonly Dictionary<TKey, TValue> _dictionary = new();
        public TValue this[TKey key]
        {
            get => _dictionary.ContainsKey(key) ? _dictionary[key] : default!;
            set
            {
                if (!_dictionary.ContainsKey(key) || !EqualityComparer<TValue>.Default.Equals(_dictionary[key], value))
                {
                    _dictionary[key] = value;
                    OnPropertyChanged(nameof(this[key]));
                                    }
            }
        }
        public void Add(TKey key, TValue value)
        {
            _dictionary.Add(key, value);
            OnPropertyChanged(nameof(this[key]));
        }
        public bool Remove(TKey key)
        {
            if ((_dictionary.Remove(key)))
            {
                OnPropertyChanged(nameof(this[key]));
                return true;
            }
            return false;
        }
        public bool ContainsKey(TKey key) => _dictionary.ContainsKey(key);
        public int Count=>_dictionary.Count;
        public IEnumerator<KeyValuePair<TKey, TValue>> GetEnumerator()
        {
            return _dictionary.GetEnumerator();
        }
        IEnumerator IEnumerable.GetEnumerator()
        {
            return GetEnumerator();
        }
    }
}

Answer 1

@fatih uyanık, Welcome to Microsoft Q&A, based on my test, I also reproduced the same problem with you when I build the ObservableDictionary class.

I recommend that you use the ViewModel Method to do it,

Here is a code example you could refer to.

ViewModel class:

using CommunityToolkit.Mvvm.Input;
using System;
using System.Collections.ObjectModel;
using System.ComponentModel;
using System.Linq;
using System.Runtime.CompilerServices;
using System.Windows.Input;
public class MainViewModel : INotifyPropertyChanged
{
    // Sample data collection
    private ObservableCollection<DataItem> _originalItems = new ObservableCollection<DataItem>
    {
        new DataItem { Name = "Apple", Category = "Fruit", IsActive = true },
        new DataItem { Name = "Carrot", Category = "Vegetable", IsActive = true },
        new DataItem { Name = "Banana", Category = "Fruit", IsActive = false },
        new DataItem { Name = "Broccoli", Category = "Vegetable", IsActive = true }
    };
    private ObservableCollection<DataItem> _filteredItems;
    public ObservableCollection<DataItem> FilteredItems
    {
        get => _filteredItems;
        set
        {
            _filteredItems = value;
            OnPropertyChanged();
        }
    }
    // Filter properties
    private bool _showAll = true;
    public bool ShowAll
    {
        get => _showAll;
        set
        {
            if(_showAll != value)
            {
                _showAll = value;
                if(value)
                {
                    ShowFruits = false;
                    ShowVegetables = false;
                }
                OnPropertyChanged();
                ApplyFilters();
            }
        }
    }
    private bool _showFruits;
    public bool ShowFruits
    {
        get => _showFruits;
        set
        {
            if(_showFruits != value)
            {
                _showFruits = value;
                if(value)
                {
                    ShowAll = false;
                    ShowVegetables = false;
                }
                OnPropertyChanged();
                ApplyFilters();
            }
        }
    }
    private bool _showVegetables;
    public bool ShowVegetables
    {
        get => _showVegetables;
        set
        {
            if(_showVegetables != value)
            {
                _showVegetables = value;
                if(value)
                {
                    ShowAll = false;
                    ShowFruits = false;
                }
                OnPropertyChanged();
                ApplyFilters();
            }
        }
    }
    private bool _showActiveOnly;
    public bool ShowActiveOnly
    {
        get => _showActiveOnly;
        set
        {
            if(_showActiveOnly != value)
            {
                _showActiveOnly = value;
                OnPropertyChanged();
                ApplyFilters();
            }
        }
    }
    public MainViewModel()
    {
        FilteredItems = new ObservableCollection<DataItem>( _originalItems );
    }
    private void ApplyFilters()
    {
        var filtered = _originalItems.AsEnumerable();
        // Apply category filter
        if(!ShowAll)
        {
            if(ShowFruits)
            {
                filtered = filtered.Where( item => item.Category == "Fruit" ); // Fixed typo
            }
            else if(ShowVegetables)
            {
                filtered = filtered.Where( item => item.Category == "Vegetable" );
            }
        }
        // Apply active filter
        if(ShowActiveOnly)
        {
            filtered = filtered.Where( item => item.IsActive );
        }
        FilteredItems.Clear();
        foreach(var item in filtered)
        {
            FilteredItems.Add( item );
        }
    }
    public event PropertyChangedEventHandler PropertyChanged;
    protected virtual void OnPropertyChanged([CallerMemberName] string propertyName = null)
    {
        PropertyChanged?.Invoke( this, new PropertyChangedEventArgs( propertyName ) );
    }
    private ICommand _applyFiltersCommand;
    public ICommand ApplyFiltersCommand => _applyFiltersCommand ??= new RelayCommand( ApplyFilters );
}
// Simple RelayCommand implementation
public class RelayCommand : ICommand
{
    private readonly Action _execute;

    public RelayCommand(Action execute)
    {
        _execute = execute;
    }

    public bool CanExecute(object parameter) => true;

    public void Execute(object parameter)
    {
        _execute();
    }

    public event EventHandler CanExecuteChanged;
}
public class DataItem
{
    public string Name { get; set; }
    public string Category { get; set; }
    public bool IsActive { get; set; }
}

MainWindow.xaml.cs

public partial class MainWindow : Window
{
    public MainWindow()
    {
        InitializeComponent();
        DataContext = new MainViewModel();
    }
}

XAML:

 <Grid Margin="10">
     <Grid.RowDefinitions>
         <RowDefinition Height="Auto"/>
         <RowDefinition Height="*"/>
     </Grid.RowDefinitions>
     <!-- Filter Controls -->
     <GroupBox Grid.Row="0" Header="Category Filters" Margin="0,0,0,10">
         <StackPanel Orientation="Horizontal">
             <RadioButton GroupName="CategoryGroup" Content="All"
                 IsChecked="{Binding ShowAll, Mode=TwoWay}" Margin="5">
                 <RadioButton.Style>
                     <Style TargetType="RadioButton">
                         <Setter Property="Command" Value="{Binding ApplyFiltersCommand}"/>
                     </Style>
                 </RadioButton.Style>
             </RadioButton>
             <RadioButton GroupName="CategoryGroup" Content="Fruits"
                 IsChecked="{Binding ShowFruits, Mode=TwoWay}" Margin="5">
                 <RadioButton.Style>
                     <Style TargetType="RadioButton">
                         <Setter Property="Command" Value="{Binding ApplyFiltersCommand}"/>
                     </Style>
                 </RadioButton.Style>
             </RadioButton>
             <RadioButton GroupName="CategoryGroup" Content="Vegetables"
                 IsChecked="{Binding ShowVegetables, Mode=TwoWay}" Margin="5">
                 <RadioButton.Style>
                     <Style TargetType="RadioButton">
                         <Setter Property="Command" Value="{Binding ApplyFiltersCommand}"/>
                     </Style>
                 </RadioButton.Style>
             </RadioButton>
         </StackPanel>
     </GroupBox>
     <!-- Additional Filter -->
     <CheckBox Grid.Row="0" Content="Show Active Items Only"
              IsChecked="{Binding ShowActiveOnly, Mode=TwoWay}"
              Margin="0,0,0,10" VerticalAlignment="Bottom"/>
     <!-- Data Display -->
     <DataGrid Grid.Row="1" ItemsSource="{Binding FilteredItems}" AutoGenerateColumns="False">
         <DataGrid.Columns>
             <DataGridTextColumn Header="Name" Binding="{Binding Name}" Width="*"/>
             <DataGridTextColumn Header="Category" Binding="{Binding Category}" Width="*"/>
             <DataGridCheckBoxColumn Header="Active" Binding="{Binding IsActive}" Width="Auto"/>
         </DataGrid.Columns>
     </DataGrid>
 </Grid>

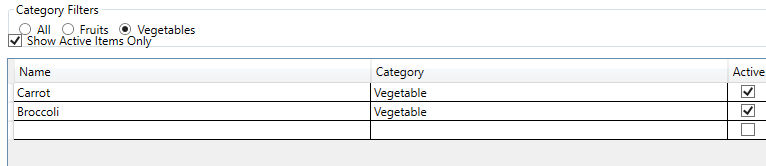

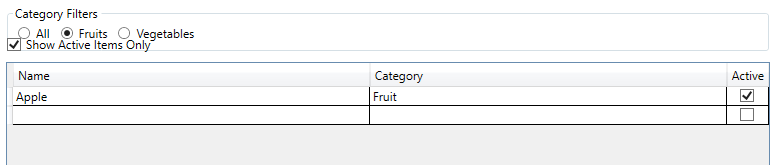

Tested Result:

Best Regards,

Jack

---
