Resizing a attached data disk on linux

Question

I resized my data disk premium ssd from 64gb to 128gb on ubuntu while the VM was ON.

On running this command "lsblk", it returned:
sdb 8:16 0 64G 0 disk

└─sdb1 8:17 0 64G 0 part /mnt

sdc 8:32 0 128G 0 disk

I don't know how it created a new 128 gb virtual disk. What is happening here, can someone help ?

PS. I have restarted the VM as well.

Answer 1

Hi Vishesh,

I was able to replicate the scenario in my lab environment.

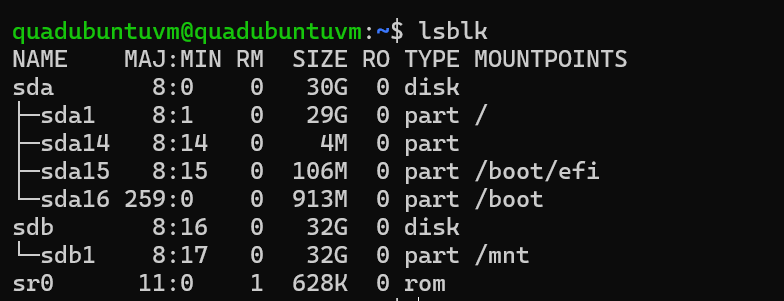

OS Disk: Initially I had only OS disk for my ubuntu vm

and the partition inside vm looks like below

Data Disk: Later i attached a data disk to my vm with 64gb. You can check the data disk sdc inside a vm 64gb.

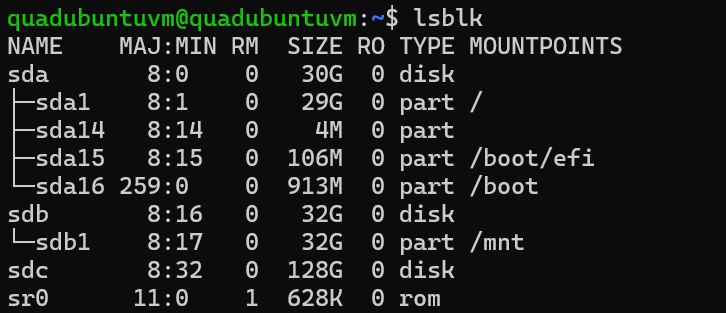

Later, i increased the size of data disk in Azure portal from 64gb to 128gb. You can observe the increase of data disk sdc from 64gb to 128gb inside vm.

The sdb is a temporary disk provided by Azure (commonly /dev/sdb on Linux) as it is not shown in the Azure portal's Disks blade and cannot be managed through the portal.

Please check below documentation for more information,

https://techcommunity.microsoft.com/discussions/azurestorage/disk-attached-but-not-showing-in-portal/3625466

https://learn.microsoft.com/en-us/azure/virtual-machines/linux/attach-disk-portal

If the information is helpful, please click on "Accept Answer" and "Upvote"

If you have any queries, please do let us know, we will help you.
