How to get commit ID for a tag in Azure Devops git repository.

Question

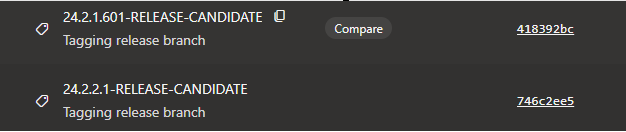

I am trying to automate a view of all the workitems that have been closed between 2 branch tags of a git repo. One of the main issues I'm having is for some reason, when I view the tags from the tags page, I can see the commit id of the tags:

However, I can't for the life of me figure out how to get that commit id from a tag via REST API call.
I'm getting a list of the tags with the following:

$tagsUrl = "https://dev.azure.com/$Organization/$SystemTeamProject/_apis/git/repositories/$repositoryId/refs?filter=tags/&api-version=7.1-preview.1"
$tagsResponse = Invoke-RestMethod -Uri $tagsUrl -Method Get -Headers $headers
$allTags = $tagsResponse.value | ForEach-Object { $_.name -replace "refs/tags/", "" }

All the AI models retrieve it the same way, but it returns the "objectId" of that tag, which does not match the commit id!
https://dev.azure.com/{org}/{proj}/_apis/git/repositories/{repo/refs?filter=tags/24.2.1.601-RELEASE-CANDIDATE&api-version=7.1-preview.1

That does not match the commit id.

The initial tags are created via a PowerShell script once we create our release branch:

        git tag -a $releaseInfo.ReleaseTag -m "Tagging release branch"
        git push -q origin $releaseInfo.ReleaseTag

Answer 1

Hello Thomas Murnane,

To get the commit ID, use the /annotatedtags endpoint with the tag’s objectId. below is simple PowerShell script to do it:

$organization = "your-org"

$project = "your-project"

$repositoryId = "your-repo-id"

$pat = "your-personal-access-token"

$headers = @{ Authorization = "Basic " + [Convert]::ToBase64String([Text.Encoding]::ASCII.GetBytes(":$pat")) }

# Get the tags

$tagsUrl = "https://dev.azure.com/$organization/$project/_apis/git/repositories/$repositoryId/refs?filter=tags/&api-version=7.1-preview.1"

$tagsResponse = Invoke-RestMethod -Uri $tagsUrl -Method Get -Headers $headers

foreach ($tag in $tagsResponse.value) {

    $tagName = $tag.name -replace "refs/tags/", ""

    $tagObjectId = $tag.objectId

    # Get the commit ID

    $annotatedTagUrl = "https://dev.azure.com/$organization/$project/_apis/git/repositories/$repositoryId/annotatedtags/$tagObjectId?api-version=7.1-preview.1"

    $annotatedTagResponse = Invoke-RestMethod -Uri $annotatedTagUrl -Method Get -Headers $headers

    $commitId = $annotatedTagResponse.taggedObject.objectId

    Write-Output "Tag: $tagName, Commit ID: $commitId"

}

This will give you the commit ID (like 418392bc for 24.2.1.601-RELEASE-CANDIDATE) that matches the UI.

Hope this helps!

If the answer is helpful, please click Accept Answer and kindly upvote it. If you have any further questions about this answer, please click Comment.

Answer 2

I had this in my browser before I saw your answer, and I posted it. When the page refreshed, I saw your answer. I couldn't see a way to delete my post, but at least this shows another way.
I found that using the following API call, I was able to get the commit IDs from the results of this call:

function Get-CommitId {
    param (
        [string]$baseTag,
        [string]$targetTag
    )

    $uri = "https://dev.azure.com/$($Global:Organization)/$($Global:SystemTeamProject)/_apis/git/repositories/$($Global:repoName)/diffs/commits" +
        "?baseVersion=$baseTag" +
        "&baseVersionType=tag" +
        "&targetVersion=$targetTag" +
        "&targetVersionType=tag" +
        "&api-version=7.1"

    $response = Invoke-RestMethod -Uri $uri -Headers $Global:headers -Method Get

    return @{
        BaseCommit   = $response.baseCommit
        TargetCommit = $response.targetCommit
    }
}
