How to align items using ItemRepeater in a non uniform layout in Winui3.

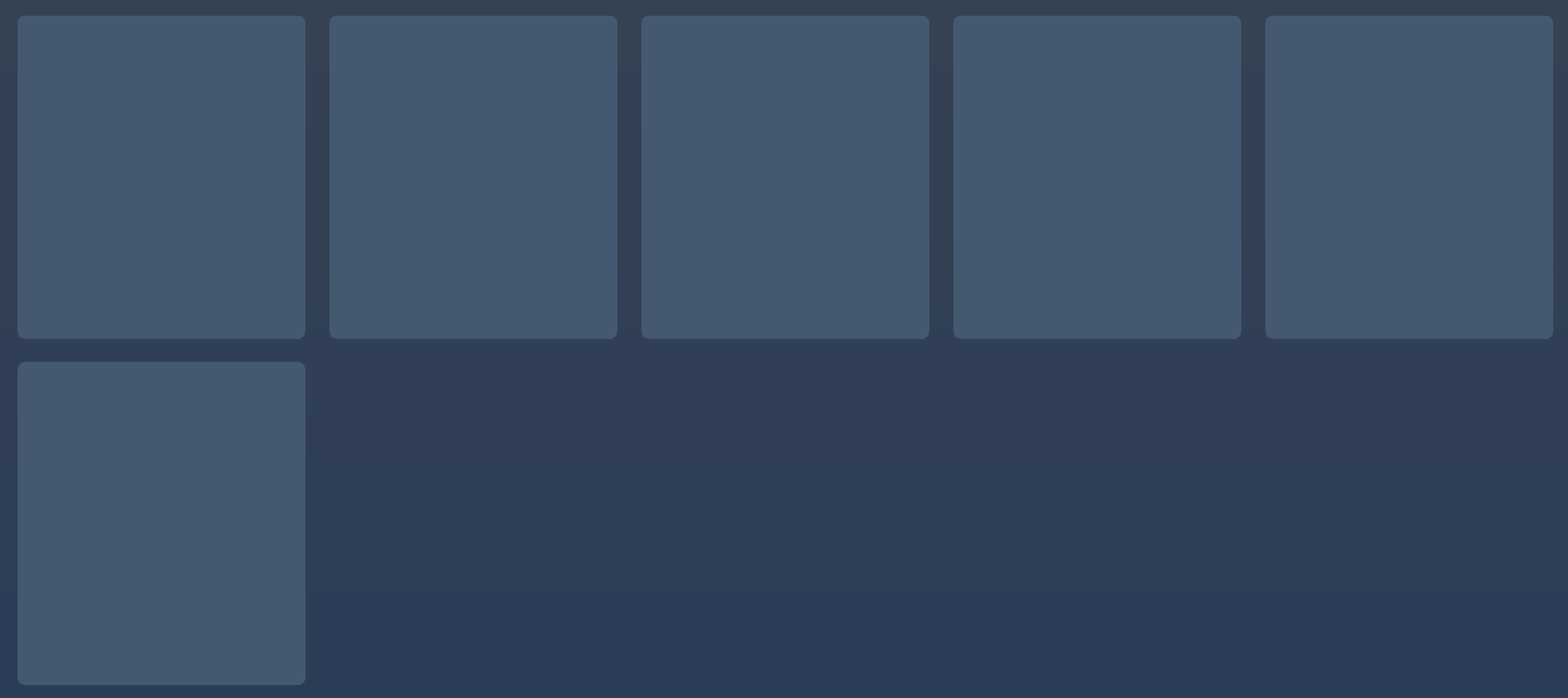

Here i need some of my tile to take 2 times the width
Not sure if it is what you want to get, but you can change width in ElementPrepared

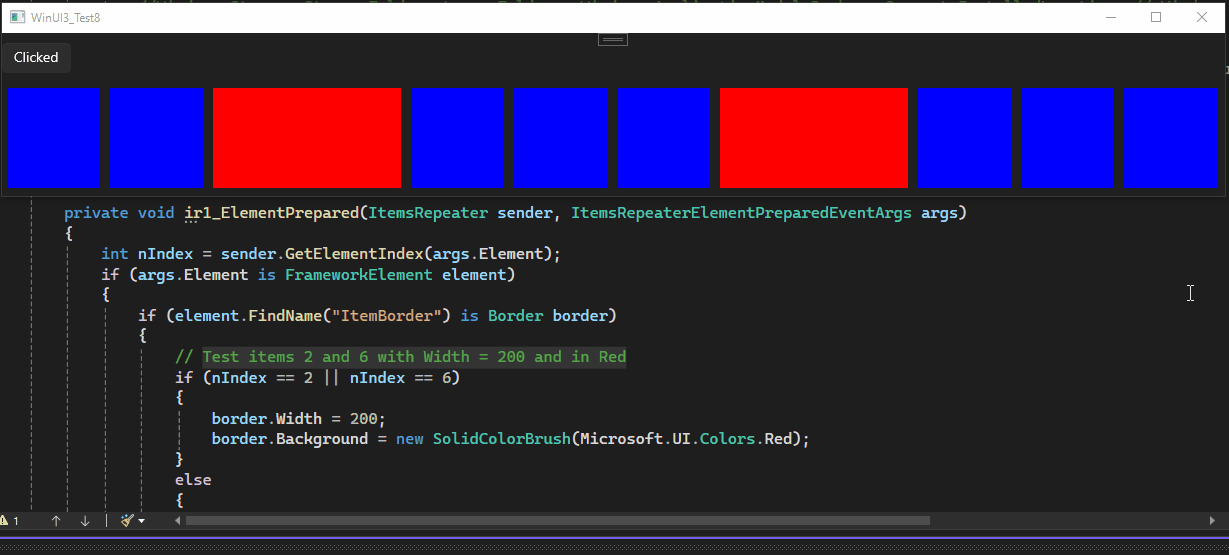

A test by changing width from 100 to 200 for items 2 and 6 in 10 items :
<Grid Background="{ThemeResource ApplicationPageBackgroundThemeBrush}">
<Grid.RowDefinitions>
<RowDefinition Height="50"></RowDefinition>
<RowDefinition Height="*"></RowDefinition>
<RowDefinition Height="Auto"></RowDefinition>
</Grid.RowDefinitions>
<Button x:Name="myButton" Grid.Row="0" Click="MyButton_Click">Click Me</Button>
<ScrollViewer Grid.Row="1" HorizontalScrollBarVisibility="Disabled" VerticalScrollBarVisibility="Auto">
<ItemsRepeater x:Name="ir1" ItemsSource="{x:Bind MyItems}">
<ItemsRepeater.Layout>
<LinedFlowLayout/>
</ItemsRepeater.Layout>
<ItemsRepeater.ItemTemplate>
<DataTemplate x:DataType="x:String">
<Border x:Name="ItemBorder"
Width="100"
Height="100"
Margin="5"
Background="Blue"/>
</DataTemplate>
</ItemsRepeater.ItemTemplate>
</ItemsRepeater>
</ScrollViewer>
</Grid>
public ObservableCollection<string> MyItems { get; } = new();
private async void MyButton_Click(object sender, RoutedEventArgs e)
{
{
for (int i = 0; i < 10; i++)
{
MyItems.Add($"Item {i}");
}
ir1.ElementPrepared += ir1_ElementPrepared;
return;
}
}
private void ir1_ElementPrepared(ItemsRepeater sender, ItemsRepeaterElementPreparedEventArgs args)
{
int nIndex = sender.GetElementIndex(args.Element);
if (args.Element is FrameworkElement element)
{
if (element.FindName("ItemBorder") is Border border)
{
Test items 2 and 6 with Width = 200 and in Red
if (nIndex == 2 || nIndex == 6)
{
border.Width = 200;
border.Background = new SolidColorBrush(Microsoft.UI.Colors.Red);
}
else
{
border.Width = 100;
border.Background = new SolidColorBrush(Microsoft.UI.Colors.Blue);
}
}
}
}
