Azure Digital Twins Explorer "Klay" option no longer available?

Question

Azure Digital Twins Explorer "Klay" option no longer available?

Klaus Nørregaard 11

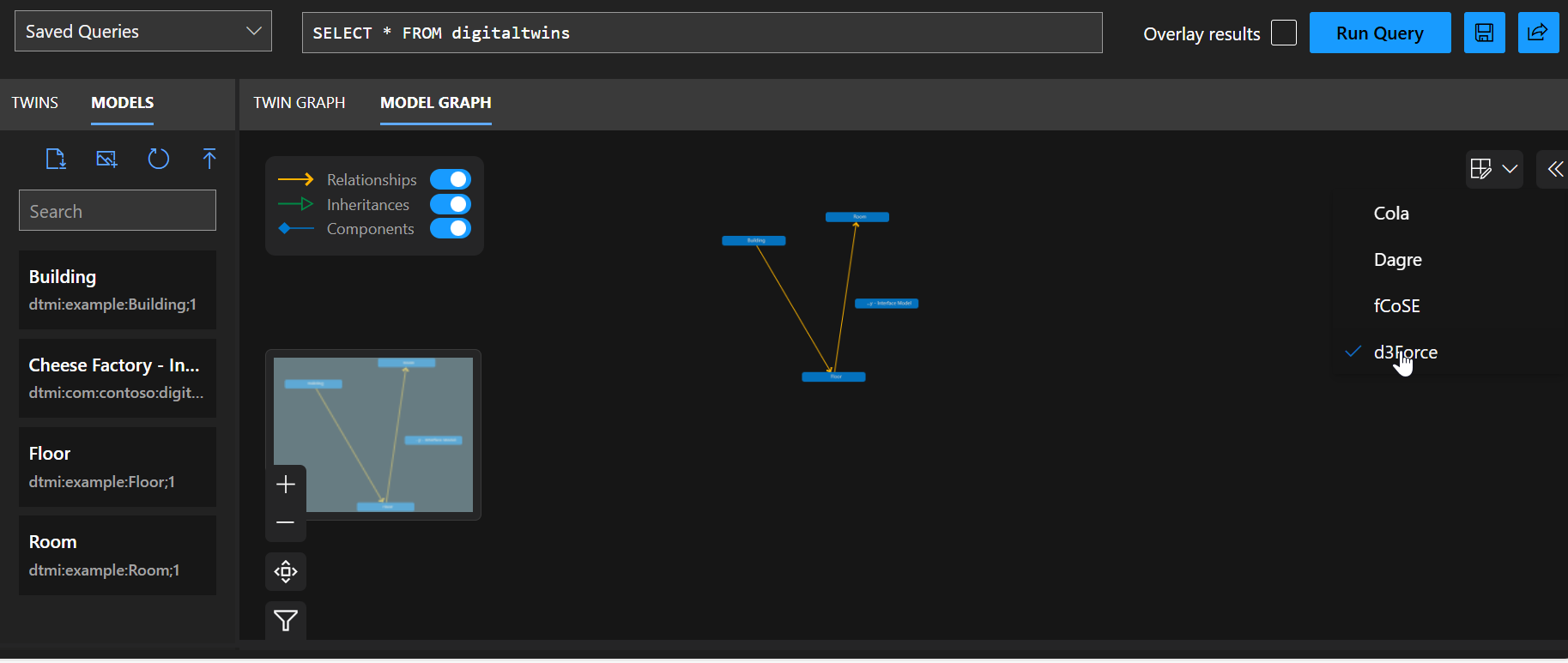

I am not able to choose Klay as an option when I want to display my graph?

User's image

Why id that? How do I get it back.

//Klaus

VSawhney 800 Reputation points Microsoft External Staff Moderator

2025-05-21T05:31:48.4833333+00:00
Hello Klaus Nørregaard,

It sounds like you're having trouble finding the "Klay" option in Azure Digital Twins Explorer for displaying your graph. This can happen for a couple of reasons, particularly if the model associated with "Klay" has been altered or deleted since your last use.

Here’s what you can try:

Check Your Models: Go into the Models panel and ensure that the "Klay" model is still present. If it’s missing or has been modified, that could be the reason it’s not appearing.

Validate Your Twins: Ensure that the twins you're trying to visualize are still associated with the correct models. If any models were changed or deleted after the twins were created, this might affect their visibility.

Review Admin Changes: If you have multiple users managing models, check if any recent changes were made by others that might have affected your access to "Klay".

Refresh the Explorer: Sometimes, simply reloading the Azure Digital Twins Explorer can resolve visual glitches or missing options.

If the issue persists, please provide more details:

When you last saw the option, any changes that might have been made to your models or twins, and if you're able to see other models without issues.

What should happen after using Klay option?

Is there any version change or upgrade done?

Hope this helps!
Thank you!
Klaus Nørregaard 11 Reputation points

2025-05-21T06:02:25.3133333+00:00

The "Klay" layout option in Azure Digital Twins Explorer is typically available in the Twin Graph panel under the "Choose Layout" menu, alongside other layout algorithms like Cola, Dagre, and fCoS. I you have been using the Klay option for years and it suddenly disappeared across all your Azure Digital Twins instances, this is likely not due to changes in my models or twins, but rather an issue with the Explorer's frontend or a service dependency.

The official documentation confirms that "Klay" should be available in the layout menu and its sudden disappearance across all my environments suggests a systemic issue rather than a configuration problem on my side.
Sander van de Velde | MVP 36,776 Reputation points MVP Volunteer Moderator

2025-05-21T06:17:09.4233333+00:00

Hello Klaus Nørregaard,

welcome to this moderated Azure community forum.

these errors could be the source of a crippled page, not showing the Klay topology representation anymore.

Because this is running in the browser, can you try clearing the cache, using an in-private page, and perhaps another browser like Firefox (Edge and Chrome share the same rendering engine).

If the problem stays, please ask Q&A support to create a support ticket on your behalf.

If the response helped, do "Accept Answer". If it doesn't work, please let us know the progress. All community members with similar issues will benefit by doing so. Your contribution is highly appreciated.
Klaus Nørregaard 11 Reputation points

2025-05-21T06:17:59.5833333+00:00

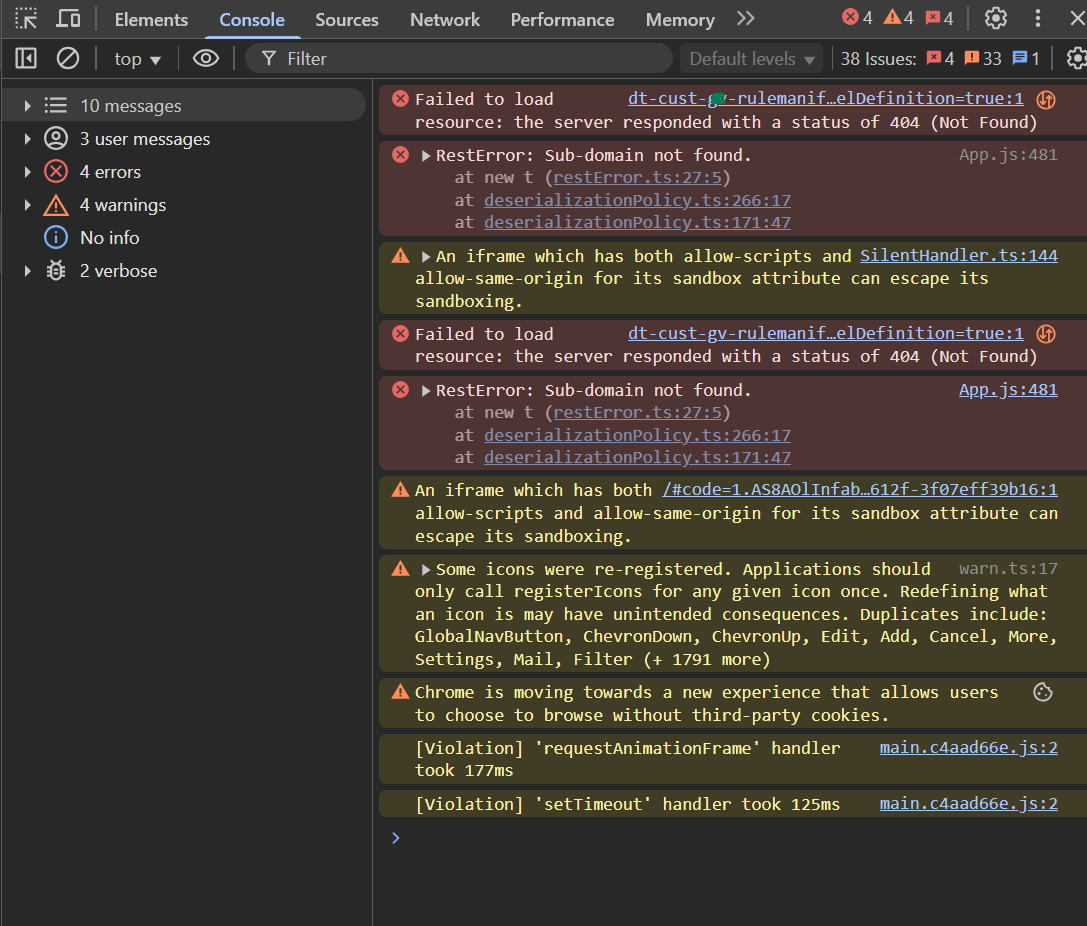

Based on the related errors in devtools it is very likely a frontend or service issue that Microsoft needs to address.
Manas Mohanty 6,370 Reputation points Microsoft External Staff Moderator

2025-05-22T12:07:30.35+00:00

Hi Klaus Nørregaard

Sorry for the trouble.

I think you are correct on backend issue. I am also not able to view Klay option with model examples available in quick start sections.

We will check internally with IOT team on any recent changes and shall update you as soon as possible.

Thank you.
Klaus Nørregaard 11 Reputation points

2025-05-22T12:10:18.4566667+00:00

Hi! YES! Please I am relying on the KLAY view so I can get a structured view of the nodes and the relationships.

Thanks!
Sampath 3,750 Reputation points Microsoft External Staff Moderator

2025-05-23T15:09:53.5766667+00:00

Hello @Klaus Nørregaard ,Please check your private message and respond there.
Sampath 3,750 Reputation points Microsoft External Staff Moderator

2025-05-26T10:04:13.0566667+00:00

Hello @Klaus Nørregaard , adding to Sander van de Velde | MVP comment . I believe KLAY is not supported and currently, Azure Digital Twins Explorer fully supports DTDL v2 models and supports limited functionality for DTDL v3 models.

DTDL v3 models can be viewed in the Models panel, and twins created with DTDL v3 models can be viewed and edited (including twins with array properties). However, DTDL v3 models don't show up in the Model Graph panel, and they can't be imported using Azure Digital Twins Explorer. To import DTDL v3 models to your instance, use another developer interface like the APIs and SDKs or the Azure CLI.

Refer this DOC for Manage Azure Digital Twins models
Klaus Nørregaard 11 Reputation points

2025-05-27T07:56:37.7766667+00:00

Hi @Sampath

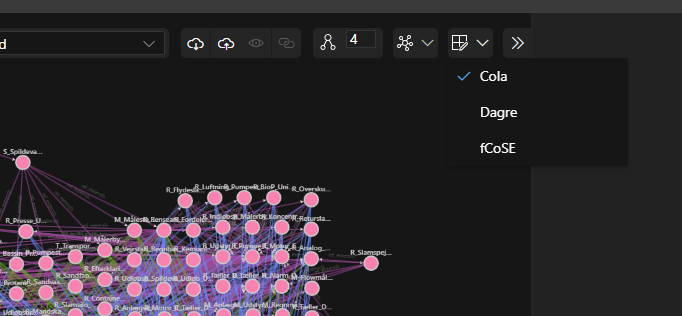

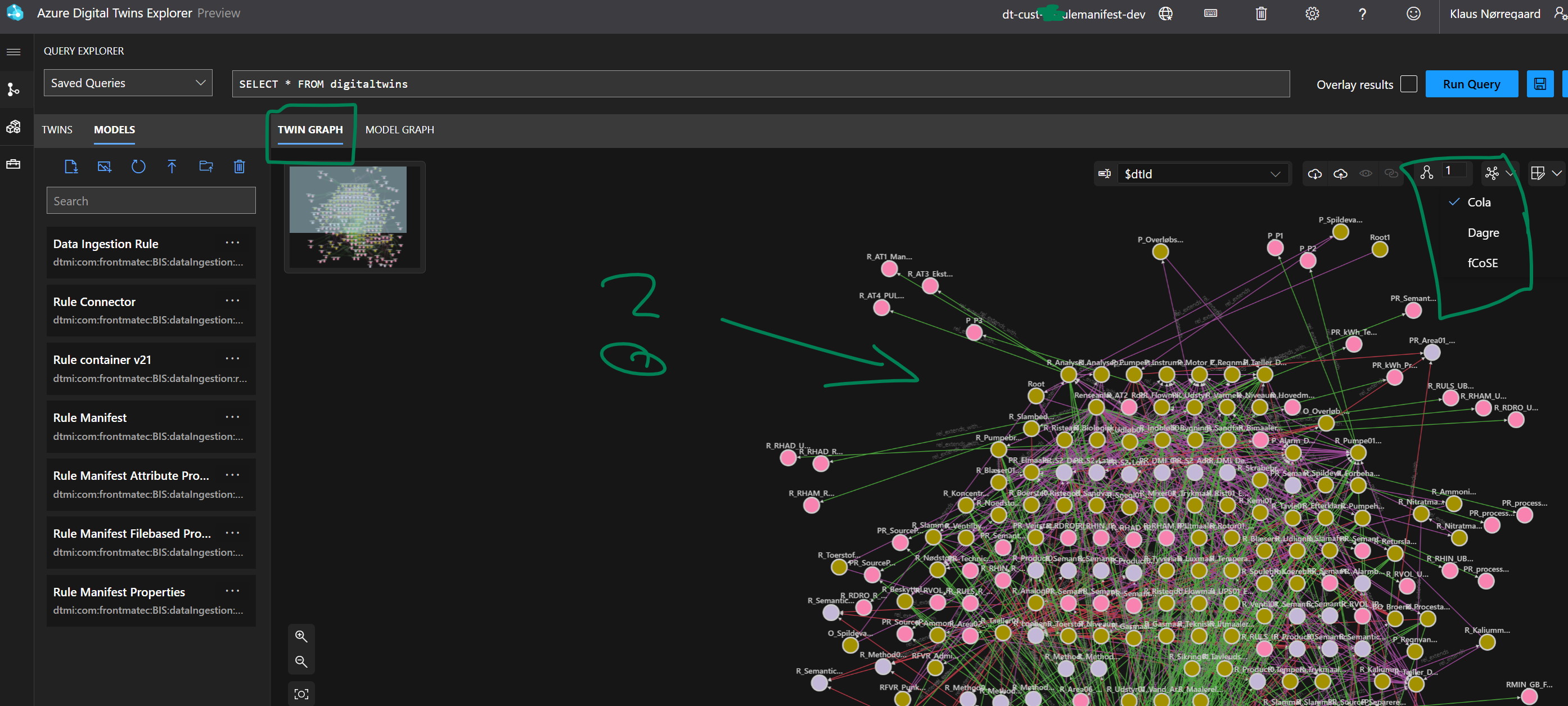

Thank you for your response and for referencing the documentation. I want to clarify that when I run a query in the Azure Digital Twins Explorer and view the results in the Twin Graph panel, I am currently unable to see the "Klay" layout option in the "Choose Layout" menu. As shown in my attached screenshot, only Cola, Dagre, and fCoSE are available as layout algorithms in the Twin Graph panel According to the official documentation, the Klay layout should be present in the layout menu for the Twin Graph panel, alongside Cola, Dagre, and fCoSE. However, in my current experience across all Azure Digital Twins instances, the Klay option is missing specifically when querying and visualizing twins in the Twin Graph. This issue is consistent and not related to my models or twins, as the layout options are a function of the Explorer's frontend.

As you can tell from the image the graph view is unstructured and not easily observable.
Jens Molin 0 Reputation points

2025-06-10T10:53:29.4666667+00:00

Hi!

I have exactly the same problem, and I can no longer see or use the Klay layout in ADT Explorer either. In order to work with many points and large amounts of data, I am completely dependent on being able to use this layout mode.

Please look into this as soon as possible and restore the ability to use Klay as the layout.

Thank you so much!

2 answers

Your answer

VSawhney 800 Reputation points Microsoft External Staff Moderator

2025-05-21T05:31:48.4833333+00:00

Hello Klaus Nørregaard,

It sounds like you're having trouble finding the "Klay" option in Azure Digital Twins Explorer for displaying your graph. This can happen for a couple of reasons, particularly if the model associated with "Klay" has been altered or deleted since your last use.

Here’s what you can try:

Check Your Models: Go into the Models panel and ensure that the "Klay" model is still present. If it’s missing or has been modified, that could be the reason it’s not appearing.

Validate Your Twins: Ensure that the twins you're trying to visualize are still associated with the correct models. If any models were changed or deleted after the twins were created, this might affect their visibility.

Review Admin Changes: If you have multiple users managing models, check if any recent changes were made by others that might have affected your access to "Klay".

Refresh the Explorer: Sometimes, simply reloading the Azure Digital Twins Explorer can resolve visual glitches or missing options.

If the issue persists, please provide more details:

When you last saw the option, any changes that might have been made to your models or twins, and if you're able to see other models without issues.

What should happen after using Klay option?

Is there any version change or upgrade done?

Hope this helps!
Thank you!
Klaus Nørregaard 11 Reputation points

2025-05-21T06:02:25.3133333+00:00

The "Klay" layout option in Azure Digital Twins Explorer is typically available in the Twin Graph panel under the "Choose Layout" menu, alongside other layout algorithms like Cola, Dagre, and fCoS. I you have been using the Klay option for years and it suddenly disappeared across all your Azure Digital Twins instances, this is likely not due to changes in my models or twins, but rather an issue with the Explorer's frontend or a service dependency.

The official documentation confirms that "Klay" should be available in the layout menu and its sudden disappearance across all my environments suggests a systemic issue rather than a configuration problem on my side.
Sander van de Velde | MVP 36,776 Reputation points MVP Volunteer Moderator

2025-05-21T06:17:09.4233333+00:00

Hello Klaus Nørregaard,

welcome to this moderated Azure community forum.

these errors could be the source of a crippled page, not showing the Klay topology representation anymore.

Because this is running in the browser, can you try clearing the cache, using an in-private page, and perhaps another browser like Firefox (Edge and Chrome share the same rendering engine).

If the problem stays, please ask Q&A support to create a support ticket on your behalf.

If the response helped, do "Accept Answer". If it doesn't work, please let us know the progress. All community members with similar issues will benefit by doing so. Your contribution is highly appreciated.
Klaus Nørregaard 11 Reputation points

2025-05-21T06:17:59.5833333+00:00

Based on the related errors in devtools it is very likely a frontend or service issue that Microsoft needs to address.
Manas Mohanty 6,370 Reputation points Microsoft External Staff Moderator

2025-05-22T12:07:30.35+00:00

Hi Klaus Nørregaard

Sorry for the trouble.

I think you are correct on backend issue. I am also not able to view Klay option with model examples available in quick start sections.

We will check internally with IOT team on any recent changes and shall update you as soon as possible.

Thank you.
Klaus Nørregaard 11 Reputation points

2025-05-22T12:10:18.4566667+00:00

Hi! YES! Please I am relying on the KLAY view so I can get a structured view of the nodes and the relationships.

Thanks!
Sampath 3,750 Reputation points Microsoft External Staff Moderator

2025-05-23T15:09:53.5766667+00:00

Hello @Klaus Nørregaard ,Please check your private message and respond there.
Sampath 3,750 Reputation points Microsoft External Staff Moderator

2025-05-26T10:04:13.0566667+00:00

Hello @Klaus Nørregaard , adding to Sander van de Velde | MVP comment . I believe KLAY is not supported and currently, Azure Digital Twins Explorer fully supports DTDL v2 models and supports limited functionality for DTDL v3 models.

DTDL v3 models can be viewed in the Models panel, and twins created with DTDL v3 models can be viewed and edited (including twins with array properties). However, DTDL v3 models don't show up in the Model Graph panel, and they can't be imported using Azure Digital Twins Explorer. To import DTDL v3 models to your instance, use another developer interface like the APIs and SDKs or the Azure CLI.

Refer this DOC for Manage Azure Digital Twins models
Klaus Nørregaard 11 Reputation points

2025-05-27T07:56:37.7766667+00:00

Hi @Sampath
Thank you for your response and for referencing the documentation. I want to clarify that when I run a query in the Azure Digital Twins Explorer and view the results in the Twin Graph panel, I am currently unable to see the "Klay" layout option in the "Choose Layout" menu. As shown in my attached screenshot, only Cola, Dagre, and fCoSE are available as layout algorithms in the Twin Graph panel According to the official documentation, the Klay layout should be present in the layout menu for the Twin Graph panel, alongside Cola, Dagre, and fCoSE. However, in my current experience across all Azure Digital Twins instances, the Klay option is missing specifically when querying and visualizing twins in the Twin Graph. This issue is consistent and not related to my models or twins, as the layout options are a function of the Explorer's frontend.

As you can tell from the image the graph view is unstructured and not easily observable.
Jens Molin 0 Reputation points

2025-06-10T10:53:29.4666667+00:00

Hi!

I have exactly the same problem, and I can no longer see or use the Klay layout in ADT Explorer either. In order to work with many points and large amounts of data, I am completely dependent on being able to use this layout mode.

Please look into this as soon as possible and restore the ability to use Klay as the layout.

Thank you so much!

Answer 1

Hi @Sampath

Thank you for your response and for referencing the documentation. I want to clarify that when I run a query in the Azure Digital Twins Explorer and view the results in the Twin Graph panel, I am currently unable to see the "Klay" layout option in the "Choose Layout" menu. As shown in my attached screenshot, only Cola, Dagre, and fCoSE are available as layout algorithms in the Twin Graph panel

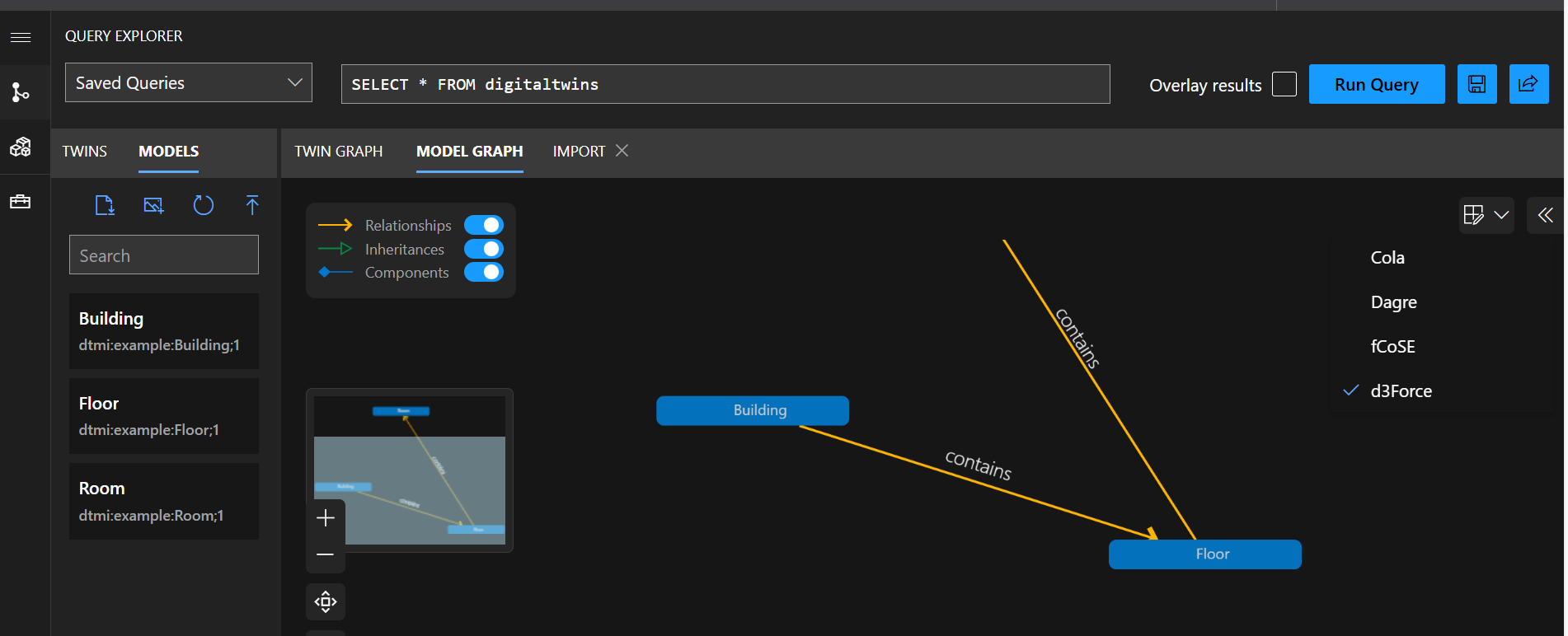

According to the official documentation, the Klay layout should be present in the layout menu for the Twin Graph panel, alongside Cola, Dagre, and fCoSE. However, in my current experience across all Azure Digital Twins instances, the Klay option is missing specifically when querying and visualizing twins in the Twin Graph. This issue is consistent and not related to my models or twins, as the layout options are a function of the Explorer's frontend.

Answer 2

Hi Klaus!

We got in touch with the Microsoft support team and got the answer below:

Regarding the issue you've described, it appears you reported that the 'Klay' layout option in Azure Digital Twins Explorer is no longer available. You mentioned that this layout was crucial for automatically organizing graph nodes in a clear, hierarchical manner, and its absence complicates the navigation and management of complex digital twin models. I have checked with my team internally and received a response. Unfortunately, they informed me that "Klay has been deprecated as a package and has had 0 security patches in the last 5 years."

They also mentioned that "there are now some known security risks with it, and as a result, we removed the feature to keep our customers secure." Looking at our documentation, [Use Azure Digital Twins Explorer (preview) - Azure Digital Twins | Microsoft Learn]

Jens
