Access Files in Sharepoint Site by Postman Graph API

Question

Hi I have setup SharePoint Sites in my lab. There are files uploaded to this site

https://shrikantplayground.sharepoint.com/sites/ShrikantSite2

I have Created App in Azure. This is to get list & download files from Postman API

What are the next step ? Do I need to do something on SharePoint side ?

Do I need to do Upgrading SharePoint apps from Azure Access Control service to Azure Active Directory ?

Do I need run following :

https://shrikantplayground.sharepoint.com/_layouts/15/AppInv.aspx

I get following error:

https://shrikantplayground.sharepoint.com/_layouts/15/AddinDeprecationAnnoucement.aspx

Let me know

Thanks

Shrikant

Answer 1

Hi Shrikant Bhagwat

Thanks for reaching out on Microsoft Q&A!

No, you don't need to use an add-in, this is the "old" model used by the SharePoint CSOM API. When working with Microsoft Graph you only need an app with the correct permissions, which you seem to have. So this should basically work.

Getting to the next steps: you basically call the Graph API to retrieve the files, which is done through the 'Drives' part (as SharePoint files are stored on the same technology as OneDrive nowadays therefor drive):

https://learn.microsoft.com/en-us/graph/api/drive-get?view=graph-rest-1.0&tabs=http

Please click ‘Accept answer’ if you think my answer is helpful. Feel free to drop additional queries in the comments below!

Kind regards,

Sonny

Answer 2

Hello @Shrikant Bhagwat

I understand that you want to call the SharePoint API using Microsoft Graph and want the application to access files only in a specific SharePoint site.

To achieve it, you need to grant only Sites.Selected API permission to the Microsoft Entra ID application:

Now, create the permission so that the application so that the app can access only one site not all:

POST https://graph.microsoft.com/v1.0/sites/SiteID/permissions

Content-Type: application/json

{

  "roles": ["write"],

  "grantedToIdentities": [{

    "application": {

      "id": "ClientIdofApp",

      "displayName": "Sharepointapp"

    }

  }]

}

Generate the access token:

POST https://login.microsoftonline.com/TenantID/oauth2/v2.0/token

client_id: ClientID

client_secret: Secret

scope: https://graph.microsoft.com/.default

grant_type:client_credentials

Using the above access token, I am able to access the drive of the particular site successfully:

GET https://graph.microsoft.com/v1.0/sites/SiteID/drive

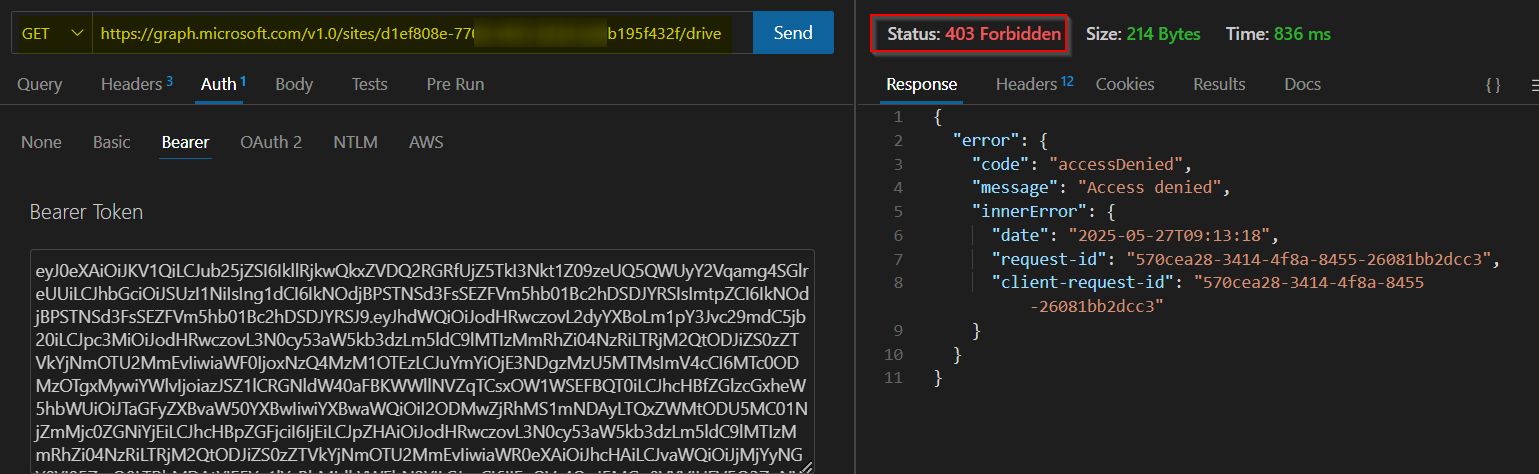

If I try to access other SharePoint Site, for which the application does not have access, 403 error occurs:

To download files, refer: Download driveItem content - Microsoft Graph v1.0 | Microsoft

Let me know if you’re still running into issues or have additional questions.

Hope this helps!

---

If this answers your query, do click Accept Answer and Yes for was this answer helpful, which may help members with similar questions.

If you have any other questions or are still experiencing issues, feel free to ask in the "comments" section, and I'd be happy to help.
