azure logic app send email and csv or excel attachment

Question

Hi All,

I am sending an email to the logic app using the HTTP request JSON method.

The email process works, but the attachment is not readable.

I am using a script available on the internet to test it.

$tempFile = "C:\Users\testadmin\Downloads\WinVnsTemp.csv"

$attachmentsArray = @(
    @{
        "Name" = "WinVnsTemp.csv"
        "ContentBytes" = [Convert]::ToBase64String([System.IO.File]::ReadAllBytes($tempFile))
    }
)

$emailConnection = "https://***********.azurewebsites.net:443/api/trigger/triggers/When_a_HTTP_request_is_received/invoke?api-version=2022-05-01&sp=%2Ftriggers%2FWhen_a_HTTP_request_is_received%2Frun&sv=1.0&sig=WCEQ1dISFtxCY9vthPWkFULXh_zL0WmafLtwddX_rGY"
$emailOutput = [PSCustomObject]@{
    "To" = "admin.test@hot***.com"
    "Subject" = "Test email attachment"
    "Body" = "Hi there! testing email attachments"
    "Attachments" = $attachmentsArray
}
$JSONBody = $emailOutput | ConvertTo-Json -Depth 5
Invoke-RestMethod -Uri $emailConnection -Body $JSONBody -ContentType 'application/json' -Method POST | Out-Null

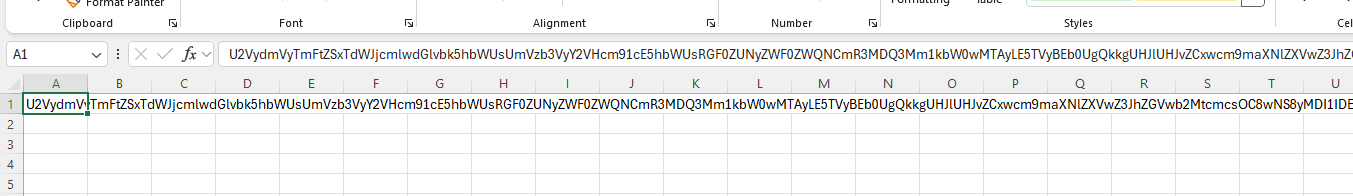

If I remove ToBase64String conversion it look like below.

Logic app flow

Answer 1

Hi @Madhu Rao ,

Below design works for me:

Initially called logic app using below PowerShell Script:

$rithfile = "C:\Users\rbojja\Downloads\test.csv"

$attachmentsArray = @(

    @{

        "Name" = "RithAttachment.csv"

        "ContentBytes" = [Convert]::ToBase64String([System.IO.File]::ReadAllBytes($rithfile))

    }

)

$rithcon = "https://rithte.azurewebsites.net:443/api/testemailwkflw/triggers/When_a_HTTP_request_is_received/invoke?api-version=2022-05-01&sp=%2Ftriggers%2FWhen_a_HTTP_request_is_received%2Frun&sv=1.0&sig=Q81WrithwikkWZCI"

$rithout = [PSCustomObject]@{

    "To" = "******@mit.com"

    "Subject" = "Test email attachment"

    "Body" = "Hi there! testing email attachments"

    "Attachments" = $attachmentsArray

}

$rijson = $rithout | ConvertTo-Json -Depth 5

Invoke-RestMethod -Uri $rithcon -Body $rijson -ContentType 'application/json' -Method POST | Out-Null

Design:

Then:

base64(base64ToBinary(items('For_each')['ContentBytes']))

Code View:

{

    "definition": {

        "$schema": "https://schema.management.azure.com/providers/Microsoft.Logic/schemas/2016-06-01/workflowdefinition.json#",

        "actions": {

            "For_each": {

                "type": "Foreach",

                "foreach": "@triggerBody()?['Attachments']",

                "actions": {

                    "Send_an_email_(V2)": {

                        "type": "ApiConnection",

                        "inputs": {

                            "host": {

                                "connection": {

                                    "referenceName": "office365"

                                }

                            },

                            "method": "post",

                            "body": {

                                "To": "@triggerBody()?['To']",

                                "Subject": "@triggerBody()?['Subject']",

                                "Body": "<p class=\"editor-paragraph\">@{triggerBody()?['Body']}</p>",

                                "Attachments": [

                                    {

                                        "Name": "@items('For_each')['Name']",

                                        "ContentBytes": "@base64(base64ToBinary(items('For_each')['ContentBytes']))"

                                    }

                                ],

                                "Importance": "Normal"

                            },

                            "path": "/v2/Mail"

                        }

                    }

                },

                "runAfter": {}

            }

        },

        "contentVersion": "1.0.0.0",

        "outputs": {},

        "triggers": {

            "When_a_HTTP_request_is_received": {

                "type": "Request",

                "kind": "Http"

            }

        }

    },

    "kind": "Stateful"

}

Output:

---

If this answer was helpful, please click "Accept the answer" and mark Yes, as this can help other community members.

If you have any other questions or are still experiencing issues, feel free to ask in the "comments" section, and I'd be happy to help.

Answer 2

Hey Madhu,

Thanks for posting your question about sending emails with attachments in azure logic apps ))

First off, the base64 conversion you're doing is actually the correct approach according to microsoft's documentation on logic apps email attachments (you can check the official docs here: [Microsoft Logic Apps Documentation]). The attachment needs to be base64 encoded when sending through http requests to logic apps.

The problem might be in how the logic app is processing the incoming data. In your workflow, after the "when a http request is received" trigger, you should have a "send email v2" action. Make sure the attachment part is configured properly there. The contentbytes field should directly receive your base64 string without additional processing.

One thing i noticed - in your powershell script you're doing the conversion correctly, but maybe the logic app needs some tweaking. Could you check if the "contentbytes" field in the send email action matches exactly what your script sends? Sometimes the json structure gets messed up during transfer.

Also, just a heads up - for excel files you'd follow the same base64 approach but make sure the file is properly closed in excel before attaching. I've seen cases where the file gets corrupted if its still open when reading bytes ))

If you want to share more details about how your logic app is processing the attachment, i can give more specific advice. The screenshots help but i cant see the full configuration. Maybe check if there are any additional steps modifying the attachment data before it gets sent?

Hope this helps get you unstuck! Let me know how it goes

Best regards,
Alex
P.S. If my answer help to you, please Accept my answer
PPS That is my Answer and not a Comment
