Can not as assign static IP NAT GATEWAY to my configure Azure Container Apps (ACA)

Question

Hello,

I have configure Azure Container Apps (ACA) to use a NAT Gateway for static outbound IP but still NO assign static IP NAT GATEWAY to my configure Azure Container Apps (ACA)

Step 1: Create a new subnet with /23 => Done

Step 2: Associate subnet with NAT Gateway => Done

 Attach the NAT Gateway to the subnets used by ACA => Done

Step 3: Create ACA Environment => DoneStep 4: Get Public IP Assigned to NAT Gateway => Done

Step 5: Verify ACA Container’s Outbound IP => Wrong IP statuc nat gateway

Still wrong my ACA Container’s Outbound IP

Please help me this case?

Note: Because my aca is dynamic, every time I redeploy it, the public IP will change, so the third party must add a new public IP to be able to call my aca.

Answer 1

Nho Luong, you can’t force a static outbound IP on a consumption-only Container Apps environment. Azure will keep assigning dynamic IPs for egress. To get a fixed address you must rebuild your environment as a workload profiles type in a custom virtual network. That setup lets you attach a Standard SKU public IP via a NAT Gateway and ensures all outgoing traffic uses that same IP. You also need to place your environment in a subnet that is at least /27 in size.

• Check this below given script and modify with your own resource group, location and names.

# set your names
RG="MyResourceGroup"
LOC="eastus"
VNET="MyVNet"
SUBNET="AppSubnet"
ENV="MyAppEnv"
APP="MyContainerApp"
PIP="StaticEgressIP"
NAT="AppNatGateway"

# create a VNet with a /27 subnet
az network vnet create \
  --resource-group $RG \
  --name           $VNET \
  --location       $LOC \
  --address-prefixes 10.0.0.0/24

az network vnet subnet create \
  --resource-group $RG \
  --vnet-name      $VNET \
  --name           $SUBNET \
  --address-prefixes 10.0.0.0/27

# reserve a static public IP and plug it into a NAT Gateway
az network public-ip create \
  --resource-group $RG \
  --name           $PIP \
  --sku            Standard \
  --allocation-method Static

az network nat gateway create \
  --resource-group      $RG \
  --name                 $NAT \
  --public-ip-addresses $PIP

# link your NAT Gateway to that /27 subnet
az network vnet subnet update \
  --resource-group $RG \
  --vnet-name      $VNET \
  --name           $SUBNET \
  --nat-gateway    $NAT

# roll out a workload profiles Container Apps environment in that subnet
az containerapp env create \
  --resource-group $RG \
  --name           $ENV \
  --location       $LOC \
  --infrastructure-subnet-resource-id \
    $(az network vnet subnet show \
        --resource-group $RG \
        --vnet-name    $VNET \
        --name          $SUBNET \
        --query id -o tsv) \
  --enable-workload-profiles true

# deploy your container app into that environment
az containerapp create \
  --resource-group $RG \
  --name           $APP \
  --image          mcr.microsoft.com/azuredocs/containerapps-helloworld:latest \
  --environment    $ENV \
  --ingress        external \
  --target-port    80

After these commands finish, every outbound request from your container app will come from the static IP you reserved. Redeploys won’t change it.

Hope it helps!

---

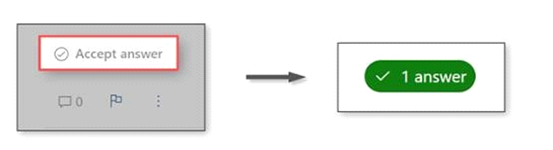

Please do not forget to click "Accept the answer” and Yes wherever the information provided helps you, this can be beneficial to other community members.
