How to remove the toolbar menu for .sql files

Question

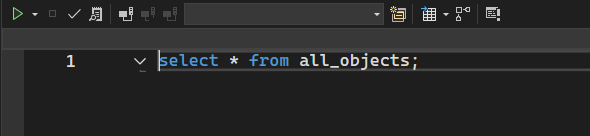

I’m trying to remove the toolbar menu that appears specifically when .sql files are opened in Visual Studio.

Do we need to implement a custom editor factory to achieve this? If yes, could you please explain how that can be done? If not, is there a better or recommended way to suppress the default toolbar?

Also I am using my own language service when i open the .sql file like this.

 Guid langGuid = new Guid("language service id");
 VsShellUtilities.OpenDocument(
     ServiceProvider.GlobalProvider,
     openFileDialog.FileName,
     VSConstants.LOGVIEWID_Primary,
     out IVsUIHierarchy hierarchy,
     out uint itemID,
     out IVsWindowFrame windowFrame
 );
 object docData;
 windowFrame.GetProperty((int)__VSFPROPID.VSFPROPID_DocData, out docData);
 IVsTextBuffer textBuffer = docData as IVsTextBuffer;
 if (textBuffer == null && docData is IVsTextLines lines)
 {
     textBuffer = lines as IVsTextBuffer;
 }
 int result = textBuffer.SetLanguageServiceID(ref langGuid);
 if (result != VSConstants.S_OK)
 {
     // Handle error: language service might not be registered or available
 }
 windowFrame?.Show();

using this I am able to use my language service features but for the .sql files this toolbar is coming.

Answer 1

Why the toolbar shows up:

You're using your language service, but not your editor.

What’s missing:

A custom editor factory to override Visual Studio’s default .sql file behavior.

How to fix it:

Create and register a custom editor for .sql, and return Guid.Empty for the toolbar command UI ID.

Answer 2

Step 01 : Create the Custom Editor Factory

using Microsoft.VisualStudio;
using Microsoft.VisualStudio.Shell;
using Microsoft.VisualStudio.Shell.Interop;
using System;
using System.Runtime.InteropServices;
[Guid("D1A5D9FA-32F0-4001-BDD2-BB3D50F4E6C3")] // Use a unique GUID
public class SqlEditorFactory : IVsEditorFactory
{
    private ServiceProvider _serviceProvider;
    public int SetSite(Microsoft.VisualStudio.OLE.Interop.IServiceProvider psp)
    {
        _serviceProvider = new ServiceProvider(psp);
        return VSConstants.S_OK;
    }
    public int Close() => VSConstants.S_OK;
    public int CreateEditorInstance(
        uint grfCreateDoc,
        string pszMkDocument,
        string pszPhysicalView,
        IVsHierarchy pvHier,
        uint itemid,
        IntPtr punkDocDataExisting,
        out IntPtr ppunkDocView,
        out IntPtr ppunkDocData,
        out string pbstrEditorCaption,
        out Guid pguidCmdUI,
        out int pgrfCDW)
    {
        ppunkDocView = IntPtr.Zero;
        ppunkDocData = IntPtr.Zero;
        pbstrEditorCaption = string.Empty;
        pgrfCDW = 0;
        // Use a simple text buffer
        IVsTextLines textLines = new VsTextBufferClass();
        // Set the docData and docView to the same buffer (text editor)
        ppunkDocData = Marshal.GetIUnknownForObject(textLines);
        ppunkDocView = ppunkDocData;
        // 🚫 No toolbar
        pguidCmdUI = Guid.Empty;
        return VSConstants.S_OK;
    }
}

Step 2: Register the Editor in Your Package

In your AsyncPackage-derived class (e.g., MyPackage.cs), add these attributes at the top of the class:

[ProvideEditorFactory(typeof(SqlEditorFactory), 101)]
[ProvideEditorExtension(typeof(SqlEditorFactory), ".sql", 50,
    NameResourceID = 101,
    DefaultName = "My SQL Editor")]
[ProvideEditorLogicalView(typeof(SqlEditorFactory), VSConstants.LOGVIEWID_Primary_string)]

And in the InitializeAsync() method of the package:

protected override async Task InitializeAsync(CancellationToken cancellationToken, IProgress<ServiceProgressData> progress)
{
    await base.InitializeAsync(cancellationToken, progress);
    // Register the custom editor
    RegisterEditorFactory(new SqlEditorFactory());
}
