Azure AI Foundry AI Agents – API Tool Use – Authenticating via Bearer Tokens

Question

I'm trying to get my AI agent to call an API which authenticates via a bearer token.

I've added the bearer token as a custom key connection and the tool is set up to use that connection for authentication.

When I ask the agent to use the tool, it successfully makes the call but it appears not to be including the bearer token correctly, resulting in 401 errors from the target API endpoint.

Any tips on how to get bearer token authentication to work properly? The documentation only shows API key examples and no examples for bearer tokens.

Answer 1

Hello @Shin Kim ,

As per this documentation,

Currently, we support three authentication types with the OpenAPI 3.0 specified tools: anonymous, API key, managed identity.

and also, it's mentioned here

With API key authentication, you can authenticate your OpenAPI spec using various methods such as an API key or Bearer token.

So, even though the OpenAPI supports bearer token security schema, in agents you need to use api key authentication only for using bearer token.

You follow below steps.

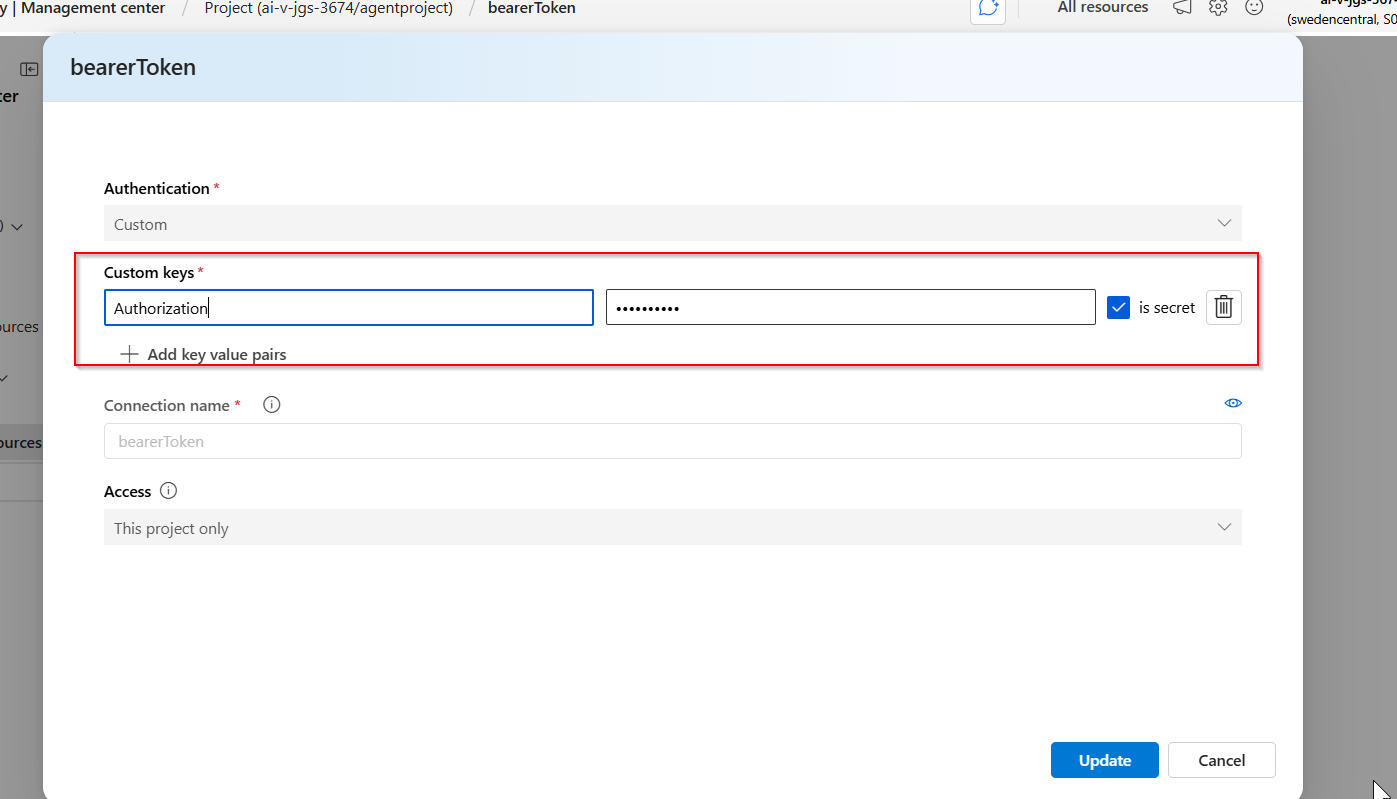

I believe you have custom key connection like below.

key : Authorization value: Bearer your_key

Next, add below securitySchemes

"securitySchemes": {
      "BearerAuth": {
        "type": "apiKey",
        "name": "Authorization",
        "in": "header"
      }

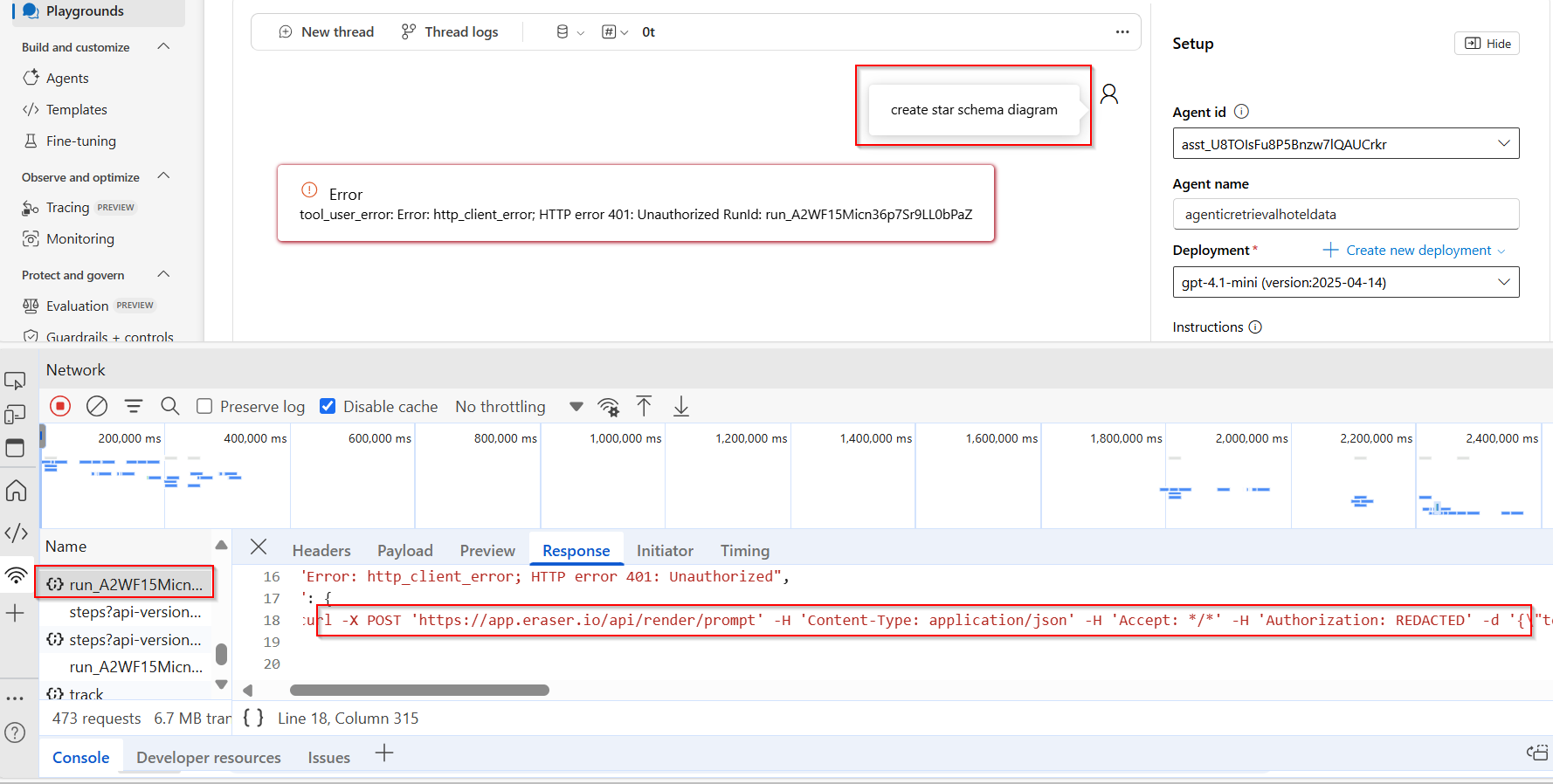

I have tried agent playground since i am not having exact token getting error but when i check the run details it's making request properly with Authorization header.

If you see here, it's making curl request with Authorization header.

Please try above and let me know if you have any query in comments.

If the solution works, please do accept it and give feedback by clicking on yes.

Thank you

Answer 2

Hi Shin Kim,

Thanks for the detailed context! Since you're working with Azure AI Foundry AI Agents and trying to get a tool to authenticate via Bearer Token using a custom key connection, and it’s returning a 401 Unauthorized, here's a breakdown of why this might be happening and how to fix it:

I understand that:

·   You're using the Custom Key Connection.

·   It successfully triggers the API call, but does not attach the Bearer token properly.

·   The target API returns 401, suggesting invalid/missing Authorization headers.

Root Cause:

In Azure AI Foundry, Custom Key Connections are primarily designed for static key-value pairs, and Bearer token handling might require a slightly different setup — especially for the Authorization header, which must follow this exact format:

Authorization: Bearer <your_token>

If the connection is defined like:

{
  "Authorization": "Bearer <your_token>"
}

and the tool isn’t injecting it properly, the issue could be:

·   The connection is not being referenced correctly in the tool.

·   The tool is not mapping the connection key into the Authorization header explicitly.

·   AI Agent doesn't default to using the connection key in the right header format.

Recommended Fixes:

1.Use Authorization header manually in the Tool definition

If you're using a tool defined in the YAML or UI, modify the tool definition like so:

- name: CallMyAPI
  description: Call external API with bearer token
  url: https://api.example.com/endpoint
  method: GET
  headers:
    Authorization: "Bearer {{connections.my_bearer_connection.token}}"
  connection: my_bearer_connection

Ensure:

·   The connection name exactly matches the Custom Key Connection name.

·   Inside the connection, the key is set like:

{
  "token": "<actual_bearer_token>"
}

2.Define Authorization header directly in the connection (Advanced)

If Foundry supports it (depending on version), define your connection as:

{
  "Authorization": "Bearer eyJhbGciOiJIUzI1NiIsInR..."
}

Then in the tool definition, use:

headers:
  Authorization: "{{connections.my_bearer_connection.Authorization}}"

This bypasses the need for manually concatenating "Bearer".

3.Use Python SDK (if possible) to confirm

If you’re programmatically testing it using the SDK before integrating in the agent, simulate the request like:

import requests

url = "https://api.example.com/endpoint"
headers = {
    "Authorization": "Bearer YOUR_TOKEN_HERE"
}

response = requests.get(url, headers=headers)
print(response.status_code, response.text)

If this works but the agent doesn’t, it confirms the token itself is fine but the agent setup is wrong.

Hope this helps. If you have any follow-up questions, please let me know. I would be happy to help.

**

Please do not forget to "Accept the answer” and “up-vote” wherever the information provided helps you, this can be beneficial to other community members.

Thank you!
