How to properly open a Dialog using office.js and DialogApi?

Question

How to properly open a Dialog using office.js and DialogApi?

Jose Manuel Febrer 0

On a freshly created taskpane add-in using yeoman generator for outlook with react, I'm trying to open a dialog for authentication using DialogApi but only an empty webview2 appears.

For testing purposes, I'll only try to open a simple html file on this example.

I changed this from the template:

Mailbox MinVersion to 1.4 in the manifest
Created a "test.html" file in src
Added a HtmlWebpackPlugin entry for text.html in wepack.config.js and confirmed I can access test.html though chrome and edge at 'https://localhost:3000/test.html'.
Updated App.tsx to open a dialog with a button.

test.html:

<!DOCTYPE html>
<html lang="en" data-framework="typescript">
<head>
  <meta charset="UTF-8" />
  <title>Test Dialog</title>
  <script src="https://appsforoffice.microsoft.com/lib/1/hosted/office.js"></script>
  <script>
    Office.onReady(() => {
      console.log("Dialog page loaded!");
    });
  </script>
</head>
<body>
  <p>test</p>
</body>
</html>

App.tsx

import * as React from 'react';
import Header from './Header';
import HeroList, { HeroListItem } from './HeroList';
import TextInsertion from './TextInsertion';
import { makeStyles } from '@fluentui/react-components';
import { Ribbon24Regular, LockOpen24Regular, DesignIdeas24Regular } from '@fluentui/react-icons';
import { insertText } from '../taskpane';

interface AppProps {
    title: string;
}

const useStyles = makeStyles({
    root: {
        minHeight: '100vh',
    },
});

const App: React.FC<AppProps> = (props: AppProps) => {
    const styles = useStyles();
    // The list items are static and won't change at runtime,
    // so this should be an ordinary const, not a part of state.
    const listItems: HeroListItem[] = [
        {
            icon: <Ribbon24Regular />,
            primaryText: 'Achieve more with Office integration',
        },
        {
            icon: <LockOpen24Regular />,
            primaryText: 'Unlock features and functionality',
        },
        {
            icon: <DesignIdeas24Regular />,
            primaryText: 'Create and visualize like a pro',
        },
    ];

    function openDialog(): void {
        Office.context.ui.displayDialogAsync(
            'https://localhost:3000/test.html',
            { height: 50, width: 30 },
            (asyncResult) => {
                if (asyncResult.status === Office.AsyncResultStatus.Failed) {
                    console.error('Dialog failed to open:', asyncResult.error);
                } else {
                    const dialog = asyncResult.value;
                    console.log('Dialog opened at:', dialog);
                    dialog.addEventHandler(Office.EventType.DialogMessageReceived, (arg) =>
                        console.log('Got message from dialog:', arg)
                    );
                }
            }
        );
    }

    return (
        <div className={styles.root}>
            <Header logo="assets/logo-filled.png" title={props.title} message="Welcome" />
            <HeroList message="Discover what this add-in can do for you today!" items={listItems} />
            <TextInsertion insertText={insertText} />
            <button onClick={openDialog}>open dialog</button>
        </div>
    );
};

export default App;

Using Office.context.requirements.isSetSupported("DialogApi", "1.2") returns true.
The open dialog button opens an empty webview2, which inspecting the add-in I can see in console the "Dialog opened at" log entry but it doesn't load anything, it's just an empty white space that I can't even right click inspect or F12.
If I open "edge://inspect/", I can see the Dialog page appearing completely empty with "about:blank" title.
What may I be doing wrong?

2 answers

Your answer

Answer 1

Doaa Ali Hamdan AL-Jarwani 255

Add this to your manifest:

<AppDomain>https://localhost:3000</AppDomain>

</AppDomains>

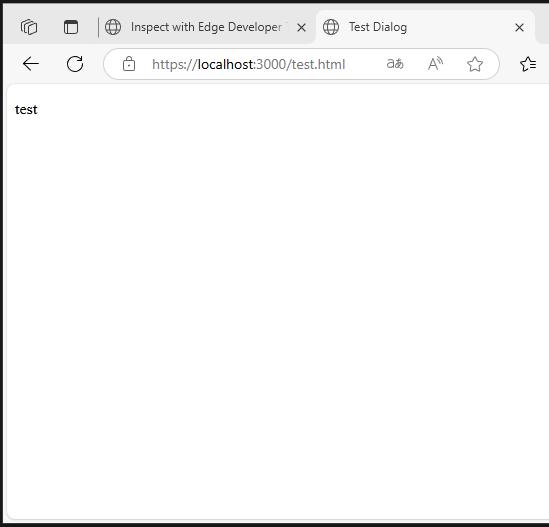

Open https://localhost:3000/test.html in your browser:

You should see “test”
- And in the console: "Dialog page loaded!"
1. 1. In webpack.config.js, use:

new HtmlWebpackPlugin({

filename: 'test.html',

template: './src/test.html',

inject: false,

chunks: []

});

Try using 127.0.0.1 instead of localhost:

'https://127.0.0.1:3000/test.html'

If still blank:

Use edge://inspect and check for console errors in the dialog.

Jose Manuel Febrer 0 Reputation points

2025-06-17T21:03:10.77+00:00

Hi, Thank you so much for the quick answer!
I forgot to mention that I added the localhost AppDomain line. Now I also added the 127.0.0.1 one and bumped the version to have an updated manifest.

I was missing the inject line in the webpack.config.js so I added it.

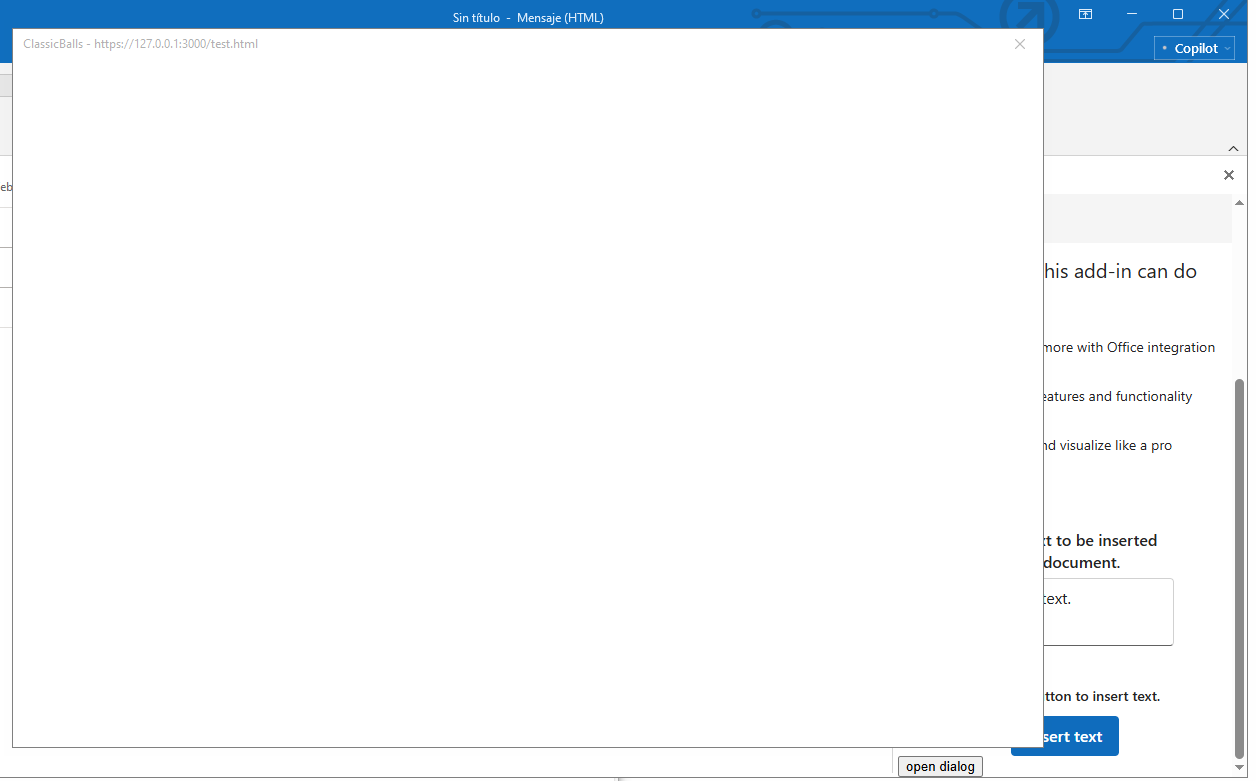

The problem is still the same after switching to 127.0.0.1:

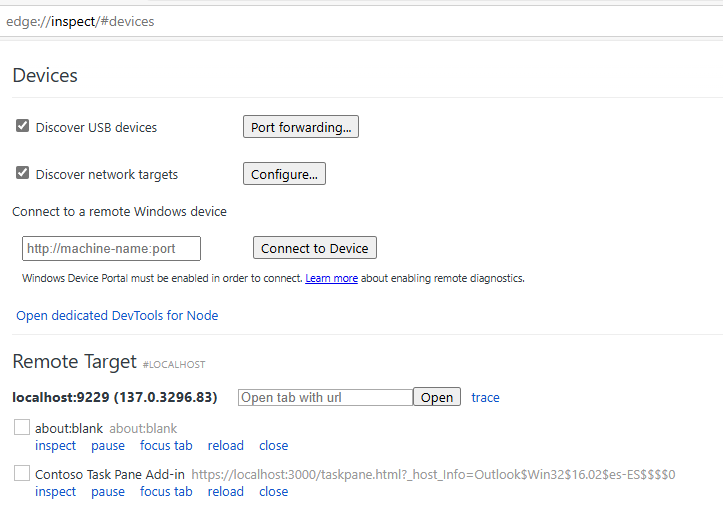

And this is how my edge://inspect looks, I don't see any errors as it shows just fully empty, as if it's not even trying to load the test.html site:

Answer 2

Deleted

This answer has been deleted due to a violation of our Code of Conduct. The answer was manually reported or identified through automated detection before action was taken. Please refer to our Code of Conduct for more information.
