Azure app service diagnostic blob not logging nlog based application logs

Question

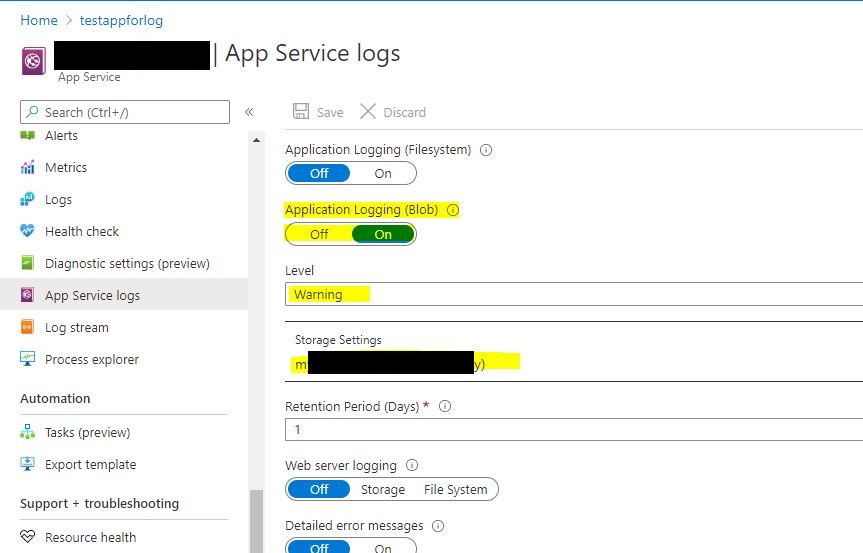

I want to log nlog generated application logs in app service diagnostic blob [i.e, Application Logging (Blob) ] but only default logs are printed not the nlog based custom logs but I can print Application Logging (Filesystem) when file target is added to nlog.config. The problem is only with blob.

nlog.config file:

<?xml version="1.0" encoding="utf-8" ?>
<nlog xmlns="http://www.nlog-project.org/schemas/NLog.xsd" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
      autoReload="true"
      throwConfigExceptions="true"
      internalLogLevel="info"
      internalLogFile="d:\home\LogFiles\temp\internal-nlog-AspNetCore3.txt">

    <!-- enable asp.net core layout renderers -->
    <extensions>
        <add assembly="NLog.Web.AspNetCore"/>
    </extensions>

    <!-- the targets to write to -->
    <targets>
        <target xsi:type="Trace" name="String" layout="${level}\: ${logger}[0]${newline} |trace| ${message}${exception:format=tostring}" />
        <target xsi:type="Console" name="lifetimeConsole" layout="${level}\: ${logger}[0]${newline} |console| ${message}${exception:format=tostring}" />
    </targets>

    <rules>
        <logger name="*" minlevel="Trace" writeTo="lifetimeConsole,String" final="true"/>
    </rules>
</nlog>

program.cs file

namespace testapp
{
    public class Program
    {
        public static void Main(string[] args)
        {
            var logger = NLog.Web.NLogBuilder.ConfigureNLog("nlog.config").GetCurrentClassLogger();
            try
            {
                logger.Debug("init main");
                CreateHostBuilder(args).Build().Run();
            }
            catch (Exception exception)
            {
                logger.Error(exception, "Stopped program because of exception");
                throw;
            }
            finally
            {
                NLog.LogManager.Shutdown();
            }
        }


        public static IHostBuilder CreateHostBuilder(string[] args) =>
        Host.CreateDefaultBuilder(args)
        .ConfigureLogging(logging =>
        {
            logging.SetMinimumLevel(Microsoft.Extensions.Logging.LogLevel.Trace);
            logging.AddConsole();
            logging.AddDebug();
            logging.AddAzureWebAppDiagnostics();
        })
        .UseNLog()
        .ConfigureWebHostDefaults(webBuilder =>
        {
            webBuilder.UseStartup<Startup>();
        });
    }
}

The Nlog based application logs are not logged in app service diagnostic blob, instead only default logging is printed.
Kindly help to resolve this issue.

Answer 1

Hi @Ram Shankar ,

Please have a look at https://github.com/JDetmar/NLog.Extensions.AzureStorage. You'll need to add the nuget package and configure NLog to use Azure Blob Storage by setting it as a target in the web.config file. The snippet below was taken from the README.md.

    <target type="AzureBlobStorage"
            name="Azure"
            layout="${longdate:universalTime=true} ${level:uppercase=true} - ${logger}: ${message} ${exception:format=tostring}"
            connectionString="DefaultEndpointsProtocol=https;AccountName=##accountName##;AccountKey=##accountKey##;EndpointSuffix=core.windows.net"
            container="${machinename}"
            blobName="${logger}/${date:universalTime=true:format=yy-MM-dd}/${date:universalTime=true:format=HH}.log">
                <metadata name="mymeta" layout="mymetavalue" />   <!-- Multiple allowed -->
                <tag name="mytag" layout="mytagvalue" /> <!-- Multiple allowed -->

By adding the additional target, NLog should send the logging information to your blob storage.

Regards,
Ryan
