Unable to process SharePoint Server 2013 Setup, even though all prerequisites have been installed / enabled

Question

Unable to process SharePoint Server 2013 Setup, even though all prerequisites have been installed / enabled

Hanif Maliki 1

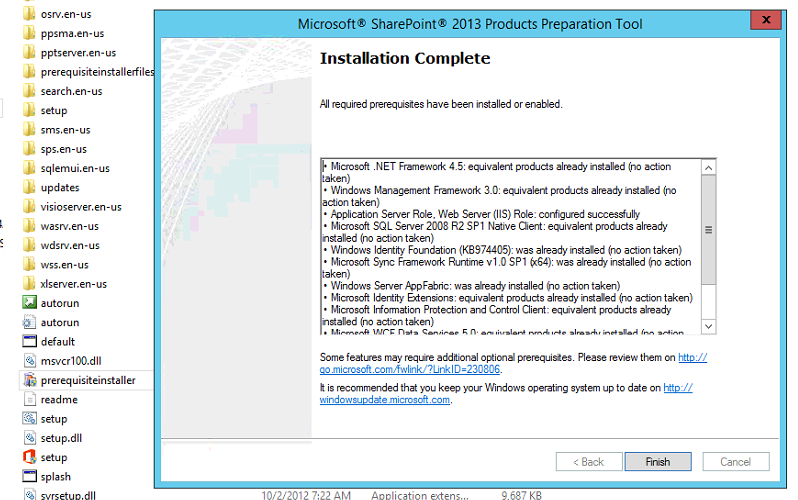

I am using Windows Server 2012. When I open "prerequisiteinstaller", all the prerequisites are already installed / activated, but when I open Setup, an error notification appears. Can you help me?

David Cassady 6 Reputation points

2022-01-28T20:00:40.08+00:00

Ran into this vague screen this week. Turns out the SentinelOne anti-virus solution was adding scripts into PowerShell sessions at launch so it could monitor the sessions. Some of those scripts were throwing exceptions which caused the SharePoint install and pre-reqs PowerShell scripts to have errors on exit even though they ran correctly without a problem.

Key to finding this out was errors in the SharePoint PS script that had transcript enabled and it showed errors in the log file. It had more errors than the number of commands in the script. I enabled the PS v4 Script Block logging and dug through the event log to discover the scripts that were loading and had mention of '#Sentinel' comment lines.

Once I had the admin disable SentinelOne on the server, everything ran smoothly.

2 answers

Your answer

David Cassady 6 Reputation points

2022-01-28T20:00:40.08+00:00

Ran into this vague screen this week. Turns out the SentinelOne anti-virus solution was adding scripts into PowerShell sessions at launch so it could monitor the sessions. Some of those scripts were throwing exceptions which caused the SharePoint install and pre-reqs PowerShell scripts to have errors on exit even though they ran correctly without a problem.

Key to finding this out was errors in the SharePoint PS script that had transcript enabled and it showed errors in the log file. It had more errors than the number of commands in the script. I enabled the PS v4 Script Block logging and dug through the event log to discover the scripts that were loading and had mention of '#Sentinel' comment lines.

Once I had the admin disable SentinelOne on the server, everything ran smoothly.

Answer 1

Please check as following:

Make sure you have met all hardware and software requirements for SharePoint 2013 installation.
Make sure you have step up Active Directory (AD) and created required system accounts with Administrative permission. Also configure SQL Server before you install SharePoint.
Make sure you have installed all required Hotfixes as following: KB 2554876 / KB 2708075 / KB 2759112 / KB 2765317.
Reference: Prepare the farm servers.
If you have completed all process above before the installation, reboot all servers in your farm and then run the installation program again.

Here is an installation tutorial for your reference: Install SharePoint 2013 - Step by Step.

*Note: Microsoft is providing this information as a convenience to you. The sites are not controlled by Microsoft. Microsoft cannot make any representations regarding the quality, safety, or suitability of any software or information found there. Please make sure that you completely understand the risk before retrieving any suggestions from the above link. *

If an Answer is helpful, please click "Accept Answer" and upvote it.
**Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread. **

Answer 2

Tina Yi 86

Hi

After installing all required prerequisites, please reboot the windows server and then try again. If the issue still there, please check details from SharePoint installation log.

Hanif Maliki 1 Reputation point

2021-02-02T07:16:27.397+00:00

10:22:29:605: Trying to update machine.config.
10:22:29:605: Starting C:\Windows\system32\WindowsPowerShell\v1.0\powershell.exe -ExecutionPolicy Bypass C:\Users\it_sod app_support\AppData\Local\Temp\MCN1.tmp.ps1
10:22:29:996: Update to machine.config failed.

10:22:29:996: Trying to update DistributedCacheService.exe.config.
10:22:29:996: Starting C:\Windows\system32\WindowsPowerShell\v1.0\powershell.exe -ExecutionPolicy Bypass C:\Users\it_sod app_support\AppData\Local\Temp\DSC1.tmp.ps1
10:22:30:371: Update to DistributedCacheService.exe.config failed.

10:22:30:371: Starting C:\Windows\system32\WindowsPowerShell\v1.0\powershell.exe -ExecutionPolicy Bypass C:\Users\it_sod app_support\AppData\Local\Temp\PRE1.tmp.ps1
10:22:30:762: Windows Server Features or Role Services check failed.

10:24:43:523: Error: Catalyst intermediate PreReqCheck has failed Type: 66::PreReqCheckFailure.
Hanif Maliki 1 Reputation point

2021-02-02T07:18:45.823+00:00

After I checked the installation log. I encountered an error like this. Can you help me about that?
Chelsea Wu 6,341 Reputation points Moderator

2021-02-02T07:39:34.31+00:00

If you have .NET Framework of version 4.6 or higher installed and are trying to install SharePoint 2013 SP1, this is a known issue as

SharePoint Setup and Project Server Setup programs do not recognize the .NET Framework 4.6, 4.6.1, or 4.6.2 as a supported version of the .NET Framework.

See the reference here for resolution: Setup error if the .NET Framework 4.6 is installed.
Chelsea Wu 6,341 Reputation points Moderator

2021-02-08T00:48:13.153+00:00

Hi @Hanif Maliki , do you have any progress on this thread? Please feel free to let us know if you need further assistance.
