How do I call my URL for json in Xamarin.Forms.DataGrid

Question

I used this link (https://www.c-sharpcorner.com/article/xamarin-forms-datagrid/) to display items in my data grid and it works perfectly. I now want to use a URL to call my JSON data. My code looks the same as in the tutorial.

I've looked on the Internet but cannot find a solution.

Any help would be appreciated.

Model

    public class MistHeader
    {
        public string Company { get; set; }
        public string PaymentType { get; set; }
        public string RecievedDate { get; set; }
        public string RequestNo { get; set; }
        public string SupplierName { get; set; }
        public string QuoteNo { get; set; }
        public string Total { get; set; }
        public string Justification { get; set; }
        public string OrderNumber { get; set; }
    }

    public class Root
    {
        public List<MistHeader> MistHeader { get; set; }
    }

ViewModel

public class ApprovalPageViewModel : INotifyPropertyChanged
    {
        private bool _isRefreshing;

        public ObservableCollection<MistHeader> MistHeaders { get; set; }

        public bool IsRefreshing
        {
            get
            {
                return _isRefreshing;
            }
            set
            {
                _isRefreshing = value;
                OnPropertyChanged(nameof(IsRefreshing));
            }
        }
        public ICommand RefreshCommand { get; set; }

        public ApprovalPageViewModel()
        {
            MistHeaders = new ObservableCollection<MistHeader>();

            GetData();
            RefreshCommand = new Command(CmdRefresh);
        }

        private async void GetData()
        {
            string requestUrl = URL.MistHeaders;
            using (var client = new HttpClient())
            {
                HttpResponseMessage response = await client.GetAsync(requestUrl);
                try
                {
                    if (response.StatusCode == System.Net.HttpStatusCode.OK)
                    {
                        string content = await response.Content.ReadAsStringAsync();
                        Root root = JsonConvert.DeserializeObject<Root>(content);
                        List<MistHeader> mistHeaders = root.MistHeader;

                        foreach (var item in mistHeaders)
                        {
                            MistHeaders.Add(item);
                        }
                    }
                }
                catch (Exception ex)
                {
                    Debug.WriteLine("\tERROR {0}", ex.Message);
                }
            }
        }

        private async void CmdRefresh()
        {
            IsRefreshing = true;
            await Task.Delay(3000);
            IsRefreshing = false;
        }

        public event PropertyChangedEventHandler PropertyChanged;

        private void OnPropertyChanged(string property)
        {
            if (PropertyChanged != null)
                PropertyChanged(this, new PropertyChangedEventArgs(property));
        }
    }

I've changed the code to what Leon Lu provided.
But I get "Object reference not set to an instance of an object."

Answer 1

Hello,​

Welcome to our Microsoft Q&A platform!

I can add the link with the JSON data in if that will help

Based on your Json data, I add the following class in my project.

   using Newtonsoft.Json;
   using System;
   using System.Collections.Generic;
   using System.Text;

   namespace XFDataGrid.Models
   {

       public class Table
       {
           public string Company { get; set; }
           public string PaymentType { get; set; }
           public DateTime RecievedDate { get; set; }

           [JsonProperty("RequestNo.")]
           public string RequestNo { get; set; }
           public string SupplierName { get; set; }

           [JsonProperty("QuoteNo.")]
           public string QuoteNo { get; set; }
           public double Total { get; set; }
           public string Justification { get; set; }
           public int OrderNumber { get; set; }
       }

       public class Root
       {
           public List<Table> Table { get; set; }
       }


   }

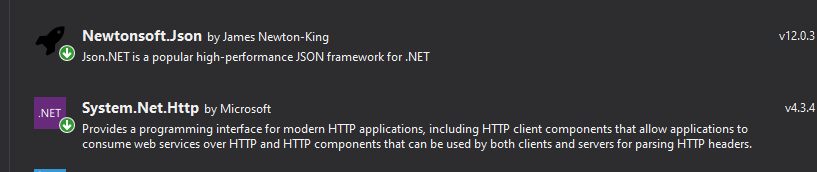

Please add Newtonsoft.Json and System.Net.Http to you all of project.

Then open MainPageViewModel.cs., I add GetData method to Deserialize your json data.

   // 16:48
   using Newtonsoft.Json;
   using System;
   using System.Collections.Generic;
   using System.Collections.ObjectModel;
   using System.ComponentModel;
   using System.Net.Http;
   using System.Threading.Tasks;
   using System.Windows.Input;
   using Xamarin.Forms;
   using XFDataGrid.Models;
   using XFDataGrid.Utils;

   namespace XFDataGrid.ViewModels
   {
       public class MainPageViewModel : INotifyPropertyChanged
       {
           private bool _isRefreshing;

           public ObservableCollection<Table> Professionals { get; set; }


           public bool IsRefreshing
           {
               get
               {
                   return _isRefreshing;
               }
               set
               {
                   _isRefreshing = value;
                   OnPropertyChanged(nameof(IsRefreshing));
               }
           }

           public ICommand RefreshCommand { get; set; }


           public MainPageViewModel()
           {

               Professionals = new ObservableCollection<Table>();

               GetData();
               RefreshCommand = new Command(CmdRefresh);


           }

           private async void GetData()
           {


               string requestUrl = "https://mist.zp.co.za:6502/MIST.svc/head/M@H$@203@R";
               using (var client = new HttpClient())
               {
                   HttpResponseMessage response = await client.GetAsync(requestUrl);
                   if (response.StatusCode == System.Net.HttpStatusCode.OK)
                   {
                       string content = await response.Content.ReadAsStringAsync();
                       Root root = JsonConvert.DeserializeObject<Root>(content);
                       List<Table> dates = root.Table;


                       foreach (var item in dates)
                       {

                           Professionals.Add(item);

                       }
                   }
               }
           }

           private async void CmdRefresh()
           {
               IsRefreshing = true;
               await Task.Delay(3000);
               IsRefreshing = false;
           }

           public event PropertyChangedEventHandler PropertyChanged;

           private void OnPropertyChanged(string property)
           {
               if (PropertyChanged != null)
                   PropertyChanged(this, new PropertyChangedEventArgs(property));
           }
       }
   }

I edit the MainPage.xaml like following code. I just add Company Justification and OrderNumber to make a test.

   <ContentView>
           <!-- Place new controls here -->
           <dg:DataGrid x:Name="MyGird" ItemsSource="{Binding Professionals}" SelectionEnabled="True" RowHeight="70" HeaderHeight="50"
                       BorderColor="#CCCCCC" HeaderBackground="#E0E6F8" PullToRefreshCommand="{Binding RefreshCommand}" IsRefreshing="{Binding IsRefreshing}" ActiveRowColor="#8899AA">
               <x:Arguments>
                   <ListViewCachingStrategy>RetainElement</ListViewCachingStrategy>
               </x:Arguments>
               <dg:DataGrid.HeaderFontSize>
                   <OnIdiom x:TypeArguments="x:Double">
                       <OnIdiom.Tablet>15</OnIdiom.Tablet>
                       <OnIdiom.Phone>12</OnIdiom.Phone>
                   </OnIdiom>
               </dg:DataGrid.HeaderFontSize>
               <dg:DataGrid.Columns>
                   <dg:DataGridColumn Title="Company" PropertyName="Company" Width="1*"></dg:DataGridColumn>
                   <dg:DataGridColumn  Width="2*">
                       <dg:DataGridColumn.FormattedTitle>
                           <FormattedString>
                               <Span Text="Justification" TextDecorations="Underline" FontSize="13" TextColor="Black" FontAttributes="Bold">
                               </Span>
                           </FormattedString>
                       </dg:DataGridColumn.FormattedTitle>

                       <dg:DataGridColumn.CellTemplate>
                           <DataTemplate>
                               <Label Text="{Binding Justification}" HorizontalOptions="Center" VerticalOptions="Center"   TextColor="Blue"
                     TextDecorations="Underline" >
                                   <Label.GestureRecognizers>
                                       <TapGestureRecognizer Command="{Binding Path=BindingContext.ClickCommand, Source={x:Reference Name=MyGird} }" CommandParameter="{Binding .}"/>
                                   </Label.GestureRecognizers>

                               </Label>
                           </DataTemplate>

                       </dg:DataGridColumn.CellTemplate>
                   </dg:DataGridColumn>
                   <dg:DataGridColumn Title="OrderNumber" PropertyName="OrderNumber" Width="2*"/>
                   <!--<dg:DataGridColumn Title="User-Agent" PropertyName="User-Agent" Width="2*"/>
                   <dg:DataGridColumn Title="Referer" PropertyName="Referer" Width="1*"/>-->
               </dg:DataGrid.Columns>
               <dg:DataGrid.RowsBackgroundColorPalette>
                   <dg:PaletteCollection>
                       <Color>#F2F2F2</Color>
                       <Color>#FFFFFF</Color>
                   </dg:PaletteCollection>
               </dg:DataGrid.RowsBackgroundColorPalette>
           </dg:DataGrid>
       </ContentView>
   </ContentPage>

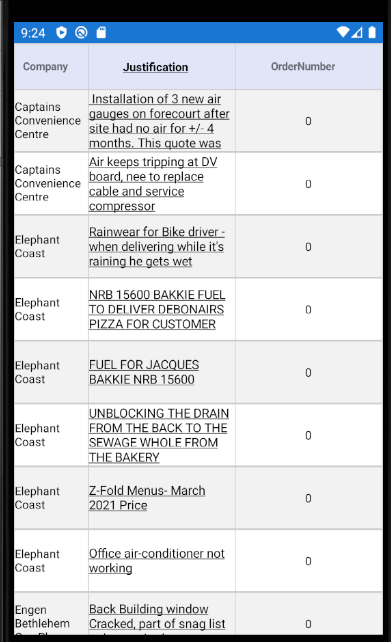

Here is running screenshot.

Best Regards,

Leon Lu

---

If the response is helpful, please click "Accept Answer" and upvote it.

Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.

Answer 2

And change your GetData method of ApprovalPageViewModel the code

   using Newtonsoft.Json;
   using System;
   using System.Collections.Generic;
   using System.Collections.ObjectModel;
   using System.ComponentModel;
   using System.Diagnostics;
   using System.Net.Http;
   using System.Text;
   using System.Threading.Tasks;
   using System.Windows.Input;
   using Xamarin.Forms;
   using XFDataGrid.Models;

   namespace XFDataGrid.ViewModels
   {
       public class ApprovalPageViewModel : INotifyPropertyChanged
       {
           private bool _isRefreshing;

           public ObservableCollection<Table> MistHeaders { get; set; }

           public bool IsRefreshing
           {
               get
               {
                   return _isRefreshing;
               }
               set
               {
                   _isRefreshing = value;
                   OnPropertyChanged(nameof(IsRefreshing));
               }
           }
           public ICommand RefreshCommand { get; set; }

           public ApprovalPageViewModel()
           {
               MistHeaders = new ObservableCollection<Table>();

               GetData();
               RefreshCommand = new Command(CmdRefresh);
           }

           private async void GetData()
           {
               string requestUrl = "https://mist.zp.co.za:6502/MIST.svc/head/M@H$@203@R"; //URL.MistHeaders;
               using (var client = new HttpClient())
               {
                   HttpResponseMessage response = await client.GetAsync(requestUrl);
                   try
                   {
                       if (response.StatusCode == System.Net.HttpStatusCode.OK)
                       {
                           string content = await response.Content.ReadAsStringAsync();
                           Root root = JsonConvert.DeserializeObject<Root>(content);
                           List<Table> mistHeaders = root.Table;

                           foreach (var item in mistHeaders)
                           {
                               MistHeaders.Add(item);
                           }
                       }
                   }
                   catch (Exception ex)
                   {
                       Debug.WriteLine("\tERROR {0}", ex.Message);
                   }
               }
           }

           private async void CmdRefresh()
           {
               IsRefreshing = true;
               await Task.Delay(3000);
               IsRefreshing = false;
           }

           public event PropertyChangedEventHandler PropertyChanged;

           private void OnPropertyChanged(string property)
           {
               if (PropertyChanged != null)
                   PropertyChanged(this, new PropertyChangedEventArgs(property));
           }
       }
   }

Best Regards,

Leon Lu

---
