Asure RTOS threadX Support for ARM processors

Haim Bareket 21

Hi
I have few questions:

Is ThreadX can be run over ARM Cortex R7 as RTOS automotive certified ?
Is Threadx supports BSP of Renesas V3H platform ?
Is Threadx supports SOME/IP and UDS protocol stuck

Scott Azure RTOS 4,051 Reputation points

2021-04-19T23:06:17.96+00:00
Hi @Haim Bareket ,

Yes, ThreadX runs on Cortex-R7. Auto certifications require a special licensing agreement with Microsoft.

You'll have to ask Renesas about their BSP. Yes, ThreadX should be able to work with their BSP - there are some calls you need to make in ISRs (tx_thread_context_save and tx_thread_context_restore).

We don't support those stacks. We may have partners who do have those stacks available for ThreadX/NetX.

Accepted answer

1 additional answer

Your answer

Scott Azure RTOS 4,051 Reputation points

2021-04-19T23:06:17.96+00:00

Hi @Haim Bareket ,

Yes, ThreadX runs on Cortex-R7. Auto certifications require a special licensing agreement with Microsoft.

You'll have to ask Renesas about their BSP. Yes, ThreadX should be able to work with their BSP - there are some calls you need to make in ISRs (tx_thread_context_save and tx_thread_context_restore).

We don't support those stacks. We may have partners who do have those stacks available for ThreadX/NetX.

Answer 1

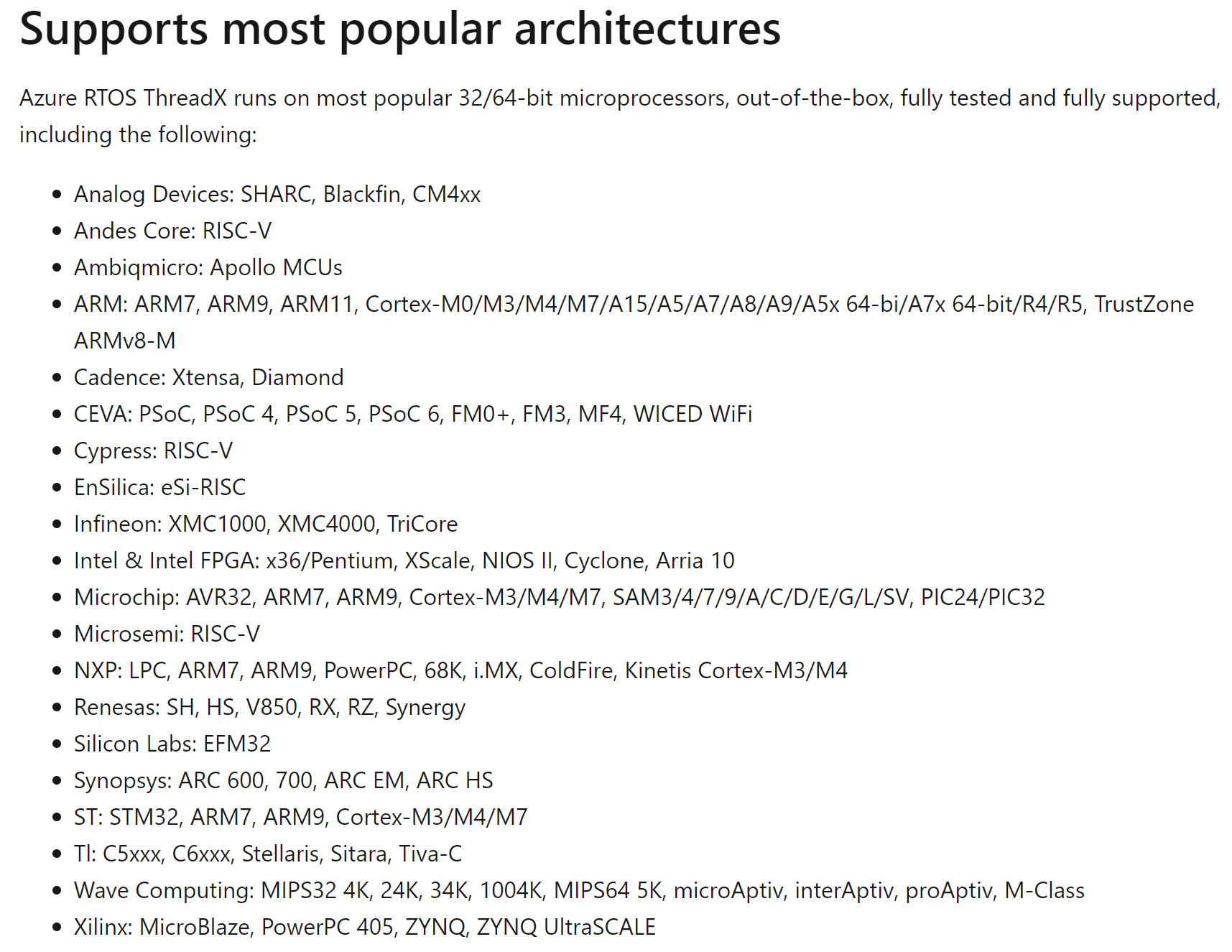

We have a list of most popular architectures supported here:

https://learn.microsoft.com/en-us/azure/rtos/threadx/overview-threadx#supports-most-popular-architectures

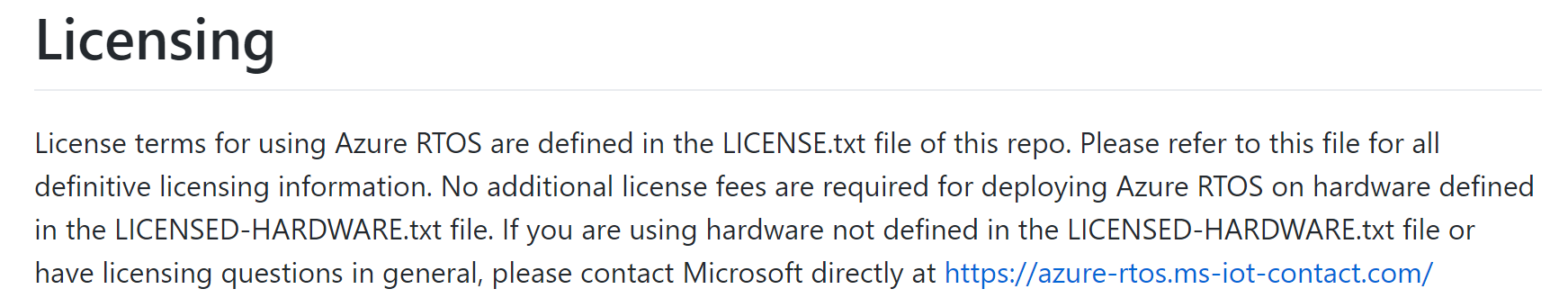

See also Licensing here:

https://github.com/azure-rtos/threadx#licensing

For your third point:

ThreadX has been safety certified also for use in automotive. BMW has open sourced their SOME/IP stack (https://github.com/GENIVI/vsomeip) under the the Mozilla Public License Version 2.0 and it would be theoretically possible to run in on top of ThreadX and NetX using our POSIX and BSD sockets adaptation layers. That said, what we offer today is just the starting point.

If you would like to explore this further please contact us using this form: https://azure-rtos.ms-iot-contact.com/

Remember:

Please accept an answer if correct. Original posters help the community find answers faster by identifying the correct answer. Here is how.

Thanks

António Sérgio Azevedo 7,671 Reputation points Microsoft Employee Moderator

2021-04-23T12:09:27.18+00:00

Hello @Haim Bareket ,
Please share with us if you have any other questions related with your original post. Otherwise could you go ahead and mark the above as answer?

Thank you so much.

Remember:

Please accept an answer if correct. Original posters help the community find answers faster by identifying the correct answer. Here is how.

Answer 2

Haim Bareket 21

Hi
Thank you very much for your answers , it was good information and helped me
I would like to get Pricing information related to ThreadX include Automotive certification , Can you share contact person for that

Scott Azure RTOS 4,051 Reputation points

2021-04-26T20:23:01.483+00:00

azure-rtos-sales@microsoft.com
