I can't create wim

Question

Hi team,

I used
Windows Server 2012 R2
MDT 6.3.8456.1000 with KB4564442
ADK 10.1.19041.1

I created simple Standart Client Task Sequence. Then imported Windows 20H2, update deployment share, etc.
Deployment share rules:

 [Settings]
 Priority=Default
 Properties=MyCustomProperty

 [Default]
 OSInstall=Y
 SkipCapture=YES
 SkipAdminPassword=YES
 SkipProductKey=YES
 SkipComputerBackup=YES
 SkipBitLocker=YES
 SkipLocaleSelection=YES
 SkipTimeZone=YES
 SkipDomainMembership=YES
 SkipSummary=YES
 SkipFinalSummary=YES
 SkipComputerName=YES
 Computername=masterimage
 SkipUserData=YES

 _SMSTSORGNAME=Build Share
 _SMSTSPackageName=%TaskSequenceName%
 DoCapture=YES
 ComputerBackupLocation=\\SRV-DEPLOY\MDTBuild$\Captures
 BackupFile=%TaskSequenceID%_#year(date) & "-" & month(date) & "-" & day(date) & "-" & hour(time) & "-" & minute(time)#.wim

 FinishAction=SHUTDOWN
 SLShare=\\srv-deploy\MDTLogs$
 EventService=http://srv-deploy:9800

On my computer run Hyper-V and created VM.

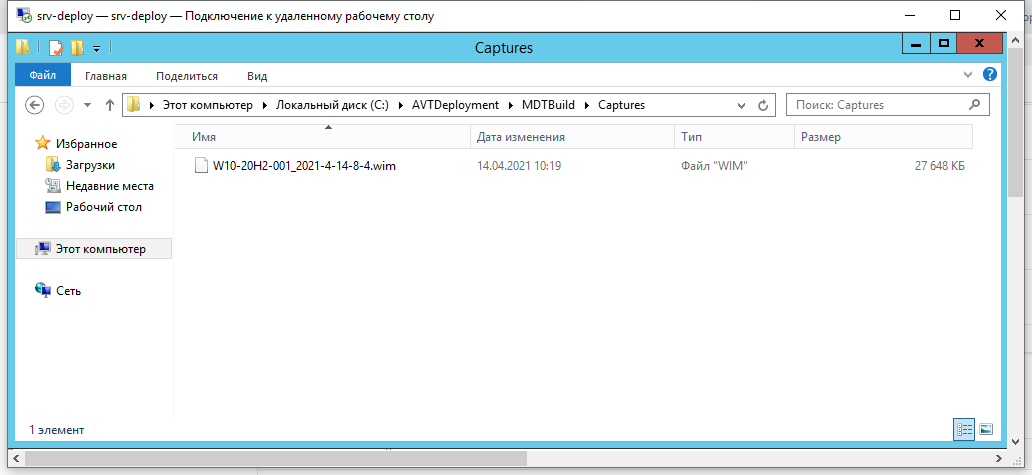

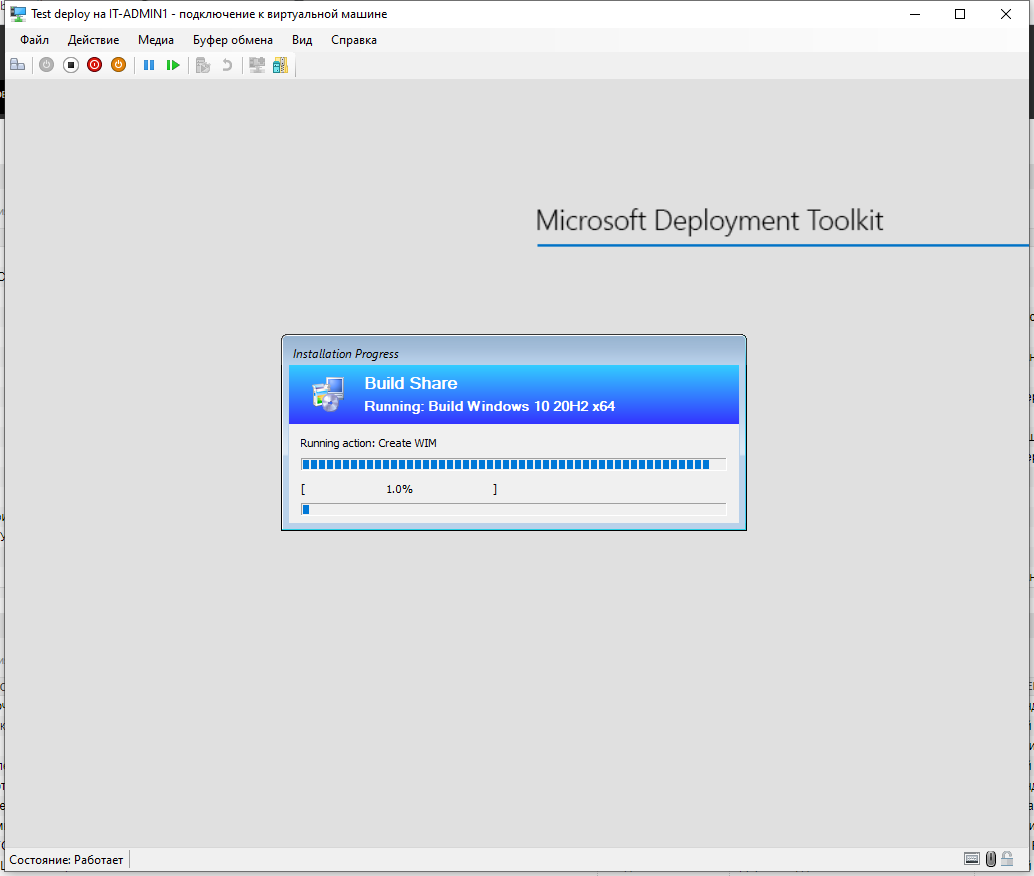

Process installation was successfully. Launched action Create WIM and has stopped on 1%. In $DEPLOYMENTROOT%\Captures was created file 27648 Kb.

How to solve this i don't no?

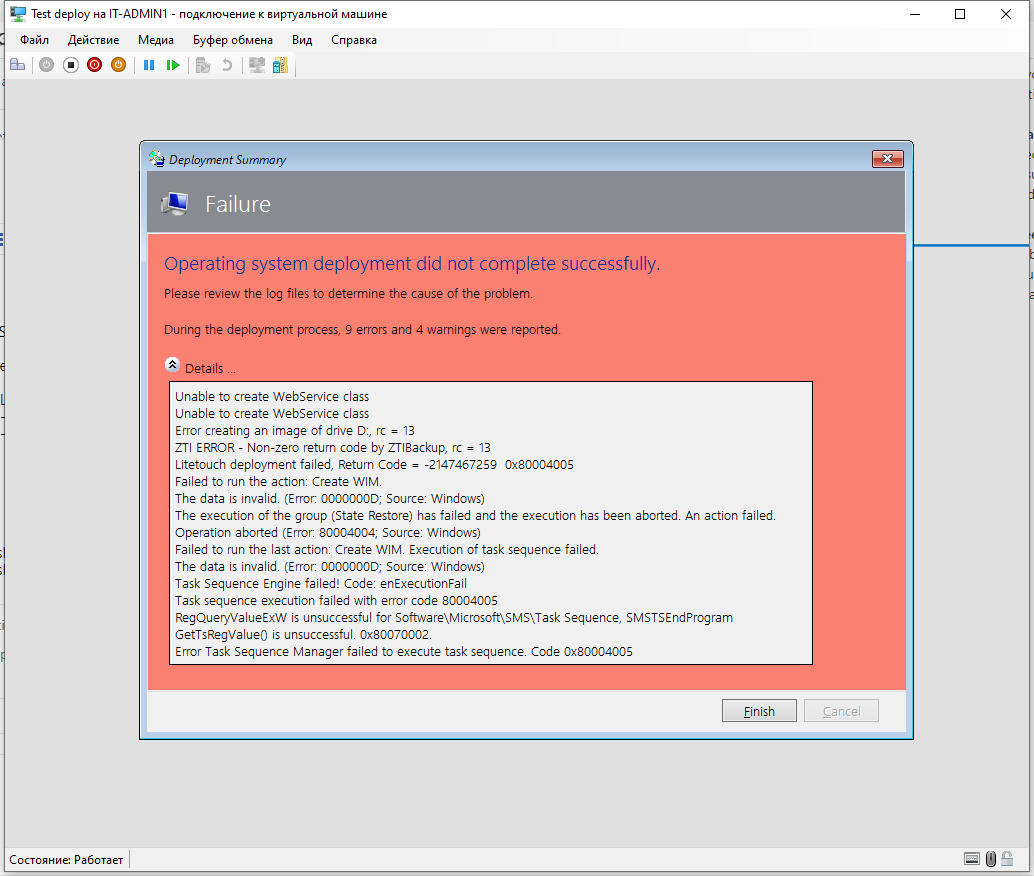

If turn off VM and restart him, i see error

87560-bdd.log

Answer 1

The only thing I noticed in your log was referring to the ZTIBackup…..

<![LOG[Total used space: 19509008]LOG]!><time="23:55:42.000+000" date="04-13-2021" component="ZTIBackup" context="" type="1" thread="" file="ZTIBackup">

<![LOG[Available space at D:\StateStore: 11124972]LOG]!><time="23:55:42.000+000" date="04-13-2021" component="ZTIBackup" context="" type="1" thread="" file="ZTIBackup">

There seems to be not enough space for ZTIBackup to run. D:\StateStore.

Answer 2

SkipCapture=NO

maybe this wil help

Answer 3

So

On drive D: many free space. Drive 100GB.

Change SkipCapture to NO no effect, the error is the same.

May be share all log files?

Answer 4

Added log files: BDD, ZTIBackup, dism.log

dism.log from X:\Windows\Logs\DISM

I see that is problem, but don't understand why.

89491-bdd.log89438-ztibackup.log89475-dism.log

Answer 5

Uninstall, reinstall ADK/WinPE.
Try deploy on hyper-v, the error is the same.
Try deploy OS on the physical computer. Error.

The only thing that confuses me that dism can't find MetaDeployProvider.dll from \srv-deploy\deploymentshare$\Servicing\X64.
