Hellow experts,
I am writing a program to save and retrieve values from datatbase table which contain application properties.
kindly find attached code to do it.
but i am stuck at retrieving values from table and assign them to propertygrid properties.
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Data.SqlClient;
using System.Windows.Forms;
using KIToolkit;
using System.Xml.Serialization;
using System.IO;
using System.Threading.Tasks;
using System.Net;
using System.Reflection;
namespace Kings.ERP
{
public partial class AppConfigSetUp : FormTabSSRS
{
public AppConfigSetUp()
{
InitializeComponent();
}
private object o0,o1;
private BindingSource bs;
private DataSet ds = new DataSet();
private void AppConfig_Load(object sender, EventArgs e)
{
Keyfield = "id";
LoadData();
BindControls();
bindNavigator1.ActionWhen();
DgvFilterManager dgvAppConfigFilter = new DgvFilterManager(dgvAppConfig);
//
ConfigMgr cm = new ConfigMgr();
//
Type t = cm.GetType();
string fieldName;
object propertyValue;
//https://blogs.msmvps.com/deborahk/iterate-through-the-properties-of-a-class/
// Get the type of this instance
// Use each property of the business object passed in
//foreach (PropertyInfo pi in t.GetProperties(BindingFlags.Instance | BindingFlags.Public | BindingFlags.NonPublic))
//{
// //
// // Get the name and value of the property
// fieldName = pi.Name;
// // Get the value of the property
// propertyValue = pi.GetValue(cm, null);
// DataRow[] dr = ds.Tables["AppProperties"].Select("Name='" + fieldName + "'");
// if (dr.Length > 0
// && !dr[0]["value"].ToString().Equals("null") )
// {
// //https://learn.microsoft.com/en-us/dotnet/api/system.reflection.propertyinfo.setvalue?view=net-5.0
// // Change the instance property value.
// PropertyInfo piInstance = cm.GetProperty(fieldName);
// piInstance.SetValue(cm, dr[0]["value"]);
// //
// //how to cast it to propertytype
// //propertyValue = dr[0]["value"];
// //https://stackoverflow.com/questions/1089123/setting-a-property-by-reflection-with-a-string-value
// PropertyInfo propertyInfo = cm.GetType().GetProperty(fieldName);
// if (propertyInfo != null)
// {
// Type t1 = Nullable.GetUnderlyingType(propertyInfo.PropertyType) ?? propertyInfo.PropertyType;
// object safeValue = (propertyValue == null) ? null : Convert.ChangeType(propertyValue, t); ;
// propertyInfo.SetValue(cm, safeValue, null);
// }
// }
// else
// {
// continue;
// }
//}
//
pg.SelectedObject = cm;
//
}
private void LoadData()
{
CursorAdapter c0 = new CursorAdapter();
c0.SelectCmd = @"select a.id,a.KeyName,a.Value,a.uppercase,a.validlength,a.columntype
from dbo.AppConfig a";
c0.SendUpdate = true;
c0.SqlTable = "AppConfig";
c0.updatableFieldList = @"KeyName,Value ";
c0.keyfields = "id";
c0.AutoIncColumns = "id";
c0.BuildAdapter(ref ds, ref o0, SqlDataBase.FillType.Data);
CursorAdapter c1 = new CursorAdapter();
c1.SelectCmd = @"select a.Name,a.Value
from dbo.AppProperties a";
c1.SendUpdate = true;
c1.SqlTable = "AppProperties";
c1.updatableFieldList = @"Name,Value ";
c1.keyfields = "Name";
c1.BuildAdapter(ref ds, ref o1, SqlDataBase.FillType.Data);
}
private void BindControls()
{
dgvAppConfig.AutoGenerateColumns = false;
id.DataPropertyName = "id";
SettingName.DataPropertyName = "KeyName";
SettingValue.DataPropertyName = "value";
columntype.DataPropertyName = "columntype";
uppercase.DataPropertyName = "uppercase";
ValidLength.DataPropertyName = "validlength";
bs = new BindingSource(ds, "AppConfig");
bindNavigator1.BindingNavigator1.BindingSource = bs;
dgvAppConfig.DataSource = bs;
DgvSource = ds.Tables["AppConfig"];
}
private void bindNavigator1_BeforeUpdate()
{
Type t = pg.GetType();
string fieldName;
object propertyValue;
//https://blogs.msmvps.com/deborahk/iterate-through-the-properties-of-a-class/
// Get the type of this instance
// Use each property of the business object passed in
foreach (PropertyInfo pi in t.GetProperties(BindingFlags.Instance | BindingFlags.Public | BindingFlags.NonPublic))
{
// Get the name and value of the property
fieldName = pi.Name;
// Get the value of the property
propertyValue = pi.GetValue(pg, null);
DataRow[] dr = ds.Tables["AppProperties"].Select("Name='" + fieldName + "'");
if (dr.Length>0)
{
dr[0]["Value"]= propertyValue == null ? "null" : propertyValue.ToString();
}
else
{
DataRow Ndr = ds.Tables["AppProperties"].NewRow();
Ndr["Name"] = fieldName;
Ndr["Value"] = propertyValue;
ds.Tables["AppProperties"].Rows.Add(Ndr);
}
}
}
private void bindNavigator1_tblUpdate()
{
try
{
SqlDataAdapter adpAppConfig = (SqlDataAdapter)o0;
SqlDataAdapter adpProperties = (SqlDataAdapter)o1;
adpAppConfig.Update(ds.Tables["AppConfig"]);
adpProperties.Update(ds.Tables["AppProperties"]);
ds.Tables["AppConfig"].AcceptChanges();
ds.Tables["AppProperties"].AcceptChanges();
}
catch (SqlException ex)
{
MessageBox.Show(ex.ToString());
}
}
private void dgvAppConfig_CellFormatting(object sender, DataGridViewCellFormattingEventArgs e)
{
if (e.Value != null)
{
if (dgvAppConfig["columntype", e.RowIndex].Value.Equals("S")
&& dgvAppConfig["uppercase", e.RowIndex].Value.Equals(true))
{
e.Value = e.Value.ToString().ToUpper();
e.FormattingApplied = true;
}
}
}
//Load and save
//https://www.codeproject.com/Articles/27326/Load-and-Save-Data-Using-PropertyGrid
[Serializable()]
public class AppSettings
{
protected System.Drawing.Size _size;
public System.Drawing.Size WindowSize
{
get => _size;
set=>_size = value;
}
public static AppSettings Load()
{
XmlSerializer serializer = new XmlSerializer(typeof(AppSettings));
AppSettings retVal=null;
TextReader reader;
bool fileNotFound=true;
try
{
reader = new StreamReader("MyAppSettings.xml");
}
catch (FileNotFoundException ex)
{
// Take the defaults
fileNotFound = true;
}
if (fileNotFound)
{
retVal = new AppSettings();
retVal.WindowSize = new System.Drawing.Size(600, 600);
}
else
{
// Read it from the file
//11th apr 2021 commented du to error
//retVal = (AppSettings)serializer.Deserialize(reader);
//reader.Close();
}
return retVal;
}
public void Save()
{
XmlSerializer serializer = new XmlSerializer(typeof(AppSettings));
TextWriter writer = new StreamWriter("MyAppSettings.xml");
serializer.Serialize(writer, this);
writer.Close();
}
}
//load and save
private static async Task<bool> CheckUrlStatus(string website)
{
/*
* solution from m.s.forum
https://learn.microsoft.com/en-us/answers/questions/352019/propertygrid-webadress.html?childToView=354082#answer-354082
*/
return await Task.Run(async () =>
{
await Task.Delay(1);
try
{
var request = System.Net.WebRequest.Create(website) as HttpWebRequest;
request.Method = "HEAD";
using (var response = (HttpWebResponse)request.GetResponse())
{
//response = (HttpWebResponse)request.GetResponse();
return response.StatusCode == HttpStatusCode.OK;
}
}
catch
{
return false;
}
});
}
private async void btncheckAddressStatus_Click_1(object sender, EventArgs e)
{
var webAddress = "https://stackoverflowNotHere.com/";
btncheckAddressStatus.Enabled = false;
try
{
var results = await CheckUrlStatus(webAddress);
MessageBox.Show(results ? "Is valid" : "Is not valid");
}
finally
{
btncheckAddressStatus.Enabled = true;
}
}
private void btnSaveProperties_Click(object sender, EventArgs e)
{
Type t = pg.GetType();
string fieldName;
object propertyValue;
//https://blogs.msmvps.com/deborahk/iterate-through-the-properties-of-a-class/
// Get the type of this instance
// Use each property of the business object passed in
foreach (PropertyInfo pi in t.GetProperties(BindingFlags.Instance | BindingFlags.Public | BindingFlags.NonPublic))
{
// Get the name and value of the property
fieldName = pi.Name;
propertyValue = pi.GetValue(pg, null);
DataRow[] dr = ds.Tables["AppProperties"].Select("Name='" + fieldName + "'");
if (dr.Length > 0)
{
// Get the value of the property
dr[0]["Value"] = propertyValue == null ? "null" : propertyValue.ToString();
}
else
{
DataRow Ndr = ds.Tables["AppProperties"].NewRow();
Ndr["Name"] = fieldName;
Ndr["Value"] = propertyValue;
ds.Tables["AppProperties"].Rows.Add(Ndr);
}
}
}
}
}
//How To Use a type converter with a PropertyGrid control in C#
//http://csharphelper.com/blog/2014/09/use-a-type-converter-with-a-propertygrid-control-in-c/
/*
Getting the Most Out of the .NET Framework PropertyGrid Control
https://learn.microsoft.com/en-us/previous-versions/dotnet/articles/aa302326(v=msdn.10)?redirectedfrom=MSDN
*/
//paid propertygrid SPG
//https://marketplace.visualstudio.com/items?itemName=VisualHint.SmartPropertyGridNetforWinForms
//https://www.cyotek.com/blog/creating-a-custom-typeconverter-part-1
//Use a type converter with a PropertyGrid control in C#
//http://csharphelper.com/blog/2014/09/use-a-type-converter-with-a-propertygrid-control-in-c/
//validate all properties example
//https://social.msdn.microsoft.com/Forums/en-US/76193820-fac6-4023-9bc4-d2139ecff0f8/validation-of-property-grid-using-c?forum=csharplanguage
//https://www.levelextreme.com/Home/ShowHeader?Activator=23&ID=38766
//https://learn.microsoft.com/en-us/dotnet/api/system.windows.forms.design.iwindowsformseditorservice?redirectedfrom=MSDN&view=net-5.0
//use list
//http://www.reza-aghaei.com/how-to-edit-a-list-of-string-in-propertygrid-using-a-uitypeeditor/
using System;
using System.ComponentModel;
using System.Globalization;
using System.Reflection;
using System.Design;
using System.Windows.Forms;
using System.Threading.Tasks;
using System.Net;
/* Properties Various Settings
[Browsable(bool)] "To show property or not"
[ReadOnly(bool)] "Ability to edit property"
[Category(string)] "Group of property"
[Description(string)] "Property description, which can be a hint"
[DisplayName(string)] "Display Name property"
*/
namespace Kings.ERP
{
//SalesLinkedToProduction, 0-No,1-Pre Gst based on oc_link,2-based on issue opening + mfg - sales
public enum Sales2Production
{
Not_Applicable,
Oc_Link,
Purchase_StockEntry
}
public enum LcSales
{
Not_Applicable,
Labour_Charges,
Against_Grn
}
public enum Period
{
Day,
Week,
Fortnight,
Month,
Quarter,
Half_Year,
Year
}
//https://learn.microsoft.com/en-us/dotnet/api/system.dayofweek?view=net-5.0
public enum DaysOfWeek
{
Sunday,
Monday,
Tuesday,
Wednesday,
Thursday,
Friday,
Saturday
}
[DefaultPropertyAttribute("Name")]
public class ConfigMgr
{
bool
Billno_OnSave = false,
pvno_OnSave = false,
GRNno_OnSave = false,
OC_OnSave = false,
OA_OnSave = false,
IssueSlip_OnSave = false,
Purchase_OnGrn = false,
SalePackingDetailes = false,
bag_packet_qty = false,
MdiFixedImage = false,
SaleRateFromGRN = false,
//
BillItemsOnOaItems = false,
//
BillDateWithoutTime = true,
Purchase_po = true,
QcOnGrn = true,
BillDateEditable = true,
AllowNegativeStock = true;
private string
CommonFilePath = @"\\192.168.100.3\erpfiles",
PdiIdentityKey = "jaiho",
//GSPName = "TaxPro_Production",
//AuthUrl = "https://api.taxprogsp.co.in/eivital/v1.03",
//BaseUrl = "https://api.taxprogsp.co.in/eicore/v1.03",
//EwbByIRN = "https://api.taxprogsp.co.in/eiewb/v1.03",
//CancelEwbUrl = "https://api.taxprogsp.co.in/v1.03",
UserName = "API_MFPL",
Password = "Mfpl@2021",
MdiImage = @"..\..\Resources\ChesskingBW.jpg",
SlideShowImageFolder = @"C:\Users\Sushil\Pictures",
//KI_Email = "******@gmail.com",
mail_server = "smtp.gmail.com",
Mahindra_Ac = "2-252",
BackgroundImage = @"..\..\Resources\chesskingbw.jpg",
ServerReportPath = @"http://server/reportserver";
private int
MdiSlideTimer = 10000,
s_cashgl = 1,
s_debtorgl = 2,
s_creditorgl = 3,
s_drivergl = 15,
CodeGroupInterVal = 25,
mail_port = 587,
PosDefaultQty = 1;
//Bill To MultiGRn Link at Kimya set it to 2 otheriwse 0,LC Sales, Labour Sales
LcSales SaleGrnLinq = LcSales.Not_Applicable;
[CategoryAttribute("Sales"), DescriptionAttribute("Labour Charges Work Billing Methods")]
public LcSales _SaleGrnLinq
{
get => SaleGrnLinq;
set => SaleGrnLinq = value;
}
[CategoryAttribute("Sales"), DescriptionAttribute("Verify Production Stock While Billing")]
Sales2Production SalesLinkedToProduction = Sales2Production.Not_Applicable;
public Sales2Production _SalesLinkedToProduction
{
get => SalesLinkedToProduction;
set => SalesLinkedToProduction = value;
}
[CategoryAttribute("Sales"), DescriptionAttribute("Show Item List Having Order Acceptance Entry")]
[TypeConverter(typeof(DyasOfWeekConverter1))]
public bool _BillItemsOnOaItems
{
get => BillItemsOnOaItems;
set => BillItemsOnOaItems = value;
}
[CategoryAttribute("Sales"), DescriptionAttribute("Point Of Sale Default Qty.")]
public int _PosDefaultQty
{
get => PosDefaultQty;
set => PosDefaultQty = value;
}
[CategoryAttribute("Reports"), DescriptionAttribute("Sql Server Reports Path")]
//[Category("Reports")]
//[Description("Sql Server Reports Path")]
////[EditorAttribute(typeof(System.Windows.Forms.Design.FileNameEditor), typeof(System.Drawing.Design.UITypeEditor))]
////your poject should refer to System.Design.dll .net 4.0, and using System.Design
//[EditorAttribute(typeof(System.Windows.Forms.Design.FolderNameEditor), typeof(System.Drawing.Design.UITypeEditor))]
public string _ServerReportPath
{
get => ServerReportPath;
set => ServerReportPath = value;
}
[CategoryAttribute("Ledgers"), DescriptionAttribute("Mahindra A/c. No.")]
public string _Mahindra_Ac
{
get => Mahindra_Ac;
set => Mahindra_Ac = value;
}
[CategoryAttribute("Bansal ERP"), DescriptionAttribute("Back Ground Image File")]
[EditorAttribute(typeof(System.Windows.Forms.Design.FileNameEditor), typeof(System.Drawing.Design.UITypeEditor))]
public string _BackgroundImage
{
get => BackgroundImage;
set => BackgroundImage = value;
}
//[CategoryAttribute("E-Mail"), DescriptionAttribute("Send E-mail From A/c.")]
//public string _KI_Email
//{
// get =>KI_Email;
// set =>KI_Email=value;
//}
[CategoryAttribute("E-Mail"), DescriptionAttribute("Mail Server Name")]
public string _mail_server
{
get => mail_server;
set => mail_server = value;
}
[CategoryAttribute("E-Mail"), DescriptionAttribute("Google Default Port is 587")]
public int _mail_port
{
get => mail_port;
set => mail_port = value;
}
[CategoryAttribute("Bansal ERP"), DescriptionAttribute("Q.C.Code Each Group Id Gap")]
public int _CodeGroupInterVal
{
get => CodeGroupInterVal;
set => CodeGroupInterVal = value;
}
//https://www.codeproject.com/Articles/6294/Description-Enum-TypeConverter
DaysOfWeek WeeklyOff = DaysOfWeek.Sunday;
[CategoryAttribute("Bansal ERP"), DescriptionAttribute("Weekly off")]
//[TypeConverter(typeof(DyasOfWeekConverter))]
public DaysOfWeek _WeeklyOff
{
get => WeeklyOff;
set => WeeklyOff = value;
}
Period SeePastDataOf = Period.Week;
[CategoryAttribute("Bansal ERP"), DescriptionAttribute("Shiow Data Of Past")]
//[TypeConverter(typeof(DyasOfWeekConverter))]
public Period _SeePastDataOf
{
get => SeePastDataOf;
set => SeePastDataOf = value;
}
//
ImageLayout MdiImageLayout = ImageLayout.Center;
[CategoryAttribute("Slide Show"), DescriptionAttribute("Show Your Products Images settings")]
public ImageLayout _MdiImageLayout
{
get => MdiImageLayout;
set => MdiImageLayout = value;
}
[CategoryAttribute("Slide Show"), DescriptionAttribute("Set Show Next Slide in Milliseconds")]
public int _MdiSlideTimer
{
get => MdiSlideTimer;
set => MdiSlideTimer = value;
}
[CategoryAttribute("Sales"), DescriptionAttribute("Sales Rate From Grn\nKimaya Engginering")]
[TypeConverter(typeof(YesNoClassConverter))]
public bool _SaleRateFromGRN
{
get => SaleRateFromGRN;
set => SaleRateFromGRN = value;
}
[CategoryAttribute("Slide Show"), DescriptionAttribute("set Single Image or Show From Folder")]
[TypeConverter(typeof(YesNoClassConverter))]
public bool _MdiFixedImage
{
get => MdiFixedImage;
set => MdiFixedImage = value;
}
[CategoryAttribute("Slide Show"), DescriptionAttribute("Show Your Products Images settings")]
[EditorAttribute(typeof(System.Windows.Forms.Design.FolderNameEditor), typeof(System.Drawing.Design.UITypeEditor))]
public string _SlideShowImageFolder
{
get => SlideShowImageFolder;
set => SlideShowImageFolder = value;
}
[CategoryAttribute("Slide Show"), DescriptionAttribute("Show Your Products Images settings")]
[EditorAttribute(typeof(System.Windows.Forms.Design.FileNameEditor), typeof(System.Drawing.Design.UITypeEditor))]
public string _MdiImage
{
get => MdiImage;
set => MdiImage = value;
}
[CategoryAttribute("Sales"), DescriptionAttribute("Is Negative Stock allowed ?")]
[TypeConverter(typeof(YesNoClassConverter))]
public bool _AllowNegativeStock
{
get => AllowNegativeStock;
set => AllowNegativeStock = value;
}
[CategoryAttribute("Sales"), DescriptionAttribute("Yes:User Can Changed Bill Date, No:System Date")]
[TypeConverter(typeof(YesNoClassConverter))]
public bool _BillDateEditable
{
get => BillDateEditable;
set => BillDateEditable = value;
}
[CategoryAttribute("GRN"), DescriptionAttribute("Show Q.C. while MAking GRN")]
[TypeConverter(typeof(YesNoClassConverter))]
public bool _QcOnGrn
{
get => QcOnGrn;
set => QcOnGrn = value;
}
[CategoryAttribute("Purchase"), DescriptionAttribute("Check P.O. On Purchase Entry ")]
[TypeConverter(typeof(YesNoClassConverter))]
public bool _Purchase_po
{
get => Purchase_po;
set => Purchase_po = value;
}
[CategoryAttribute("Sales"), DescriptionAttribute("Exclude Time From Bill Date")]
[TypeConverter(typeof(YesNoClassConverter))]
public bool _BillDateWithoutTime
{
get => BillDateWithoutTime;
set => BillDateWithoutTime = value;
}
[CategoryAttribute("Sales"), DescriptionAttribute("Fetch Bag_packet_qty from item master")]
[TypeConverter(typeof(YesNoClassConverter))]
public bool _bag_packet_qty
{
get => bag_packet_qty;
set => bag_packet_qty = value;
}
[CategoryAttribute("Sales"), DescriptionAttribute("Set Packing Details")]
[TypeConverter(typeof(YesNoClassConverter))]
public bool _SalePackingDetailes
{
get => SalePackingDetailes;
set => SalePackingDetailes = value;
}
[CategoryAttribute("Numbering"), DescriptionAttribute("Will Generate Document Number if No:on Entry,Yes:On Save")]
[TypeConverter(typeof(YesNoClassConverter))]
public bool _Purchase_OnGrn
{
get => Purchase_OnGrn;
set => Purchase_OnGrn = value;
}
[CategoryAttribute("Numbering"), DescriptionAttribute("Will Generate Document Number if No: on Entry, Yes: On Save")]
[TypeConverter(typeof(YesNoClassConverter))]
public bool _IssueSlip_OnSave
{
get => IssueSlip_OnSave;
set => IssueSlip_OnSave = value;
}
[CategoryAttribute("Numbering"), DescriptionAttribute("Will Generate Document Number if No:on Entry,Yes:On Save")]
[TypeConverter(typeof(YesNoClassConverter))]
public bool _OA_OnSave
{
get => OA_OnSave;
set => OA_OnSave = value;
}
[CategoryAttribute("Numbering"), DescriptionAttribute("Will Generate Document Number if No:on Entry,Yes:On Save")]
[TypeConverter(typeof(YesNoClassConverter))]
public bool _OC_OnSave
{
get => OC_OnSave;
set => OC_OnSave = value;
}
[CategoryAttribute("Numbering"), DescriptionAttribute("Will Generate Document Number if No:on Entry,Yes:On Save")]
[TypeConverter(typeof(YesNoClassConverter))]
public bool _GRNno_OnSave
{
get => GRNno_OnSave;
set => GRNno_OnSave = value;
}
[CategoryAttribute("Numbering"), DescriptionAttribute("Will Generate Document Number if No:on Entry,Yes:On Save")]
[TypeConverter(typeof(YesNoClassConverter))]
public bool _Billno_OnSave
{
get => Billno_OnSave;
set => Billno_OnSave = value;
}
[CategoryAttribute("Numbering"), DescriptionAttribute("Will Generate Document Number if No:on Entry,Yes:On Save")]
[TypeConverter(typeof(YesNoClassConverter))]
public bool _pvno_OnSave
{
get => pvno_OnSave;
set => pvno_OnSave = value;
}
[Category("Reports")]
[Description("Report Folder Path ")]
//[EditorAttribute(typeof(System.Windows.Forms.Design.FileNameEditor), typeof(System.Drawing.Design.UITypeEditor))]
//your poject should refer to System.Design.dll .net 4.0, and using System.Design
[EditorAttribute(typeof(System.Windows.Forms.Design.FolderNameEditor), typeof(System.Drawing.Design.UITypeEditor))]
public string _CommonFilePath
{
get => CommonFilePath;
set => CommonFilePath = value;
}
//[CategoryAttribute("E-Invoice GSP"), DescriptionAttribute("GSP Name")]
//public string _GSPName { get => GSPName; set => GSPName = value; }
//[CategoryAttribute("E-Invoice GSP"), DescriptionAttribute("Authentication web URL")]
//public string _AuthUrl { get => AuthUrl; set => AuthUrl = value; }
//[CategoryAttribute("E-Invoice GSP"), DescriptionAttribute("Base web URL")]
//public string _BaseUrl { get => BaseUrl; set => BaseUrl = value; }
//[CategoryAttribute("E-Invoice GSP"), DescriptionAttribute("IRN web URL")]
//public string _EwbByIRN { get => EwbByIRN; set => EwbByIRN = value; }
//[CategoryAttribute("E-Invoice GSP"), DescriptionAttribute("Cancell IRN web URL")]
//public string _CancelEwbUrl { get => CancelEwbUrl; set => CancelEwbUrl = value; }
[CategoryAttribute("E-Invoice GSP"), DescriptionAttribute("E-invoice Via GSP User Name")]
public string _UserName { get => UserName; set => UserName = value; }
[CategoryAttribute("E-Invoice GSP"), DescriptionAttribute("E-invoice Via GSP User Password")]
public string _Password { get => Password; set => Password = value; }
[CategoryAttribute("Ledgers"), DescriptionAttribute("Customer G.L.Id")]
public int _s_debtorgl
{
get => s_debtorgl;
set => s_debtorgl = value;
}
[CategoryAttribute("Ledgers"), DescriptionAttribute("Cash On Hand ID")]
public int _s_cashgl
{
get => s_cashgl;
set => s_cashgl = value;
}
[CategoryAttribute("Ledgers"), DescriptionAttribute("Su
Greetings,

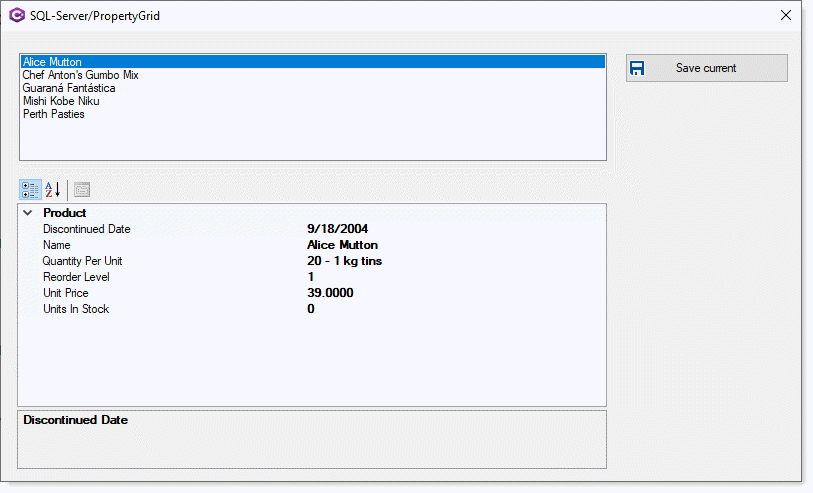

See the following GitHub repository which contains the following project to show how to read and save. Make sure to read the readme.md files online for information about the code.
Thanks mam its again a great learning from you.
from your solution i confusingly undertood that it mappes single rows of a table to propertygird.
i have attached my appproperties.txt [sql] whose all rows need to be mapped to propertygrid properties .
can you please guide how best it could be done.
enter code here
[//How To Use a type converter with a PropertyGrid control in C#
//http://csharphelper.com/blog/2014/09/use-a-type-converter-with-a-propertygrid-control-in-c/
/*
Getting the Most Out of the .NET Framework PropertyGrid Control
https://learn.microsoft.com/en-us/previous-versions/dotnet/articles/aa302326(v=msdn.10)?redirectedfrom=MSDN
*/
//paid propertygrid SPG
//https://marketplace.visualstudio.com/items?itemName=VisualHint.SmartPropertyGridNetforWinForms
//https://www.cyotek.com/blog/creating-a-custom-typeconverter-part-1
//Use a type converter with a PropertyGrid control in C#
//http://csharphelper.com/blog/2014/09/use-a-type-converter-with-a-propertygrid-control-in-c/
//validate all properties example
//https://social.msdn.microsoft.com/Forums/en-US/76193820-fac6-4023-9bc4-d2139ecff0f8/validation-of-property-grid-using-c?forum=csharplanguage
//https://www.levelextreme.com/Home/ShowHeader?Activator=23&ID=38766
//https://learn.microsoft.com/en-us/dotnet/api/system.windows.forms.design.iwindowsformseditorservice?redirectedfrom=MSDN&view=net-5.0
//use list
//http://www.reza-aghaei.com/how-to-edit-a-list-of-string-in-propertygrid-using-a-uitypeeditor/
using System;
using System.ComponentModel;
using System.Globalization;
using System.Reflection;
using System.Design;
using System.Windows.Forms;
using System.Threading.Tasks;
using System.Net;
/* Properties Various Settings
[Browsable(bool)] "To show property or not"
[ReadOnly(bool)] "Ability to edit property"
[Category(string)] "Group of property"
[Description(string)] "Property description, which can be a hint"
[DisplayName(string)] "Display Name property"
*/
namespace Kings.ERP
{
//SalesLinkedToProduction, 0-No,1-Pre Gst based on oc_link,2-based on issue opening + mfg - sales
public enum Sales2Production
{
Not_Applicable,
Oc_Link,
Purchase_StockEntry
}
public enum LcSales
{
Not_Applicable,
Labour_Charges,
Against_Grn
}
public enum Period
{
Day,
Week,
Fortnight,
Month,
Quarter,
Half_Year,
Year
}
//https://learn.microsoft.com/en-us/dotnet/api/system.dayofweek?view=net-5.0
public enum DaysOfWeek
{
Sunday,
Monday,
Tuesday,
Wednesday,
Thursday,
Friday,
Saturday
}
[DefaultPropertyAttribute("Name")]
public class ConfigMgr
{
bool
Billno_OnSave = false,
pvno_OnSave = false,
GRNno_OnSave = false,
OC_OnSave = false,
OA_OnSave = false,
IssueSlip_OnSave = false,
Purchase_OnGrn = false,
SalePackingDetailes = false,
bag_packet_qty = false,
MdiFixedImage = false,
SaleRateFromGRN = false,
//
BillItemsOnOaItems = false,
//
BillDateWithoutTime = true,
Purchase_po = true,
QcOnGrn = true,
BillDateEditable = true,
AllowNegativeStock = true;
private string
CommonFilePath = @"\\192.168.100.3\erpfiles",
PdiIdentityKey = "jaiho",
//GSPName = "TaxPro_Production",
//AuthUrl = "https://api.taxprogsp.co.in/eivital/v1.03",
//BaseUrl = "https://api.taxprogsp.co.in/eicore/v1.03",
//EwbByIRN = "https://api.taxprogsp.co.in/eiewb/v1.03",
//CancelEwbUrl = "https://api.taxprogsp.co.in/v1.03",
UserName = "API_MFPL",
Password = "Mfpl@2021",
MdiImage = @"..\..\Resources\ChesskingBW.jpg",
SlideShowImageFolder = @"C:\Users\Sushil\Pictures",
//KI_Email = "******@gmail.com",
mail_server = "smtp.gmail.com",
Mahindra_Ac = "2-252",
BackgroundImage = @"..\..\Resources\chesskingbw.jpg",
ServerReportPath = @"http://server/reportserver";
private int
MdiSlideTimer = 10000,
s_cashgl = 1,
s_debtorgl = 2,
s_creditorgl = 3,
s_drivergl = 15,
CodeGroupInterVal = 25,
mail_port = 587,
PosDefaultQty = 1;
//Bill To MultiGRn Link at Kimya set it to 2 otheriwse 0,LC Sales, Labour Sales
LcSales SaleGrnLinq = LcSales.Not_Applicable;
[CategoryAttribute("Sales"), DescriptionAttribute("Labour Charges Work Billing Methods")]
public LcSales _SaleGrnLinq
{
get => SaleGrnLinq;
set => SaleGrnLinq = value;
}
[CategoryAttribute("Sales"), DescriptionAttribute("Verify Production Stock While Billing")]
Sales2Production SalesLinkedToProduction = Sales2Production.Not_Applicable;
public Sales2Production _SalesLinkedToProduction
{
get => SalesLinkedToProduction;
set => SalesLinkedToProduction = value;
}
[CategoryAttribute("Sales"), DescriptionAttribute("Show Item List Having Order Acceptance Entry")]
[TypeConverter(typeof(DyasOfWeekConverter1))]
public bool _BillItemsOnOaItems
{
get => BillItemsOnOaItems;
set => BillItemsOnOaItems = value;
}
[CategoryAttribute("Sales"), DescriptionAttribute("Point Of Sale Default Qty.")]
public int _PosDefaultQty
{
get => PosDefaultQty;
set => PosDefaultQty = value;
}
[CategoryAttribute("Reports"), DescriptionAttribute("Sql Server Reports Path")]
//[Category("Reports")]
//[Description("Sql Server Reports Path")]
////[EditorAttribute(typeof(System.Windows.Forms.Design.FileNameEditor), typeof(System.Drawing.Design.UITypeEditor))]
////your poject should refer to System.Design.dll .net 4.0, and using System.Design
//[EditorAttribute(typeof(System.Windows.Forms.Design.FolderNameEditor), typeof(System.Drawing.Design.UITypeEditor))]
public string _ServerReportPath
{
get => ServerReportPath;
set => ServerReportPath = value;
}
[CategoryAttribute("Ledgers"), DescriptionAttribute("Mahindra A/c. No.")]
public string _Mahindra_Ac
{
get => Mahindra_Ac;
set => Mahindra_Ac = value;
}
[CategoryAttribute("Bansal ERP"), DescriptionAttribute("Back Ground Image File")]
[EditorAttribute(typeof(System.Windows.Forms.Design.FileNameEditor), typeof(System.Drawing.Design.UITypeEditor))]
public string _BackgroundImage
{
get => BackgroundImage;
set => BackgroundImage = value;
}
//[CategoryAttribute("E-Mail"), DescriptionAttribute("Send E-mail From A/c.")]
//public string _KI_Email
//{
// get =>KI_Email;
// set =>KI_Email=value;
//}
[CategoryAttribute("E-Mail"), DescriptionAttribute("Mail Server Name")]
public string _mail_server
{
get => mail_server;
set => mail_server = value;
}
[CategoryAttribute("E-Mail"), DescriptionAttribute("Google Default Port is 587")]
public int _mail_port
{
get => mail_port;
set => mail_port = value;
}
[CategoryAttribute("Bansal ERP"), DescriptionAttribute("Q.C.Code Each Group Id Gap")]
public int _CodeGroupInterVal
{
get => CodeGroupInterVal;
set => CodeGroupInterVal = value;
}
//https://www.codeproject.com/Articles/6294/Description-Enum-TypeConverter
DaysOfWeek WeeklyOff = DaysOfWeek.Sunday;
[CategoryAttribute("Bansal ERP"), DescriptionAttribute("Weekly off")]
//[TypeConverter(typeof(DyasOfWeekConverter))]
public DaysOfWeek _WeeklyOff
{
get => WeeklyOff;
set => WeeklyOff = value;
}
Period SeePastDataOf = Period.Week;
[CategoryAttribute("Bansal ERP"), DescriptionAttribute("Shiow Data Of Past")]
//[TypeConverter(typeof(DyasOfWeekConverter))]
public Period _SeePastDataOf
{
get => SeePastDataOf;
set => SeePastDataOf = value;
}
//
ImageLayout MdiImageLayout = ImageLayout.Center;
[CategoryAttribute("Slide Show"), DescriptionAttribute("Show Your Products Images settings")]
public ImageLayout _MdiImageLayout
{
get => MdiImageLayout;
set => MdiImageLayout = value;
}
[CategoryAttribute("Slide Show"), DescriptionAttribute("Set Show Next Slide in Milliseconds")]
public int _MdiSlideTimer
{
get => MdiSlideTimer;
set => MdiSlideTimer = value;
}
[CategoryAttribute("Sales"), DescriptionAttribute("Sales Rate From Grn\nKimaya Engginering")]
[TypeConverter(typeof(YesNoClassConverter))]
public bool _SaleRateFromGRN
{
get => SaleRateFromGRN;
set => SaleRateFromGRN = value;
}
[CategoryAttribute("Slide Show"), DescriptionAttribute("set Single Image or Show From Folder")]
[TypeConverter(typeof(YesNoClassConverter))]
public bool _MdiFixedImage
{
get => MdiFixedImage;
set => MdiFixedImage = value;
}
[CategoryAttribute("Slide Show"), DescriptionAttribute("Show Your Products Images settings")]
[EditorAttribute(typeof(System.Windows.Forms.Design.FolderNameEditor), typeof(System.Drawing.Design.UITypeEditor))]
public string _SlideShowImageFolder
{
get => SlideShowImageFolder;
set => SlideShowImageFolder = value;
}
[CategoryAttribute("Slide Show"), DescriptionAttribute("Show Your Products Images settings")]
[EditorAttribute(typeof(System.Windows.Forms.Design.FileNameEditor), typeof(System.Drawing.Design.UITypeEditor))]
public string _MdiImage
{
get => MdiImage;
set => MdiImage = value;
}
[CategoryAttribute("Sales"), DescriptionAttribute("Is Negative Stock allowed ?")]
[TypeConverter(typeof(YesNoClassConverter))]
public bool _AllowNegativeStock
{
get => AllowNegativeStock;
set => AllowNegativeStock = value;
}
[CategoryAttribute("Sales"), DescriptionAttribute("Yes:User Can Changed Bill Date, No:System Date")]
[TypeConverter(typeof(YesNoClassConverter))]
public bool _BillDateEditable
{
get => BillDateEditable;
set => BillDateEditable = value;
}
[CategoryAttribute("GRN"), DescriptionAttribute("Show Q.C. while MAking GRN")]
[TypeConverter(typeof(YesNoClassConverter))]
public bool _QcOnGrn
{
get => QcOnGrn;
set => QcOnGrn = value;
}
[CategoryAttribute("Purchase"), DescriptionAttribute("Check P.O. On Purchase Entry ")]
[TypeConverter(typeof(YesNoClassConverter))]
public bool _Purchase_po
{
get => Purchase_po;
set => Purchase_po = value;
}
[CategoryAttribute("Sales"), DescriptionAttribute("Exclude Time From Bill Date")]
[TypeConverter(typeof(YesNoClassConverter))]
public bool _BillDateWithoutTime
{
get => BillDateWithoutTime;
set => BillDateWithoutTime = value;
}
[CategoryAttribute("Sales"), DescriptionAttribute("Fetch Bag_packet_qty from item master")]
[TypeConverter(typeof(YesNoClassConverter))]
public bool _bag_packet_qty
{
get => bag_packet_qty;
set => bag_packet_qty = value;
}
[CategoryAttribute("Sales"), DescriptionAttribute("Set Packing Details")]
[TypeConverter(typeof(YesNoClassConverter))]
public bool _SalePackingDetailes
{
get => SalePackingDetailes;
set => SalePackingDetailes = value;
}
[CategoryAttribute("Numbering"), DescriptionAttribute("Will Generate Document Number if No:on Entry,Yes:On Save")]
[TypeConverter(typeof(YesNoClassConverter))]
public bool _Purchase_OnGrn
{
get => Purchase_OnGrn;
set => Purchase_OnGrn = value;
}
[CategoryAttribute("Numbering"), DescriptionAttribute("Will Generate Document Number if No: on Entry, Yes: On Save")]
[TypeConverter(typeof(YesNoClassConverter))]
public bool _IssueSlip_OnSave
{
get => IssueSlip_OnSave;
set => IssueSlip_OnSave = value;
}
[CategoryAttribute("Numbering"), DescriptionAttribute("Will Generate Document Number if No:on Entry,Yes:On Save")]
[TypeConverter(typeof(YesNoClassConverter))]
public bool _OA_OnSave
{
get => OA_OnSave;
set => OA_OnSave = value;
}
[CategoryAttribute("Numbering"), DescriptionAttribute("Will Generate Document Number if No:on Entry,Yes:On Save")]
[TypeConverter(typeof(YesNoClassConverter))]
public bool _OC_OnSave
{
get => OC_OnSave;
set => OC_OnSave = value;
}
[CategoryAttribute("Numbering"), DescriptionAttribute("Will Generate Document Number if No:on Entry,Yes:On Save")]
[TypeConverter(typeof(YesNoClassConverter))]
public bool _GRNno_OnSave
{
get => GRNno_OnSave;
set => GRNno_OnSave = value;
}
[CategoryAttribute("Numbering"), DescriptionAttribute("Will Generate Document Number if No:on Entry,Yes:On Save")]
[TypeConverter(typeof(YesNoClassConverter))]
public bool _Billno_OnSave
{
get => Billno_OnSave;
set => Billno_OnSave = value;
}
[CategoryAttribute("Numbering"), DescriptionAttribute("Will Generate Document Number if No:on Entry,Yes:On Save")]
[TypeConverter(typeof(YesNoClassConverter))]
public bool _pvno_OnSave
{
get => pvno_OnSave;
set => pvno_OnSave = value;
}
[Category("Reports")]
[Description("Report Folder Path ")]
//[EditorAttribute(typeof(System.Windows.Forms.Design.FileNameEditor), typeof(System.Drawing.Design.UITypeEditor))]
//your poject should refer to System.Design.dll .net 4.0, and using System.Design
[EditorAttribute(typeof(System.Windows.Forms.Design.FolderNameEditor), typeof(System.Drawing.Design.UITypeEditor))]
public string _CommonFilePath
{
get => CommonFilePath;
set => CommonFilePath = value;
}
//[CategoryAttribute("E-Invoice GSP"), DescriptionAttribute("GSP Name")]
//public string _GSPName { get => GSPName; set => GSPName = value; }
//[CategoryAttribute("E-Invoice GSP"), DescriptionAttribute("Authentication web URL")]
//public string _AuthUrl { get => AuthUrl; set => AuthUrl = value; }
//[CategoryAttribute("E-Invoice GSP"), DescriptionAttribute("Base web URL")]
//public string _BaseUrl { get => BaseUrl; set => BaseUrl = value; }
//[CategoryAttribute("E-Invoice GSP"), DescriptionAttribute("IRN web URL")]
//public string _EwbByIRN { get => EwbByIRN; set => EwbByIRN = value; }
//[CategoryAttribute("E-Invoice GSP"), DescriptionAttribute("Cancell IRN web URL")]
//public string _CancelEwbUrl { get => CancelEwbUrl; set => CancelEwbUrl = value; }
[CategoryAttribute("E-Invoice GSP"), DescriptionAttribute("E-invoice Via GSP User Name")]
public string _UserName { get => UserName; set => UserName = value; }
[CategoryAttribute("E-Invoice GSP"), DescriptionAttribute("E-invoice Via GSP User Password")]
public string _Password { get => Password; set => Password = value; }
[CategoryAttribute("Ledgers"), DescriptionAttribute("Customer G.L.Id")]
public int _s_debtorgl
{
get => s_debtorgl;
set => s_debtorgl = value;
}
[CategoryAttribute("Ledgers"), DescriptionAttribute("Cash On Hand ID")]
public int _s_cashgl
{
get => s_cashgl;
set => s_cashgl = value;
}
[CategoryAttribute("Ledgers"), DescriptionAttribute("Suppliers G.L.ID")]
public int _s_creditorgl
{
get => s_creditorgl;
set => s_creditorgl = value;
}
[CategoryAttribute("Ledgers"), DescriptionAttribute("Drivers G.L.ID")]
public int _s_drivergl
{
get { return s_drivergl; }
set { s_drivergl = value; }
}
//
[CategoryAttribute("PDI"), DescriptionAttribute("PDI Auto Fill Key")]
public string _PdiIdentityKey
{
get { return PdiIdentityKey; }
set { PdiIdentityKey = value; }
}
public ConfigMgr()
{
//
// TODO: Add constructor logic here
//
}
}
class YesNoClassConverter : BooleanConverter
{
public override object ConvertTo(ITypeDescriptorContext context, CultureInfo culture, object value, Type destType)
{
return (bool)value ? "Yes" : "No";
}
public override object ConvertFrom(ITypeDescriptorContext context, CultureInfo culture, object value)
{
return (string)value == "Yes";
}
}
public class DyasOfWeekConverter : EnumConverter
{
private Type _enumType;
/// <summary>Initializing instance</summary>
/// <param name="type">type Enum</param>
///this is only one function, that you must
///to change. All another functions for enums
///you can use by Ctrl+C/Ctrl+V
public DyasOfWeekConverter(Type type) : base(type)
{
_enumType = type;
}
public override bool CanConvertTo(ITypeDescriptorContext context, Type destType)
{
return destType == typeof(string);
}
public override object ConvertTo(ITypeDescriptorContext context, CultureInfo culture, object value, Type destType)
{
FieldInfo fi = _enumType.GetField(Enum.GetName(_enumType, value));
DescriptionAttribute dna =
(DescriptionAttribute)Attribute.GetCustomAttribute(
fi, typeof(DescriptionAttribute));
if (dna != null)
return dna.Description;
else
return value.ToString();
}
public override bool CanConvertFrom(ITypeDescriptorContext context, Type srcType)
{
return srcType == typeof(string);
}
public override object ConvertFrom(ITypeDescriptorContext context, CultureInfo culture, object value)
{
foreach (FieldInfo fi in _enumType.GetFields())
{
DescriptionAttribute dna =
(DescriptionAttribute)Attribute.GetCustomAttribute(fi, typeof(DescriptionAttribute));
if ((dna != null) && ((string)value == dna.Description))
return Enum.Parse(_enumType, fi.Name);
}
return Enum.Parse(_enumType, (string)value);
}
}
public class DyasOfWeekConverter1 : EnumConverter
{
/*
https://social.msdn.microsoft.com/Forums/vstudio/en-US/c71938b7-aff1-4fcb-aeff-a07457220ec4/how-do-i-display-enumerations-nicer-in-a-property-grid?forum=csharpgeneral
*/
public override bool CanConvertFrom(ITypeDescriptorContext context, Type sourceType)
{
return sourceType == typeof(string);
}
public override object ConvertFrom(ITypeDescriptorContext context, CultureInfo culture, object value)
{
return Enum.Parse(typeof(DayOfWeek), value.ToString().ToUpper().Replace(' ', '_'));
}
public override bool CanConvertTo(ITypeDescriptorContext context, Type destinationType)
{
return destinationType == typeof(string);
}
public override object ConvertTo(ITypeDescriptorContext context, CultureInfo culture, object value, Type destinationType)
{
string s = value.ToString();
int i = s.IndexOf('_');
return s[0] + s.Substring(1, i - 1).ToLower() + ' ' + s[i + 1] + s.Substring(i + 2).ToLower();
}
public DyasOfWeekConverter1() : base(typeof(DayOfWeek)) { }
}
}][1]
You need to create the database I provided, build, run the project see it then examine the code.
Also I highly recommend not using a string column as a primary key, instead a int.
Your class should be
using System.ComponentModel;
namespace PropertyGridSqlServer.Classes
{
public class AppProperties
{
[Browsable(false)]
public int Id { get; set; }
public string Name { get; set; }
public string Value { get; set; }
public override string ToString()
{
return Name;
}
}
}
Read data
using System.Collections.Generic;
using System.Data.SqlClient;
namespace PropertyGridSqlServer.Classes
{
public class AppPropertiesOperations
{
private static string ConnectionString =
"Data Source=.\\SQLEXPRESS;Initial Catalog=mfgst;" +
"Integrated Security=True";
public static List<AppProperties> Read()
{
var list = new List<AppProperties>();
var selectStatement = "SELECT Id, [Name], [Value] FROM dbo.AppProperties;";
using (var cn = new SqlConnection() { ConnectionString = ConnectionString })
{
using (var cmd = new SqlCommand() { Connection = cn, CommandText = selectStatement })
{
cn.Open();
var reader = cmd.ExecuteReader();
while (reader.Read())
{
list.Add(new AppProperties()
{
Id = reader.GetInt32(0),
Name = reader.GetString(1),
Value = reader.GetString(2)
});
}
}
}
return list;
}
}
}
Call the above
AppPropertiesOperations.Read();
Then following what I did for Product code sample.
Then look at the new code I provided in the GitHub repository which only provides base code, enough for you to take it from here.
In closing, this is all I have time for, time to get to work.
Hopefully this gets you going.
Thanks mam, i will try
Thank you very much mam for your untired effort to help me.
i beg your parden, i am a new bee and may be wrong to say follwoing but
what i feel if i take your approach then it will show vanila type each table row , column wise properties , their propertygrid grouping, validating, enum etc will not be seen.

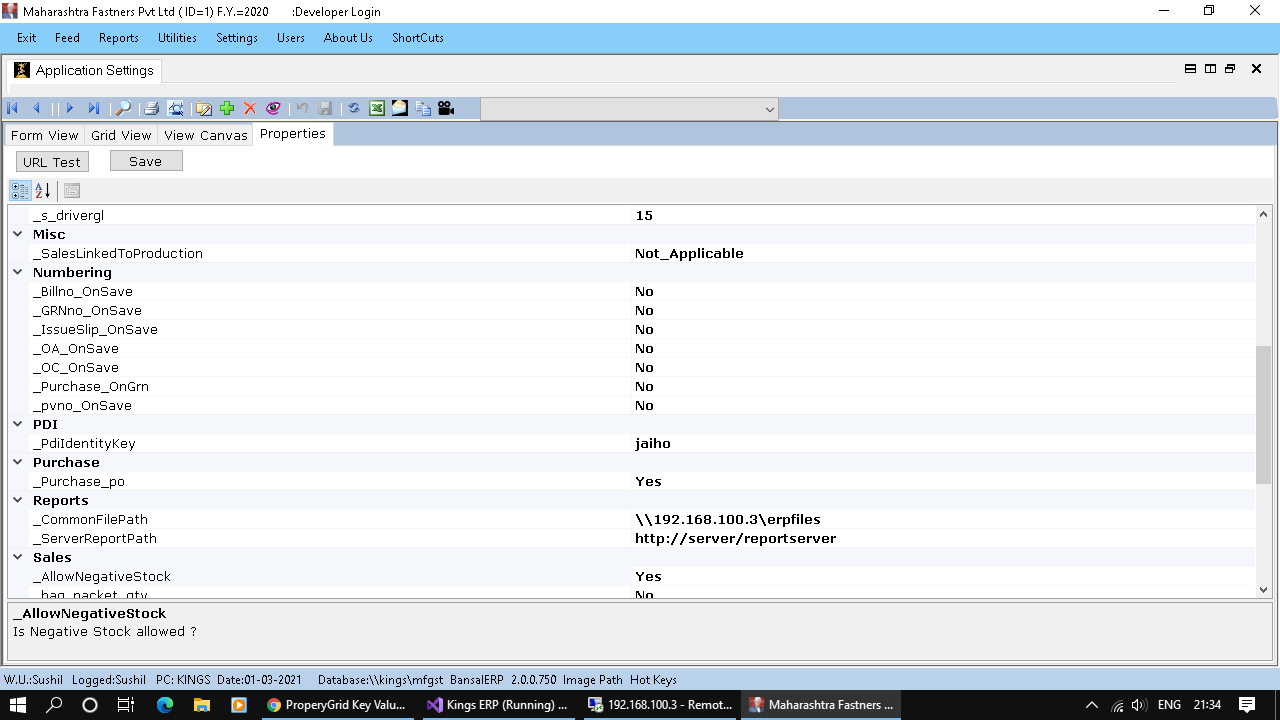

please have a look at following pic.
There are some properties were enums
Thanks a lot again

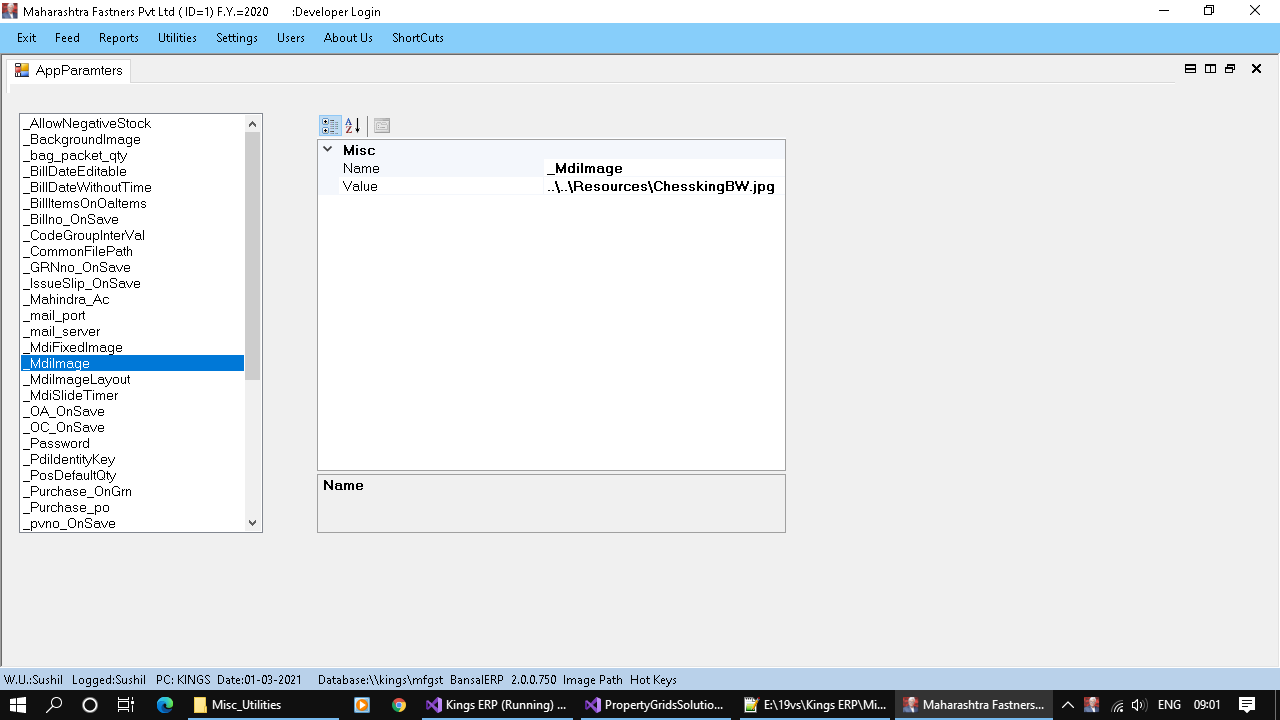

What I see is how a PropertyGrid is expected to work, a SelectedObject shows as in your PropertyGrid. So what were you expecting?
Hello karenpayneoregon ,
i was expecting all the rows in the table to be shown at once and not each row navigation. thena simple datagridview would have done the job, depending on column type say for bit Show Yes/No, for some of tinyint i wanted to use enum etc.
if you observ Numbering Group in picture of propertygrid it shows Yes/No [TypeCoberter]
_SalesLinkedto production is having a enum etc.
all of the presentation is happening exactly i want it.
but i am stuck at assigning values from table column value to propertygrid properties respectivly.

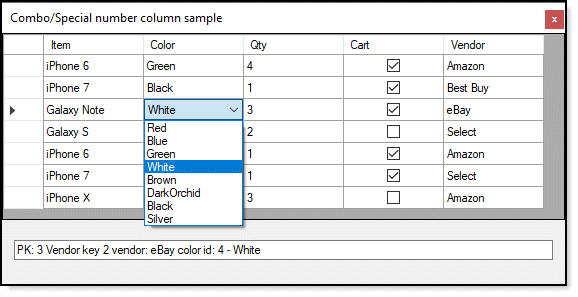

Using a DataGridView is not right for that many properties but with a few sure it would work e.g.
A better way is to data bind properties to single controls e.g. for a yes/no use a CheckBox, for multiple selections a ComboBox etc.

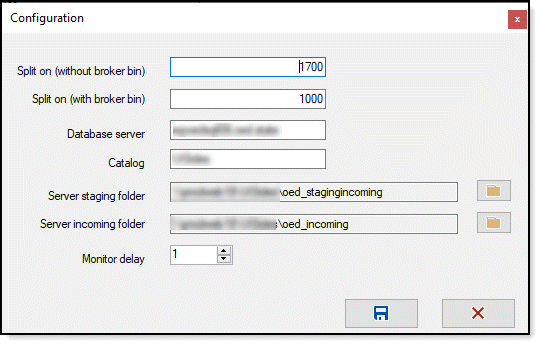

Simple example which can be done layout wise in various ways and if needed with scrollbars
A PropertyGrid may not be the best solution.
