Workflow Manger Farm for SharePoint 2016 DR

Question

I Prepared one SharePoint 2016 Farm with Two Servers One WFE One APP In Application Server I installed & Configured Workflow Manager Farm and it created below databases 3 WF farm and 3 for Service Bus WfManagementDB WFInstanceManagementDB WFResourceManagementDB

SbGatewayDatabase SBContainer01 SBManagementDB

Now how to prepare same Workflow Manger Farm in DR I have one server in DR for Workflow Manger and we are using SQL Server Always On to sync databases between DC and DR

For DR WF farm can I do the same steps for installation Workflow Manger and Service Bus

Answer 1

Hello @adil ,

You can install workflow manager on the DR WF farm but don't configure it.

For more information about Workflow Manager Disaster Recovery, please view this article.

Here is an article that details the install and configure Workflow Manager in SharePoint 2016. This might help you.

Thanks,
Echo Du

============================
Updated Answer ==========================

Hi @adil

Executing the Failover Process

1.Restore the 4+ SQL databases (WFResourceManagementDb, WFInstanceManagementDb, SBGatwayDatabase, SBMessageContainer01 – n) from prod_SQL to DR_SQL.

2.Install WFM in DR, If you were doing cold standby, then you need to install (but not configure) the SB/WF bits from Web Platform Installer.

3.Restore the SBFarm, SBGateway, and MessageContainer databases and settings (do this on only one WFM node)

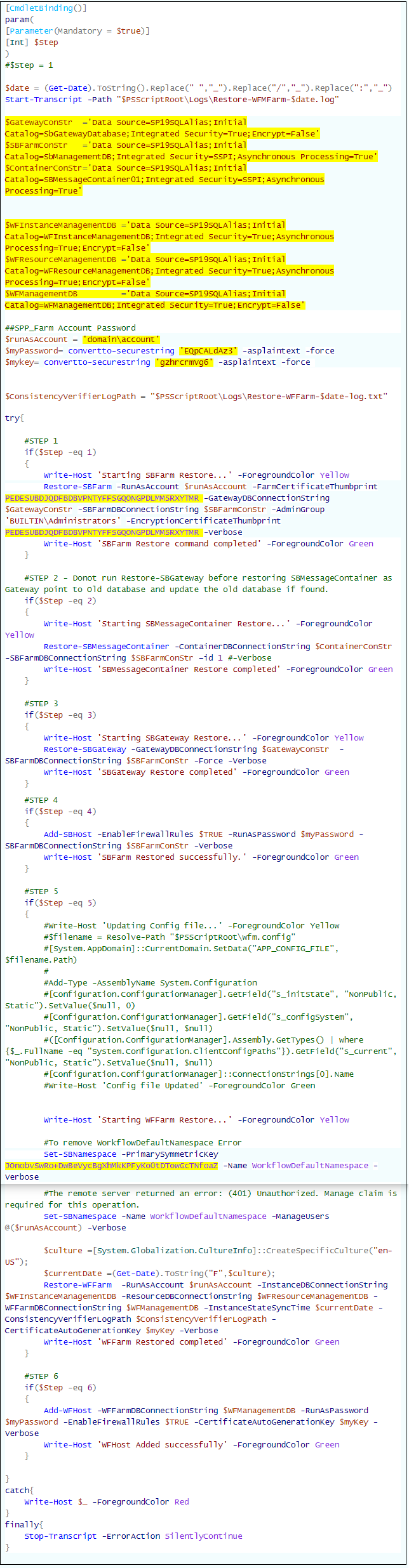

Save the below the Restore-WFMFarm.ps1 script and update the highlighted values. Open SharePoint Manager PowerShell as run as administrator and navigate to the folder where script is placed.

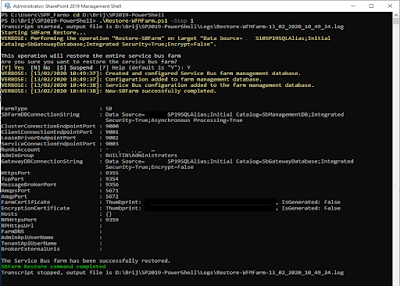

Restore-SBFarm

cd ****
.\Restore-WFMFarm -Step 1

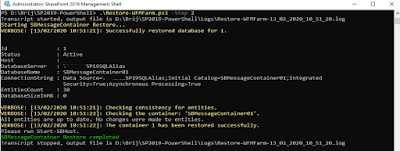

Restore-SBMessageContainer

.\Restore-WFMFarm -Step 2

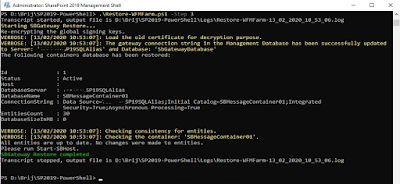

Restore-SBGateway

.\Restore-WFMFarm -Step 3

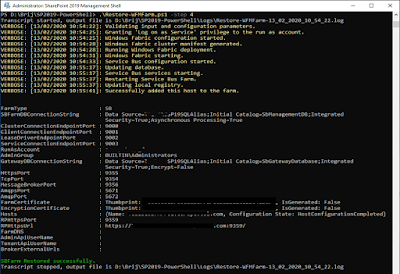

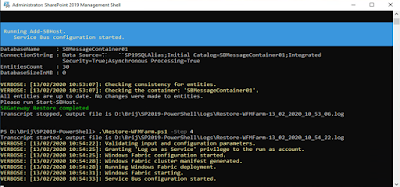

4.Again, using powershell, run Add-SBHost on each node of the farm.

Add-SBHost

.\Restore-WFMFarm -Step 4

5.If you used auto-generated certificates for the WFFarm in prod, then when you restore the WFFarm you will auto-generate new ones. However this also means that you may need to restore the PrimarySymmeticKey to the new SBNamespace.

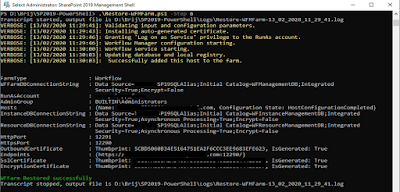

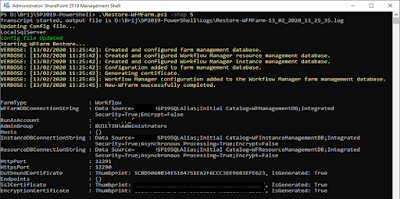

6.At this point, restore the WFFarm using powershell (do this on only one WFM node)

Restore-WFFarm

.\Restore-WFMFarm -Step 5

7.Run Add-WFHost on each node of the farm.

8.Re-connect SharePoint

If WF certificates were re-generated in DR, then you will need to recreate the SharePoint Trusted Root Authority. Export the WF SSL certificate and add it to the SharePoint farm using New-SPTrustedRootAuthority.

Create a new registration to the Workflow farm using Register-SPWorkflowService.

Register-SPWorkflowService -SPSite "http:/webapplication" -WorkflowHostUri "http://workfowsite:12291 Jump " -AllowOAuthHttp -Force -ScopeName "MyScope"

More information, Please refer to the following articles:

• Workflow Manager 1.0 Refresh Disaster Recovery (further) Explained
• Workflow Manager 1.0- Installation, Configuration and Issues

Thanks,
Echo Du

================

If an Answer is helpful, please click "Accept Answer" and upvote it.
Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.

Answer 2

My issue has to do with restoring onto a new server into a new AD domain and everything has worked up to Restore-WFFarm. Because of the new server/domain, it's failing on that even though the certificates were imported and the Service Bus successfully restored and created new certificates. I can't get past Restore-WFFarm. I have an open question on this. Hoping someone has an idea on how to restore to a new domain/new server, new service accounts.
