How to wrap sphere with Image?

Question

I wanted to wrap the sphere with this JPEG (mercator map).

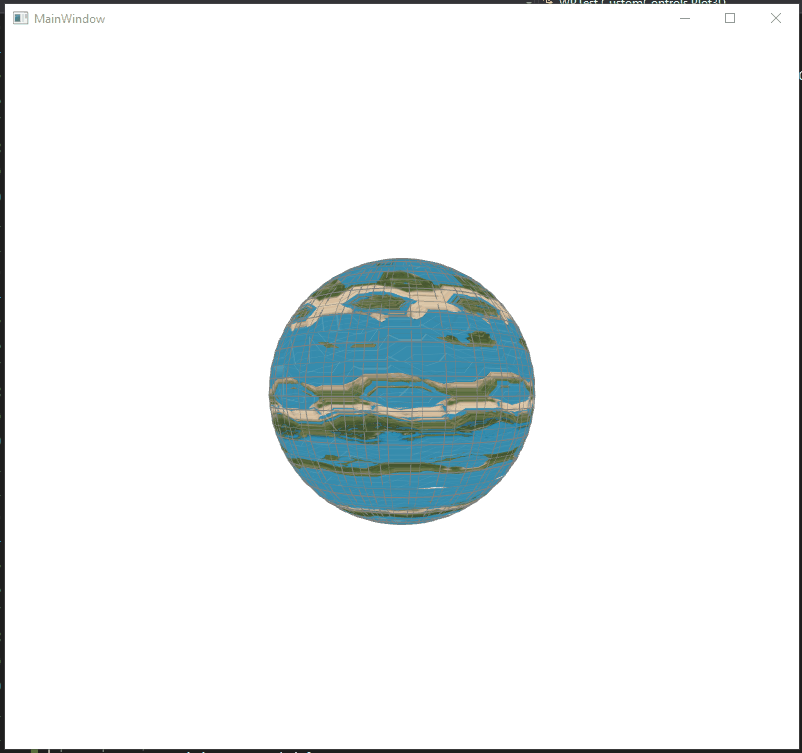

So the primary problem, obviously, is the TextureCoordinates. Here's the code:

class Plot3D : FrameworkElement
{
    Viewport3D viewPort;
    PerspectiveCamera camera;
    Model3DGroup models;
    Point3DAnimationUsingKeyFrames positionAnim;
    Vector3DAnimationUsingKeyFrames lookAnim;

    public Plot3D() {
        camera = new PerspectiveCamera() {
            FieldOfView = 80,
            LookDirection = new Vector3D(0, 0, 9),
            Position = new Point3D(0, 0, -9),
            UpDirection = new Vector3D(0, 1, 0)
        };
        models = new Model3DGroup() { Children = { new AmbientLight(Colors.White) } };
        viewPort = new Viewport3D() {
            Camera = camera,
            Children = { new ModelVisual3D() { Content = models } }
        };
        AddVisualChild(viewPort);
        addModel();

        positionAnim = new Point3DAnimationUsingKeyFrames() {
            KeyFrames = {
                new LinearPoint3DKeyFrame(new Point3D( 0, 0,-9), TimeSpan.FromSeconds(0)),
                new LinearPoint3DKeyFrame(new Point3D(-9, 0, 0), TimeSpan.FromSeconds(5)),
                new LinearPoint3DKeyFrame(new Point3D( 0, 0, 9), TimeSpan.FromSeconds(10)),
                new LinearPoint3DKeyFrame(new Point3D( 9, 0, 0), TimeSpan.FromSeconds(15)),
                new LinearPoint3DKeyFrame(new Point3D( 0, 0,-9), TimeSpan.FromSeconds(20))
            },
            RepeatBehavior = RepeatBehavior.Forever
        };
        lookAnim = new Vector3DAnimationUsingKeyFrames() {
            KeyFrames = {
                new LinearVector3DKeyFrame(new Vector3D( 0, 0, 9), TimeSpan.FromSeconds(0)),
                new LinearVector3DKeyFrame(new Vector3D( 9, 0, 0), TimeSpan.FromSeconds(5)),
                new LinearVector3DKeyFrame(new Vector3D( 0, 0,-9), TimeSpan.FromSeconds(10)),
                new LinearVector3DKeyFrame(new Vector3D(-9, 0, 0), TimeSpan.FromSeconds(15)),
                new LinearVector3DKeyFrame(new Vector3D( 0, 0, 9), TimeSpan.FromSeconds(20))
            },
            RepeatBehavior = RepeatBehavior.Forever
        };
        Loaded += animate;
    }

    void animate(object sender, RoutedEventArgs e) {
        camera.BeginAnimation(PerspectiveCamera.PositionProperty, positionAnim);
        camera.BeginAnimation(PerspectiveCamera.LookDirectionProperty, lookAnim);
    }

    void addModel() {
        var mesh = new MeshGeometry3D();
        double radius = 2;
        double dTheta, dPhi;
        dTheta = dPhi = 0.2;
        for (double theta = 0; theta < 2 * Math.PI; theta += dTheta) {
            for (double phi = 0; phi < 2 * Math.PI; phi += dPhi) {
                var p1 = sphericalPoint(radius, theta, phi);
                var p2 = sphericalPoint(radius, theta + dTheta, phi);
                var p3 = sphericalPoint(radius, theta + dTheta, phi + dPhi);
                var p4 = sphericalPoint(radius, theta, phi + dPhi);
                addTriangle(mesh, p1, p2, p3);
                addTriangle(mesh, p3, p4, p1);
                addWires(p1, p2, p3, p4);
                mesh.TextureCoordinates.Add(new Point(p1.X, p1.Z));
                mesh.TextureCoordinates.Add(new Point(p2.X, p2.Z));
                mesh.TextureCoordinates.Add(new Point(p3.X, p3.Z));
                mesh.TextureCoordinates.Add(new Point(p4.X, p4.Z));
            }
        }
        var source = new BitmapImage(new Uri("Resource/map.jpg", UriKind.Relative));
        var sphereSurface = new GeometryModel3D() {
            Geometry = mesh,
            Material = new DiffuseMaterial(new ImageBrush() {
                ImageSource = source,
                TileMode = TileMode.None,
                Stretch = Stretch.Uniform
            })
        };
        models.Children.Add(sphereSurface);
    }

    Point3D sphericalPoint(double radius, double theta, double phi) {
        return new Point3D() {
            X = radius * Math.Sin(theta) * Math.Cos(phi),
            Y = radius * Math.Cos(theta),
            Z = -radius * Math.Sin(theta) * Math.Sin(phi)
        };
    }

    void addWires(Point3D p1, Point3D p2, Point3D p3, Point3D p4) {
        var line = new ScreenSpaceLines3D() { Color = Colors.Gray, Thickness = 1 };
        line.Points.Add(p1);
        line.Points.Add(p2);
        line.Points.Add(p2);
        line.Points.Add(p3);
        line.Points.Add(p3);
        line.Points.Add(p4);
        line.Points.Add(p4);
        line.Points.Add(p1);
        viewPort.Children.Add(line);
    }

    void addTriangle(MeshGeometry3D mesh, Point3D p1, Point3D p2, Point3D p3) {
        int index1 = addPoint(mesh.Positions, p1);
        int index2 = addPoint(mesh.Positions, p2);
        int index3 = addPoint(mesh.Positions, p3);
        mesh.TriangleIndices.Add(index1);
        mesh.TriangleIndices.Add(index2);
        mesh.TriangleIndices.Add(index3);
    }

    int addPoint(Point3DCollection positions, Point3D point) {
        for (int i = 0; i < positions.Count; i++) {
            if ((point.X == positions[i].X) &&
                (point.Y == positions[i].Y) &&
                (point.Z == positions[i].Z))
                return i;
        }
        positions.Add(point);
        return positions.Count - 1;
    }

    protected override Size ArrangeOverride(Size finalSize) {
        viewPort.Width = finalSize.Width;
        viewPort.Height = finalSize.Height;
        viewPort.Measure(finalSize);
        viewPort.Arrange(new Rect(viewPort.DesiredSize));
        return finalSize;
    }

    protected override Visual GetVisualChild(int index) => viewPort;
    protected override int VisualChildrenCount => 1;
}

Answer 1

I update your addModel() as below:

  private void addModel(Model3DGroup model_group)
        {
            Model3DGroup globe_model = new Model3DGroup();
            model_group.Children.Add(globe_model);

            ImageBrush globe_brush = new ImageBrush(new BitmapImage(new Uri("Resource/map.jpg", UriKind.Relative)));
            Material globe_material = new DiffuseMaterial(globe_brush);
            MeshGeometry3D globe_mesh = null;
            MakeSphere(globe_model, ref globe_mesh, globe_material, 1, 0, 0, 0, 20, 30);
        }


        private void MakeSphere(Model3DGroup model_group, ref MeshGeometry3D sphere_mesh, Material sphere_material,
          double radius, double cx, double cy, double cz, int num_phi, int num_theta)
        {
            if (sphere_mesh == null)
            {
                sphere_mesh = new MeshGeometry3D();
                GeometryModel3D new_model = new GeometryModel3D(sphere_mesh, sphere_material);
                model_group.Children.Add(new_model);
            }

            double dphi = Math.PI / num_phi;
            double dtheta = 2 * Math.PI / num_theta;

            int pt0 = sphere_mesh.Positions.Count;

            double phi1 = Math.PI / 2;
            for (int p = 0; p <= num_phi; p++)
            {
                double r1 = radius * Math.Cos(phi1);
                double y1 = radius * Math.Sin(phi1);

                double theta = 0;
                for (int t = 0; t <= num_theta; t++)
                {
                    sphere_mesh.Positions.Add(new Point3D(
                        cx + r1 * Math.Cos(theta), cy + y1, cz + -r1 * Math.Sin(theta)));
                    sphere_mesh.TextureCoordinates.Add(new Point(
                        (double)t / num_theta, (double)p / num_phi));
                    theta += dtheta;
                }
                phi1 -= dphi;
            }

            int i1, i2, i3, i4;
            for (int p = 0; p <= num_phi - 1; p++)
            {
                i1 = p * (num_theta + 1);
                i2 = i1 + (num_theta + 1);
                for (int t = 0; t <= num_theta - 1; t++)
                {
                    i3 = i1 + 1;
                    i4 = i2 + 1;
                    sphere_mesh.TriangleIndices.Add(pt0 + i1);
                    sphere_mesh.TriangleIndices.Add(pt0 + i2);
                    sphere_mesh.TriangleIndices.Add(pt0 + i4);

                    sphere_mesh.TriangleIndices.Add(pt0 + i1);
                    sphere_mesh.TriangleIndices.Add(pt0 + i4);
                    sphere_mesh.TriangleIndices.Add(pt0 + i3);
                    i1 += 1;
                    i2 += 1;
                }
            }
        }

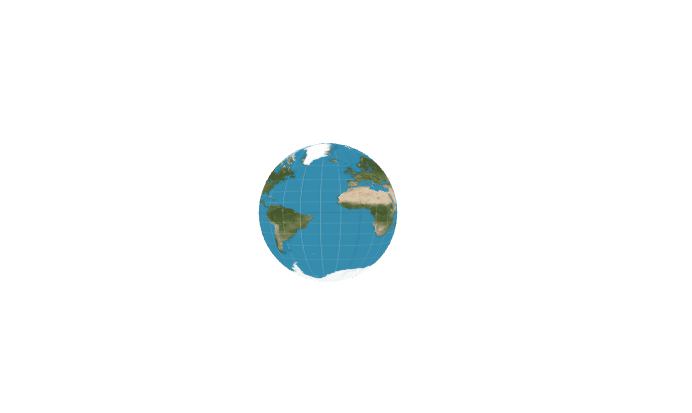

The result picture is:

---

If the response is helpful, please click "Accept Answer" and upvote it.
Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.

Answer 2

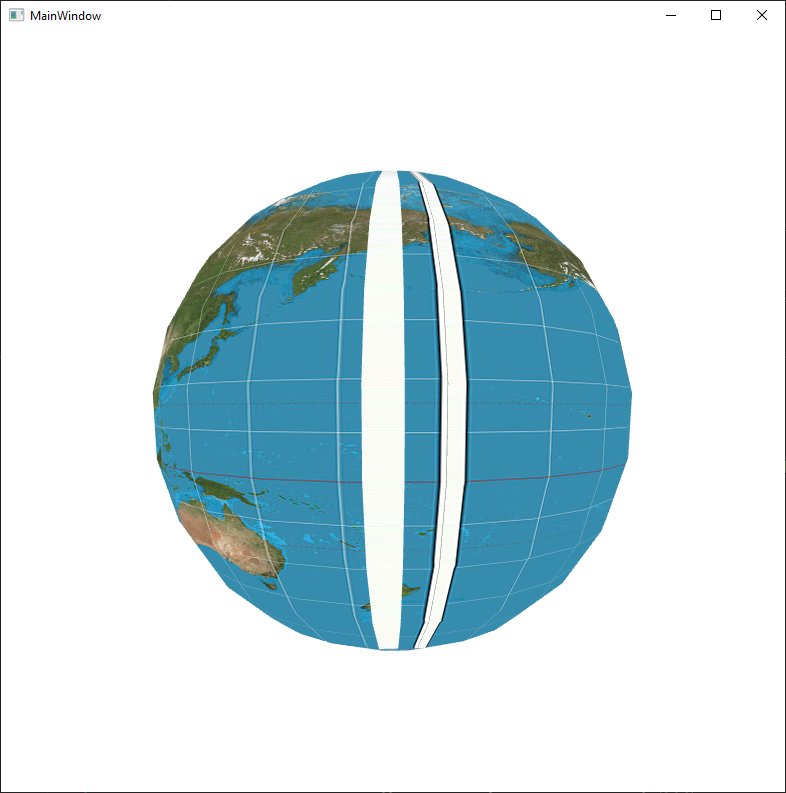

With the rectangular approach (creating 2 triangles out of the the 4 points) It makes two white strips. One in between the start and end of image (In pacific ocean, where Time zone shifts?) and the other left to the first one:

The first glitch is common with either approach. For rectangular approach I'd to keep track of currentPhi and currentTheta in the addModel() function like this:

double currentPhi, currentTheta;
void addModel() {
    var mesh = new MeshGeometry3D();
    double dTheta, dPhi, radius;
    radius = 4;
    dTheta = dPhi = 0.25;
    for (double theta = 0; theta < Math.PI; theta += dTheta) {
        currentTheta = theta;
        for (double phi = 0; phi < 2 * Math.PI; phi += dPhi) {
            currentPhi = phi;
            var p1 = sphericalPoint(radius, theta, phi);
            var p2 = sphericalPoint(radius, theta + dTheta, phi);
            var p3 = sphericalPoint(radius, theta + dTheta, phi + dPhi);
            var p4 = sphericalPoint(radius, theta, phi + dPhi);
            addTriangle(mesh, p1, p2, p3);
            addTriangle(mesh, p3, p4, p1);
        }
    }
    var sphere = new GeometryModel3D() {
        Geometry = mesh,
        Material = new DiffuseMaterial(new ImageBrush() {
            ImageSource = new BitmapImage(new Uri("Resource/map.jpg", UriKind.Relative))
        })
    };
    models.Children.Add(sphere);
}

and use those currentPhi and currentTheta in addPoint() method like this:

int addPoint(MeshGeometry3D mesh, Point3D point) {
    for (int i = 0; i < mesh.Positions.Count; i++) {
        if ((point.X == mesh.Positions[i].X) &&
            (point.Y == mesh.Positions[i].Y) &&
            (point.Z == mesh.Positions[i].Z))
            return i;
    }
    mesh.Positions.Add(point);
    mesh.TextureCoordinates.Add(new Point(currentPhi / (2 * Math.PI) , currentTheta / Math.PI));
    return mesh.Positions.Count - 1;
}

to generate TextureCoordinates. With this rectangular approach it actually generates far less points for Positions, TriangleIndices and TextureCoordinates. Another problem is with wireframe. If I use the following code in addModel() function:

void addModel() {
    double dTheta, dPhi, radius;
    radius = 4;
    dTheta = dPhi = 0.25;
    for (double theta = 0; theta < Math.PI; theta += dTheta) {
        for (double phi = 0; phi < Math.PI; phi += dPhi) {
            var p1 = sphericalPoint(radius, theta, phi);
            var p2 = sphericalPoint(radius, theta + dTheta, phi);
            var p3 = sphericalPoint(radius, theta + dTheta, phi + dPhi);
            var p4 = sphericalPoint(radius, theta, phi + dPhi);
            addWires(p1, p2, p3, p4);
        }
    }
}

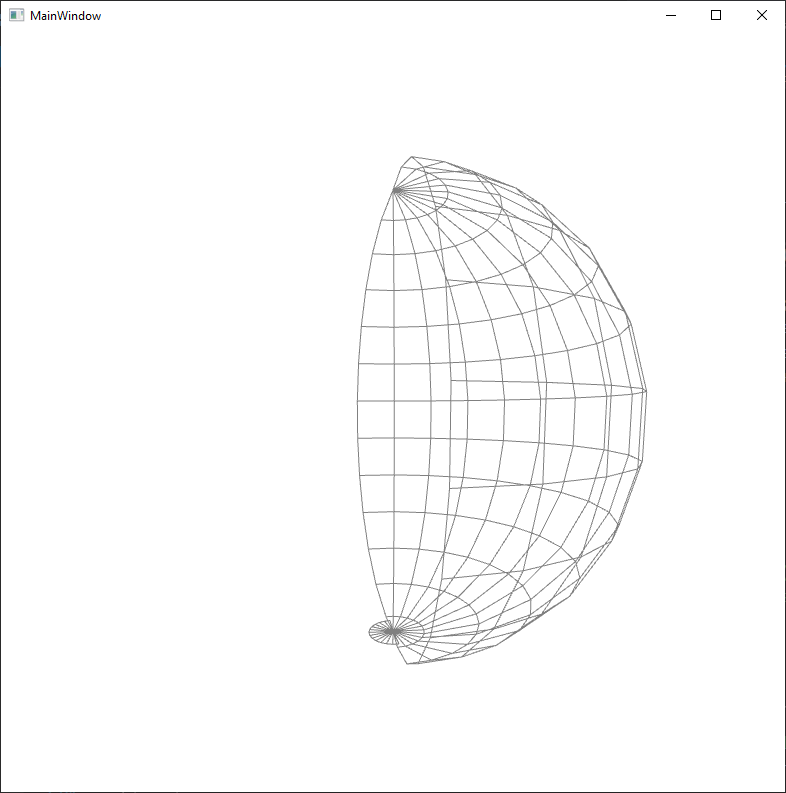

I see this image, after some camera movement:

So it basically generates some sort of protractor at the bottom. With phi < 2 * Math.PI in the nested for loop, I see two extra longitudes:

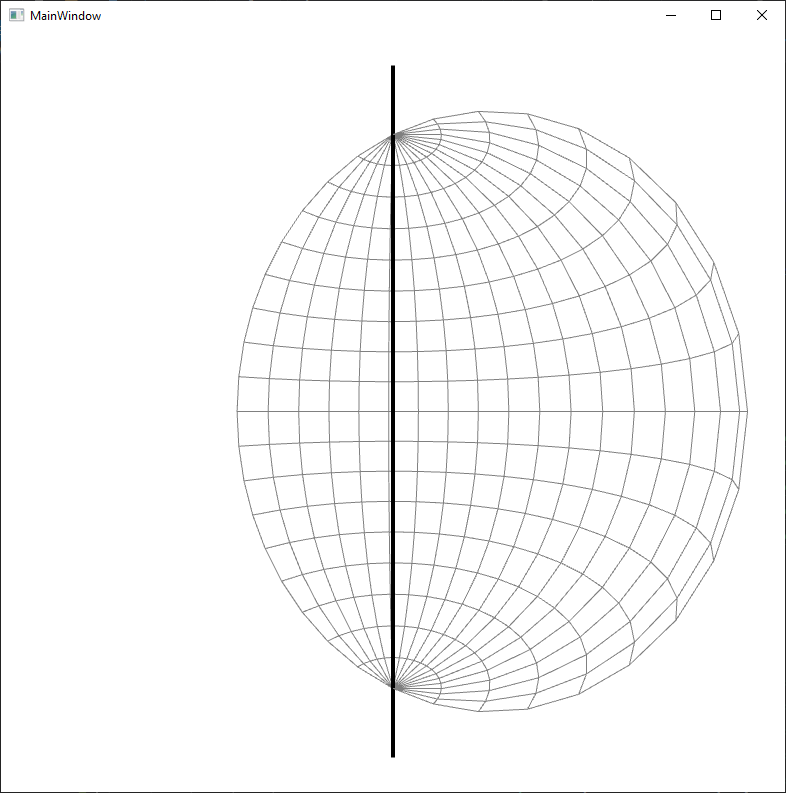

If I could get rid of these glitches, I'd go with this.

EDIT
----
Degree instead of Radian actually solves the protractor at the bottom and extra longitude issues, who knows why! With int currentPhi, currentTheta; and int dTheta = dPhi = 10, it's perfect:

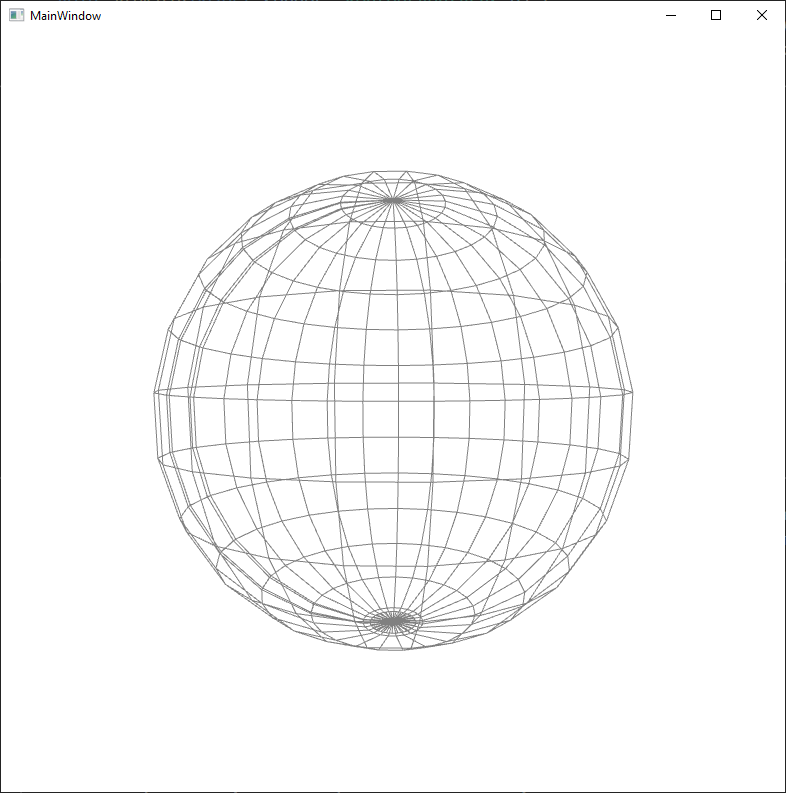

The only problem is the TextureCoordinates, that glitch (white strip) remains where both end of the image wants to meet.
