How to set corner radius to my listview selected item border

Question

Hello,

I have this listview

I added this code to set the border color of the selected item :

private async void ViewCell_Tapped(object sender, EventArgs e)
{
if (CrossConnectivity.Current.IsConnected)
{
var viewCell = (ViewCell)sender;
if (viewCell.View != null)
{
viewCell.View.BackgroundColor = Color.Red;
}
}
else
{
await DisplayAlert(AppResources.Error, AppResources.ErrorOccurred, AppResources.OK);
await CheckInternet();
}
}

I want to set a corner radius to the red border

Any Solutions please ?

Answer 1

Hello,

Welcome to our Microsoft Q&A platform!

Yes if there is a solution to disable the red part else i want to set a corner radius to the red part

if you want to change ListView selecteditem background color, need to use custom render to do this in Xamarin.Forms.

Firstly, create a class name is customcell which should inherit any ViewCell in shared code .

public class customcell:ViewCell
    {

        public static readonly BindableProperty SelectedItemBackgroundColorProperty = BindableProperty.Create("SelectedItemBackgroundColor", typeof(Color), typeof(customcell));
        public Color SelectedItemBackgroundColor
        {
            get
            {
                return (Color)GetValue(SelectedItemBackgroundColorProperty);
            }
            set
            {
                SetValue(SelectedItemBackgroundColorProperty, value);
            }
        }
    }

In Android project, create a class name as customcellRenderer and make sure to add renderer registration for our customcel class above the namespace.

[assembly: ExportRenderer(typeof(customcell), typeof(customcellRenderer))]
namespace CustomRenderer.Droid
{
    public class customcellRenderer : ViewCellRenderer
    {
        private Android.Views.View _cellCore;
        private Drawable _unselectedBackground;
        private bool _selected;
        protected override Android.Views.View GetCellCore(Cell item, Android.Views.View convertView, ViewGroup parent, Context context)
        {
            _cellCore = base.GetCellCore(item, convertView, parent, context);
            _selected = false;
            _unselectedBackground = _cellCore.Background;
            return _cellCore;
        }
        protected override void OnCellPropertyChanged(object sender, PropertyChangedEventArgs args)
        {
            base.OnCellPropertyChanged(sender, args);
            if (args.PropertyName == "IsSelected")
            {
                _selected = !_selected;
                if (_selected)
                {
                    var extendedViewCell = sender as customcell;

                    _cellCore.SetBackgroundColor(extendedViewCell.SelectedItemBackgroundColor.ToAndroid());
                }
                else
                {
                    _cellCore.SetBackground(_unselectedBackground);
                }
            }
        }
    }
}

Then set color for listview SelectedBackgroundColor.

<ContentPage
    x:Class="CustomRenderer.Page1"
    xmlns="http://xamarin.com/schemas/2014/forms"
    xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
    xmlns:custom="clr-namespace:CustomRenderer">
    <ContentPage.Resources>
        <custom:BoolToColorConverter x:Key="converter1" />
    </ContentPage.Resources>
    <ContentPage.Content>
        <StackLayout>
            <ListView
                HasUnevenRows="True"
                ItemsSource="{Binding Clients}"
                SelectedItem="{Binding placeItemSelected}">
                <ListView.ItemTemplate>
                    <DataTemplate>
                        <custom:customcell SelectedItemBackgroundColor="White">
                            <Frame
                                BackgroundColor="{Binding selected, Converter={StaticResource converter1}}"
                                BorderColor="Red"
                                CornerRadius="30">
                                <StackLayout>
                                    <Label Text="{Binding Name}" />
                                    <Label Text="{Binding Phone}" />
                                </StackLayout>
                            </Frame>
                        </custom:customcell>

                    </DataTemplate>
                </ListView.ItemTemplate>
            </ListView>
        </StackLayout>
    </ContentPage.Content>
</ContentPage>

Create BoolToColorConverter to change selected item frame background.

 public class BoolToColorConverter : IValueConverter
    {
        public object Convert(object value, Type targetType, object parameter, CultureInfo culture)
        {
            return (bool)value ? Color.Blue : Color.Gray;
        }

        public object ConvertBack(object value, Type targetType, object parameter, CultureInfo culture)
        {
            return null;
        }
    }

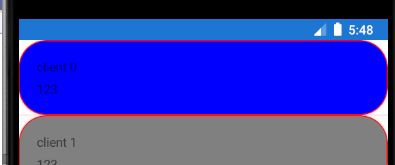

The screenshot:

Update:

I suggest you can use CollectionView to display data instead of ListView, because CollectionView don't need to use ViewCell.

 <ContentPage.Resources>

        <Style TargetType="Frame">
            <Setter Property="VisualStateManager.VisualStateGroups">
                <VisualStateGroupList>
                    <VisualStateGroup x:Name="CommonStates">
                        <VisualState x:Name="Normal" />
                        <VisualState x:Name="Selected">
                            <VisualState.Setters>
                                <Setter Property="BackgroundColor" Value="Blue" />
                            </VisualState.Setters>
                        </VisualState>
                    </VisualStateGroup>
                </VisualStateGroupList>
            </Setter>
        </Style>
    </ContentPage.Resources>
    <ContentPage.Content>
        <StackLayout>


            <CollectionView
                ItemsSource="{Binding Clients}"
                SelectedItem="{Binding placeItemSelected}"
                SelectionMode="Single">
                <CollectionView.ItemTemplate>
                    <DataTemplate>
                        <Frame BackgroundColor="Gray" CornerRadius="20">
                            <StackLayout>
                                <Label Text="{Binding Name}" />
                                <Label Text="{Binding Phone}" />
                            </StackLayout>
                        </Frame>
                    </DataTemplate>
                </CollectionView.ItemTemplate>
            </CollectionView>
        </StackLayout>
    </ContentPage.Content>

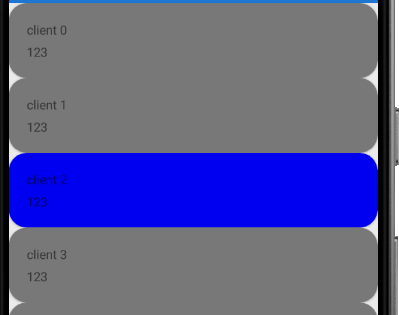

The Screenshot:

Best Regards,

Cherry Bu

---
