Creating Multiple work sheet from multiple thread throwing error root level is invalid

Question

I am using EPPlus to generate excel file with multiple sheets.I am trying to add multiple worksheet to a single excel file from different thread and getting ambiguous error message root level is invalid

Here is my code. please some one have look and tell me what i am doing wrong in my code ?

ExcelPackage excelPackage = null;
private void button1_Click(object sender, EventArgs e)
{
    string exclpath = @"d:\Test1.xlsx";

    FileInfo fi = new FileInfo(@exclpath);
    excelPackage = new ExcelPackage(fi);

    Action[] actions;

    actions = new Action[]
    {
        () => Test1(),
        () => Test2()
    };

    Parallel.Invoke(actions);
    excelPackage.Save();
}

private void Test1()
{
    OfficeOpenXml.ExcelWorksheet ws = excelPackage.Workbook.Worksheets.Add("Delta");
    ws.Cells[1, 1].Value = "Test Delta";
}

private void Test2()
{
    OfficeOpenXml.ExcelWorksheet ws = excelPackage.Workbook.Worksheets.Add("Horizontal");
    ws.Cells[1, 1].Value = "Test Horizontal";
}

Please guide me how can i add multiple sheets with data from different thread into single excel file. is it not possible ?

if possible please guide me. Thanks

Answer 1

According to their documentation, you need to add LicenseContext to the code.

 ExcelPackage.LicenseContext = OfficeOpenXml.LicenseContext.Commercial;
 ExcelPackage.LicenseContext = OfficeOpenXml.LicenseContext.NonCommercial;

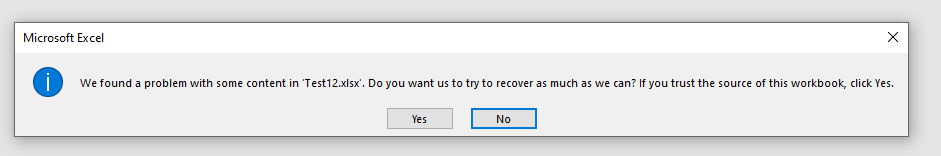

When I test this code, if I call Test1 or Test2 alone, there will be no problems with the code, but when I call both at the same time, the generated excel file will look like this:

This seems to be a problem caused by this package. I suggest you go to the github repository they provide to ask questions about this package.

In addition, do you consider other packages, such as OpenXML, I used this package to write a similar code:

       static SpreadsheetDocument spreadsheetDocument;
        static Sheets sheets;
        static WorksheetPart worksheetPart;
        public static void M1()
        {
            string filePath = @"d:\test\excel\output.xlsx";
            spreadsheetDocument = SpreadsheetDocument.Create(filePath, SpreadsheetDocumentType.Workbook);

            WorkbookPart workbookpart = spreadsheetDocument.AddWorkbookPart();
            workbookpart.Workbook = new Workbook();
            sheets = spreadsheetDocument.WorkbookPart.Workbook.AppendChild<Sheets>(new Sheets());
            worksheetPart = workbookpart.AddNewPart<WorksheetPart>();
            worksheetPart.Worksheet = new Worksheet(new SheetData());

            Action[] actions;

            actions = new Action[]
            {
                 () => WorkM1(),
                 () => WorkM2()
            };

            Parallel.Invoke(actions);

            workbookpart.Workbook.Save();
            spreadsheetDocument.Close();
        }
        public static void WorkM1()
        {
            Sheet sheet = new Sheet()
            {
                Id = spreadsheetDocument.WorkbookPart.GetIdOfPart(worksheetPart),
                SheetId = 2,
                Name = new StringValue("Sheet1")
            };
            sheets.Append(sheet);
        }
        public static void WorkM2()
        {
            Sheet sheet = new Sheet()
            {
                Id = spreadsheetDocument.WorkbookPart.GetIdOfPart(worksheetPart),
                SheetId = 3,
                Name = new StringValue("Sheet2")
            };
            sheets.Append(sheet);
        }

---
