WPF DataGridCheckBoxColumn Control question

929Free 281 Reputation points
2020-06-19T02:39:51.367+00:00

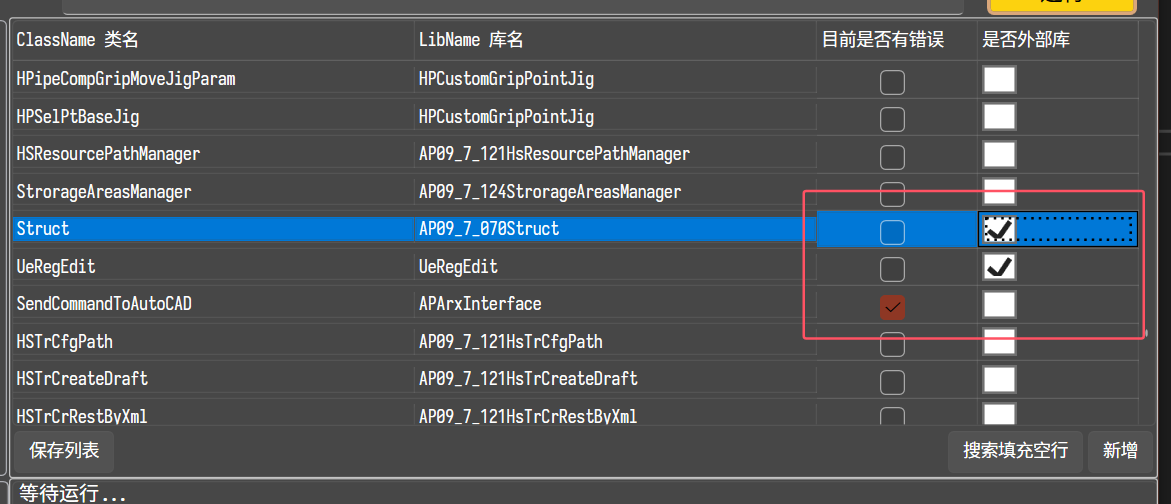

Hello, I need modify DataGridCheckBoxColumn Control inside checkbox size, but i don't find a way to modify it, Who can tell me ? Thanks

Windows Presentation Foundation
Windows Presentation Foundation
A part of the .NET Framework that provides a unified programming model for building line-of-business desktop applications on Windows.
2,709 questions
0 comments No comments
{count} votes

Accepted answer
  1. gekka 8,061 Reputation points MVP
    2020-06-19T03:37:03.587+00:00

    CheckBoxes can be changed by setting the ElementStyle property.

    <DataGrid DataContext="ABC" ItemsSource="{Binding}" >
        <DataGrid.Columns >

            <DataGridCheckBoxColumn  Header="CheckBox">
                <DataGridCheckBoxColumn.ElementStyle>
                    <Style TargetType="{x:Type CheckBox}">
                        <Setter Property="LayoutTransform">
                            <Setter.Value>
                                <ScaleTransform ScaleX="2" ScaleY="2" />
                            </Setter.Value>
                        </Setter>
                    </Style>
                </DataGridCheckBoxColumn.ElementStyle>
            </DataGridCheckBoxColumn>

        </DataGrid.Columns>
    </DataGrid>


1 additional answer

Sort by: Most helpful
  1. Peter Fleischer (former MVP) 19,311 Reputation points
    2020-06-19T04:46:42.88+00:00

    Hi, try this MVVM demo to add column by code. Include System.Windows.Interactivity from Nuget.

    <Window x:Class="WpfApp1.Window49"
            xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
            xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
            xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
            xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
            xmlns:local="clr-namespace:WpfApp49"
            xmlns:i="clr-namespace:System.Windows.Interactivity;assembly=System.Windows.Interactivity"
            mc:Ignorable="d"
            Title="Window49" Height="450" Width="800">
      <Window.DataContext>
        <local:ViewModel/>
      </Window.DataContext>
        <Grid>
        <DataGrid ItemsSource="{Binding View}" AutoGenerateColumns="False">
          <i:Interaction.Behaviors>
            <local:DataGridBehavior/>
          </i:Interaction.Behaviors>
        </DataGrid>
        </Grid>
    </Window>


    --------------------------------------------------------

    using System.Collections.Generic;
    using System.Windows;
    using System.Windows.Controls;
    using System.Windows.Data;
    using System.Windows.Interactivity;
    using System.Windows.Media;

    namespace WpfApp49
    {
      public class ViewModel
      {
        public List<Data> View { get => GetData(); }
        private List<Data> GetData()
        {
          var l = new List<Data>();
          for (int i = 0; i < 10; i++) l.Add(new Data() { ID = i });
          return l;
        }

        public class Data
        {
          public int ID { get; set; }
          public bool Switch { get; set; } = true;
        }
      }
      public class DataGridBehavior : Behavior<DataGrid>
      {
        protected override void OnAttached()
        {
          AssociatedObject.Columns.Add(new DataGridTextColumn() { Header = "ID", Binding = new Binding("ID") });
          var dgcbc = new DataGridCheckBoxColumn() { Header = "Switch", Binding = new Binding("Switch") };
          AssociatedObject.Columns.Add(dgcbc);
          var st = new Style() { TargetType = typeof(DataGridCell) };
          st.Setters.Add(new Setter() { Property = DataGridCell.LayoutTransformProperty, Value = new ScaleTransform() { ScaleX = 2, ScaleY = 2 } });
          dgcbc.CellStyle = st;
        }
      }
    }
