Creating A Sliding Animation When Using layout_rowWeight

Question

I want to "slide" a GridLayout out of view (shrink the height to 0 & clip the edge until it has a height of 0). I currently have the following GridLayout:

<GridLayout android:id="@+id/grdPlaces"
	android:layout_width="match_parent" android:layout_height="0dp" android:layout_rowWeight="1"
	android:layout_column="0" android:layout_row="0" android:layout_columnSpan="2" android:layout_rowSpan="3"
	android:layout_marginLeft="25dp" android:layout_marginRight="25dp" android:columnCount="1" android:rowCount="2"
	android:background="@color/Gray">
	<TextView style="@style/PopupHeaderTextViewStyle" android:text="Current Winners"/>
	<androidx.recyclerview.widget.RecyclerView android:background="@color/Yellow" android:id="@+id/rvPlaces"
		android:layout_width="match_parent" android:layout_height="0dp" android:layout_row="1" android:layout_rowWeight="1"
		android:layout_margin="0dp" android:padding="0dp" android:scrollbars="none"/>
</GridLayout>

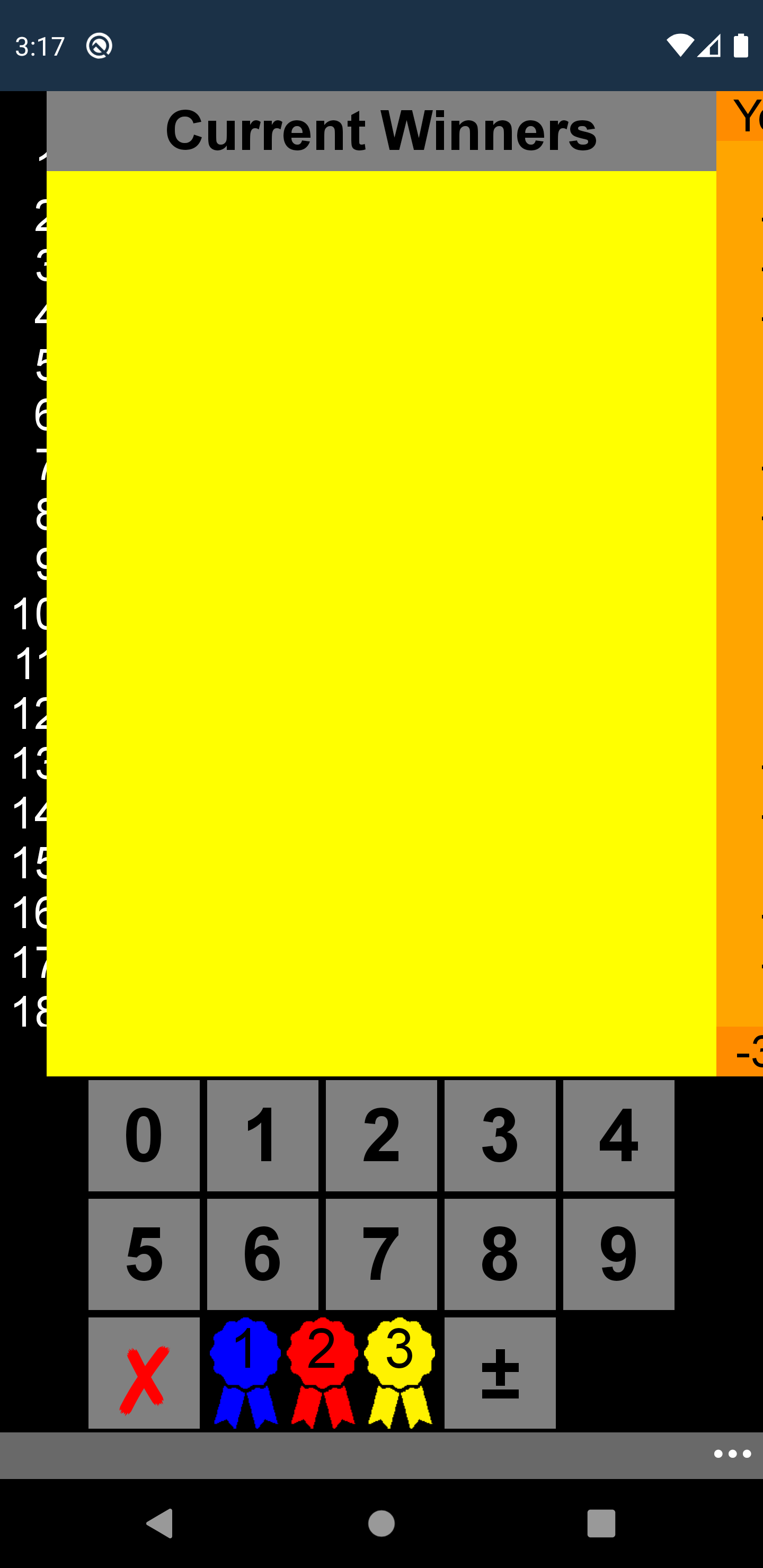

This gives me the following:

However, you will notice that my GridLayout uses android:layout_height="0dp" & android:layout_rowWeight="1" rather than a fixed height. Therefore, I am not sure what to use as the start value for the height & the end value for translation. I also thought about using android:layout_marginTop, but it still requires me to know the end value. How can I do this when the height is dynamically determined using layout_rowWeight?

Answer 1

Hello,

Welcome to our Microsoft Q&A platform!

Now visibility change animations should be done via Transition API which available in support (androidx) package. Just call TransitionManager.beginDelayedTransition method with Slide transition then change visibility of the view.

I made a simple demo, you can refer to it:

using Android.App;
using Android.OS;
using Android.Runtime;
using Android.Views;
using Android.Widget;
using AndroidX.AppCompat.App;
using AndroidX.Transitions;

Button mPlayBtn;
bool flag = false;
protected override void OnCreate(Bundle savedInstanceState)
{
    base.OnCreate(savedInstanceState);
    Xamarin.Essentials.Platform.Init(this, savedInstanceState);
    // Set our view from the "main" layout resource
    SetContentView(Resource.Layout.activity_main);

    mPlayBtn = FindViewById<Button>(Resource.Id.playBtn);
    mPlayBtn.Click += MPlayBtn_Click;
}
private void MPlayBtn_Click(object sender, System.EventArgs e)
{
    toggle(flag);
}

private void toggle(bool show)
{
    LinearLayout redLayout = FindViewById<LinearLayout>(Resource.Id.redLayout);
    ViewGroup parent = FindViewById<LinearLayout>(Resource.Id.parent);

    Transition transition = new Slide((int)GravityFlags.Top);
    transition.SetDuration(600);
    transition.AddTarget(Resource.Id.redLayout);

    TransitionManager.BeginDelayedTransition(parent, transition);
    redLayout.Visibility = show ? ViewStates.Visible : ViewStates.Gone;

    flag = !flag;
}

The layout is:

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="vertical"
    android:id="@+id/parent"
    android:layout_width="match_parent"
    android:layout_height="match_parent">
    <GridLayout android:id="@+id/grdPlaces"
     android:layout_width="match_parent"  android:layout_rowWeight="1" android:layout_height="wrap_content"
     android:layout_column="0" android:layout_row="0" android:layout_columnSpan="2" android:layout_rowSpan="3"
     android:layout_marginLeft="25dp" android:layout_marginRight="25dp" android:columnCount="1" android:rowCount="2"
     android:background="@android:color/darker_gray">
        <TextView  android:text="Current Winners"
             android:layout_height="wrap_content" android:layout_width="match_parent"

            />
       <LinearLayout android:orientation="vertical"
        android:id="@+id/redLayout"
        android:layout_width="match_parent"
        android:layout_height="400dp"
        android:background="#5f00"
        android:layout_alignParentBottom="true" />
 </GridLayout>


    <Button
        android:id="@+id/playBtn"
        android:text="play"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"/>

</LinearLayout>

And there is a similar thread, you can check it :https://stackoverflow.com/questions/19765938/show-and-hide-a-view-with-a-slide-up-down-animation .

Best Regards,

Jessie Zhang

---
