Configure Multisite DFS

Question

HI Guys,

I have to configured multisite DFS, Please suggest best practices,Port requirements.

Please let me know bandwidth requirement between multisite replication of DFS.

Thanks
Vivs

Answer 1

Hi,
Based on my understanding, you want to create a DFS-Replication group, right?

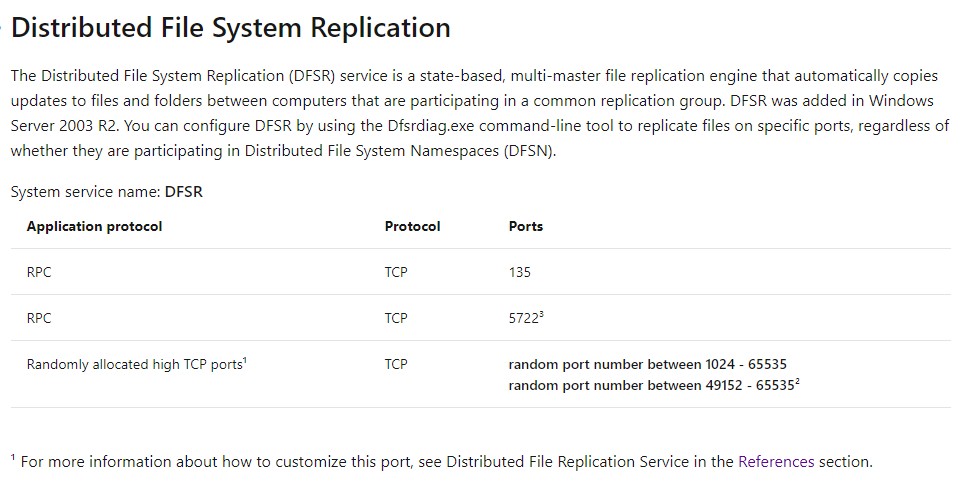

https://learn.microsoft.com/en-US/troubleshoot/windows-server/networking/service-overview-and-network-port-requirements

Based on my research, DFS Replication does not perform bandwidth sensing. You can configure DFS Replication to use a limited amount of bandwidth on a per-connection basis (bandwidth throttling).
For more information, you can refer to the following link:
https://learn.microsoft.com/en-us/previous-versions/windows/it-pro/windows-server-2003/cc773238(v=ws.10)?redirectedfrom=MSDN

Best Regards,

Answer 2

HI Guys, Thanks for the update, Please suggest port requirement between multisite clusters.

Do we need to open the ports between DC or Servers as we need to create the namespace on DC.

Answer 3

Hi,

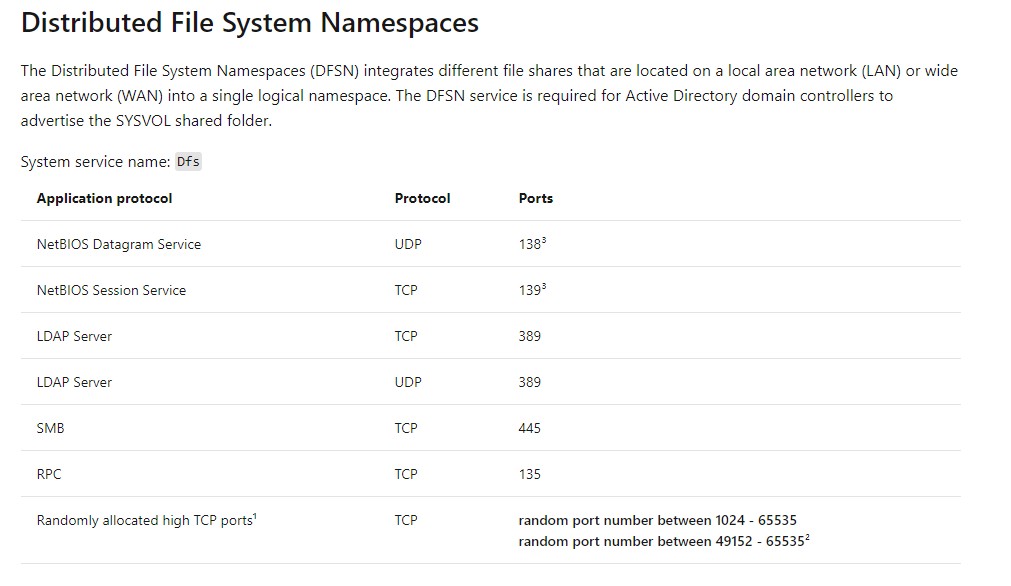

The ports required for DFSN:

Best Regards,
