Random BSOD

Anonymous
2024-10-01T16:41:29+00:00

I have presented several BSOD on my Window PC´s and I have read the minidump files:

WinDbg:

*******************************************************************************
*                                                                             *
*                        Bugcheck Analysis                                    *
*                                                                             *
*******************************************************************************

DRIVER_IRQL_NOT_LESS_OR_EQUAL (d1)
An attempt was made to access a pageable (or completely invalid) address at an
interrupt request level (IRQL) that is too high.  This is usually
caused by drivers using improper addresses.
If kernel debugger is available get stack backtrace.
Arguments:
Arg1: 0000000000000008, memory referenced
Arg2: 0000000000000002, IRQL
Arg3: 0000000000000000, value 0 = read operation, 1 = write operation
Arg4: fffff8064908d4b8, address which referenced memory

Debugging Details:
------------------

KEY_VALUES_STRING: 1

    Key  : Analysis.CPU.mSec
    Value: 3140

    Key  : Analysis.Elapsed.mSec
    Value: 4937

    Key  : Analysis.IO.Other.Mb
    Value: 0

    Key  : Analysis.IO.Read.Mb
    Value: 0

    Key  : Analysis.IO.Write.Mb
    Value: 0

    Key  : Analysis.Init.CPU.mSec
    Value: 484

    Key  : Analysis.Init.Elapsed.mSec
    Value: 3744

    Key  : Analysis.Memory.CommitPeak.Mb
    Value: 104

    Key  : Analysis.Version.DbgEng
    Value: 10.0.27704.1001

    Key  : Analysis.Version.Description
    Value: 10.2408.27.01 amd64fre

    Key  : Analysis.Version.Ext
    Value: 1.2408.27.1

    Key  : Bugcheck.Code.LegacyAPI
    Value: 0xd1

    Key  : Bugcheck.Code.TargetModel
    Value: 0xd1

    Key  : Failure.Bucket
    Value: AV_NETIO!StreamInvokeCalloutAndNormalizeAction

    Key  : Failure.Hash
    Value: {c2ca2d1f-cfdc-88d5-c7bc-7693b8f0de04}

    Key  : Hypervisor.Enlightenments.Value
    Value: 68673420

    Key  : Hypervisor.Enlightenments.ValueHex
    Value: 417df8c

    Key  : Hypervisor.Flags.AnyHypervisorPresent
    Value: 1

    Key  : Hypervisor.Flags.ApicEnlightened
    Value: 0

    Key  : Hypervisor.Flags.ApicVirtualizationAvailable
    Value: 1

    Key  : Hypervisor.Flags.AsyncMemoryHint
    Value: 0

    Key  : Hypervisor.Flags.CoreSchedulerRequested
    Value: 0

    Key  : Hypervisor.Flags.CpuManager
    Value: 1

    Key  : Hypervisor.Flags.DeprecateAutoEoi
    Value: 1

    Key  : Hypervisor.Flags.DynamicCpuDisabled
    Value: 1

    Key  : Hypervisor.Flags.Epf
    Value: 0

    Key  : Hypervisor.Flags.ExtendedProcessorMasks
    Value: 1

    Key  : Hypervisor.Flags.HardwareMbecAvailable
    Value: 1

    Key  : Hypervisor.Flags.MaxBankNumber
    Value: 0

    Key  : Hypervisor.Flags.MemoryZeroingControl
    Value: 0

    Key  : Hypervisor.Flags.NoExtendedRangeFlush
    Value: 0

    Key  : Hypervisor.Flags.NoNonArchCoreSharing
    Value: 1

    Key  : Hypervisor.Flags.Phase0InitDone
    Value: 1

    Key  : Hypervisor.Flags.PowerSchedulerQos
    Value: 0

    Key  : Hypervisor.Flags.RootScheduler
    Value: 0

    Key  : Hypervisor.Flags.SynicAvailable
    Value: 1

    Key  : Hypervisor.Flags.UseQpcBias
    Value: 0

    Key  : Hypervisor.Flags.Value
    Value: 21631230

    Key  : Hypervisor.Flags.ValueHex
    Value: 14a10fe

    Key  : Hypervisor.Flags.VpAssistPage
    Value: 1

    Key  : Hypervisor.Flags.VsmAvailable
    Value: 1

    Key  : Hypervisor.RootFlags.AccessStats
    Value: 1

    Key  : Hypervisor.RootFlags.CrashdumpEnlightened
    Value: 1

    Key  : Hypervisor.RootFlags.CreateVirtualProcessor
    Value: 1

    Key  : Hypervisor.RootFlags.DisableHyperthreading
    Value: 0

    Key  : Hypervisor.RootFlags.HostTimelineSync
    Value: 1

    Key  : Hypervisor.RootFlags.HypervisorDebuggingEnabled
    Value: 0

    Key  : Hypervisor.RootFlags.IsHyperV
    Value: 1

    Key  : Hypervisor.RootFlags.LivedumpEnlightened
    Value: 1

    Key  : Hypervisor.RootFlags.MapDeviceInterrupt
    Value: 1

    Key  : Hypervisor.RootFlags.MceEnlightened
    Value: 1

    Key  : Hypervisor.RootFlags.Nested
    Value: 0

    Key  : Hypervisor.RootFlags.StartLogicalProcessor
    Value: 1

    Key  : Hypervisor.RootFlags.Value
    Value: 1015

    Key  : Hypervisor.RootFlags.ValueHex
    Value: 3f7

    Key  : WER.OS.Branch
    Value: vb_release

    Key  : WER.OS.Version
    Value: 10.0.19041.1

BUGCHECK_CODE:  d1

BUGCHECK_P1: 8

BUGCHECK_P2: 2

BUGCHECK_P3: 0

BUGCHECK_P4: fffff8064908d4b8

FILE_IN_CAB:  092624-23046-01.dmp

TAG_NOT_DEFINED_202b:  *** Unknown TAG in analysis list 202b

FAULTING_THREAD:  ffffe202a7ec9080

READ_ADDRESS: fffff806456fb390: Unable to get MiVisibleState
Unable to get NonPagedPoolStart
Unable to get NonPagedPoolEnd
Unable to get PagedPoolStart
Unable to get PagedPoolEnd
unable to get nt!MmSpecialPagesInUse
 0000000000000008

BLACKBOXBSD: 1 (!blackboxbsd)

BLACKBOXNTFS: 1 (!blackboxntfs)

BLACKBOXPNP: 1 (!blackboxpnp)

BLACKBOXWINLOGON: 1

CUSTOMER_CRASH_COUNT:  1

PROCESS_NAME:  msedge.exe

TRAP_FRAME:  ffffb5857d22dfc0 -- (.trap 0xffffb5857d22dfc0)
NOTE: The trap frame does not contain all registers.
Some register values may be zeroed or incorrect.
rax=0000000000000000 rbx=0000000000000000 rcx=ffffb5857d22e2c8
rdx=ffffe202a763ab60 rsi=0000000000000000 rdi=0000000000000000
rip=fffff8064908d4b8 rsp=ffffb5857d22e150 rbp=ffffb5857d22e1c9
 r8=ffffe202a763ac30  r9=000000000000000c r10=ffffe2028cb0aed0
r11=0000000000000000 r12=0000000000000000 r13=0000000000000000
r14=0000000000000000 r15=0000000000000000
iopl=0         nv up ei pl zr na po nc
NETIO!StreamInvokeCalloutAndNormalizeAction+0x5c:
fffff806`4908d4b8 488b4808        mov     rcx,qword ptr [rax+8] ds:00000000`00000008=????????????????
Resetting default scope

STACK_TEXT:
ffffb585`7d22de78 fffff806`44e12ba9     : 00000000`0000000a 00000000`00000008 00000000`00000002 00000000`00000000 : nt!KeBugCheckEx
ffffb585`7d22de80 fffff806`44e0e578     : ffffb585`7d22e018 ffffe202`a4387f10 00000000`00000001 01b00030`00000050 : nt!KiBugCheckDispatch+0x69
ffffb585`7d22dfc0 fffff806`4908d4b8     : ffffe202`a763ac30 ffffb585`7d22e1c9 ffffb585`7d22e290 ffffe202`a763ac30 : nt!KiPageFault+0x478
ffffb585`7d22e150 fffff806`4908d1c4     : ffffb585`7d22e5b0 ffffe202`a763ab60 00000000`00000000 ffffe202`a763ac30 : NETIO!StreamInvokeCalloutAndNormalizeAction+0x5c
ffffb585`7d22e220 fffff806`4908c7cf     : 00000000`00000014 fffff806`a5884cd0 ffffe202`00000000 ffffb585`7d22ec30 : NETIO!StreamProcessCallout+0x3fc
ffffb585`7d22e350 fffff806`4908962b     : ffffe202`8c000014 ffffb585`7d22ec30 ffffb585`7d22ec60 ffffb585`7d22eae0 : NETIO!ProcessCallout+0x76f
ffffb585`7d22e4d0 fffff806`490881ca     : ffffe202`a99a86e0 ffffb585`7d22e730 ffffe202`00000001 ffffb585`7d22e66c : NETIO!ArbitrateAndEnforce+0x71b
ffffb585`7d22e630 fffff806`490878db     : ffffe202`8cb0b410 ffffb585`7d22eb30 ffffb585`7d22eb30 ffffe202`a72a0c50 : NETIO!KfdClassify+0x37a
ffffb585`7d22ea30 fffff806`490874fa     : 00000000`00315229 00000000`00315229 ffffb585`7d22f850 00000000`00000001 : NETIO!StreamClassify+0x28b
ffffb585`7d22ebd0 fffff806`49087198     : 00000000`00000000 ffffb585`7d22f340 00000000`00000014 00000000`00000000 : NETIO!StreamCommonInspect+0x282
ffffb585`7d22efc0 fffff806`491705a9     : ffffb585`7d22f100 ffffb585`7d22f340 ffffb585`7d22f0c1 ffffb585`7d22f0e8 : NETIO!WfpStreamInspectSend+0x2a8
ffffb585`7d22f050 fffff806`4916feae     : 00000000`00000000 00000000`00000000 ffffb585`7d22f2b0 fffff806`4916fe80 : tcpip!TcpEnqueueTcbSend+0x6d9
ffffb585`7d22f190 fffff806`44c914a8     : ffffe202`9de91001 00000000`00000000 00000000`00000000 00000000`00000001 : tcpip!TcpTlConnectionSendCalloutRoutine+0x2e
ffffb585`7d22f1d0 fffff806`44c9141d     : fffff806`4916fe80 ffffb585`7d22f2b0 ffffe202`a82951b8 00000000`00000000 : nt!KeExpandKernelStackAndCalloutInternal+0x78
ffffb585`7d22f240 fffff806`491d9560     : 00000000`00000000 00000000`00000000 ffffb585`7d22f890 fffff806`44c74c08 : nt!KeExpandKernelStackAndCalloutEx+0x1d
ffffb585`7d22f280 fffff806`607afd00     : ffffe202`a82951b8 ffffe202`9de91030 00000000`0000005c ffffe202`a82951b8 : tcpip!TcpTlConnectionSend+0x80
ffffb585`7d22f2f0 fffff806`607afb2a     : ffffe202`9de91030 ffffb585`7d22fac0 ffffe202`99817d50 ffffe202`a8295280 : afd!AfdTLStartBufferedVcSend+0xa0
ffffb585`7d22f3a0 fffff806`60795130     : ffffe202`a82951b8 ffffb585`7d22f5b4 ffffe202`0000005c ffffb585`7d22f890 : afd!AfdFastConnectionSend+0x2a2
ffffb585`7d22f470 fffff806`4502c9c6     : 00000000`00000000 00000000`00000000 ffffb585`7d22fac0 ffffe202`a7c75540 : afd!AfdFastIoDeviceControl+0xf90
ffffb585`7d22f810 fffff806`4502c226     : 00000001`fbc34401 00000000`00000604 00000000`00000000 00002384`01cd0950 : nt!IopXxxControlFile+0x786
ffffb585`7d22f960 fffff806`44e12305     : ffffe202`a7ec9080 000000bd`ce7ff3b8 ffffb585`7d22f9e8 000002b9`ae0c3d08 : nt!NtDeviceIoControlFile+0x56
ffffb585`7d22f9d0 00007ffb`1346d644     : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : nt!KiSystemServiceCopyEnd+0x25
000000bd`ce7fe058 00000000`00000000     : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : 0x00007ffb`1346d644

SYMBOL_NAME:  NETIO!StreamInvokeCalloutAndNormalizeAction+5c

MODULE_NAME: NETIO

IMAGE_NAME:  NETIO.SYS

IMAGE_VERSION:  10.0.19041.4355

STACK_COMMAND:  .process /r /p 0xffffe202a485d080; .thread 0xffffe202a7ec9080 ; kb

BUCKET_ID_FUNC_OFFSET:  5c

FAILURE_BUCKET_ID:  AV_NETIO!StreamInvokeCalloutAndNormalizeAction

OS_VERSION:  10.0.19041.1

BUILDLAB_STR:  vb_release

OSPLATFORM_TYPE:  x64

OSNAME:  Windows 10

FAILURE_ID_HASH:  {c2ca2d1f-cfdc-88d5-c7bc-7693b8f0de04}

Followup:     MachineOwner
---------

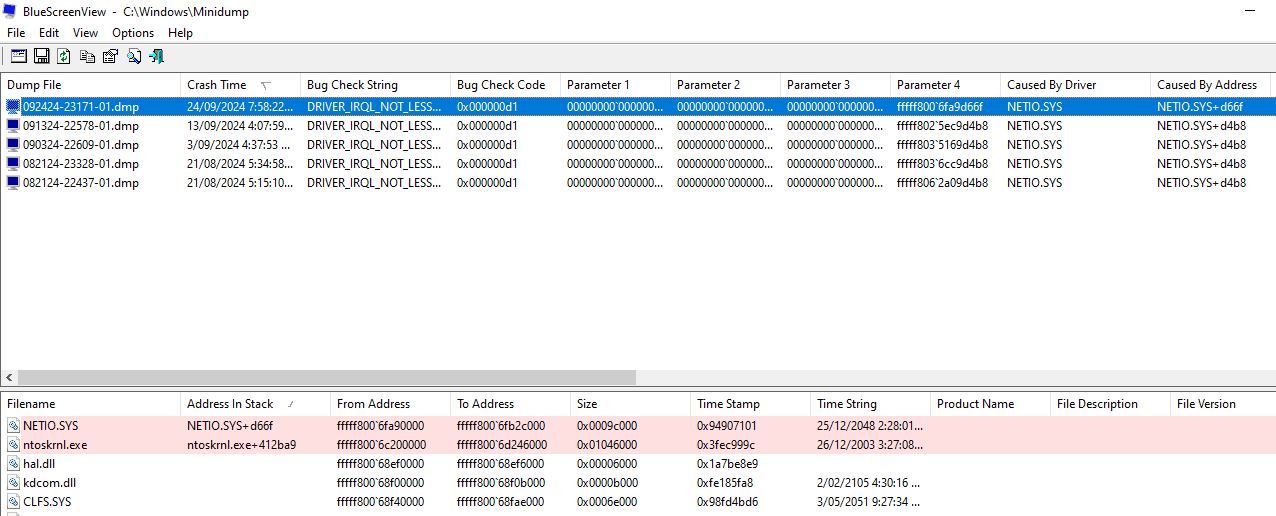

Blue Screen View:

Which could be the solution base on the previous information?

Thanks

Windows for home | Windows 10 | Performance and system failures

Locked Question. This question was migrated from the Microsoft Support Community. You can vote on whether it's helpful, but you can't add comments or replies or follow the question.

0 comments

1 answer

Sort by: Most helpful
Most helpful Newest Oldest
  1. DaveM121 (2) 14,210 Reputation points Volunteer Moderator
    2024-10-01T17:21:03+00:00

    Your minidump file indicates a problem with the network drivers.

    Go to the support page for your PC on the manufacturers website, then from there, donwlaod and re-install (not update) the version of network drivers they provide.
