How to use a custom icon in tab page xamarin forms?

Question

I made a tabbed page,and want to use custom tab icon,but the icon is not showing actual image,its changes the overlay.

Here is my tabs

I want to like this middle icon

how to do it using tabbed page in xamarin forms

Answer 1

Hello,​

Welcome to our Microsoft Q&A platform!

Please add following custom renderer for tabbedpage.

   using Android.App;
   using Android.Content;
   using Android.OS;
   using Android.Runtime;
   using Android.Views;
   using Android.Widget;
   using Google.Android.Material.BottomNavigation;
   using System;
   using System.Collections.Generic;
   using System.Linq;
   using System.Text;
   using TabbedPageWithNavigationPage.Droid;
   using Xamarin.Forms;
   using Xamarin.Forms.Platform.Android;
   using Xamarin.Forms.Platform.Android.AppCompat;

   [assembly: ExportRenderer(typeof(TabbedPage), typeof(MyTabbedPageRenderer))]
   namespace TabbedPageWithNavigationPage.Droid
   {
       class MyTabbedPageRenderer : TabbedPageRenderer
       {
           public MyTabbedPageRenderer(Context context) : base(context)
           {

           }

           protected override void OnElementChanged(ElementChangedEventArgs<TabbedPage> e)
           {
               base.OnElementChanged(e);

               if (e.OldElement == null && e.NewElement != null)
               {
                   for (int i = 0; i <= this.ViewGroup.ChildCount - 1; i++)
                   {
                       var childView = this.ViewGroup.GetChildAt(i);
                       if (childView is ViewGroup viewGroup)
                       {
                           for (int j = 0; j <= viewGroup.ChildCount - 1; j++)
                           {
                               var childRelativeLayoutView = viewGroup.GetChildAt(j);
                               if (childRelativeLayoutView is BottomNavigationView)
                               {
                                   ((BottomNavigationView)childRelativeLayoutView).ItemIconTintList = null;
                               }
                           }
                       }
                   }
               }
           }
       }
   }

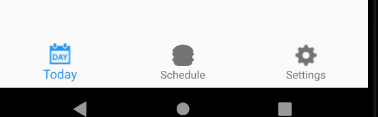

Before

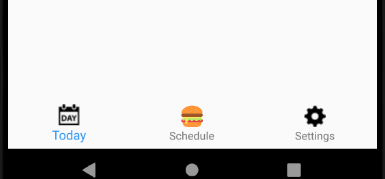

After

Best Regards,

Leon Lu

---

If the response is helpful, please click "Accept Answer" and upvote it.
