How to collapse/hide ListBoxItem

Question

I've been adding search/filter functionalities in Edit Views and in two sub views, Transaction and Lease, I'd have to add some additional string properties in the Model if I want to add that functionality in the same way I did in other sub views like Plot, Space and Tenant:

in the ListBox of Lease view, I've Egypt: A/ Egypt: B and these have been converted with some IValueConverter this way in the DataTemplate:

space.SetBinding(Run.TextProperty, new Binding(nameof(Lease.SpaceId)) { Converter = App.convert.spaceId2spaceName });
tenant.SetBinding(Run.TextProperty, new Binding(nameof(Lease.TenantId)) { Converter = App.convert.tenantId2TenantName });

and similarly in the Transaction view, those values like BD: A | Receivable => Rent ... have been converted in this way:

...
var tenant = new FrameworkElementFactory(typeof(Run)) { Name = "tenant" };
...
space.SetBinding(Run.TextProperty, new Binding(nameof(Transaction.SpaceId)) { Converter = App.convert.spaceId2spaceName });
tenant.SetBinding(Run.TextProperty, new Binding(nameof(Transaction.TenantId)) { Converter = App.convert.tenantId2TenantName });
control.SetBinding(Run.TextProperty, new Binding(nameof(Transaction.ControlId)) { Converter = App.convert.controlId2ControlName });
head.SetBinding(Run.TextProperty, new Binding(nameof(Transaction.HeadId)) { Converter = App.convert.headId2headName });
isCash.SetBinding(BiState.IsTrueProperty, new Binding(nameof(Transaction.IsCash)));
amount.SetBinding(TextBlock.TextProperty, new Binding(nameof(Transaction.Amount)) { StringFormat = "N0" });

so these two views don't have string properties I could add filter on. Instead of changing Lease and Transaction models, I wanted to search the content of the ListBoxItem and hide/show based on the query string of the searchbox. I've this event and handler in the Transaction view:

search.TextChanged += onQueryChanged;
void onQueryChanged(string query) {
    Debug.WriteLine(query);
    foreach (Transaction item in transactions.Items) {
        var listItem = (ListBoxItem)transactions.ItemContainerGenerator.ContainerFromItem(item);
        var grid = listItem.ContentTemplate;
        //grid.FindName("tenant", grid.VisualTree);
        //listItem.Visibility = Visibility.Collapsed;
    }
}

now, how to get the tenant string from the ContentTemplate and collapse ListBoxItem?

Answer 1

I made a sample to filter objects in ListBox, the groups hide when filter condition doesn't exist. It may give you some help.
XAML code:

 <Window.DataContext>
        <local:ViewModel></local:ViewModel>
    </Window.DataContext>
    <Grid>
        <Grid.RowDefinitions>
            <RowDefinition Height="30"></RowDefinition>
            <RowDefinition></RowDefinition>
        </Grid.RowDefinitions>
        <StackPanel Orientation="Horizontal" Margin="2">
            <Label>Name：</Label>
            <TextBox Width="100" Text="{Binding NameFilterStr,Mode=TwoWay, UpdateSourceTrigger=PropertyChanged}"></TextBox>
        </StackPanel>
        <ListBox Name="lbMain"  Grid.Row="1" ItemsSource="{Binding StudentListView}">
            <ListBox.ItemTemplate>
                <DataTemplate>
                    <StackPanel Orientation="Horizontal">
                        <TextBlock Text="{Binding Name}"
                            Width="150" />
                        <TextBlock Text="{Binding Age}"
                            Width="100" />
                        <TextBlock Text="{Binding Description}"
                            Width="100" />
                    </StackPanel>
                </DataTemplate>
            </ListBox.ItemTemplate>
            <ListBox.GroupStyle>
                <GroupStyle>
                    <GroupStyle.ContainerStyle>
                        <Style TargetType="{x:Type GroupItem}">
                            <Setter Property="Template">
                                <Setter.Value>
                                    <ControlTemplate TargetType="{x:Type GroupItem}">
                                        <Expander IsExpanded="True" ExpandDirection="Down">
                                            <Expander.Header>
                                                <StackPanel Orientation="Horizontal">
                                                    <TextBlock Text="Age:"></TextBlock>
                                                    <TextBlock Text="{Binding Path=Name}" VerticalAlignment="Center" />
                                                    <TextBlock Text="{Binding Path=ItemCount, StringFormat=Count:{0}}"
                                                        VerticalAlignment="Center"
                                                        Margin="5,0,0,0" />
                                                </StackPanel>
                                            </Expander.Header>
                                            <ItemsPresenter />
                                        </Expander>
                                    </ControlTemplate>
                                </Setter.Value>
                            </Setter>
                        </Style>
                    </GroupStyle.ContainerStyle>
                </GroupStyle>
            </ListBox.GroupStyle>
        </ListBox>
    </Grid>

C# code is:

public class ViewModel : INotifyPropertyChanged
    {
        public event PropertyChangedEventHandler PropertyChanged;

        private List<Student> students = new List<Student>();
        public List<Student> Students
        {
            get { return students; }
            set { students = value; }
        }

        private string nameFilterStr;

        public string NameFilterStr
        {
            get { return nameFilterStr; }
            set
            {
                nameFilterStr = value;
                this.PropertyChanged?.Invoke(this, new PropertyChangedEventArgs("NameFilterStr"));
                StudentListView.Refresh();
            }
        }

        public ListCollectionView StudentListView { get; set; }
        public ViewModel()
        {
            StudentListView = new ListCollectionView(Students);
            Students.Add(new Student() { Name = "AA1", Age = 12, Description = "654646" });
            Students.Add(new Student() { Name = "AA2", Age = 12, Description = "7967969" });
            Students.Add(new Student() { Name = "AA3", Age = 13, Description = "11111123" });
            Students.Add(new Student() { Name = "BB1", Age = 14, Description = "123131" });
            Students.Add(new Student() { Name = "BB6", Age = 13, Description = "232525" });
            Students.Add(new Student() { Name = "BB7", Age = 16, Description = "57474674" });

            StudentListView.GroupDescriptions.Add(new PropertyGroupDescription("Age"));
            StudentListView.Filter = Filter;
        }
        private bool Filter(object obj)
        {
            Student s = obj as Student;
            if (s == null) return false;

            if (string.IsNullOrEmpty(NameFilterStr))
            {
                return true;
            }
            else if (!string.IsNullOrEmpty(NameFilterStr))
            {
                if (s.Name.Contains(NameFilterStr))
                {
                    return true;
                }
                return false;
            }
            else
            {
                if (s.Name.Contains(NameFilterStr) )
                {
                    return true;
                }
                return false;
            }
        }
    }

    public class Student
    {
        public string Name { get; set; }
        public int Age { get; set; }
        public string Description { get; set; }
    }

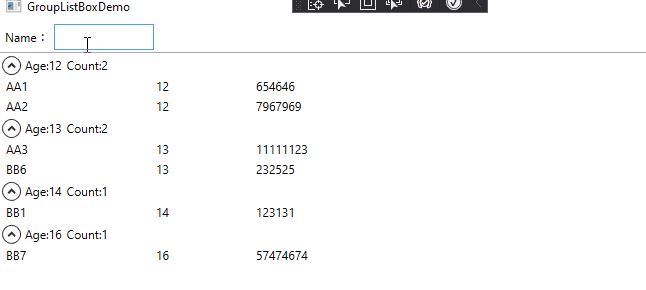

The Result picture is:

---

If the response is helpful, please click "Accept Answer" and upvote it.
Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.

Answer 2

FindVisualChild works, so with this:

void onQueryChanged(string query) {
    foreach (Transaction item in transactions.Items) {
        var listItem = (ListBoxItem)transactions.ItemContainerGenerator.ContainerFromItem(item);
        if (string.IsNullOrWhiteSpace(query))
            listItem.Visibility = Visibility.Visible;

        else {
            var presenter = FindVisualChild<ContentPresenter>(listItem);
            var grid = listItem.ContentTemplate;
            var tenant = (Run)grid.FindName("tenant", presenter);
            if (!tenant.Text.ToLower().Contains(query.Trim().ToLower())) {
                listItem.Visibility = Visibility.Collapsed;
            }
        }
    }
}

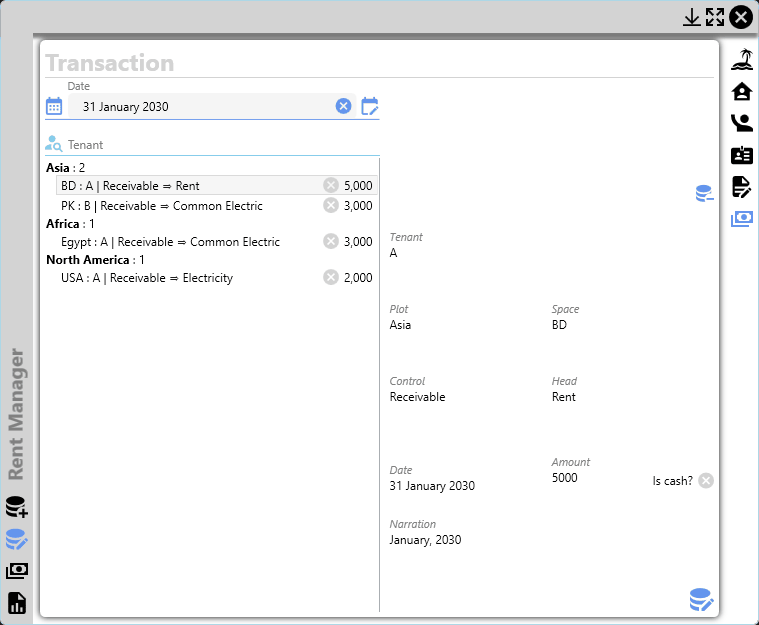

it works perfectly for A but for B there's a problem:

B doesn't exist in Africa and North America BUT those group names are still visible! I've tried with HidesIfEmpty = true in GroupStyle of the ListBox:

transactions = new ListBox() {
    BorderThickness = new Thickness(0, 0, 1, 0),
    HorizontalContentAlignment = HorizontalAlignment.Stretch,
    ItemTemplate = new TransactionTemplate(),
    GroupStyle = {
        new GroupStyle() {
            HidesIfEmpty = true,
            ContainerStyle = new Style(typeof(GroupItem)){
                Setters = {
                    new Setter(GroupItem.TemplateProperty, new GroupedTransactionTemplate())
                }
            }
        }
    }
};

BUT that doesn't work! How to hide those Groups where B doesn't exist?
