BSOD Help

Question

BSOD Help

Anonymous

Hello,

I'm not sure what is happening, but I have had some strange sporadic BSOD recently, ranging from gaming to system idle. It's rather a recent install of Windows 11.

I attempted to understand the .dmp but it's well out of my depths I have managed to obtain the following (if the actual file would help let me know)

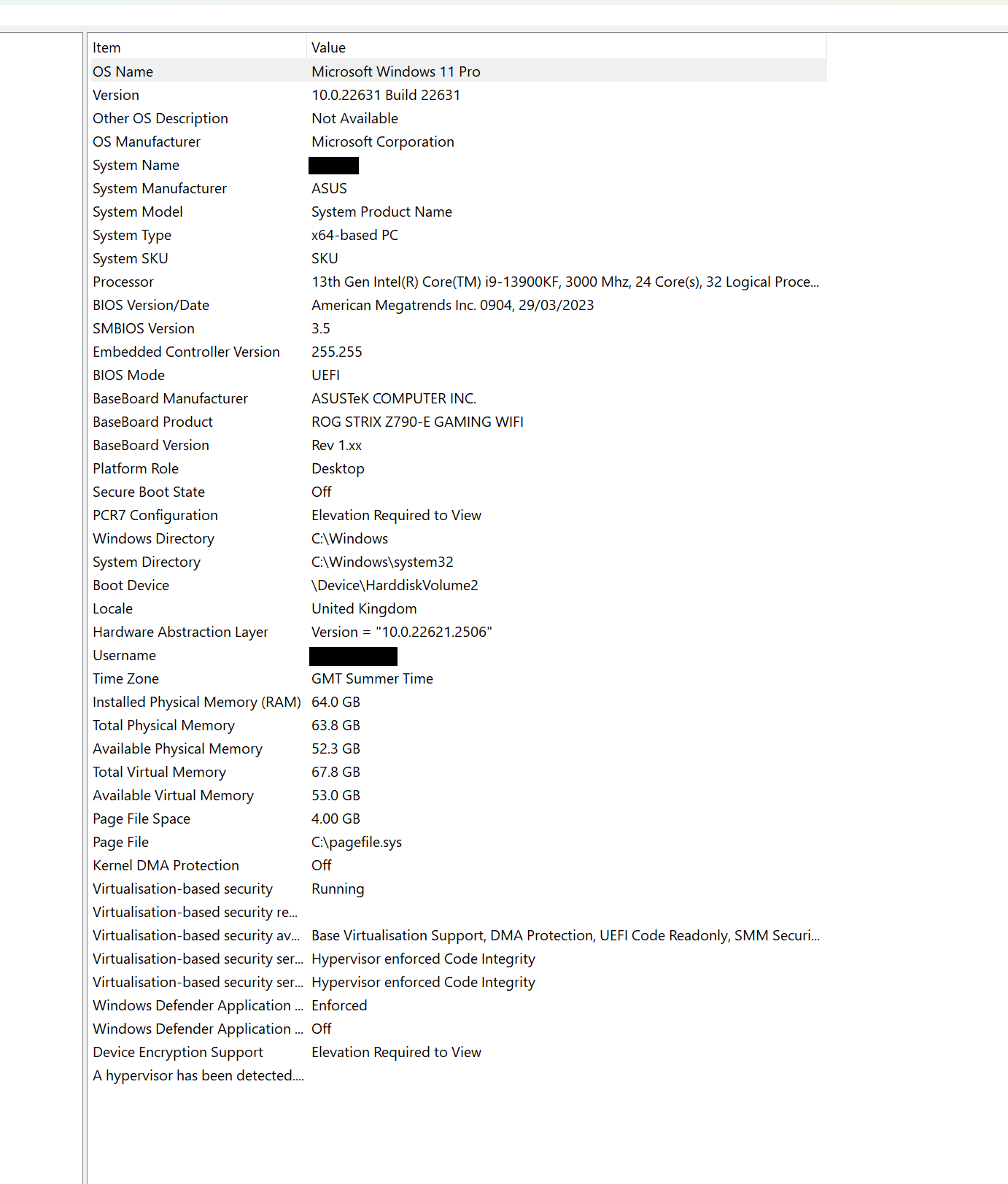

Screenshot attached of the system specification for reference- I have recently just turned off XMP as the BSOD would state "Memory Management".

************* Preparing the environment for Debugger Extensions Gallery repositories **************
   ExtensionRepository : Implicit
   UseExperimentalFeatureForNugetShare : true
   AllowNugetExeUpdate : true
   NonInteractiveNuget : true
   AllowNugetMSCredentialProviderInstall : true
   AllowParallelInitializationOfLocalRepositories : true

   EnableRedirectToV8JsProvider : false

   -- Configuring repositories
      ----> Repository : LocalInstalled, Enabled: true
      ----> Repository : UserExtensions, Enabled: true

>>>>>>>>>>>>> Preparing the environment for Debugger Extensions Gallery repositories completed, duration 0.000 seconds

************* Waiting for Debugger Extensions Gallery to Initialize **************

>>>>>>>>>>>>> Waiting for Debugger Extensions Gallery to Initialize completed, duration 0.031 seconds
   ----> Repository : UserExtensions, Enabled: true, Packages count: 0
   ----> Repository : LocalInstalled, Enabled: true, Packages count: 41

Microsoft (R) Windows Debugger Version 10.0.27553.1004 AMD64
Copyright (c) Microsoft Corporation. All rights reserved.

Loading Dump File [C:\Windows\Minidump\062224-7093-01.dmp]
Mini Kernel Dump File: Only registers and stack trace are available

Symbol search path is: srv*
Executable search path is:
Windows 10 Kernel Version 22621 MP (32 procs) Free x64
Product: WinNt, suite: TerminalServer SingleUserTS
Kernel base = 0xfffff802`35c00000 PsLoadedModuleList = 0xfffff802`36813150
Debug session time: Sat Jun 22 17:59:00.940 2024 (UTC + 1:00)
System Uptime: 0 days 23:07:29.612
Loading Kernel Symbols
...............................................................
................................................................
................................................................
.............................
Loading User Symbols
PEB is paged out (Peb.Ldr = 00000000`03087018).  Type ".hh dbgerr001" for details
Loading unloaded module list
................................
For analysis of this file, run !analyze -v
nt!KeBugCheckEx:
fffff802`3601a240 48894c2408      mov     qword ptr [rsp+8],rcx ss:0018:ffffcf00`5f52dc10=000000000000001a
4: kd> !analyze -v
*******************************************************************************
*                                                                             *
*                        Bugcheck Analysis                                    *
*                                                                             *
*******************************************************************************

MEMORY_MANAGEMENT (1a)
    # Any other values for parameter 1 must be individually examined.
Arguments:
Arg1: 0000000000061941, The subtype of the BugCheck.
Arg2: ffffe4003a5df708
Arg3: 0000000000000009
Arg4: ffffcf005f52dd30

Debugging Details:
------------------

KEY_VALUES_STRING: 1

    Key  : Analysis.CPU.mSec
    Value: 296

    Key  : Analysis.Elapsed.mSec
    Value: 8239

    Key  : Analysis.IO.Other.Mb
    Value: 11

    Key  : Analysis.IO.Read.Mb
    Value: 0

    Key  : Analysis.IO.Write.Mb
    Value: 25

    Key  : Analysis.Init.CPU.mSec
    Value: 31

    Key  : Analysis.Init.Elapsed.mSec
    Value: 71280

    Key  : Analysis.Memory.CommitPeak.Mb
    Value: 89

    Key  : Bugcheck.Code.LegacyAPI
    Value: 0x1a

    Key  : Bugcheck.Code.TargetModel
    Value: 0x1a

    Key  : Dump.Attributes.AsUlong
    Value: 1808

    Key  : Dump.Attributes.DiagDataWrittenToHeader
    Value: 1

    Key  : Dump.Attributes.ErrorCode
    Value: 0

    Key  : Dump.Attributes.KernelGeneratedTriageDump
    Value: 1

    Key  : Dump.Attributes.LastLine
    Value: Dump completed successfully.

    Key  : Dump.Attributes.ProgressPercentage
    Value: 0

    Key  : Failure.Bucket
    Value: 0x1a_61941_PAGE_TABLE_RESERVED_BITS_SET_IMAGE_hardware_ram

    Key  : Failure.Hash
    Value: {c6e5c6cf-692e-7852-5dc5-b74944540fc0}

    Key  : Hypervisor.Enlightenments.ValueHex
    Value: 1417df84

    Key  : Hypervisor.Flags.AnyHypervisorPresent
    Value: 1

    Key  : Hypervisor.Flags.ApicEnlightened
    Value: 0

    Key  : Hypervisor.Flags.ApicVirtualizationAvailable
    Value: 1

    Key  : Hypervisor.Flags.AsyncMemoryHint
    Value: 0

    Key  : Hypervisor.Flags.CoreSchedulerRequested
    Value: 0

    Key  : Hypervisor.Flags.CpuManager
    Value: 1

    Key  : Hypervisor.Flags.DeprecateAutoEoi
    Value: 1

    Key  : Hypervisor.Flags.DynamicCpuDisabled
    Value: 1

    Key  : Hypervisor.Flags.Epf
    Value: 0

    Key  : Hypervisor.Flags.ExtendedProcessorMasks
    Value: 1

    Key  : Hypervisor.Flags.HardwareMbecAvailable
    Value: 1

    Key  : Hypervisor.Flags.MaxBankNumber
    Value: 0

    Key  : Hypervisor.Flags.MemoryZeroingControl
    Value: 0

    Key  : Hypervisor.Flags.NoExtendedRangeFlush
    Value: 0

    Key  : Hypervisor.Flags.NoNonArchCoreSharing
    Value: 1

    Key  : Hypervisor.Flags.Phase0InitDone
    Value: 1

    Key  : Hypervisor.Flags.PowerSchedulerQos
    Value: 0

    Key  : Hypervisor.Flags.RootScheduler
    Value: 0

    Key  : Hypervisor.Flags.SynicAvailable
    Value: 1

    Key  : Hypervisor.Flags.UseQpcBias
    Value: 0

    Key  : Hypervisor.Flags.Value
    Value: 21631230

    Key  : Hypervisor.Flags.ValueHex
    Value: 14a10fe

    Key  : Hypervisor.Flags.VpAssistPage
    Value: 1

    Key  : Hypervisor.Flags.VsmAvailable
    Value: 1

    Key  : Hypervisor.RootFlags.AccessStats
    Value: 1

    Key  : Hypervisor.RootFlags.CrashdumpEnlightened
    Value: 1

    Key  : Hypervisor.RootFlags.CreateVirtualProcessor
    Value: 1

    Key  : Hypervisor.RootFlags.DisableHyperthreading
    Value: 0

    Key  : Hypervisor.RootFlags.HostTimelineSync
    Value: 1

    Key  : Hypervisor.RootFlags.HypervisorDebuggingEnabled
    Value: 0

    Key  : Hypervisor.RootFlags.IsHyperV
    Value: 1

    Key  : Hypervisor.RootFlags.LivedumpEnlightened
    Value: 1

    Key  : Hypervisor.RootFlags.MapDeviceInterrupt
    Value: 1

    Key  : Hypervisor.RootFlags.MceEnlightened
    Value: 1

    Key  : Hypervisor.RootFlags.Nested
    Value: 0

    Key  : Hypervisor.RootFlags.StartLogicalProcessor
    Value: 1

    Key  : Hypervisor.RootFlags.Value
    Value: 1015

    Key  : Hypervisor.RootFlags.ValueHex
    Value: 3f7

BUGCHECK_CODE:  1a

BUGCHECK_P1: 61941

BUGCHECK_P2: ffffe4003a5df708

BUGCHECK_P3: 9

BUGCHECK_P4: ffffcf005f52dd30

FILE_IN_CAB:  062224-7093-01.dmp

TAG_NOT_DEFINED_202b:  *** Unknown TAG in analysis list 202b

DUMP_FILE_ATTRIBUTES: 0x1808
  Kernel Generated Triage Dump

BLACKBOXBSD: 1 (!blackboxbsd)

BLACKBOXNTFS: 1 (!blackboxntfs)

BLACKBOXPNP: 1 (!blackboxpnp)

BLACKBOXWINLOGON: 1

CUSTOMER_CRASH_COUNT:  1

PROCESS_NAME:  cmd.exe

STACK_TEXT:
ffffcf00`5f52dc08 fffff802`36043e16     : 00000000`0000001a 00000000`00061941 ffffe400`3a5df708 00000000`00000009 : nt!KeBugCheckEx
ffffcf00`5f52dc10 fffff802`3602b47e     : 00000000`00000000 00000000`00000014 00000000`00000000 fffff802`3601c511 : nt!MmAccessFault+0x1f46f6
ffffcf00`5f52dd30 fffff802`3649e02a     : 00000000`01000010 00000000`00040286 ffffcf00`5f52dee8 00000000`00000018 : nt!KiPageFault+0x37e
ffffcf00`5f52dec0 fffff802`364a4174     : 00000000`0000014c ffffe400`3a45e640 ffffe400`3a3cc530 fffff802`35eaedd8 : nt!ObpCaptureHandleInformation+0x9a
ffffcf00`5f52def0 fffff802`365791b1     : fffff802`3649df90 ffffe400`3a45e658 00000000`00080000 ffffcf00`5f52e044 : nt!ExpSnapShotHandleTables+0x132
ffffcf00`5f52df80 fffff802`365f4061     : ffffcf00`5f52e044 00000000`0002bf40 00000000`00080000 ffffcf00`5f52ea78 : nt!ObGetHandleInformation+0x39
ffffcf00`5f52dfc0 fffff802`364b8637     : ffff948c`31ed0010 00000000`00000000 ffffbf00`b2955010 ffff948c`3385cb20 : nt!ExpGetHandleInformation+0x5d
ffffcf00`5f52e000 fffff802`362dfebd     : 00000000`0000045a ffffcf00`5f52e8f1 00000000`00015c20 00000000`00080010 : nt!ExpQuerySystemInformation+0x1d8717
ffffcf00`5f52e830 fffff802`3602f805     : ffffbf00`00000000 00000000`00001001 ffff948c`31ed0000 fffff802`35e2b564 : nt!NtQuerySystemInformation+0x5d
ffffcf00`5f52e870 fffff802`3601fd30     : fffff802`7d65439b ffff948c`31ed0010 00000000`01000000 fffff802`36016c10 : nt!KiSystemServiceCopyEnd+0x25
ffffcf00`5f52ea08 fffff802`7d65439b     : ffff948c`31ed0010 00000000`01000000 fffff802`36016c10 ffff948c`4b7e5af8 : nt!KiServiceLinkage
ffffcf00`5f52ea10 ffff948c`31ed0010     : 00000000`01000000 fffff802`36016c10 ffff948c`4b7e5af8 00000000`0eacef59 : EasyAntiCheat+0xc5439b
ffffcf00`5f52ea18 00000000`01000000     : fffff802`36016c10 ffff948c`4b7e5af8 00000000`0eacef59 fffff802`36016c10 : 0xffff948c`31ed0010
ffffcf00`5f52ea20 fffff802`36016c0f     : ffff948c`4b7e5af8 00000000`0eacef59 fffff802`36016c10 ffff948c`4fef8301 : 0x1000000
ffffcf00`5f52ea28 ffff948c`4b7e5af8     : 00000000`0eacef59 fffff802`36016c10 ffff948c`4fef8301 36594b58`29a7e751 : nt!ZwQueryDirectoryFile+0x1f
ffffcf00`5f52ea30 00000000`0eacef59     : fffff802`36016c10 ffff948c`4fef8301 36594b58`29a7e751 00000000`00000001 : 0xffff948c`4b7e5af8
ffffcf00`5f52ea38 fffff802`36016c0f     : ffff948c`4fef8301 36594b58`29a7e751 00000000`00000001 ffff948c`51925100 : 0xeacef59
ffffcf00`5f52ea40 ffff948c`4fef8301     : 36594b58`29a7e751 00000000`00000001 ffff948c`51925100 00000000`000072b4 : nt!ZwQueryDirectoryFile+0x1f
ffffcf00`5f52ea48 36594b58`29a7e751     : 00000000`00000001 ffff948c`51925100 00000000`000072b4 fffff802`7ca742d8 : 0xffff948c`4fef8301
ffffcf00`5f52ea50 00000000`00000001     : ffff948c`51925100 00000000`000072b4 fffff802`7ca742d8 ffff948c`51a79080 : 0x36594b58`29a7e751
ffffcf00`5f52ea58 ffff948c`51925100     : 00000000`000072b4 fffff802`7ca742d8 ffff948c`51a79080 ffffcf00`5f52eb10 : 0x1
ffffcf00`5f52ea60 00000000`000072b4     : fffff802`7ca742d8 ffff948c`51a79080 ffffcf00`5f52eb10 00000000`000072c8 : 0xffff948c`51925100
ffffcf00`5f52ea68 fffff802`7ca742d8     : ffff948c`51a79080 ffffcf00`5f52eb10 00000000`000072c8 00000000`000072c8 : 0x72b4
ffffcf00`5f52ea70 ffff948c`51a79080     : ffffcf00`5f52eb10 00000000`000072c8 00000000`000072c8 ffff948c`51925100 : EasyAntiCheat+0x742d8
ffffcf00`5f52ea78 ffffcf00`5f52eb10     : 00000000`000072c8 00000000`000072c8 ffff948c`51925100 fffff802`7d5fa767 : 0xffff948c`51a79080
ffffcf00`5f52ea80 00000000`000072c8     : 00000000`000072c8 ffff948c`51925100 fffff802`7d5fa767 ffff948c`51a79080 : 0xffffcf00`5f52eb10
ffffcf00`5f52ea88 00000000`000072c8     : ffff948c`51925100 fffff802`7d5fa767 ffff948c`51a79080 ffffcf00`5f52eb10 : 0x72c8
ffffcf00`5f52ea90 ffff948c`51925100     : fffff802`7d5fa767 ffff948c`51a79080 ffffcf00`5f52eb10 00000000`000072c8 : 0x72c8
ffffcf00`5f52ea98 fffff802`7d5fa767     : ffff948c`51a79080 ffffcf00`5f52eb10 00000000`000072c8 00000000`000072b4 : 0xffff948c`51925100
ffffcf00`5f52eaa0 ffff948c`51a79080     : ffffcf00`5f52eb10 00000000`000072c8 00000000`000072b4 ffff948c`4d231a20 : EasyAntiCheat+0xbfa767
ffffcf00`5f52eaa8 ffffcf00`5f52eb10     : 00000000`000072c8 00000000`000072b4 ffff948c`4d231a20 fffff802`6070bc12 : 0xffff948c`51a79080
ffffcf00`5f52eab0 00000000`000072c8     : 00000000`000072b4 ffff948c`4d231a20 fffff802`6070bc12 ffff948c`3535c0c0 : 0xffffcf00`5f52eb10
ffffcf00`5f52eab8 00000000`000072b4     : ffff948c`4d231a20 fffff802`6070bc12 ffff948c`3535c0c0 ffff948c`3535c0c0 : 0x72c8
ffffcf00`5f52eac0 ffff948c`4d231a20     : fffff802`6070bc12 ffff948c`3535c0c0 ffff948c`3535c0c0 00000000`0eacb8fe : 0x72b4
ffffcf00`5f52eac8 fffff802`6070bc12     : ffff948c`3535c0c0 ffff948c`3535c0c0 00000000`0eacb8fe ffff948c`1f366da0 : 0xffff948c`4d231a20
ffffcf00`5f52ead0 ffff948c`3535c0c0     : ffff948c`3535c0c0 00000000`0eacb8fe ffff948c`1f366da0 ffff948c`4d231a20 : MpKslDrv+0xbc12
ffffcf00`5f52ead8 ffff948c`3535c0c0     : 00000000`0eacb8fe ffff948c`1f366da0 ffff948c`4d231a20 fffff802`6070bffd : 0xffff948c`3535c0c0
ffffcf00`5f52eae0 00000000`0eacb8fe     : ffff948c`1f366da0 ffff948c`4d231a20 fffff802`6070bffd ffff1b4c`67d88bc4 : 0xffff948c`3535c0c0
ffffcf00`5f52eae8 ffff948c`1f366da0     : ffff948c`4d231a20 fffff802`6070bffd ffff1b4c`67d88bc4 fffff802`39a0d9c0 : 0xeacb8fe
ffffcf00`5f52eaf0 ffff948c`4d231a20     : fffff802`6070bffd ffff1b4c`67d88bc4 fffff802`39a0d9c0 00000000`0000000e : 0xffff948c`1f366da0
ffffcf00`5f52eaf8 fffff802`6070bffd     : ffff1b4c`67d88bc4 fffff802`39a0d9c0 00000000`0000000e ffff948c`51925140 : 0xffff948c`4d231a20
ffffcf00`5f52eb00 ffff1b4c`67d88bc4     : fffff802`39a0d9c0 00000000`0000000e ffff948c`51925140 00000000`00000000 : MpKslDrv+0xbffd
ffffcf00`5f52eb08 fffff802`39a0d9c0     : 00000000`0000000e ffff948c`51925140 00000000`00000000 fffff802`3690c130 : 0xffff1b4c`67d88bc4
ffffcf00`5f52eb10 fffff802`362fa30a     : ffffcf00`5f52eb80 00000000`00000001 ffff948c`3535c0c0 00000000`00000000 : iorate!IoRateProcessCreateNotify+0x40
ffffcf00`5f52eb40 fffff802`362fae03     : 00000000`00000000 00000000`00000000 00000000`00000001 ffff948c`4c82d2f0 : nt!PspCallProcessNotifyRoutines+0x246
ffffcf00`5f52ec10 fffff802`363772ce     : ffff948c`33eb4080 ffff948c`3535c0c0 ffffcf00`5f52f3c0 ffffcf00`5f52f278 : nt!PspInsertThread+0x72f
ffffcf00`5f52ecf0 fffff802`3602f805     : 00000000`00000000 00000000`00e0e1c8 00000000`00e0e0f8 fffff802`363b3765 : nt!NtCreateUserProcess+0xa2e
ffffcf00`5f52f9b0 00007ff9`e7631974     : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : nt!KiSystemServiceCopyEnd+0x25
00000000`00e0de28 00000000`00000000     : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : 0x00007ff9`e7631974

MODULE_NAME: hardware

IMAGE_NAME:  hardware_ram

STACK_COMMAND:  .cxr; .ecxr ; kb

FAILURE_BUCKET_ID:  0x1a_61941_PAGE_TABLE_RESERVED_BITS_SET_IMAGE_hardware_ram

OSPLATFORM_TYPE:  x64

OSNAME:  Windows 10

FAILURE_ID_HASH:  {c6e5c6cf-692e-7852-5dc5-b74944540fc0}

Followup:     MachineOwner
---------

*** Personal information deleted by the moderator. Please see the Microsoft Community Frequently Asked Questions for more information on how you can protect your privacy. ***

Locked Question. This question was migrated from the Microsoft Support Community. You can vote on whether it's helpful, but you can't add comments or replies or follow the question.

0 comments

Answer accepted by question author

Anonymous

Hello,

Thanks for the clarification.

Please feel free to let me know if you have any further updates, thanks.

0 comments

4 additional answers

Answer 1

Anonymous

Hello,

I have not heard back from you in 96 hours. If you need further help at this point, please create a new thread to discuss those concerns.

Best Regards,

Sheng G. - MSFT | Microsoft Community Support Specialist

0 comments

Answer 2

Anonymous

Hello,

I have not received the message from you yet. If there is anything more that I can do for you or if anything is unclear, please do not hesitate to let me know.

Best Regards,

Sheng G. - MSFT | Microsoft Community Support Specialist

0 comments

Answer 3

Hello Sheng,

I greatly appreciate your informative response.

Once you mentioned Easy Anti-Cheat I knew it's a high possibility that this is causing the problem as it did not happen before installing a game using this software.

Looking at search results I can see people have similar faults. I will however run a MemTest to confirm my memory is good.

Thank you kindly.

Answer 4

Hello Ashley Ledbetter,

Thanks for reaching out here in the Microsoft Answers Community.

Based on the dump, it seems that there is a faulty memory stick, which also triggered Easy Anti-cheat.

Since you have already disabled the over-clocking and under-voltage based on the description, please try uninstalling Easy Anti-cheat and the games that use it, and see whether the issue persists, as such anti-cheat drivers often have access to raw memory.

If there are new dumps, please upload the dump files to a file-sharing website (like OneDrive), so we can analyze them further.

We look forward to your response.

Best Regards,

Sheng G. - MSFT | Microsoft Community Support Specialist
